Details

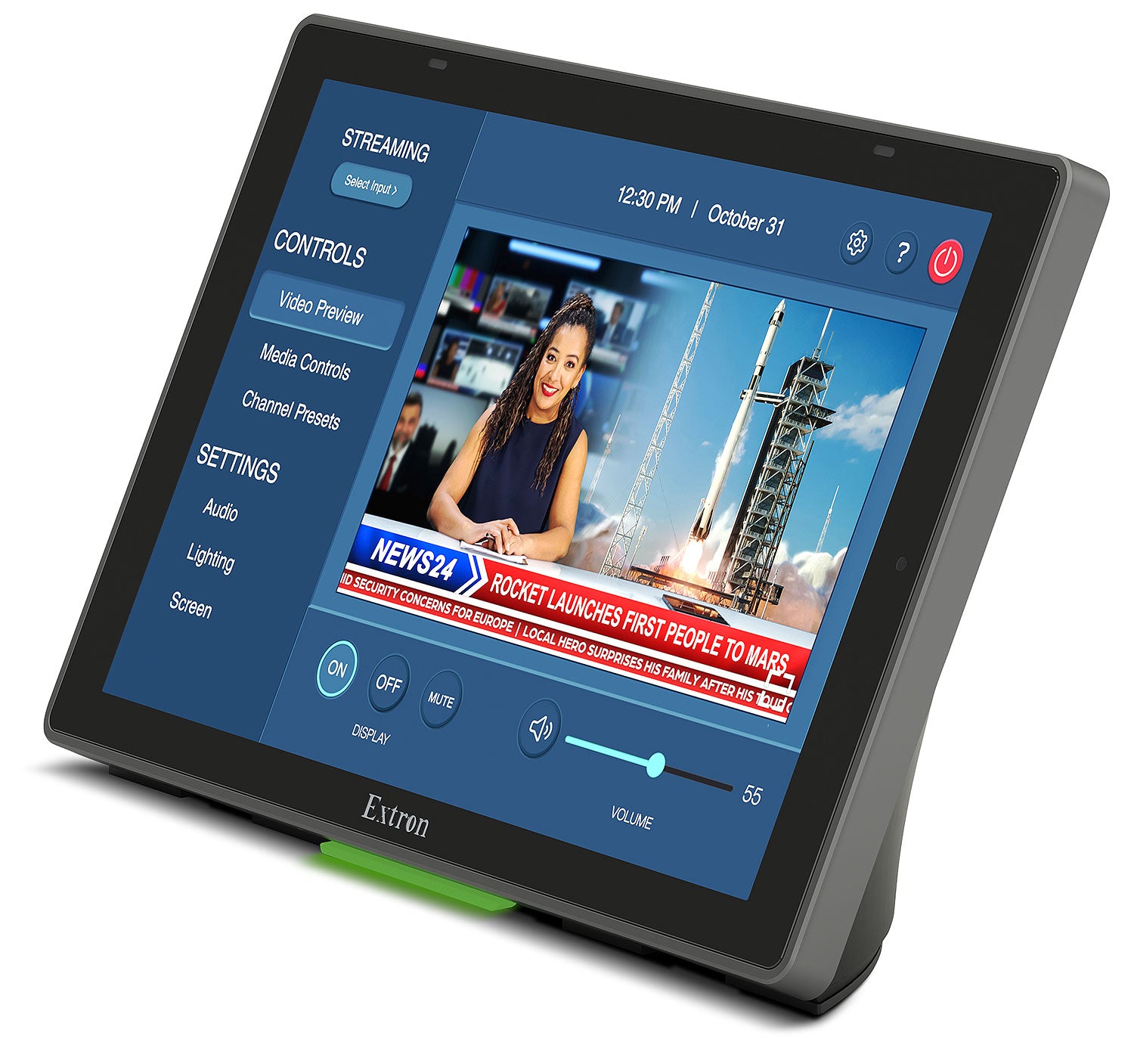

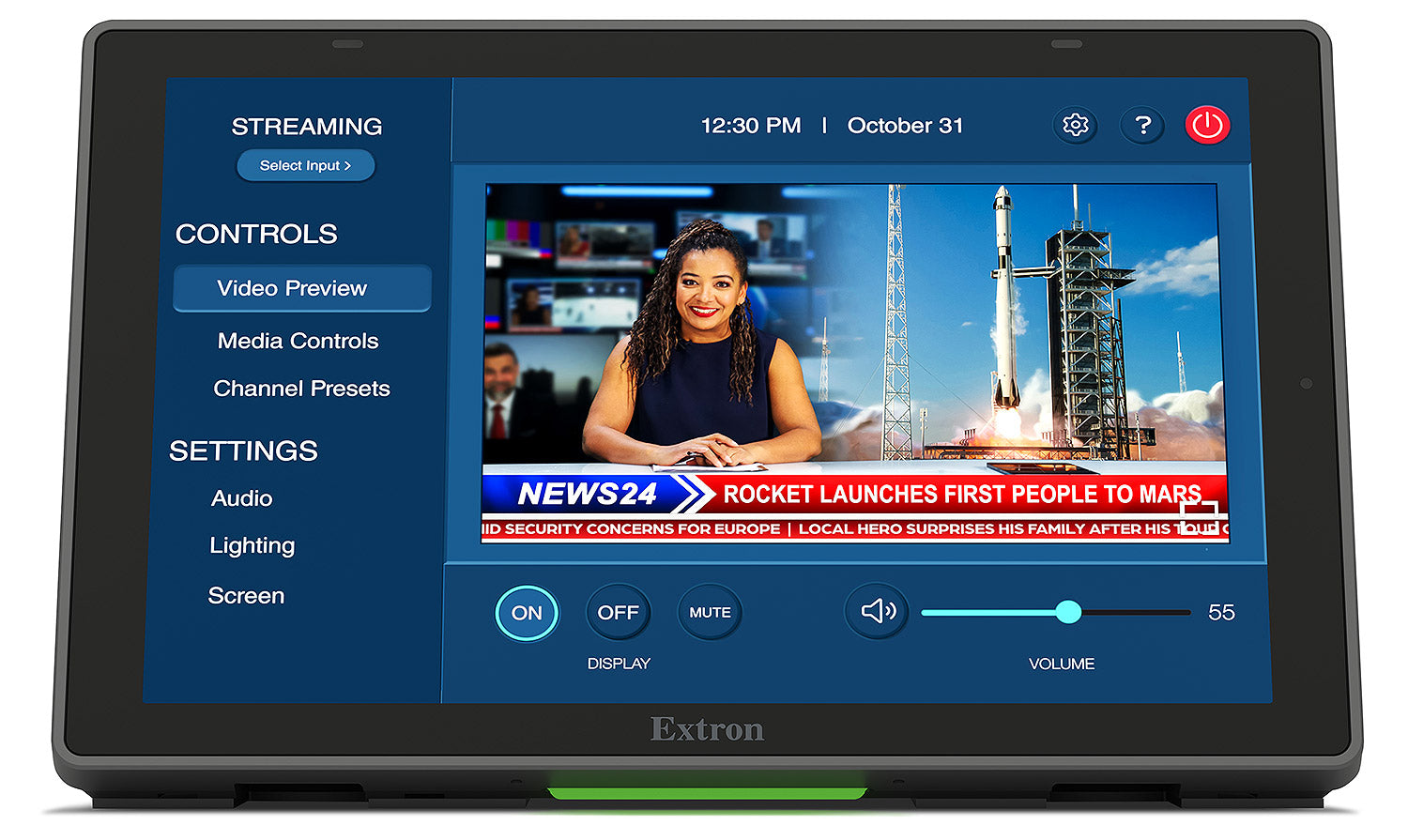

Extron TLP Pro 835T (part number 60-1997-02) — a black 8" PoE tabletop touchpanel for Extron control systems.

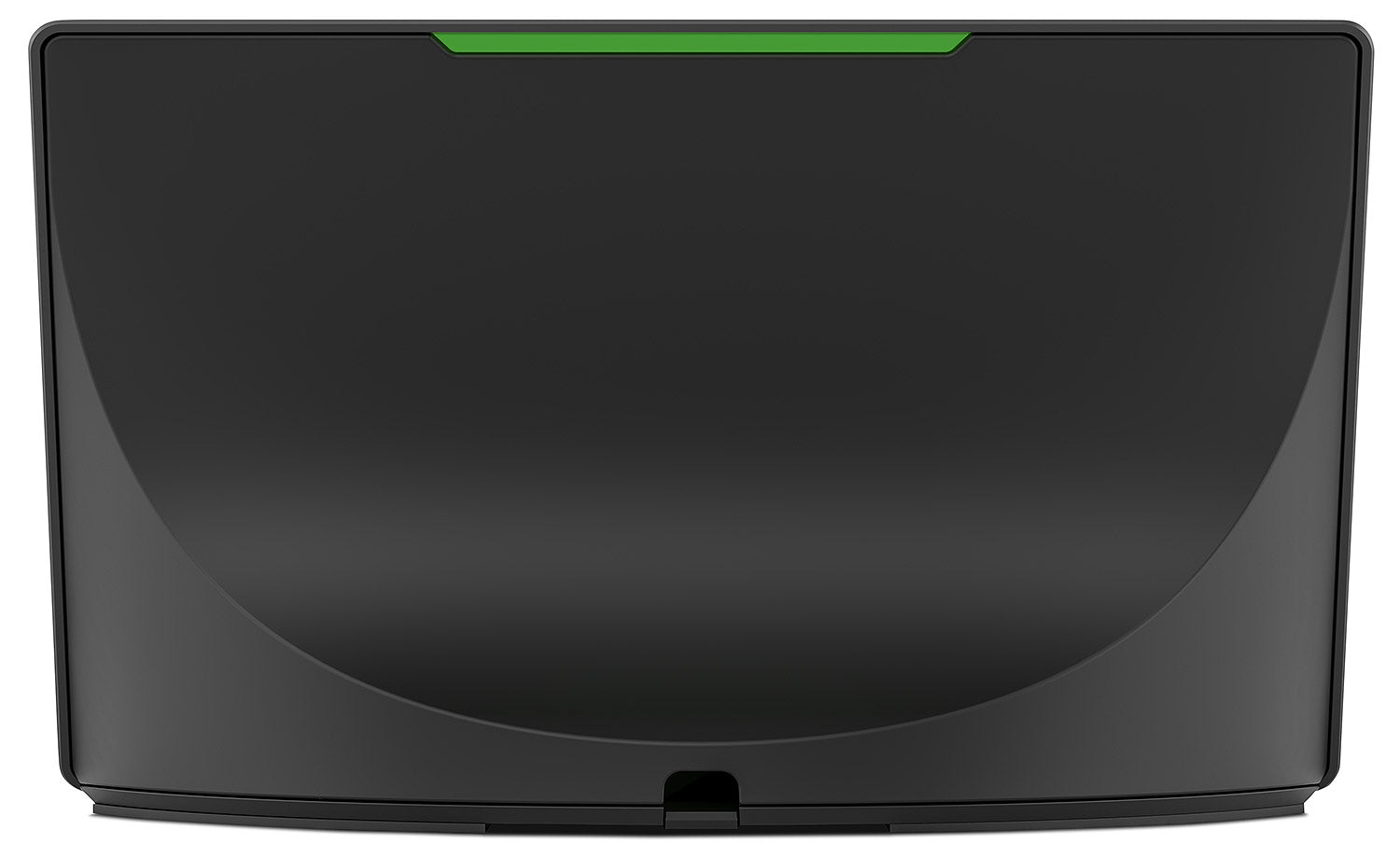

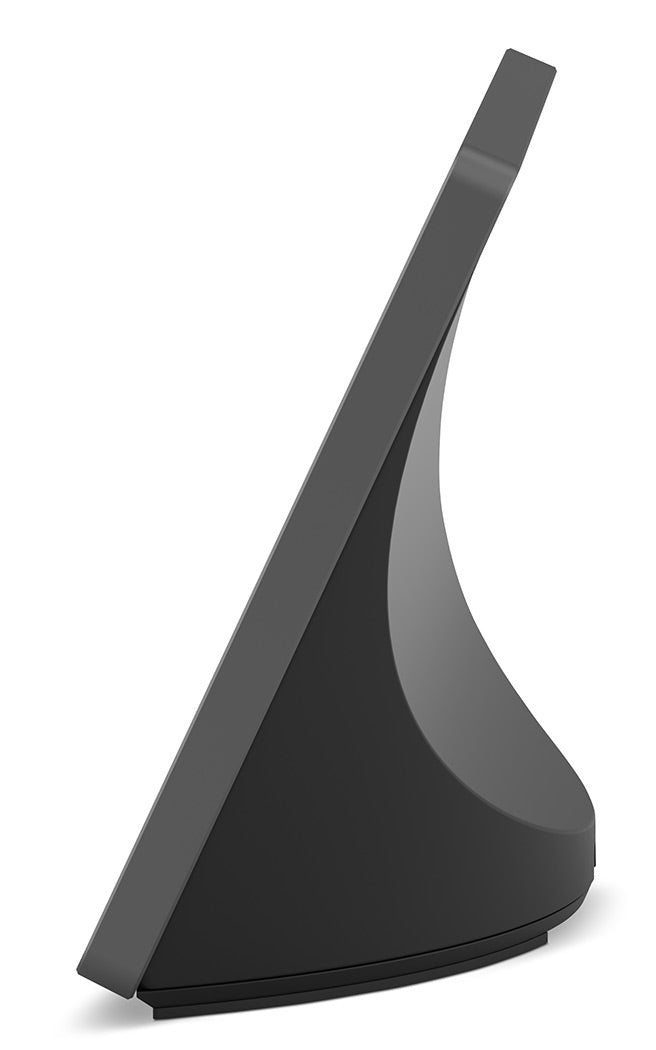

This self-standing tabletop panel pairs an IPS display with optically bonded Gorilla Glass, native H.264 streaming preview, and multi-color status indicators in a single tabletop unit. Onboard 4 GB DDR4 RAM and 64 GB eMMC storage runs the interface, and dual stereo speakers handle audio and button feedback. Power, network data, and control all ride a single Ethernet cable via PoE, and a weighted, tiltable base lets the panel stand on any suitable table or desktop.

Key Capabilities

8" IPS touchscreen at 1280x800 with Gorilla Glass, 420 nits, 1200:1 contrast
Native H.264 streaming video preview from an IP camera or encoder
4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
Single-cable PoE (802.3af Class 3) for power and Ethernet control
USB-C port for panel-side peripherals
3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

The self-standing tabletop form suits conference rooms, boardrooms, classrooms, and lecture halls where a control point with live video preview needs to sit on the table rather than a wall.

Specifications at a Glance

8" WXGA IPS touchscreen, 24-bit color
PoE powered, 2 stereo speakers
4.89" H x 7.92" W x 2.80" D enclosure
Black plastic tabletop finish

Also referenced as Extron TLPPRO835T, TLP-Pro-835T, part number 60199702.

Specifications

Part Number: 60-1997-02

Manufacturer: Extron

Model: TLP Pro 835T

Condition: New

Finish: Black

Screen Type: IPS TFT active matrix color LCD with optically bonded Gorilla Glass, 8.0" (20.3 cm) diagonal

Resolution: 1280x800 (WXGA), 188.7 PPI, 24-bit color (16.7 million colors)

Display Performance: 420 nits brightness, 1200:1 contrast, LED backlight with auto brightness control

Viewing Angle: ±80° horizontal, ±80° vertical

Touch Screen: Projected capacitive

Aspect Ratio: 16:10

Video Input: Native H.264 streaming video preview

Memory: 4 GB DDR4 RAM, 64 GB eMMC storage (32 GB usable for projects)

Ethernet: 1 female RJ-45 connector, 10/100/1000Base-T half/full duplex with autodetect

Network Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

Default IP Settings: IP 192.168.254.251, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off

USB Port: 1 high-speed USB 2.0, 1 USB-C receptacle, 5 VDC/500 mA auxiliary output

USB Standards: USB 2.0, USB 1.1, USB 1.0

Sensors: Motion sensor (on/off), light sensor (auto/manual)

Configuration Software: Global Configurator Plus and Professional, GUI Designer

Programming Software: ControlScript Programming

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Speaker Output: 2 stereo

Audio Playback: WAV (Microsoft RIFF)/LPCM uncompressed, up to 192 kHz, mono or stereo

Power Input: PoE 802.3af, Class 3 (power supply not included)

Operating Environment: +32 to +104 °F (0 to +40 °C), 10-90% noncondensing

Storage Environment: -4 to +140 °F (-20 to +60 °C), 10-90% noncondensing

Cooling: Convection

Mounting: Set on or mount to tabletop

Enclosure: Plastic, 4.89" H x 7.92" W x 2.80" D

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Product Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

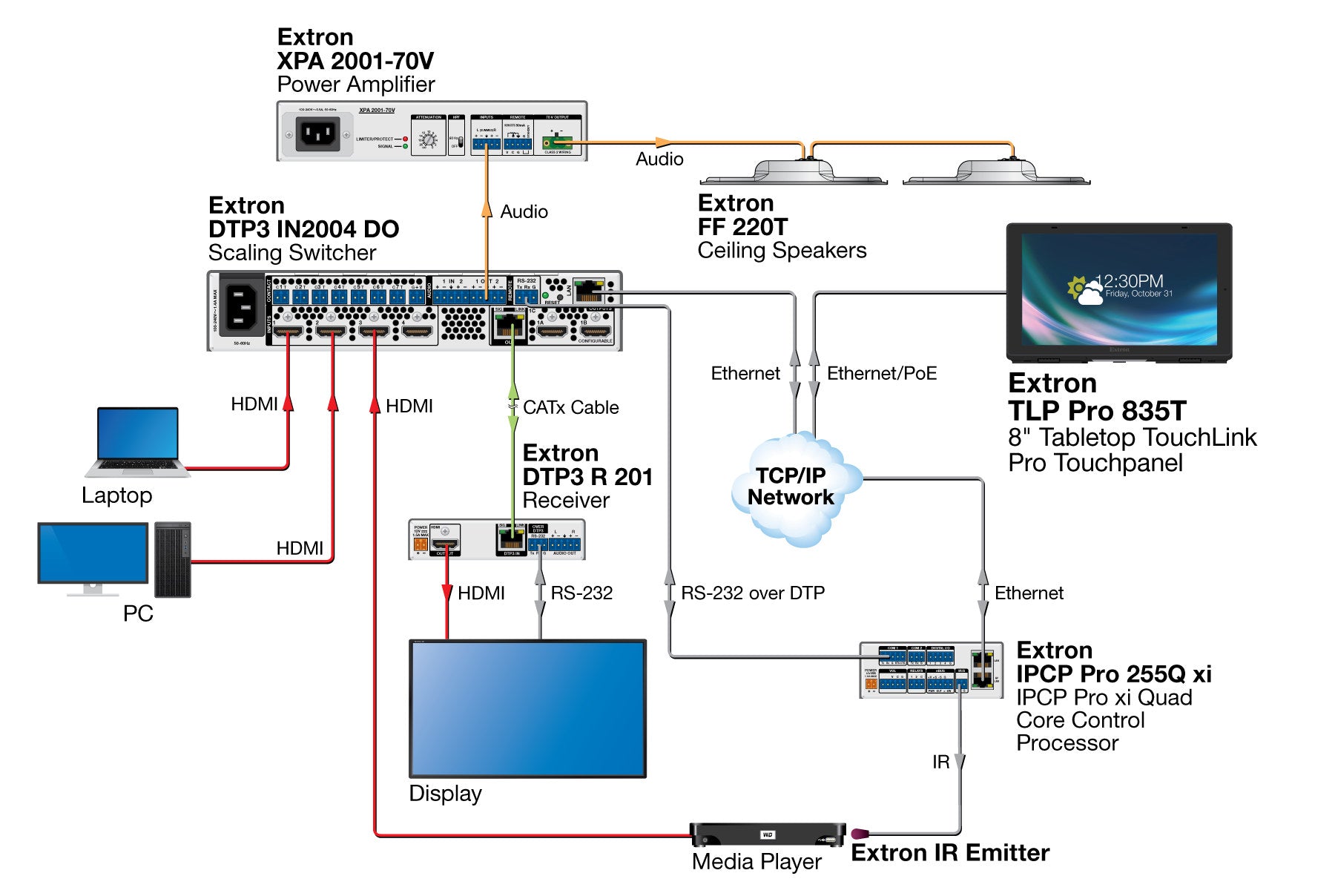

Diagram

Resources

Brochure | TLP Pro 835T 60-1997-02 | TLP Pro 835T

Manual | TLP Pro 835T 60-1997-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 835T 60-1997-02 | TLP Pro 535, 835, and 1035 Series User Guide

Manual | TLP Pro 835T 60-1997-02 | TLP Pro 535T, 835T, and 1035T Setup Guide

Specifications | TLP Pro 835T 60-1997-02 | TLP Pro 835T Series

Panel Drawing | TLP Pro 835T 60-1997-02 | TLP Pro 835T
