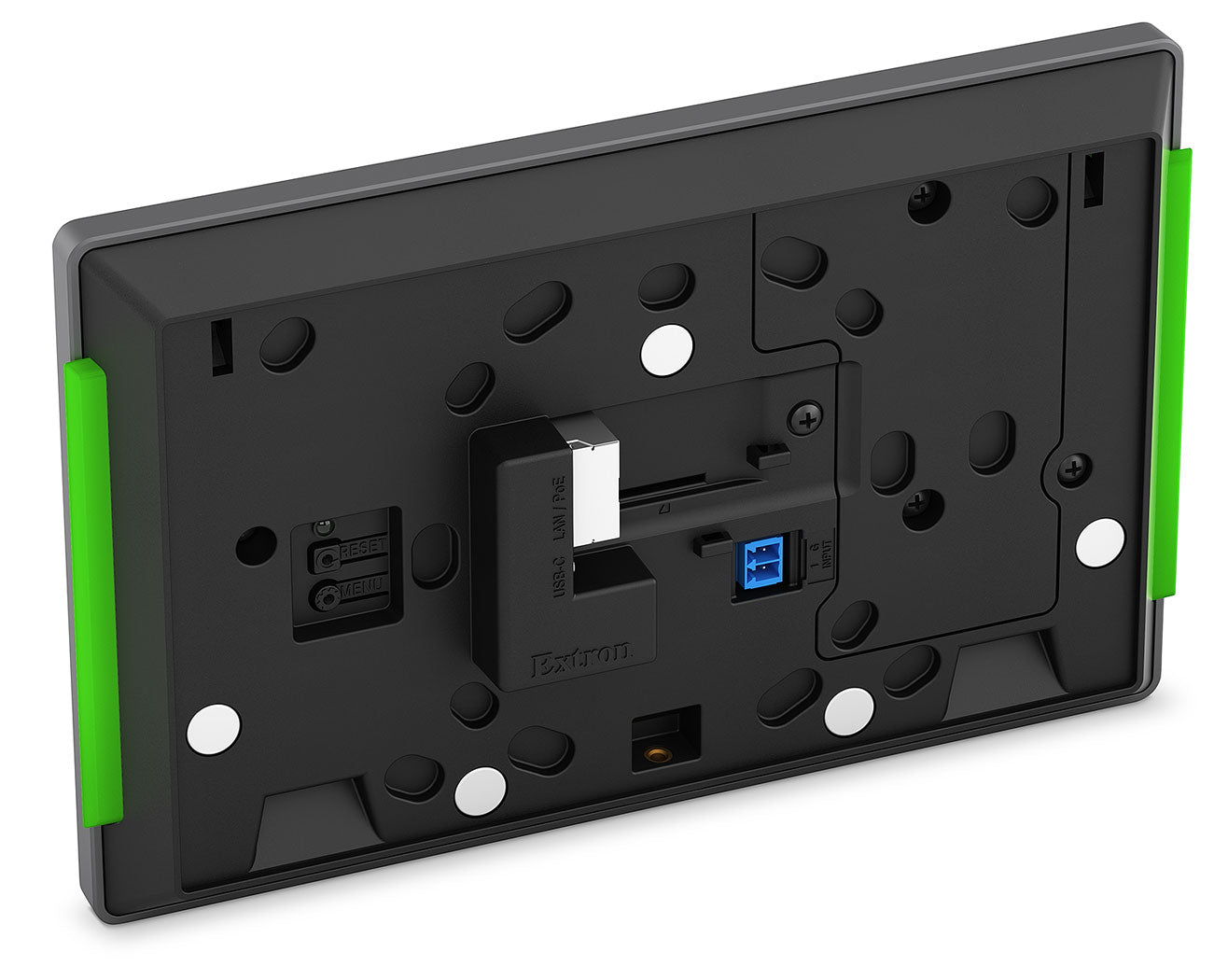

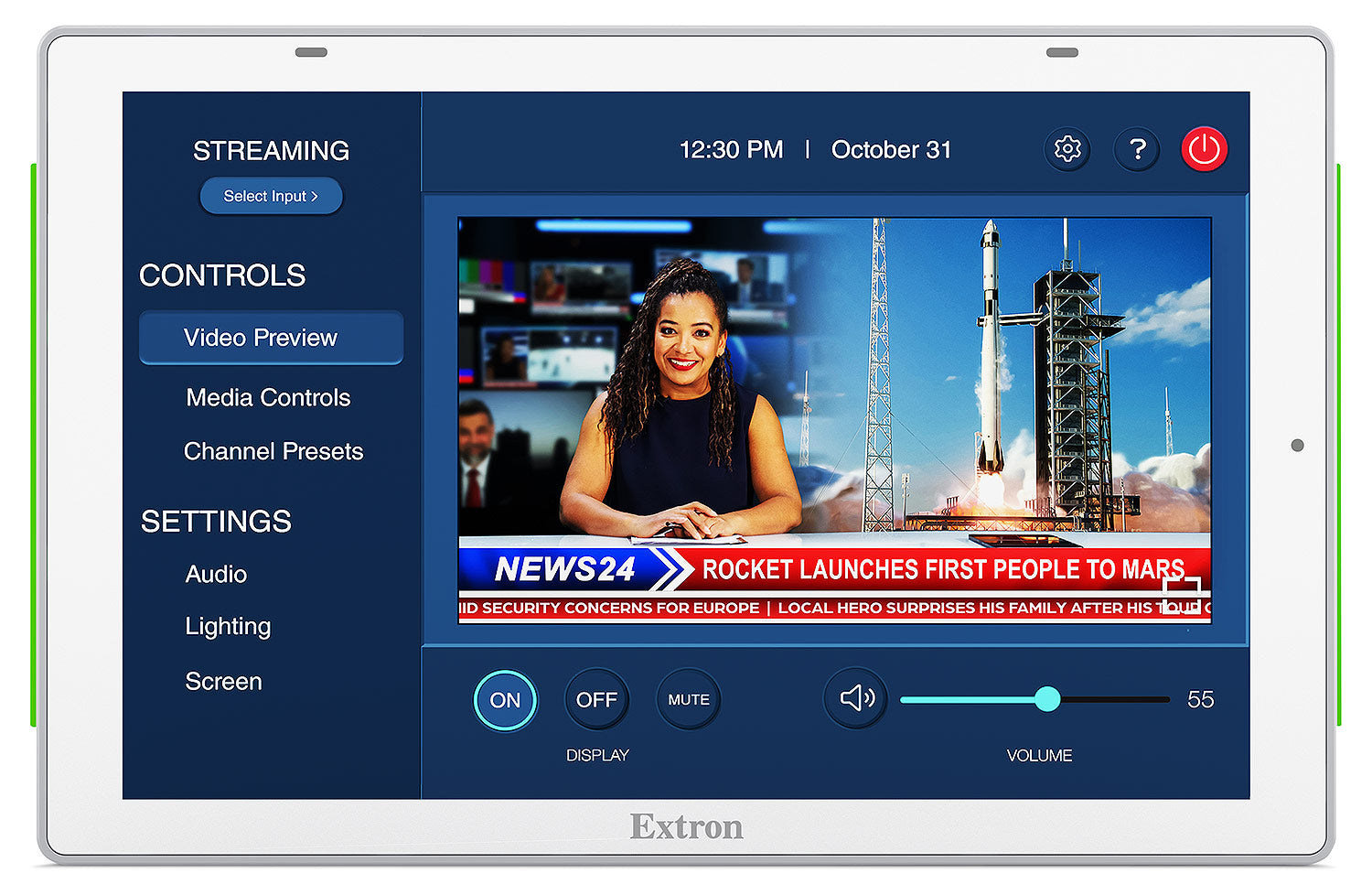

Extron TLP Pro 835M (part number 60-1996-03) — a white 8" PoE wall-mount touchpanel for Extron control systems.

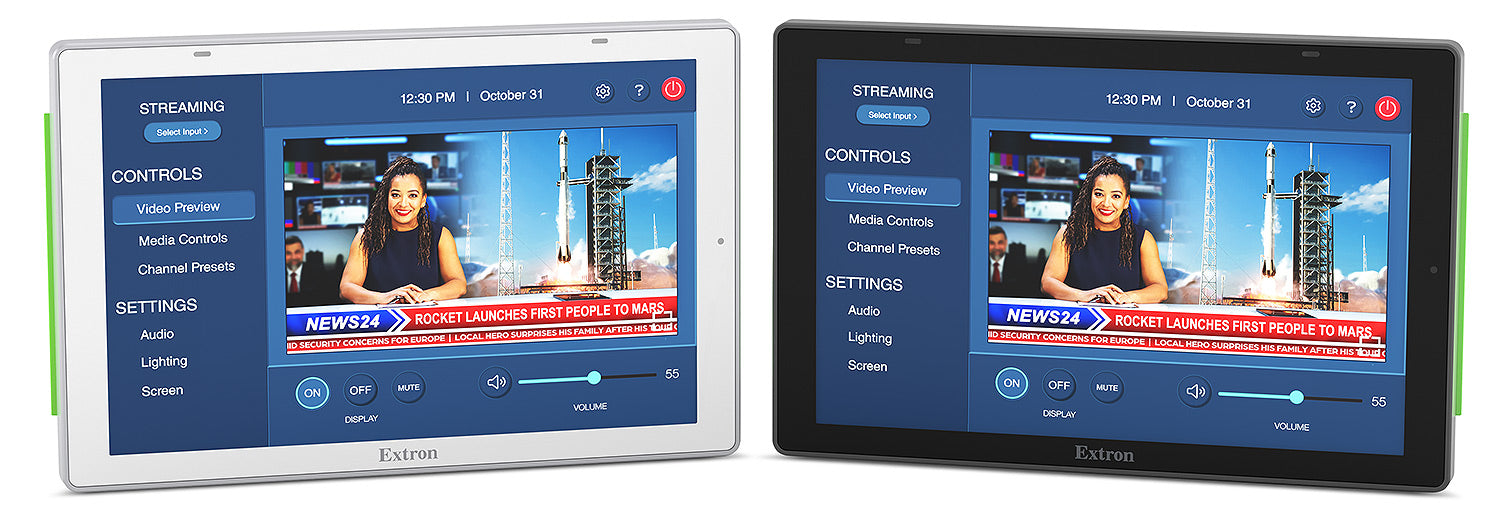

This white-finish panel shares the same IPS display with optically bonded Gorilla Glass as its black sibling, supporting both landscape and portrait orientation. Native H.264 support lets the panel preview live streaming video from an IP camera or encoder over the same single Ethernet cable that carries power and control data. Multi-color status LEDs give at-a-glance feedback on room state, and a LinkLicense plus TLCA 2 adapter can turn the panel into a standalone Pro xi Series controller when needed.

Key Capabilities

• 8" IPS touchscreen at 1280x800 with optically bonded Gorilla Glass
• Native H.264 streaming video preview from an IP camera or encoder
• Dual PoE support: 802.3af Class 3 or 802.3at Class 4
• 4 GB DDR4 RAM and 64 GB eMMC storage
• USB-C port plus a configurable digital input for local automation
• 3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

The low-profile white wall-mount enclosure fits bright conference rooms, boardrooms, and classrooms where a fixed control point with live video preview is needed on a wall, lectern, or glass surface.

Specifications at a Glance

• 8" 1280x800 IPS touchscreen, 24-bit color
• PoE powered, 2 stereo speakers
• 5.09" H x 8.00" W x 1.26" D enclosure
• White wall-mount finish

Also referenced as Extron TLPPRO835M, TLP-Pro-835M, part number 60199603.
