Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel 60-1996-02
Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel 60-1996-02
Extron TLP Pro 835M Wall Mount Touchpanel (Black)
- • Extron TLP Pro 835M 8 in PoE Wall Mount Touchpanel
- • 8 in IPS touchscreen, 1280x800, Gorilla Glass
- • Native H.264 preview, PoE 802.3af or 802.3at
- • Sales, replacement and exchange
- • Part# 60-1996-02 / 60199602
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron TLP Pro 835M (part number 60-1996-02) - a black 8" PoE wall-mount touchpanel for Extron control systems.

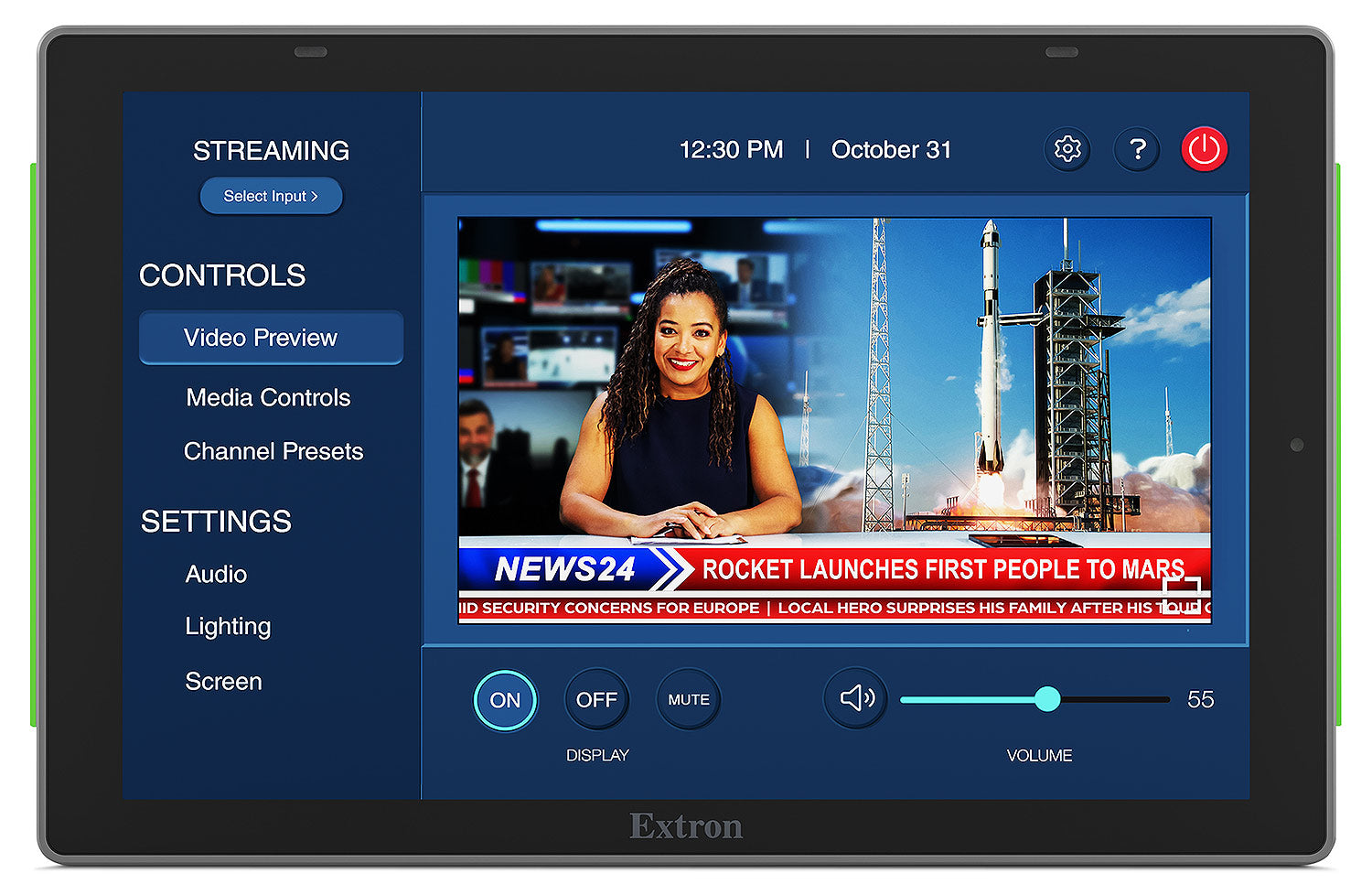

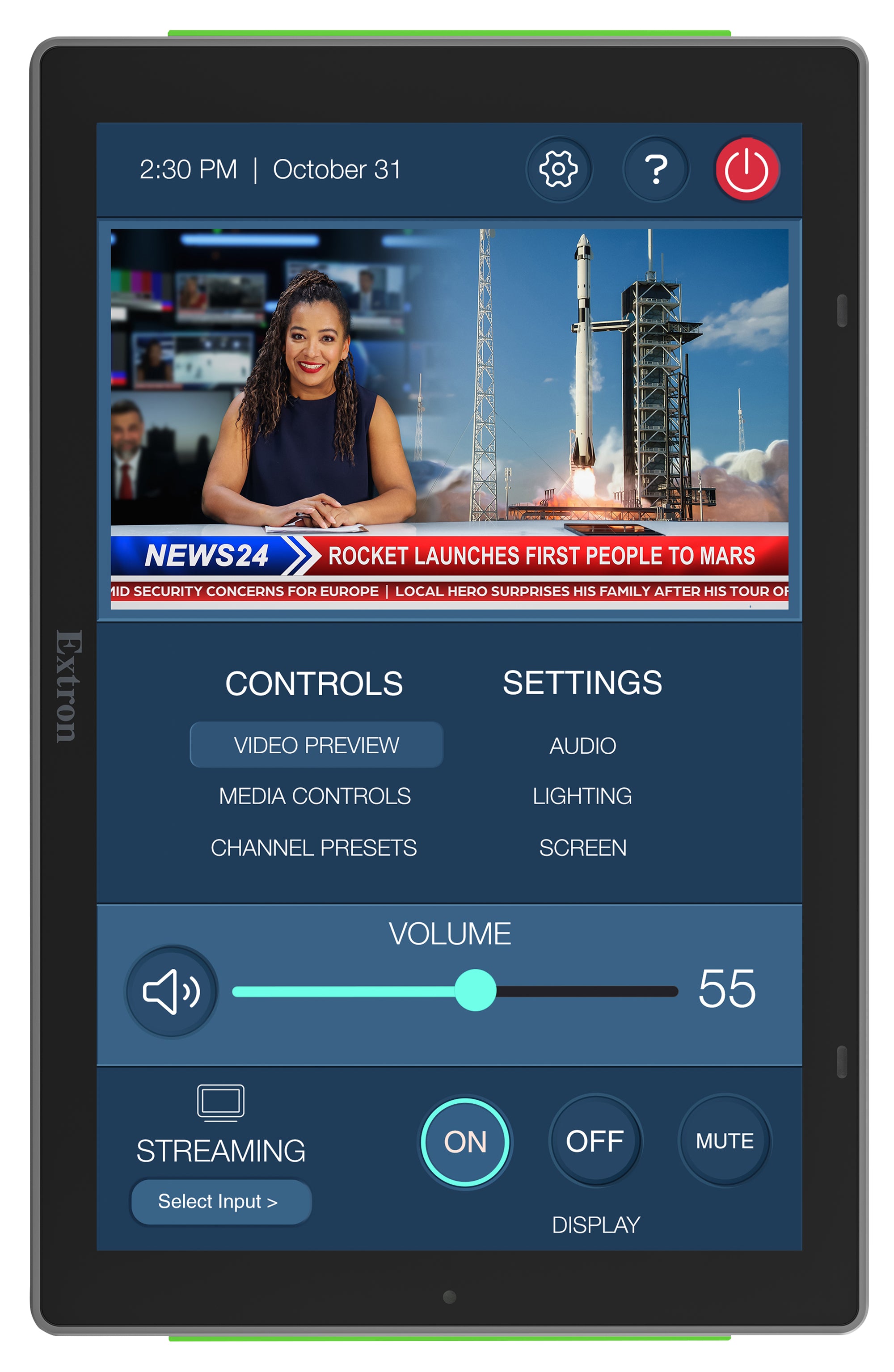

Extron builds this in-wall panel around an IPS display with optically bonded Gorilla Glass, giving installers a bright, wide-viewing-angle screen that supports both landscape and portrait orientation. Native H.264 support lets the panel preview live streaming video from an IP camera or encoder over the same single Ethernet cable that carries power and control data. Multi-color status LEDs give at-a-glance feedback on room state, and a LinkLicense plus TLCA 2 adapter can turn the panel into a standalone Pro xi Series controller when needed.
Key Capabilities
- 8" IPS touchscreen at 1280x800 with optically bonded Gorilla Glass
- Native H.264 streaming video preview from an IP camera or encoder
- Dual PoE support: 802.3af Class 3 or 802.3at Class 4
- 4 GB DDR4 RAM and 64 GB eMMC storage
- USB-C port plus a configurable digital input for local automation
- 3-year parts and labor warranty (1 year on display and overlay)
Where It Is Used
The low-profile wall-mount enclosure fits conference rooms, boardrooms, and classrooms where a fixed control point with live video preview is needed on a wall, lectern, or glass surface.
Specifications at a Glance
- 8" 1280x800 IPS touchscreen, 24-bit color
- PoE powered, 2 stereo speakers
- 5.09" H x 8.00" W x 1.26" D enclosure
- Black wall-mount finish
Frequently asked questions about the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel
Does Ampronix sell the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel?
Yes. Ampronix is an authorized Extron distributor and sells the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel (60-1996-02). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel?
Yes. Ampronix provides sales, replacement and exchange for the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel. Call Ampronix for a quote.
Is the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel listed under other names?
Yes. The Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel is also referenced as Extron TLPPRO835M, TLP-Pro-835M, part number 60199602.
What are the key features of the Extron TLP Pro 835M 8" PoE Wall Mount Touchpanel?
Key points: 8" IPS touchscreen at 1280x800 with optically bonded Gorilla Glass; Native H.264 streaming video preview from an IP camera or encoder; Dual PoE support: 802.3af Class 3 or 802.3at Class 4; 4 GB DDR4 RAM and 64 GB eMMC storage. Call Ampronix to confirm details for your application.
Also referenced as Extron TLPPRO835M, TLP-Pro-835M, part number 60199602.
Related: Extron products, Video Solutions.
Specifications
Specifications

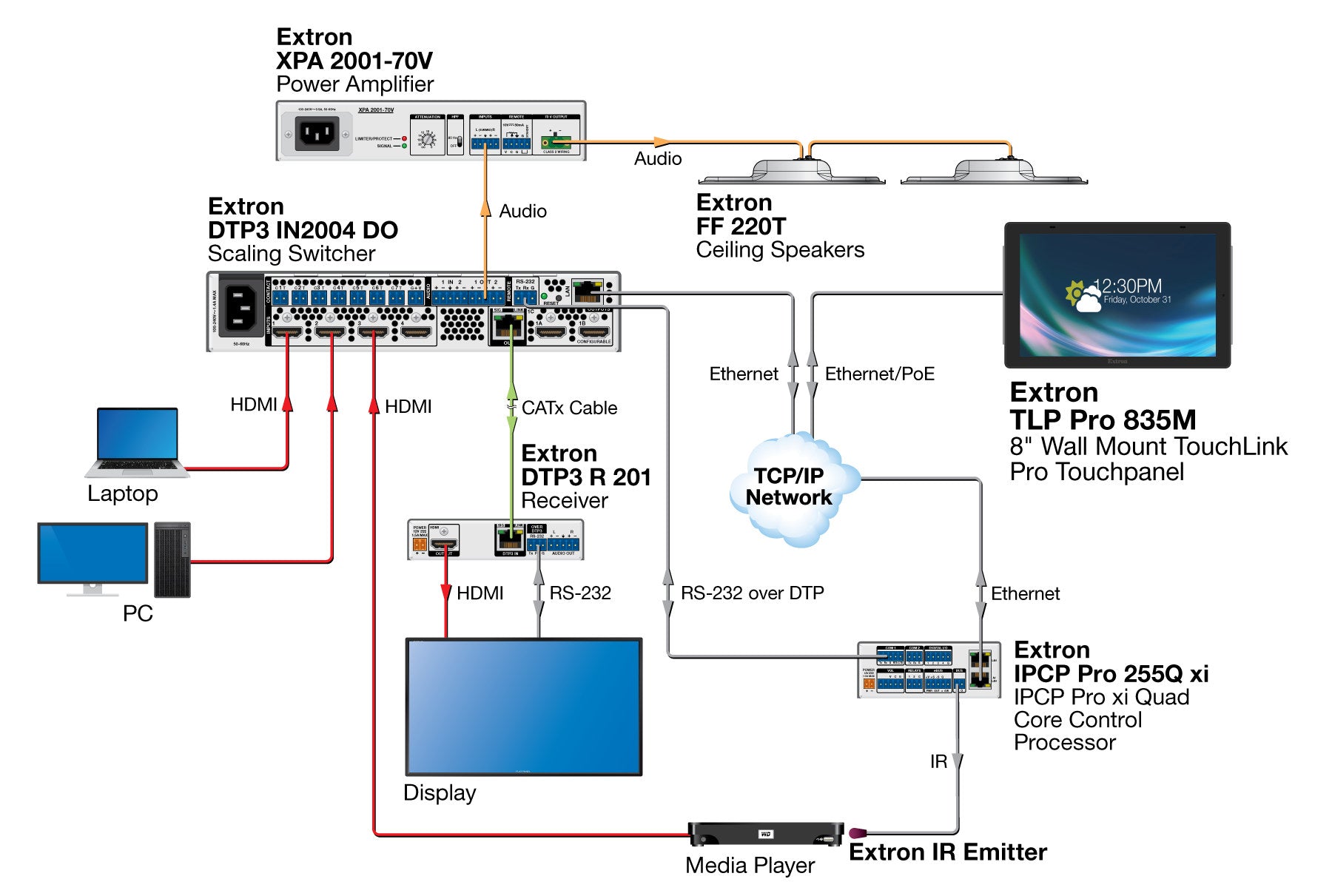

Diagram
