Details

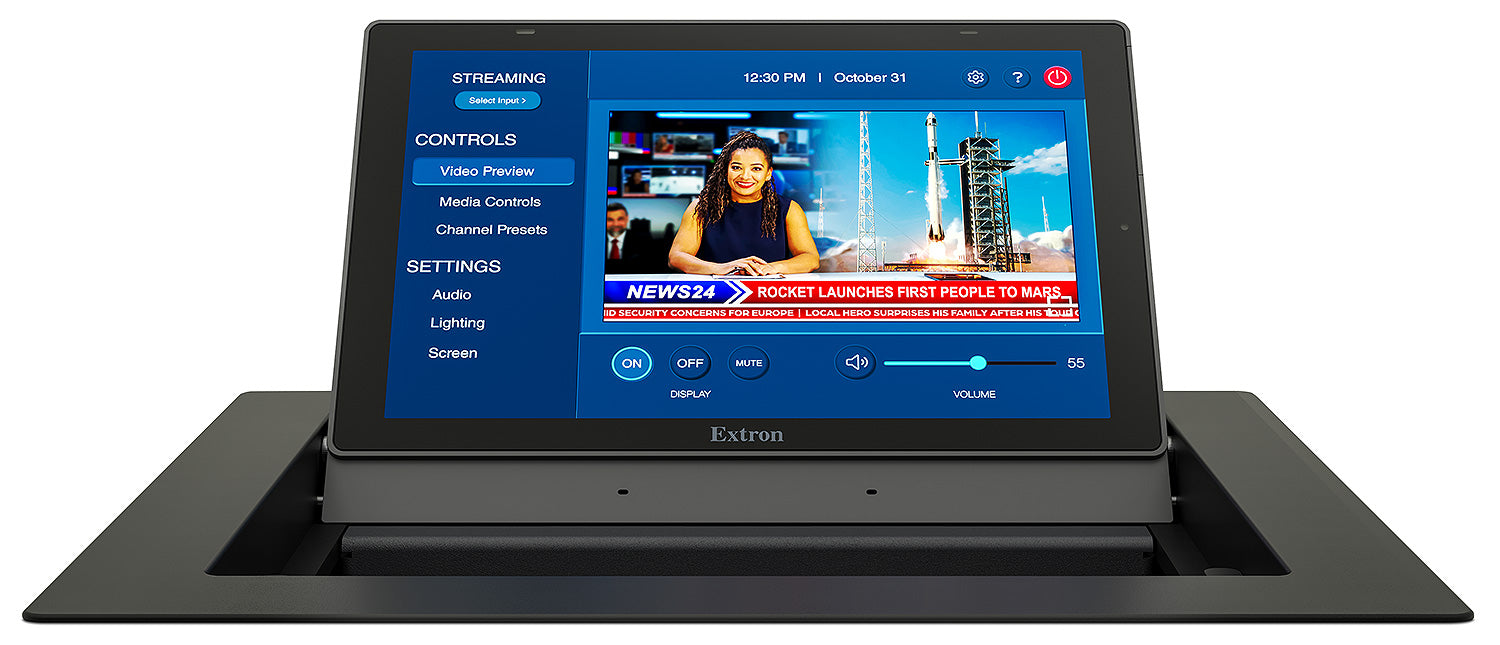

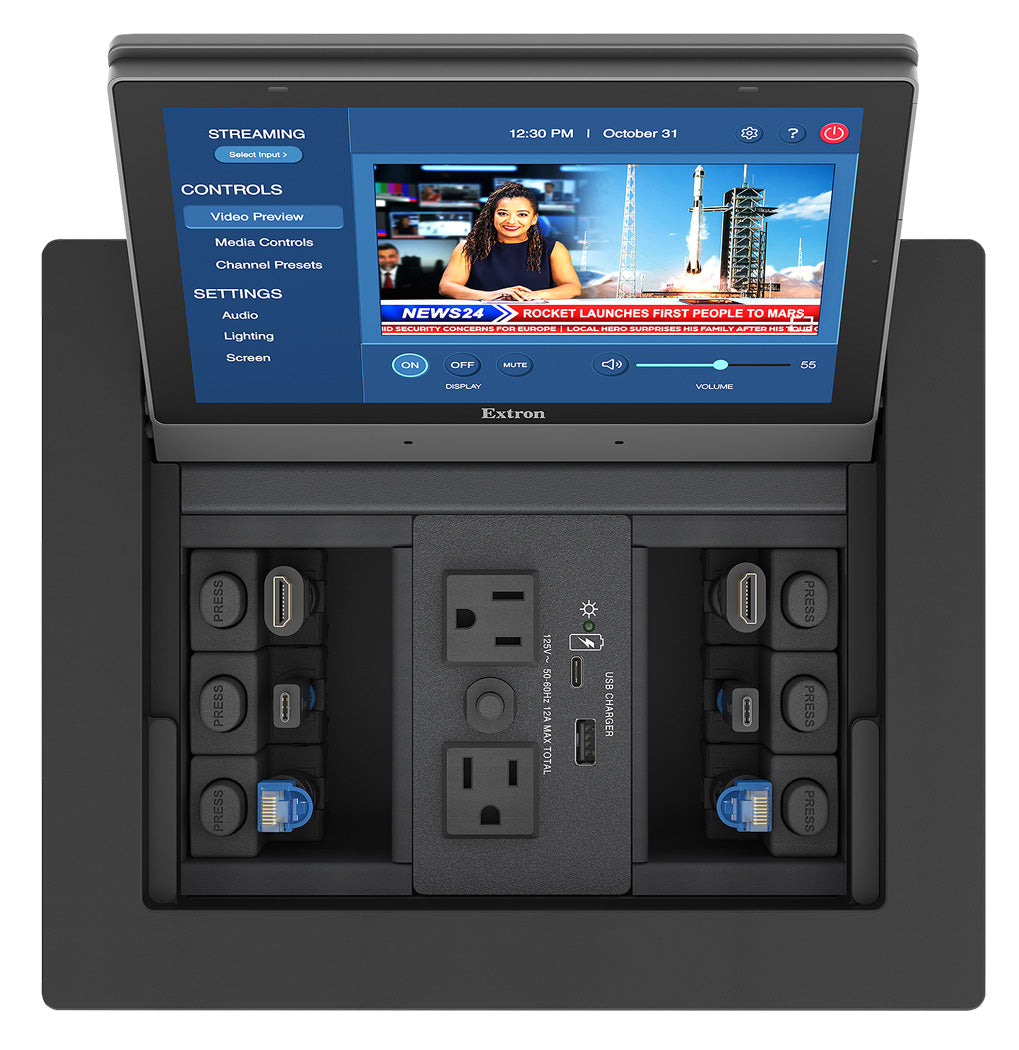

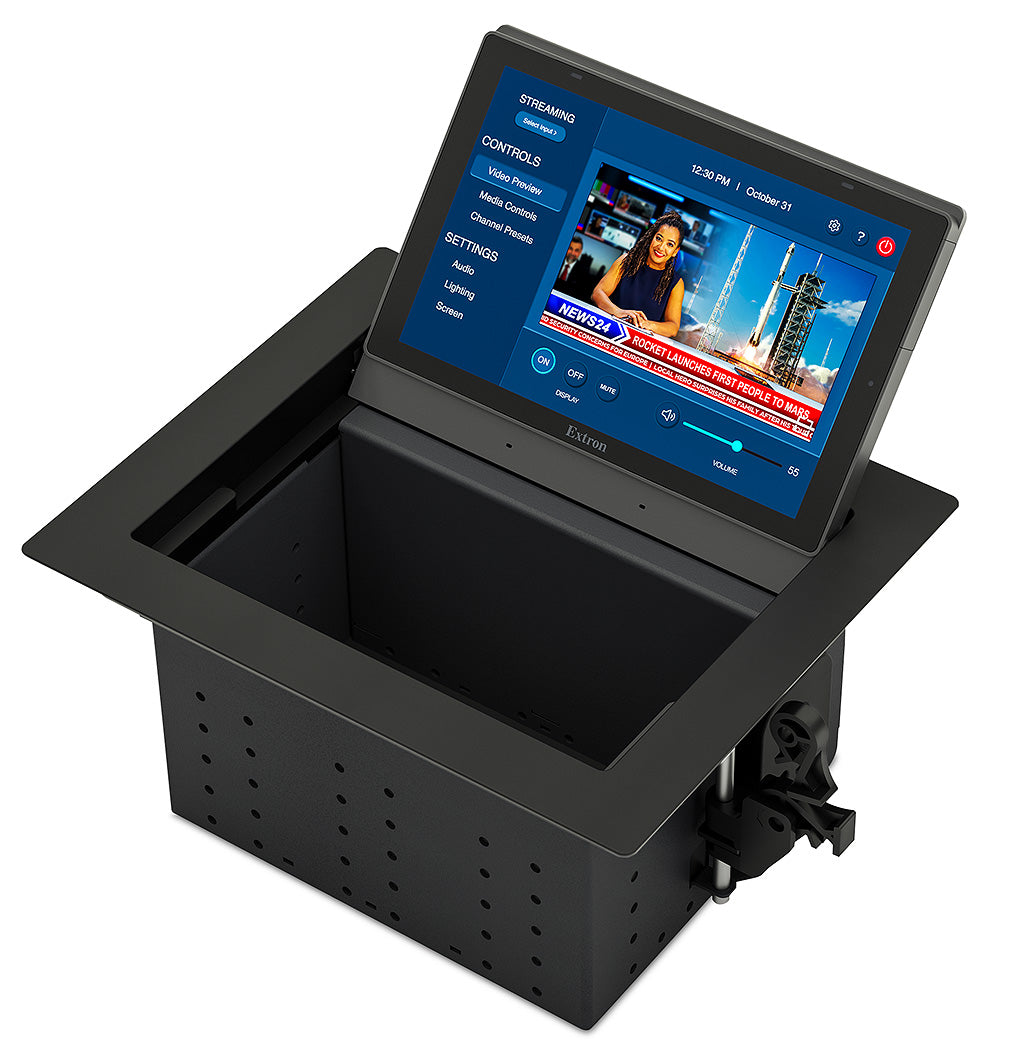

Extron TLP Pro 835C (part number 60-1995-02) — a black 8" PoE touchpanel built into a furniture-mount cable cubby enclosure.

This unit combines a projected-capacitive touchscreen with Gorilla Glass and a cable-management box in one furniture cutout, so integrators get control and cable pass-through from a single surface opening. Native H.264 support lets the panel preview live streaming video from an IP camera or encoder alongside its control interface, and the metal enclosure accepts AC or AC+USB power modules, AAP connectivity modules, retractor units, and AV cables. This configuration ships without an AC module installed.

Key Capabilities

8" projected-capacitive touchscreen with Gorilla Glass at 420 nits, 1200:1 contrast
Native H.264 streaming video preview from an IP camera or encoder

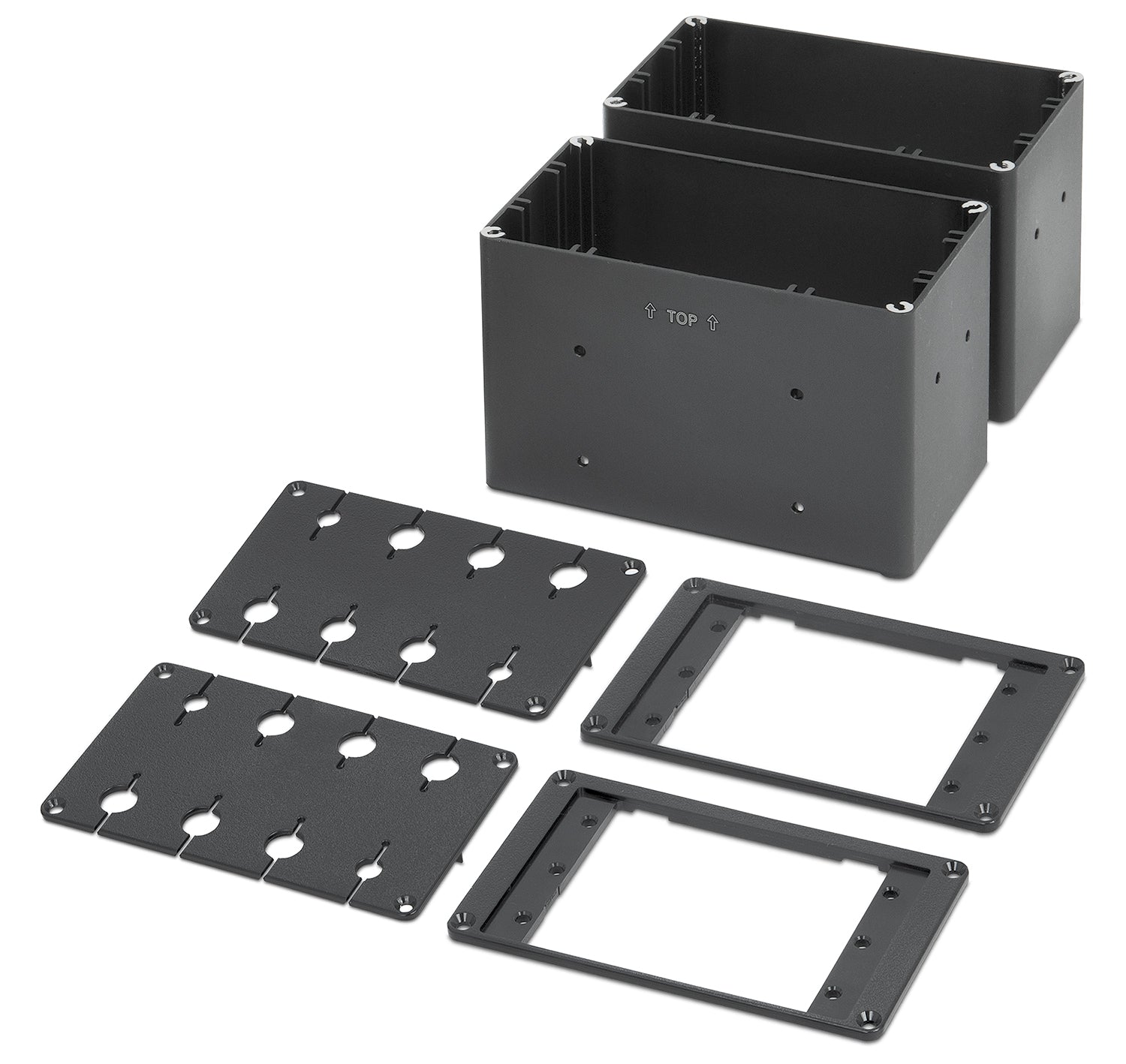

Metal cable cubby enclosure accepts AC, AAP, and retractor modules
4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
Single-cable PoE (802.3af Class 3) for power and Ethernet control
3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

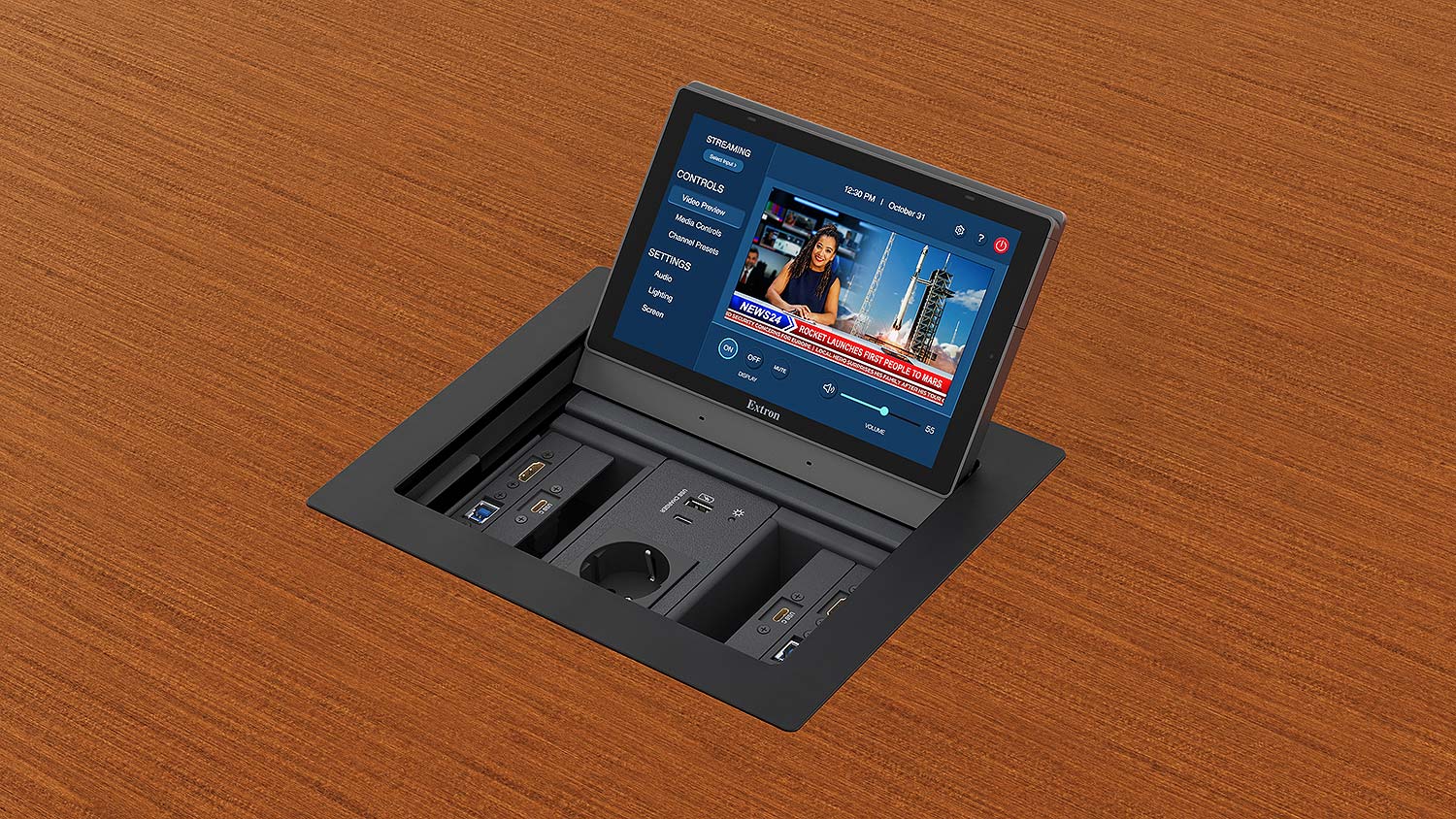

The combined touchpanel and cable cubby fits conference tables and lecterns where control, video preview, and guest cable connections need to share a single furniture cutout, in boardrooms and huddle spaces.

Specifications at a Glance

8" 1280x800 capacitive touchscreen, 24-bit color
4 GB RAM / 64 GB storage
PoE powered, metal enclosure
Without AC module, black finish

Also referenced as Extron TLPPRO835C, TLP-Pro-835C, part number 60199502.

Specifications

Part Number: 60-1995-02

Manufacturer: Extron

Model: TLP Pro 835C

Condition: New

Finish: Black, without AC module

Screen Type: TFT active matrix color LCD with Gorilla Glass, 8.0" (20.3 cm) diagonal

Resolution: 1280x800 (WXGA), 188.7 PPI, 24-bit color (16.7 million colors)

Display Performance: 420 nits brightness, 1200:1 contrast, LED backlight with auto brightness control

Viewing Angle: ±80° horizontal, ±80° vertical

Touch Screen: Projected capacitive

Aspect Ratio: 16:10

Video Input: H.264 streaming video preview over network

Memory: 4 GB DDR4 RAM, 64 GB eMMC storage (32 GB usable for projects)

Ethernet: 1 female RJ-45 connector, 10/100/1000Base-T half/full duplex with autodetect

Network Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

Default IP Settings: IP 192.168.254.251, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off

USB Port: 1 high-speed USB 2.0 device, 1 USB-C receptacle, 5 VDC/500 mA auxiliary output

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Sensors: Light sensor (auto/manual), lid switch (open/closed)

Configuration Software: Global Configurator Plus and Professional, GUI Designer

Programming Software: ControlScript Programming

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Speaker Output: 1 mono, 89 dB max. SPL @ 0.1 m

Audio Frequency Response: 750 Hz to 20 kHz, ±5 dB

Audio Playback: WAV (Microsoft RIFF)/LPCM uncompressed, up to 192 kHz, mono or stereo

Power Input: PoE 802.3af, Class 3 (power supply not included)

Operating Environment: +32 to +104 °F (0 to +40 °C), 20-90% noncondensing

Storage Environment: -4 to +140 °F (-20 to +60 °C), 5-90% noncondensing

Cooling: Convection

Mounting: Furniture mount, cable cubby style

Enclosure: Metal; top plate 10.15" W x 8.29" D; surface cutout 8.90" W x 7.10" D; under-surface box 5.20" H x 12.25" W x 7.00" D with clamps

Regulatory Compliance: BIS, CE, UKCA, C-Tick, FCC Class A, ICES, KCC, VCCI, RoHS, WEEE

Product Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

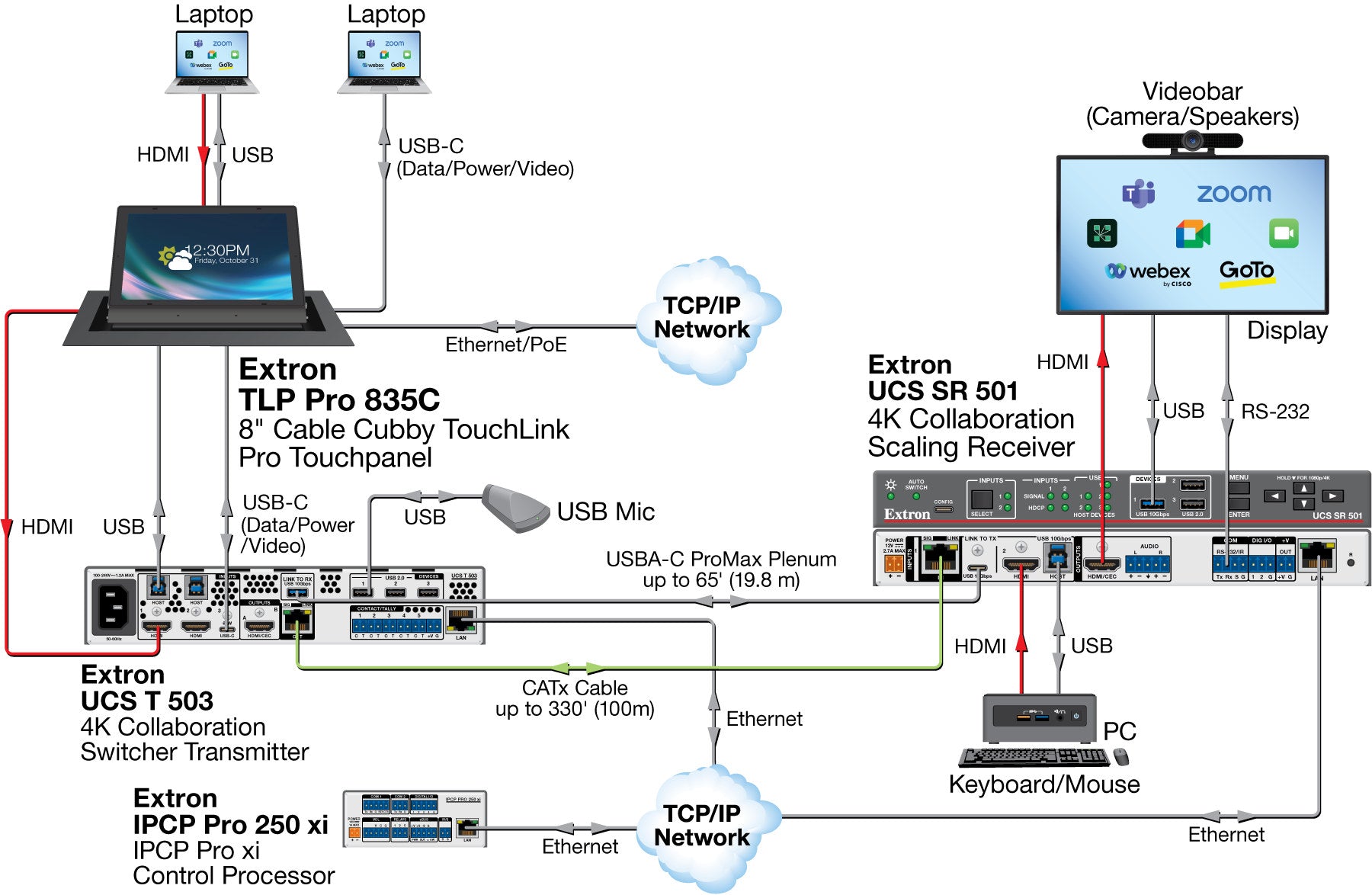

Diagram

Resources

Brochure | TLP Pro 835C 60-1995-02 | TLP Pro 835C

Manual | TLP Pro 835C 60-1995-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 835C 60-1995-02 | TLP Pro 835C Cut-out Template

Manual | TLP Pro 835C 60-1995-02 | TLP Pro 835C Setup Guide

Manual | TLP Pro 835C 60-1995-02 | TLP Pro 835C User Guide

Specifications | TLP Pro 835C 60-1995-02 | TLP Pro 835C Series

Panel Drawing | TLP Pro 835C 60-1995-02 | TLP Pro 835C
