Extron TLP Pro 725T 7" PoE Tabletop Touchpanel 60-1562-02
Extron TLP Pro 725T 7" PoE Tabletop Touchpanel 60-1562-02
Extron TLP Pro 725T Tabletop Touchpanel (Black)
- • 7" Gorilla Glass touchscreen at 420 nits, 700:1 contrast
- • Single-cable PoE (802.3af Class 3) power and Ethernet control
- • 2 GB SDRAM and 8 GB flash storage on a quad-core processor
- • Down-firing speaker for audio and button feedback
- • Motion and light sensors reduce power draw automatically
- • 3-year parts and labor warranty; 1-year on display/overlay
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

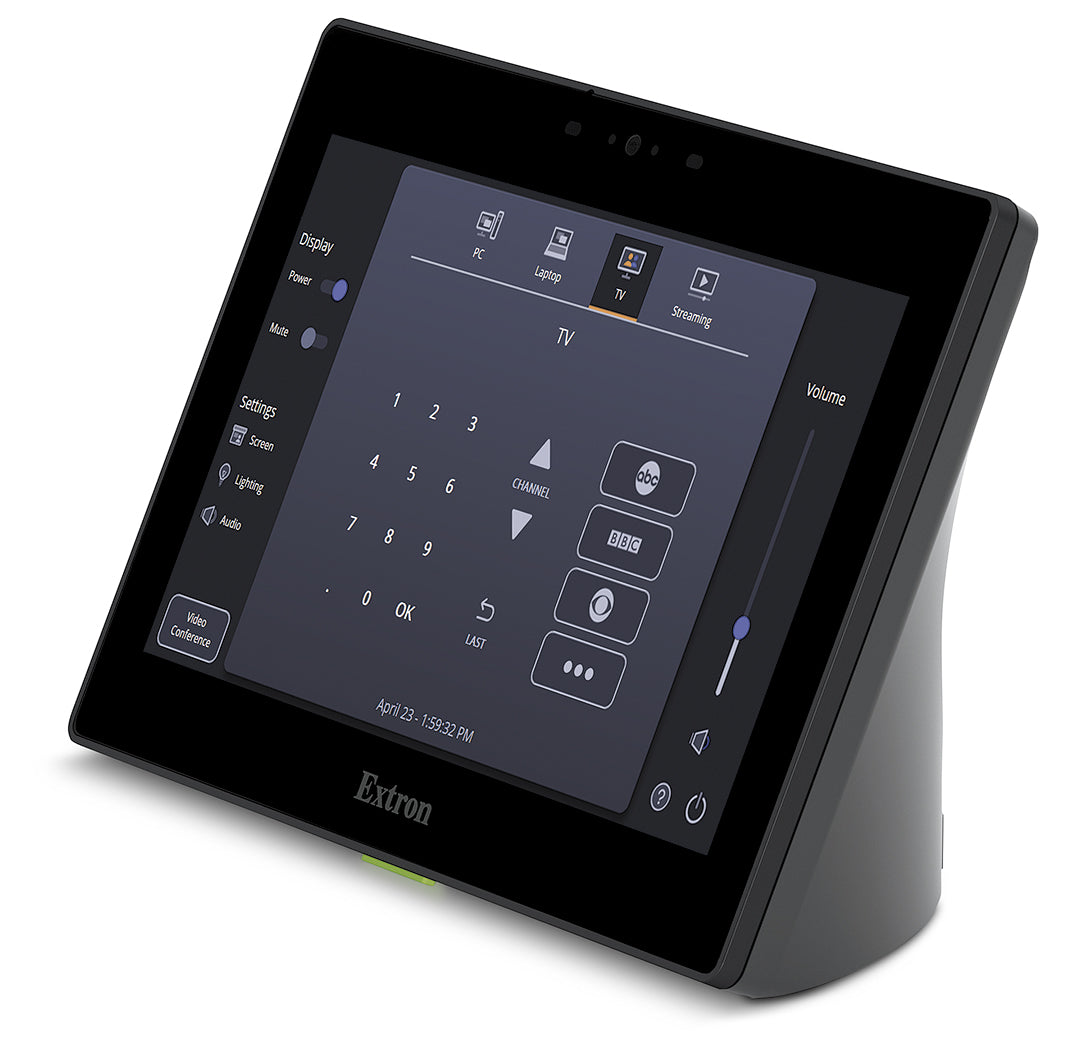

Extron TLP Pro 725T (part number 60-1562-02) — a black 7" PoE tabletop touchpanel for Extron control systems.
This self-standing tabletop panel pairs a capacitive 1024x600 touchscreen with Corning Gorilla Glass in a sweeping black enclosure, drawing both power and network data from a single PoE-fed Ethernet cable. A quad-core processor with 2 GB SDRAM and 8 GB flash storage runs the interface, and a down-firing speaker handles audio and button feedback without a separate amplifier. Motion and light sensors dim the display automatically when the room sits empty.
Key Capabilities
- 7" capacitive touchscreen with Gorilla Glass at 420 nits, 700:1 contrast
- Single-cable PoE (802.3af Class 3) for power and Ethernet control
- 2 GB SDRAM and 8 GB flash storage on a quad-core processor
- Down-firing speaker for audio and button feedback
- Motion and light sensors reduce power draw automatically
- 3-year parts and labor warranty (1 year on display and overlay)
Where It Is Used
The self-standing tabletop form suits conference rooms, boardrooms, classrooms, and lecture halls where a control point needs to sit on the table rather than a wall.
Specifications at a Glance
- 7" 1024x600 capacitive touchscreen, 24-bit color
- PoE powered, 8.2 W device draw
- 4.78" H x 7.12" W x 3.53" D enclosure, 1.75 lbs
- Black plastic tabletop finish
Also referenced as Extron TLPPRO725T, TLP-Pro-725T, part number 60156202.
Specifications
Specifications

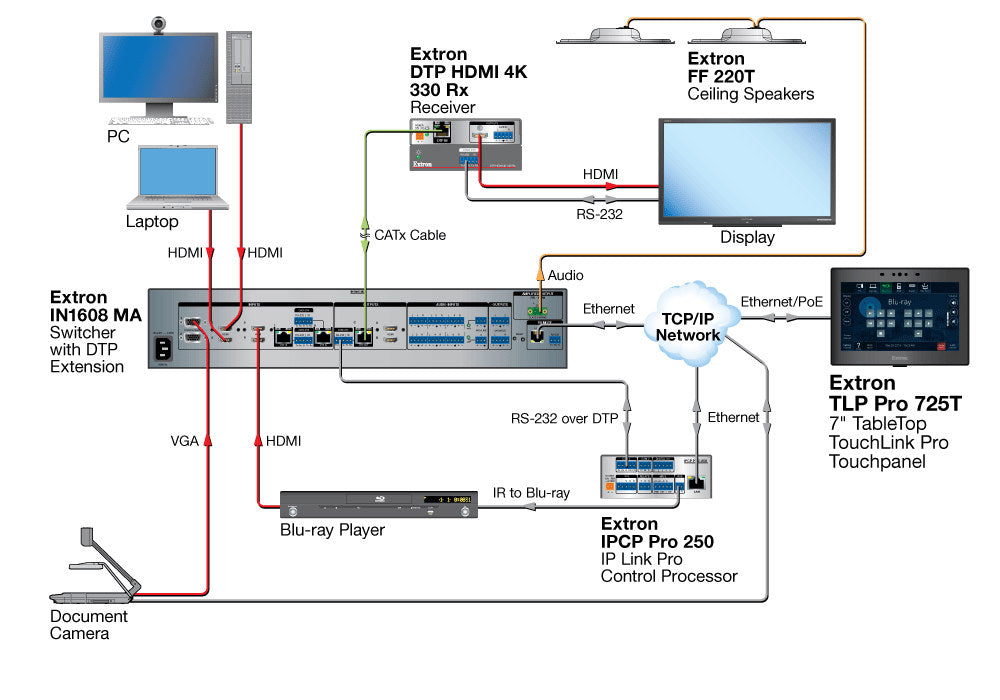

Diagram
