Details

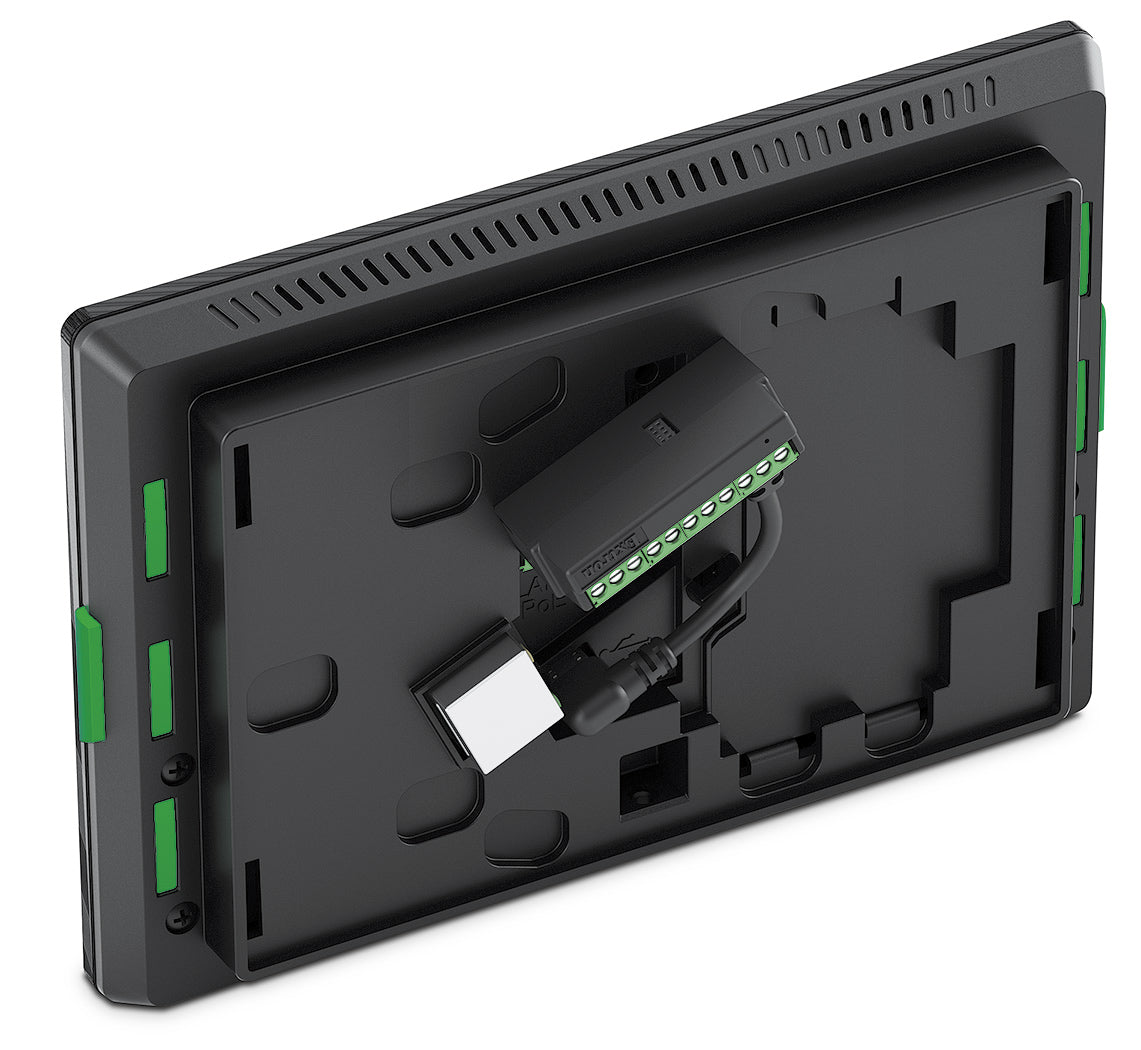

Extron TLP Pro 725M (part number 60-1563-12) — a black 7" PoE wall-mount touchpanel for Extron control systems.

This black-finish panel carries the same capacitive 1024x600 touchscreen with Gorilla Glass as the rest of the 725M line, in a flush wall-mount enclosure that draws power and network data from one PoE-fed Ethernet cable. A quad-core processor with 2 GB SDRAM and 8 GB flash storage handles the interface, and a configurable digital input lets the panel trigger external logic such as a door sensor or occupancy switch.

Key Capabilities

7" capacitive touchscreen with Gorilla Glass at 420 nits, 700:1 contrast
Single-cable PoE (802.3af Class 3) for power and Ethernet control
2 GB SDRAM and 8 GB flash storage on a quad-core processor
Configurable digital input via 3.5 mm captive screw connector
Motion and light sensors reduce power draw automatically
3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

The low-profile wall-mount enclosure fits conference rooms, boardrooms, and classrooms where a fixed control point is needed on a wall, lectern, or glass surface.

Specifications at a Glance

7" WSVGA capacitive touchscreen, 24-bit color
PoE powered, 8.5 W device draw
5.05" H x 7.24" W x 1.20" D enclosure, 1.10 lbs
Black plastic wall-mount finish

Also referenced as Extron TLPPRO725M, TLP-Pro-725M, part number 60156312.

Specifications

Part Number: 60-1563-12

Manufacturer: Extron

Model: TLP Pro 725M

Condition: New

Finish: Black

Screen Type: TFT active matrix color LCD with Gorilla Glass, 7" (17.8 cm) diagonal

Resolution: 1024x600 (WSVGA), 170 PPI, 24-bit color (16.7 million colors), 8-bit transparency

Display Performance: 420 nits brightness, 700:1 contrast, LED backlight

Viewing Angle: ±75° horizontal, +70°/-75° vertical

Touch Screen: Capacitive

Aspect Ratio: 17:10

Memory: 2 GB SDRAM, 8 GB flash storage

Ethernet: 1 female RJ-45 connector, 10/100/1000Base-T half/full duplex with autodetect

Network Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Default IP Settings: IP 192.168.254.251, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off

USB Port: 1 high-speed USB 2.0, 1 Micro-B receptacle, 5 VDC/275 mA auxiliary output

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Digital Input: 1 configurable digital input, 3.5 mm captive screw connector (2-pole)

Digital Input Electrical: 0-24 VDC range (clamped at +30 VDC), ≥10k ohm impedance, 1k ohm pullup to +5 VDC, thresholds 2.0/2.8 VDC

Sensors: Motion sensor (on/off), light sensor (auto/manual)

Configuration Software: Global Configurator Plus and Professional, GUI Designer

Programming Software: ControlScript Programming

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Speaker Output: 1 mono, 89 dB max. SPL @ 0.1 m

Audio Frequency Response: 750 Hz to 20 kHz, ±5 dB

Audio Playback: WAV (Microsoft RIFF)/LPCM uncompressed, up to 192 kHz, mono or stereo

Power Input: PoE 802.3af, Class 3 (power supply not included)

Power Consumption: 8.5 W device; 11.6 W device + XTP PI 100 injector

Thermal Dissipation: 24.3 BTU/hr device; 34.7 BTU/hr device + injector

Operating Environment: +32 to +104 °F (0 to +40 °C), 10-90% noncondensing

Storage Environment: -4 to +140 °F (-20 to +60 °C), 10-90% noncondensing

Cooling: Convection, vents on back

Mounting: Wall, furniture, or rack

Enclosure: Plastic, 5.05" H x 7.24" W x 1.20" D, projects 1.01" from mounting surface

Product Weight: 1.10 lbs (0.50 kg)

Regulatory Compliance: BIS, CE, C-Tick, c-UL, FCC Class B, ICES, RoHS, UL, VCCI, WEEE

Product Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

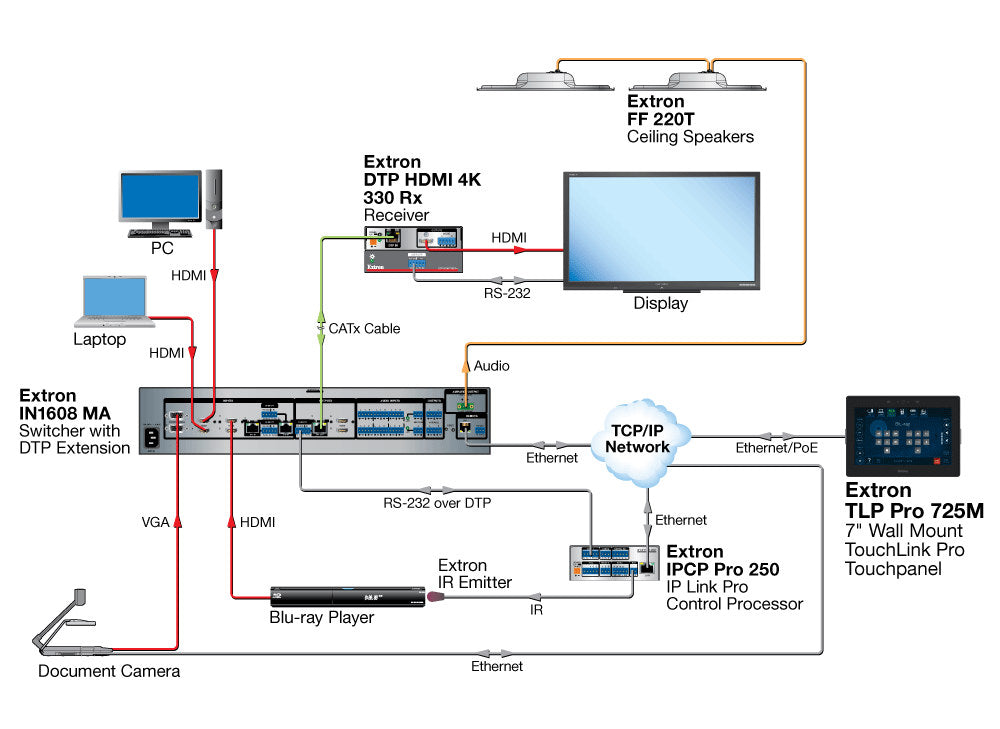

Diagram

Resources

Brochure | TLP Pro 725M 60-1563-12 | TLP Pro 725M (tlp_pro_725m_bro_revA.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (touchlink-pro_revC8.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TLP Pro 725M (TLP-Pro-725M_BR_A4_SP_RevA.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TLP Pro 725M (tlp_pro_725m_REV_A_jp_ONLINE.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TLP Pro 725M (tlp_pro_725m_REV_A_ch_ONLINE.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (TouchLink_Pro_Rev_C7_CN_Online.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (TouchLink-Pro_BR_A4_IT_RevC8.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (TouchLink-Pro_BR_A4_FR_RevC8.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (TouchLink-Pro_BR_A4_GE_RevC5.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (TouchLink-Pro_BR_A4_SP_RevC7.pdf)

Brochure | TLP Pro 725M 60-1563-12 | TouchLink Pro (TouchLink-Pro_BR_A4_RU_RevC7.pdf)

Manual | TLP Pro 725M 60-1563-12 | Cleaning Instruction Card

Manual | TLP Pro 725M 60-1563-12 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 725M 60-1563-12 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLP Pro 725M 60-1563-12 | TLP Pro x25M Series and TLS x25M Series Setup Guide

Specifications | TLP Pro 725M 60-1563-12 | TLP Pro 725M Series and TLS 725M

Panel Drawing | TLP Pro 725M 60-1563-12 | TLP Pro 725M
