Details

Extron TLP Pro 535M (part number 60-1993-02) — a black 5.5" PoE wall-mount touchpanel for Extron TouchLink Pro control systems.

Extron pairs an IPS panel with optically bonded Gorilla Glass on this in-wall touchpanel, giving installers a bright, wide-viewing-angle display that survives daily use in a public space. An H.264 streaming input lets the panel preview live network video alongside its control interface, and multi-color status LEDs give at-a-glance feedback on room state. Power, network data, and control all ride a single Ethernet cable via PoE, and 4 GB of RAM with 64 GB of onboard storage (32 GB usable) is enough to host a full Global Configurator or GUI Designer project on the panel itself.

Key Capabilities

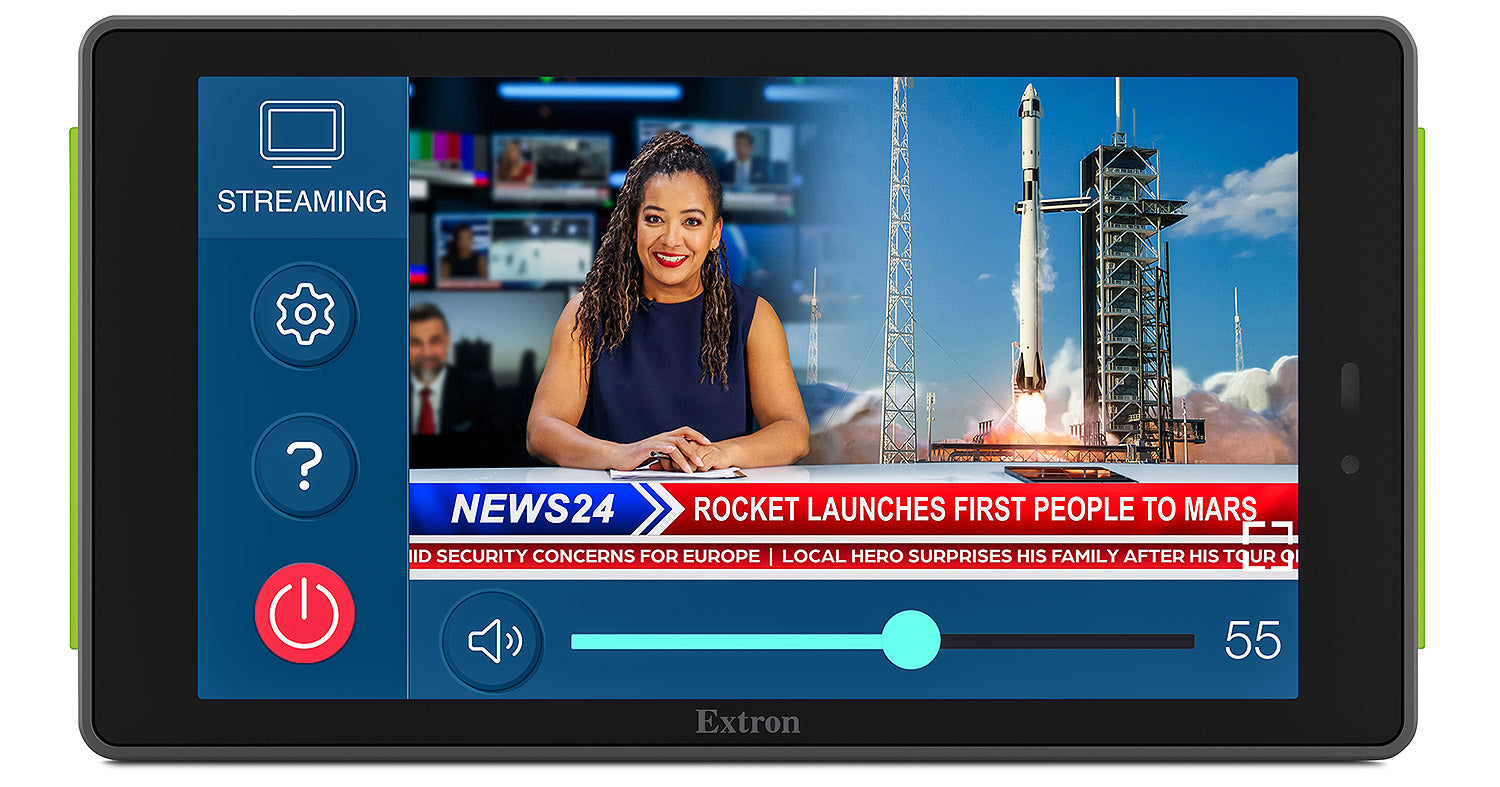

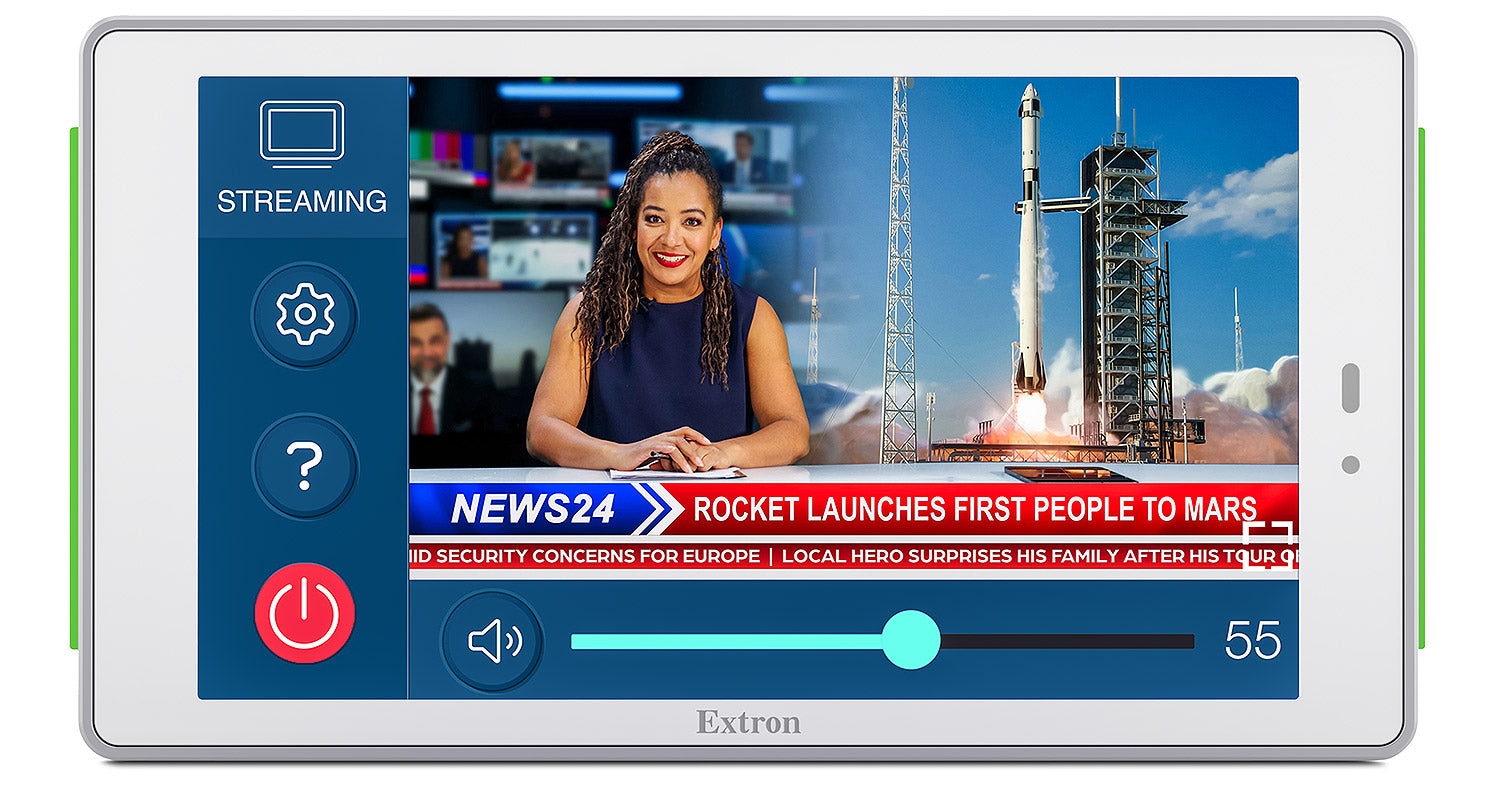

5.5" IPS touchscreen at 1280x720 with Gorilla Glass and ±85° viewing angles

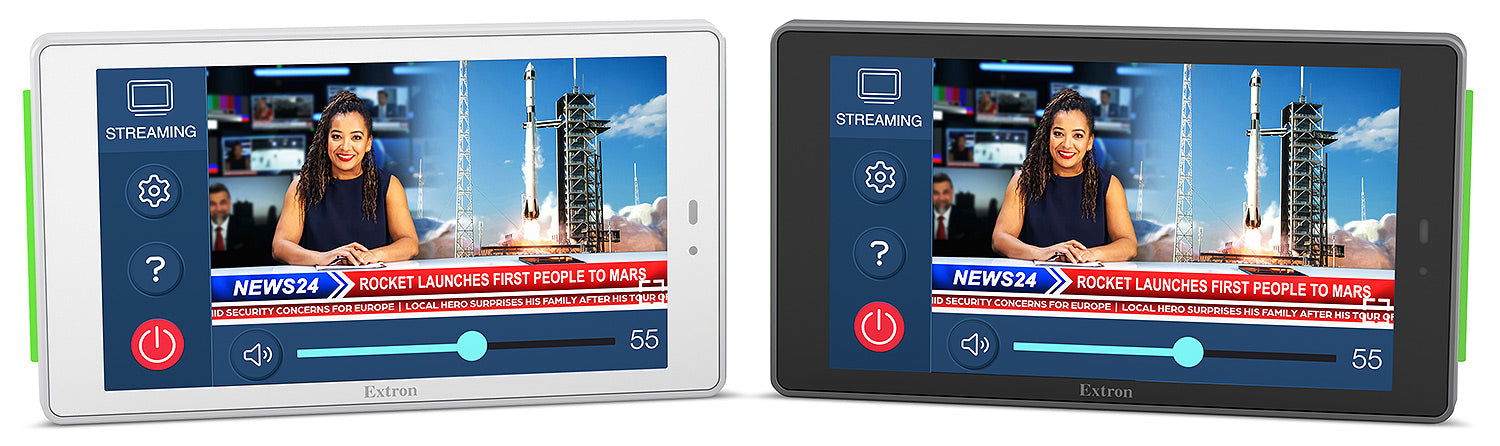

H.264 streaming video input for live network preview at the panel
Single-cable PoE (802.3af Class 3) for power, network, and control
4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
USB-C port plus a configurable digital input for local automation
3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

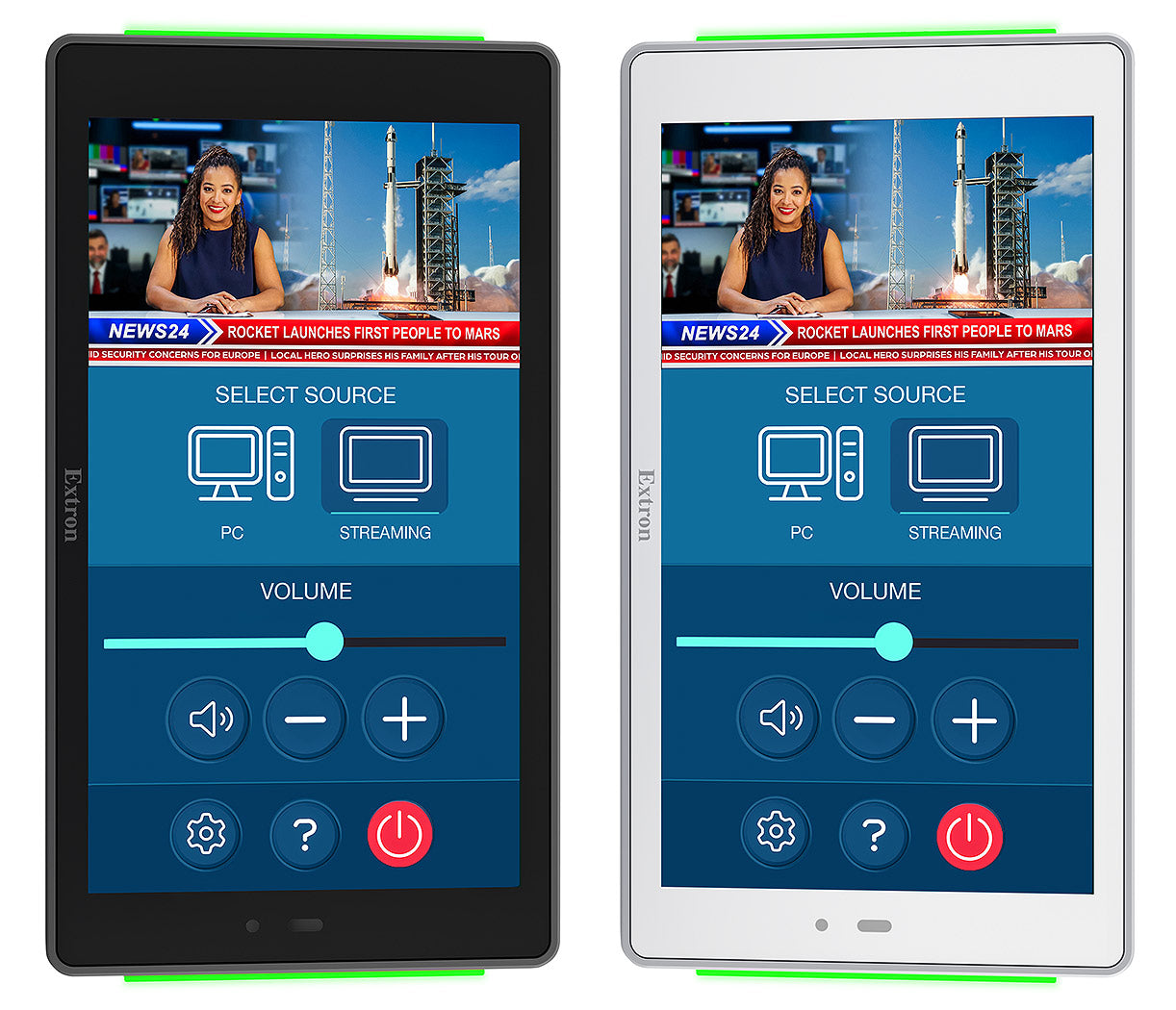

The wall-mount, low-profile enclosure fits conference rooms, boardrooms, and classrooms where a flush-mounted control point is needed, in either landscape or portrait orientation.

Specifications at a Glance

5.5" WXGA IPS touchscreen, 900:1 contrast
PoE powered, 3.26" H x 5.97" W x 1.19" D enclosure
4 GB RAM / 64 GB storage
Black plastic wall-mount finish

Also referenced as Extron TLPPRO535M, TLP-Pro-535M, part number 60199302.

Specifications

Part Number: 60-1993-02

Manufacturer: Extron

Model: TLP Pro 535M

Condition: New

Finish: Black

Screen Type: IPS TFT active matrix color LCD with optically bonded Gorilla Glass, 5.5" (14.0 cm) diagonal

Resolution: 1280x720 (WXGA), 267 PPI, 24-bit color (16.7 million colors)

Display Performance: 350 nits brightness, 900:1 contrast, LED backlight with auto brightness control

Viewing Angle: ±85° horizontal, ±85° vertical

Touch Screen: Projected capacitive

Aspect Ratio: 16:9

Video Input: H.264 streaming video preview over network

Status Indicators: Multi-color system status LEDs

Memory: 4 GB DDR4 RAM, 64 GB eMMC storage (32 GB usable for projects)

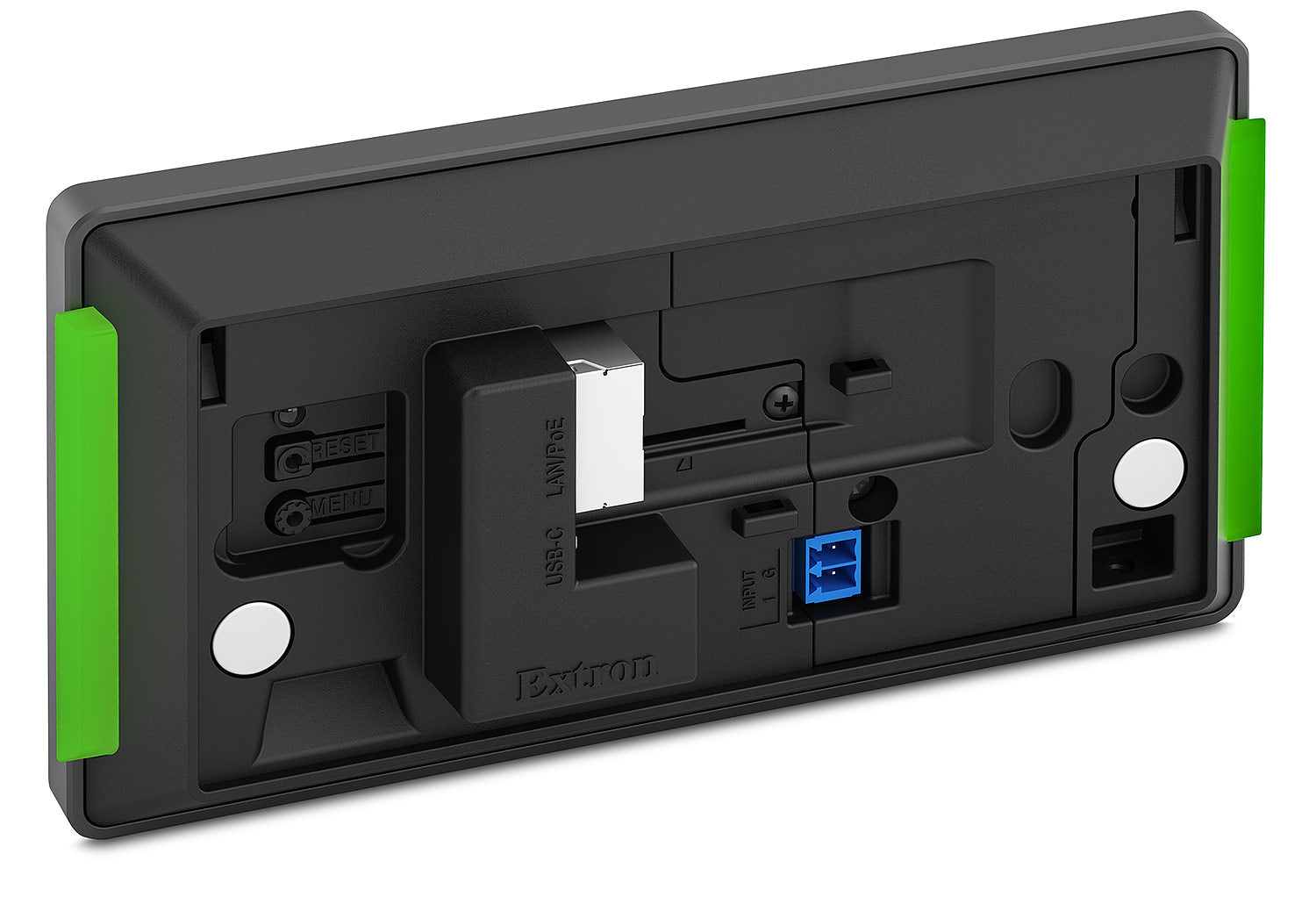

Ethernet: 1 female RJ-45 connector, 10/100/1000Base-T half/full duplex with autodetect

Network Protocols: DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

Default IP Settings: IP 192.168.254.251, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off

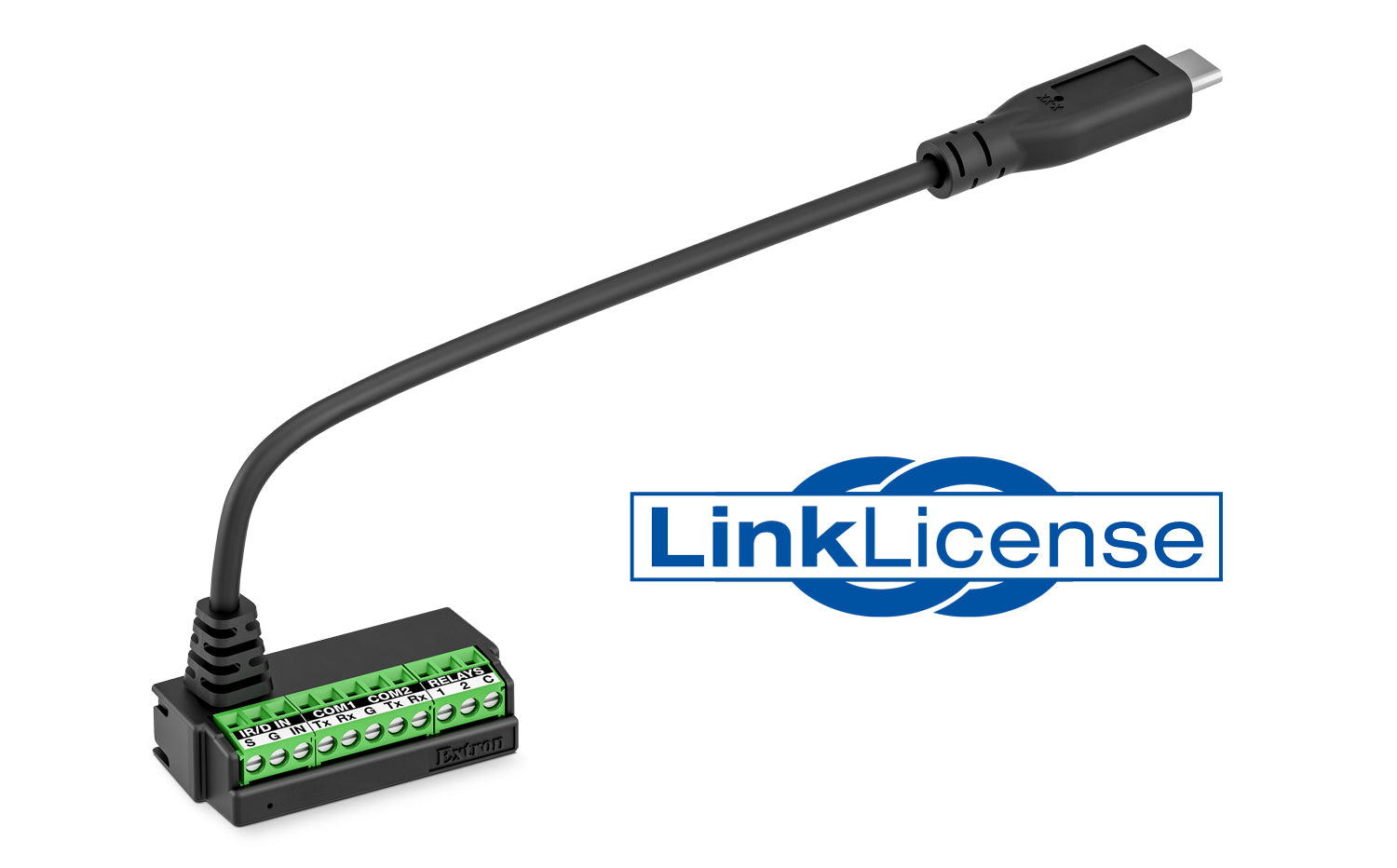

USB Port: 1 high-speed USB 2.0, 1 USB-C receptacle, 5 VDC/500 mA auxiliary output

USB Standards: USB 2.0, USB 1.1, USB 1.0

Digital Input: 1 configurable digital input, 3.5 mm captive screw connector (2-pole)

Digital Input Electrical: 0-24 VDC range (clamped at +30 VDC), ≥10k ohm impedance, 1k ohm pullup to +5 VDC, thresholds 2.0/2.8 VDC

Sensors: Motion sensor (on/off), light sensor (auto/manual)

Configuration Software: Global Configurator Plus and Professional, GUI Designer

Programming Software: ControlScript Programming

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Speaker Output: 1 mono

Audio Playback: WAV (Microsoft RIFF)/LPCM uncompressed, up to 192 kHz, mono or stereo

Power Input: PoE 802.3af, Class 3 (power supply not included)

Operating Environment: +32 to +104 °F (0 to +40 °C), 10-90% noncondensing

Storage Environment: -4 to +140 °F (-20 to +60 °C), 10-90% noncondensing

Cooling: Convection

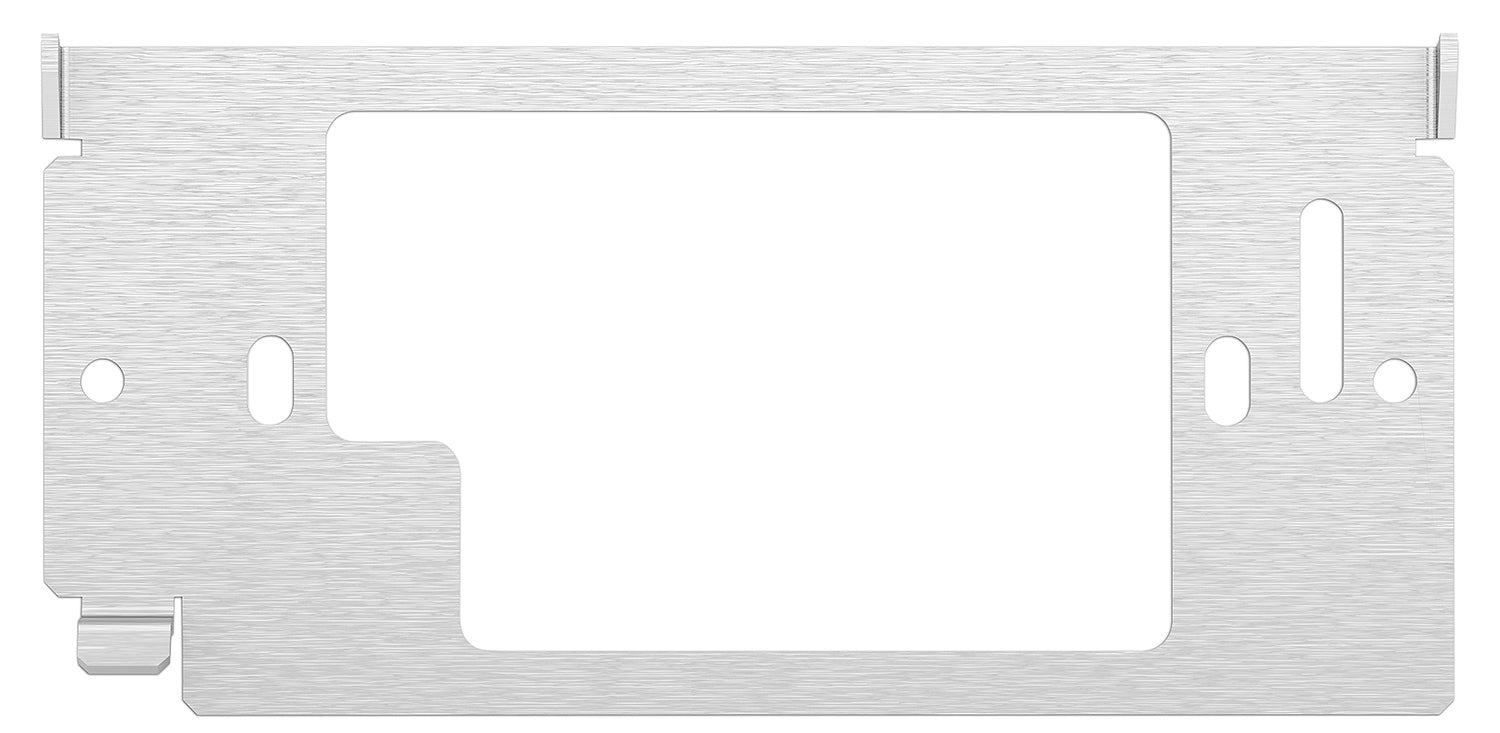

Mounting: Wall, furniture, or rack (landscape or portrait)

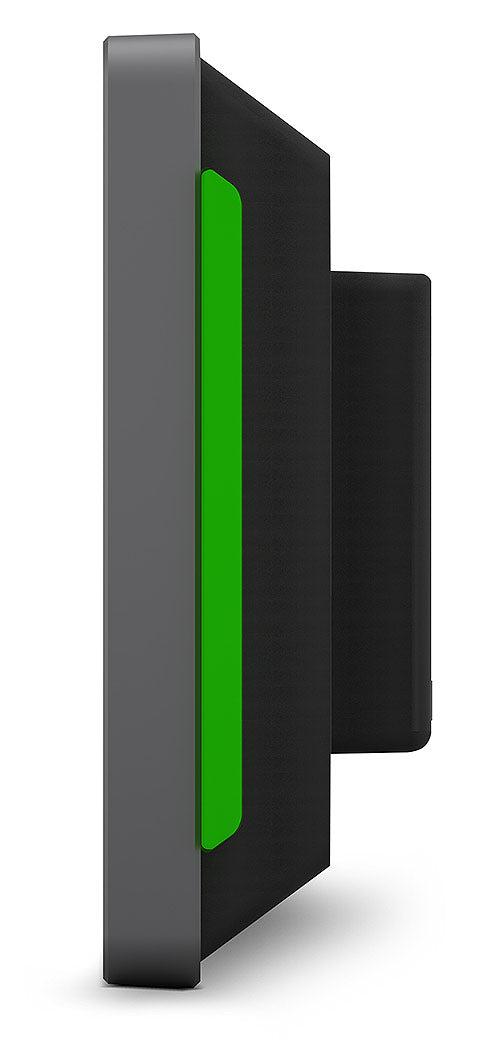

Enclosure: Plastic, 3.26" H x 5.97" W x 1.19" D, projects 0.78" from mounting surface

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Product Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

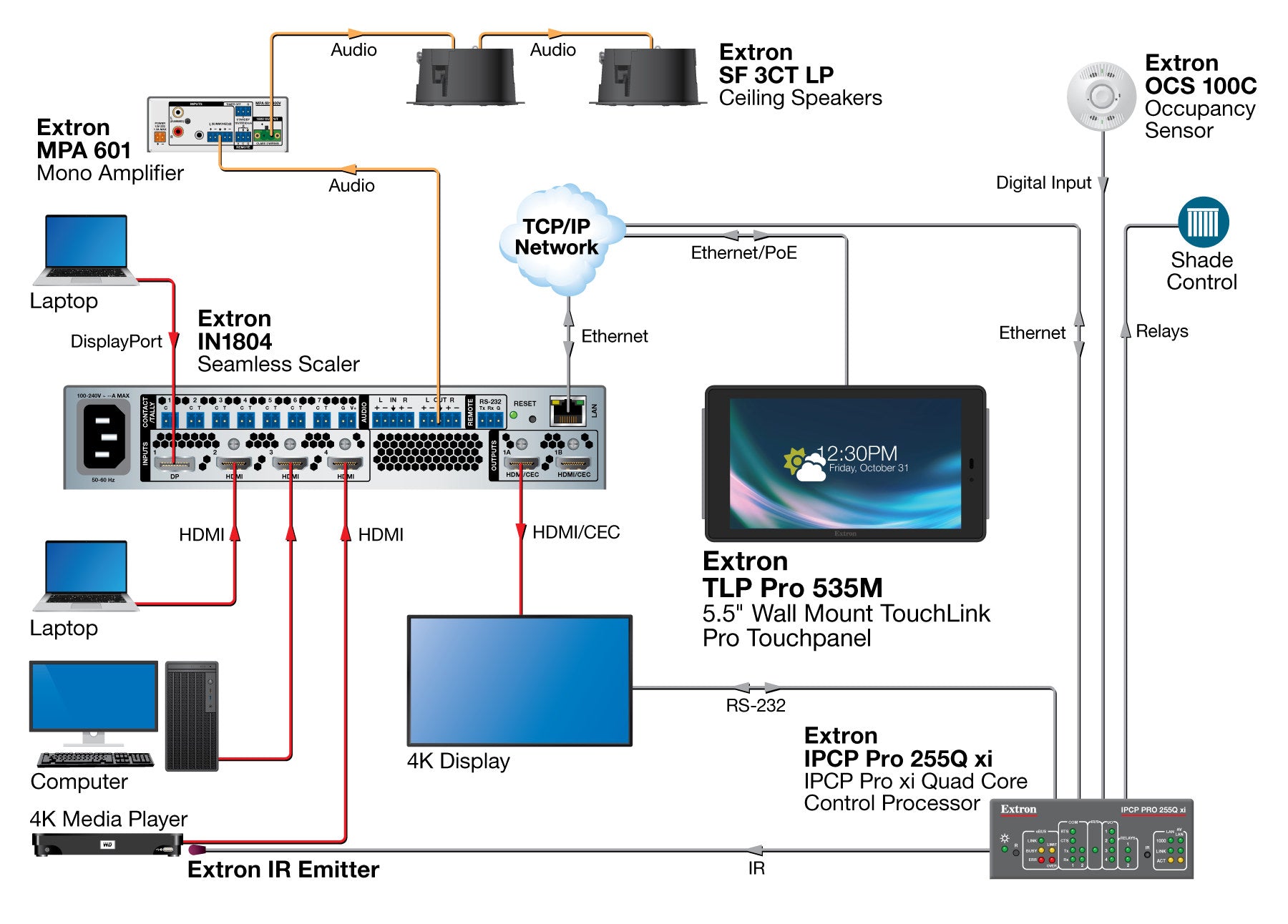

Diagram

Resources

Brochure | TLP Pro 535M 60-1993-02 | TLP Pro 535M

Manual | TLP Pro 535M 60-1993-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 535M 60-1993-02 | TLP Pro 535, 835, and 1035 Series User Guide

Manual | TLP Pro 535M 60-1993-02 | TLP Pro 535M Cut-out Template

Manual | TLP Pro 535M 60-1993-02 | TLP Pro 535M, 835M, 1035M and TLS 835M, 1035M Setup Guide

Specifications | TLP Pro 535M 60-1993-02 | TLP Pro 535M Series

Panel Drawing | TLP Pro 535M 60-1993-02 | TLP Pro 535M
