Details

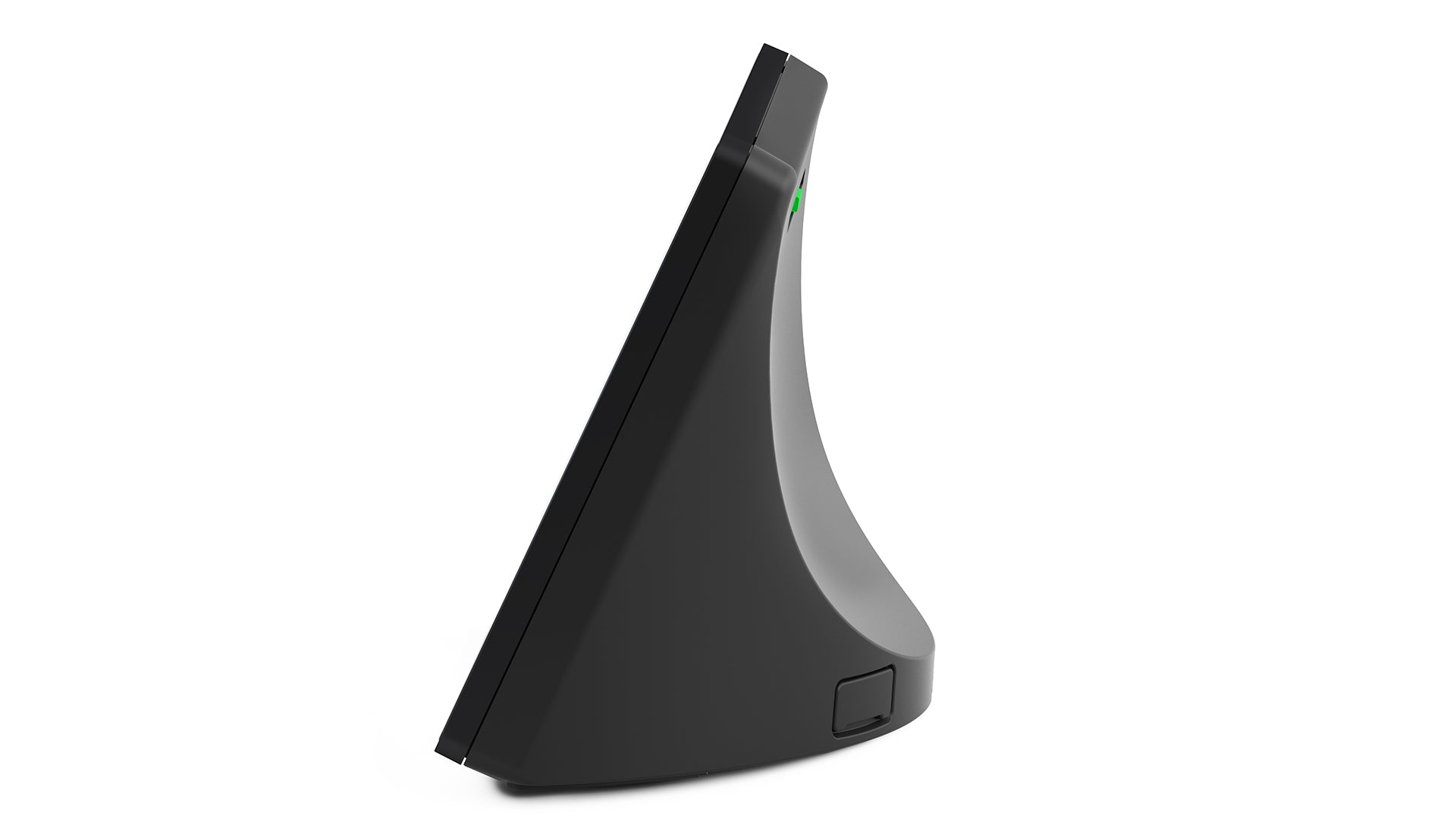

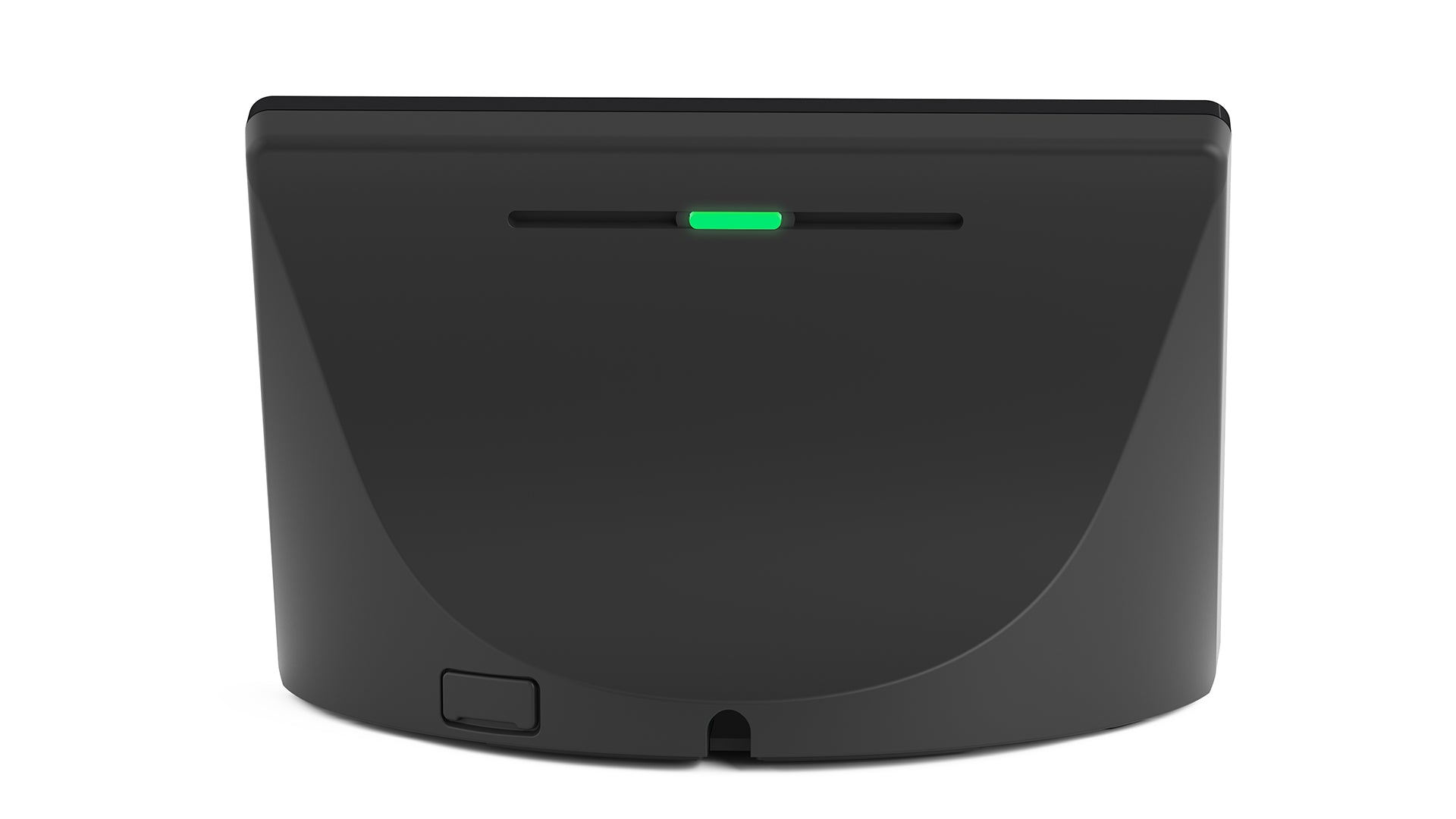

Extron TLP Pro 525T (part number 60-1559-12) — the black-finish 5" PoE tabletop touchpanel for Extron TouchLink Pro control systems.

Extron builds this tabletop panel around a scratch-resistant Corning Gorilla Glass surface over a capacitive 800x480 display, so it holds up to daily fingertip use at a shared table. A quad-core processor with 2 GB RAM and 8 GB of storage runs Global Configurator or GUI Designer projects locally, while a single Ethernet run supplies both power and data. Motion and light sensors trim standby draw automatically, and GlobalViewer Enterprise gives IT staff fleet-wide visibility once the panel is deployed.

Key Capabilities

5" capacitive touchscreen with Gorilla Glass, 850 nits, 700:1 contrast
Single-cable PoE (802.3af Class 3) for power and Ethernet
Quad-core processor, 2 GB RAM, 8 GB onboard storage
High-speed USB 2.0 host port built into the enclosure
Auto-dimming light sensor and motion sensor for energy savings
3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

Its black tabletop housing suits conference tables, huddle rooms, and reception desks where the touchpanel needs to blend into darker furniture while still giving a presenter one-touch access to room control.

Specifications at a Glance

5" WVGA capacitive touchscreen, Gorilla Glass, 24-bit color
PoE powered, 7.7 W device draw
2 GB RAM / 8 GB storage
Plastic tabletop enclosure, black finish, 1.45 lbs

Also referenced as Extron TLPPRO525T, TLP-Pro-525T, part number 60155912.

Specifications

Part Number: 60-1559-12

Manufacturer: Extron

Model: TLP Pro 525T

Condition: New

Finish: Black

Screen Type: TFT active matrix color LCD with Corning Gorilla Glass, 5" (12.7 cm) diagonal

Resolution: 800x480 (WVGA), 186.6 PPI, 24-bit color (16.7 million colors), 8-bit transparency

Display Performance: 850 nits brightness, 700:1 contrast, LED backlight

Viewing Angle: ±70° horizontal, ±70° vertical

Touch Screen: Capacitive

Aspect Ratio: 5:3

Memory: 2 GB RAM, 8 GB storage

Ethernet: 1 female RJ-45 connector, 10/100/1000Base-T half/full duplex with autodetect

Network Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Default IP Settings: IP 192.168.254.251, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off

Configuration Software: Global Configurator Plus and Professional, GUI Designer

Programming Software: ControlScript Programming

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Sensors: Motion sensor (on/off), light sensor (auto/manual)

USB Port: 1 high-speed USB 2.0, 1 Type A connector, 5 VDC/275 mA auxiliary output

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Speaker Output: 1 mono, 86 dB SPL, 0.1 watt, half space

Audio Frequency Response: 750 Hz to 20 kHz, ±5 dB

Audio Playback: WAV (Microsoft RIFF)/LPCM uncompressed, up to 192 kHz, mono or stereo

Power Input: PoE 802.3af, Class 3 (power supply not included)

Power Consumption: 7.7 W device; 10.0 W device + XTP PI 100 injector

Thermal Dissipation: 21.6 BTU/hr device; 29.4 BTU/hr device + injector

Operating Environment: +32 to +104 °F (0 to +40 °C), 10-90% noncondensing

Storage Environment: -4 to +140 °F (-20 to +60 °C), 10-90% noncondensing

Cooling: Convection, vents on back

Mounting: Tabletop

Enclosure: Plastic, 3.88" H x 5.95" W x 2.88" D (9.9 x 15.1 x 7.3 cm)

Product Weight: 1.45 lbs (0.65 kg)

Regulatory Compliance: BIS, CE, C-Tick, c-UL, FCC Class B, ICES, RoHS, UL, VCCI, WEEE

Product Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

Diagram

Resources

Brochure | TLP Pro 525T 60-1559-12 | TLP Pro 525T

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (touchlink-pro_revC8.pdf)

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (TouchLink_Pro_Rev_C7_CN_Online.pdf)

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (TouchLink-Pro_BR_A4_GE_RevC5.pdf)

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (TouchLink-Pro_BR_A4_SP_RevC7.pdf)

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (TouchLink-Pro_BR_A4_RU_RevC7.pdf)

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (TouchLink-Pro_BR_A4_IT_RevC8.pdf)

Brochure | TLP Pro 525T 60-1559-12 | TouchLink Pro (TouchLink-Pro_BR_A4_FR_RevC8.pdf)

Manual | TLP Pro 525T 60-1559-12 | Cleaning Instruction Card

Manual | TLP Pro 525T 60-1559-12 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 525T 60-1559-12 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLP Pro 525T 60-1559-12 | TLP Pro x25T Series

Specifications | TLP Pro 525T 60-1559-12 | TLP Pro 525T Series

Panel Drawing | TLP Pro 525T 60-1559-12 | TLP Pro 525T
