Details

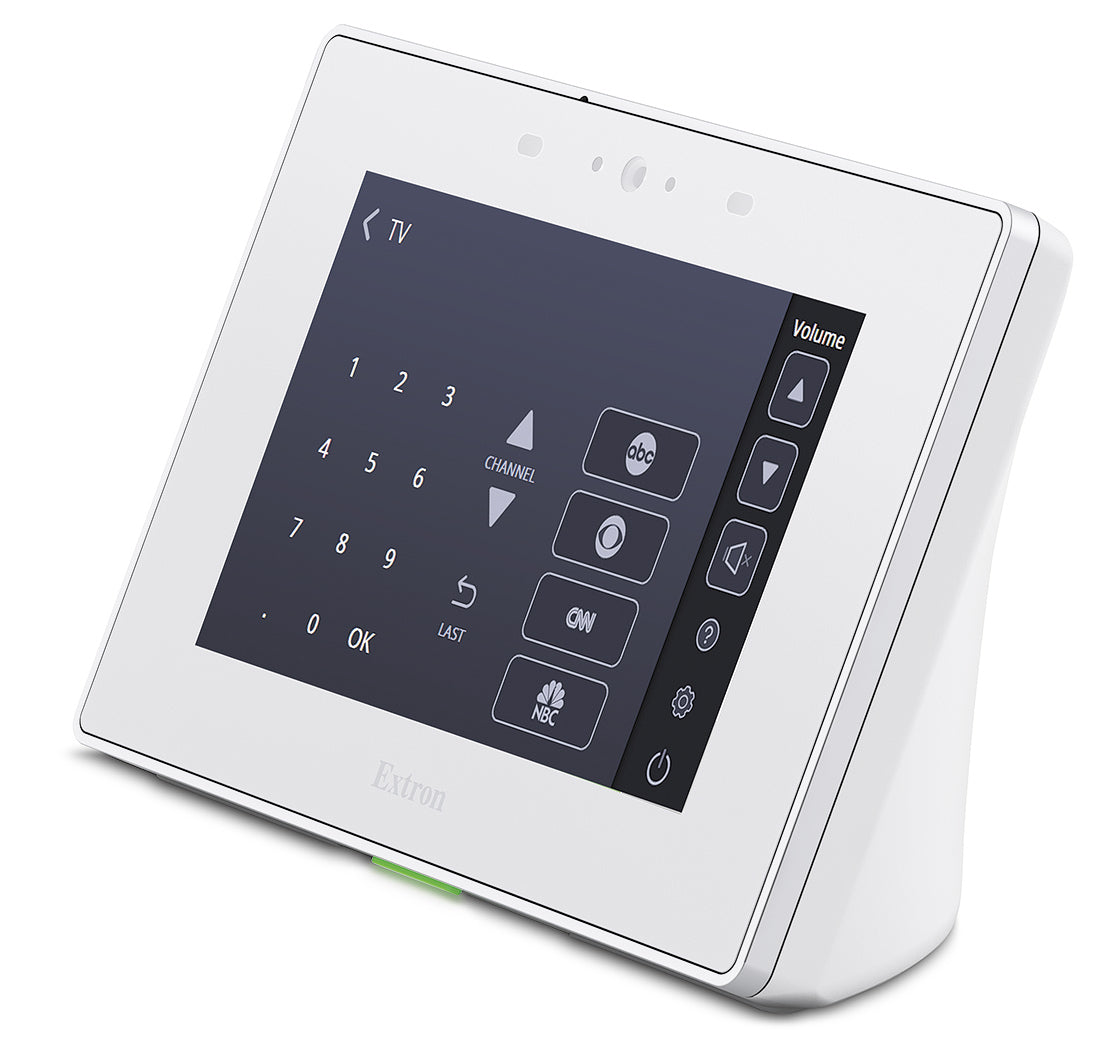

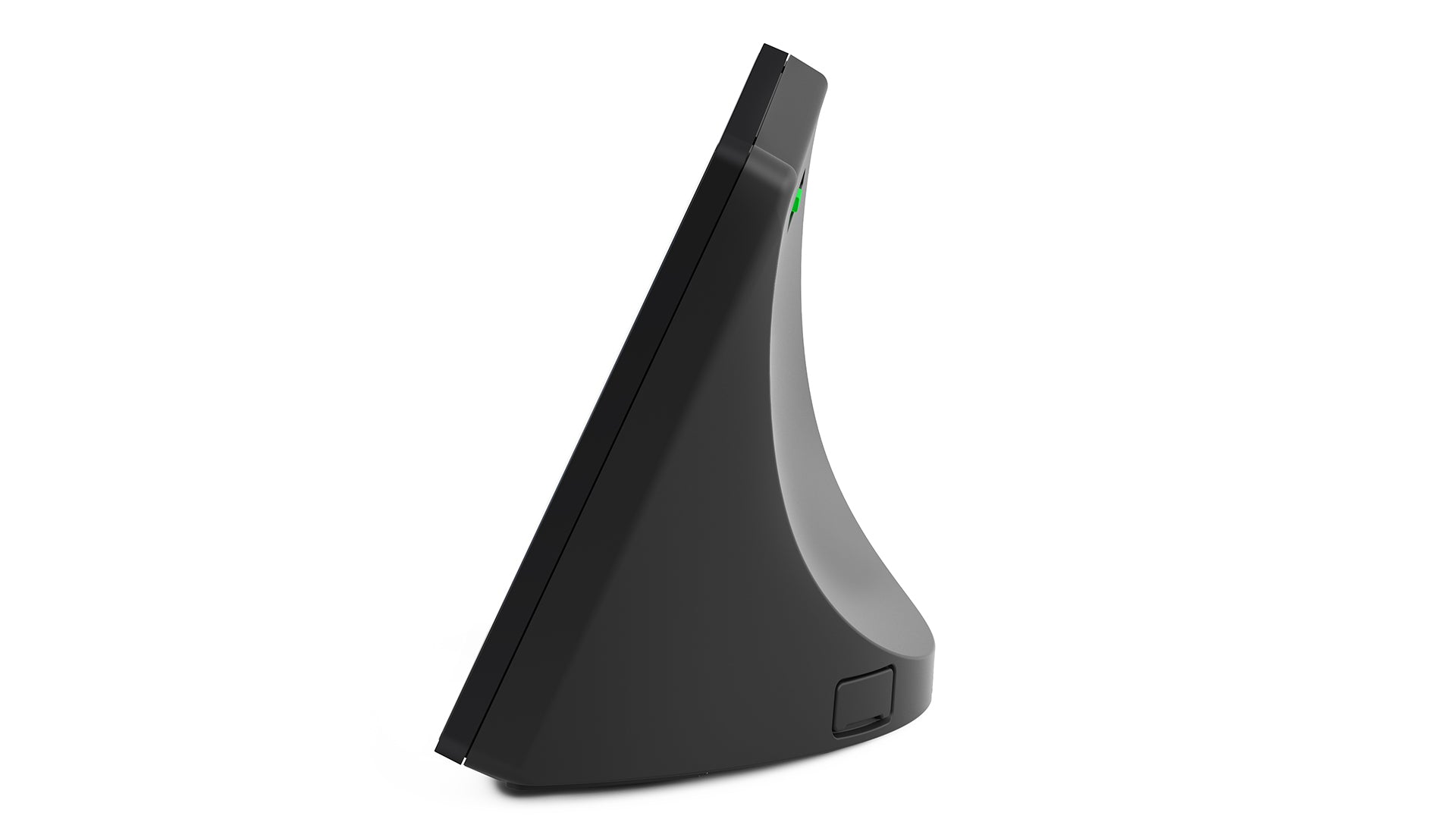

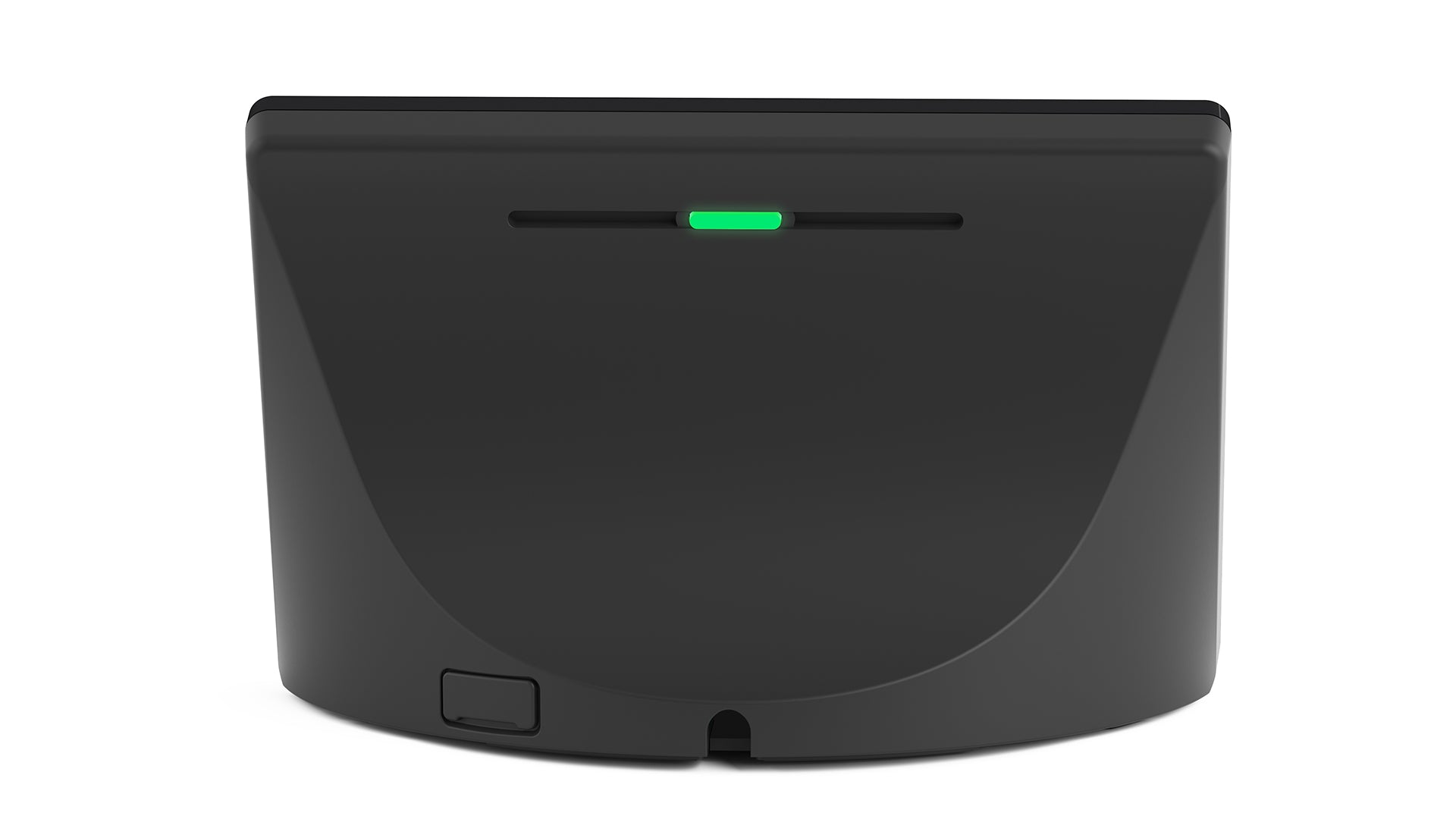

Extron TLP Pro 525T (part number 60-1559-03) — a 5" PoE tabletop touchpanel for Extron TouchLink Pro control systems.

This tabletop panel puts a bright, capacitive 800x480 display at the operator's fingertips while drawing power and data over a single Ethernet run. A quad-core processor with 2 GB RAM and 8 GB of onboard storage runs Global Configurator or GUI Designer projects without a separate control processor, and the auto-dimming light sensor plus motion sensor help cut standby power when the room sits empty. Programmers can layer in ControlScript logic or hand fleet-wide oversight to GlobalViewer Enterprise.

Key Capabilities

800x480 capacitive touchscreen at 850 nits with 700:1 contrast
Single-cable PoE (802.3af Class 3) for power and Ethernet control
Quad-core processor with 2 GB RAM and 8 GB onboard storage
Built-in high-speed USB 2.0 host port for panel-side peripherals
Auto/manual light sensor and on/off motion sensor for energy savings
3-year parts and labor warranty (1 year on display and overlay)

Where It Is Used

The compact tabletop form factor fits huddle rooms, executive desks, and lectern stations where a single touchpoint needs to sit within reach of a presenter without consuming rack space or requiring a nearby control processor.

Specifications at a Glance

5" WVGA capacitive touchscreen, 24-bit color
PoE powered, 7.7 W device draw
2 GB RAM / 8 GB storage
Plastic tabletop enclosure, 1.45 lbs

Also referenced as Extron TLPPRO525T, TLP-Pro-525T, part number 60155903.

Specifications

Part Number: 60-1559-03

Manufacturer: Extron

Model: TLP Pro 525T

Condition: New

Screen Type: TFT active matrix color LCD, 5" (12.7 cm) diagonal

Resolution: 800x480 (WVGA), 186.6 PPI, 24-bit color (16.7 million colors), 8-bit transparency

Display Performance: 850 nits brightness, 700:1 contrast, LED backlight

Viewing Angle: ±70° horizontal, ±70° vertical

Touch Screen: Capacitive

Aspect Ratio: 5:3

Memory: 2 GB RAM, 8 GB storage

Ethernet: 1 female RJ-45 connector, 10/100/1000Base-T half/full duplex with autodetect

Network Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

Default IP Settings: IP 192.168.254.251, subnet 255.255.255.0, gateway 0.0.0.0, DHCP off

Configuration Software: Global Configurator Plus and Professional, GUI Designer

Programming Software: ControlScript Programming

Control Apps: Extron Control

Resource Management Software: GlobalViewer Enterprise

Utilities: Toolbelt, embedded web page

Sensors: Motion sensor (on/off), light sensor (auto/manual)

USB Port: 1 high-speed USB 2.0, 1 Type A connector, 5 VDC/275 mA auxiliary output

USB Standards: USB 2.0, USB 1.1, USB 1.0 compatible

Speaker Output: 1 mono, 86 dB SPL, 0.1 watt, half space

Audio Frequency Response: 750 Hz to 20 kHz, ±5 dB

Audio Playback: WAV (Microsoft RIFF)/LPCM uncompressed, up to 192 kHz, mono or stereo

Power Input: PoE 802.3af, Class 3 (power supply not included)

Power Consumption: 7.7 W device; 10.0 W device + XTP PI 100 injector

Thermal Dissipation: 21.6 BTU/hr device; 29.4 BTU/hr device + injector

Operating Environment: +32 to +104 °F (0 to +40 °C), 10-90% noncondensing

Storage Environment: -4 to +140 °F (-20 to +60 °C), 10-90% noncondensing

Cooling: Convection, vents on back

Mounting: Tabletop

Enclosure: Plastic, 3.88" H x 5.95" W x 2.88" D (9.9 x 15.1 x 7.3 cm)

Product Weight: 1.45 lbs (0.65 kg)

Regulatory Compliance: BIS, CE, C-Tick, c-UL, FCC Class B, ICES, RoHS, UL, VCCI, WEEE

Product Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

Diagram

Resources

Brochure | TLP Pro 525T 60-1559-03 | TLP Pro 525T

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (touchlink-pro_revC8.pdf)

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (TouchLink_Pro_Rev_C7_CN_Online.pdf)

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (TouchLink-Pro_BR_A4_GE_RevC5.pdf)

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (TouchLink-Pro_BR_A4_SP_RevC7.pdf)

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (TouchLink-Pro_BR_A4_RU_RevC7.pdf)

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (TouchLink-Pro_BR_A4_IT_RevC8.pdf)

Brochure | TLP Pro 525T 60-1559-03 | TouchLink Pro (TouchLink-Pro_BR_A4_FR_RevC8.pdf)

Manual | TLP Pro 525T 60-1559-03 | Cleaning Instruction Card

Manual | TLP Pro 525T 60-1559-03 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 525T 60-1559-03 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLP Pro 525T 60-1559-03 | TLP Pro x25T Series

Specifications | TLP Pro 525T 60-1559-03 | TLP Pro 525T Series

Panel Drawing | TLP Pro 525T 60-1559-03 | TLP Pro 525T
