Extron TLP Pro 525T 5-Inch Tabletop Touchpanel
- • 5-inch capacitive touchscreen, 800x480 resolution, 850 nits brightness
- • Single-cable PoE 802.3af class 3 power and data, no separate PSU needed
- • Motion and light sensors enable automatic wake and dimming
- • 1 high-speed USB 2.0 Type A port for peripherals
- • Compact tabletop enclosure: 3.88in H x 5.95in W x 2.88in D, 1.45 lbs
- • Optional TLCA 1 adapter upgrades panel to standalone control processor
- • Wide +/-70 deg horizontal and vertical viewing angle
- • Rated for +32 to +104 F operation, 10-90% noncondensing humidity
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Key Capabilities

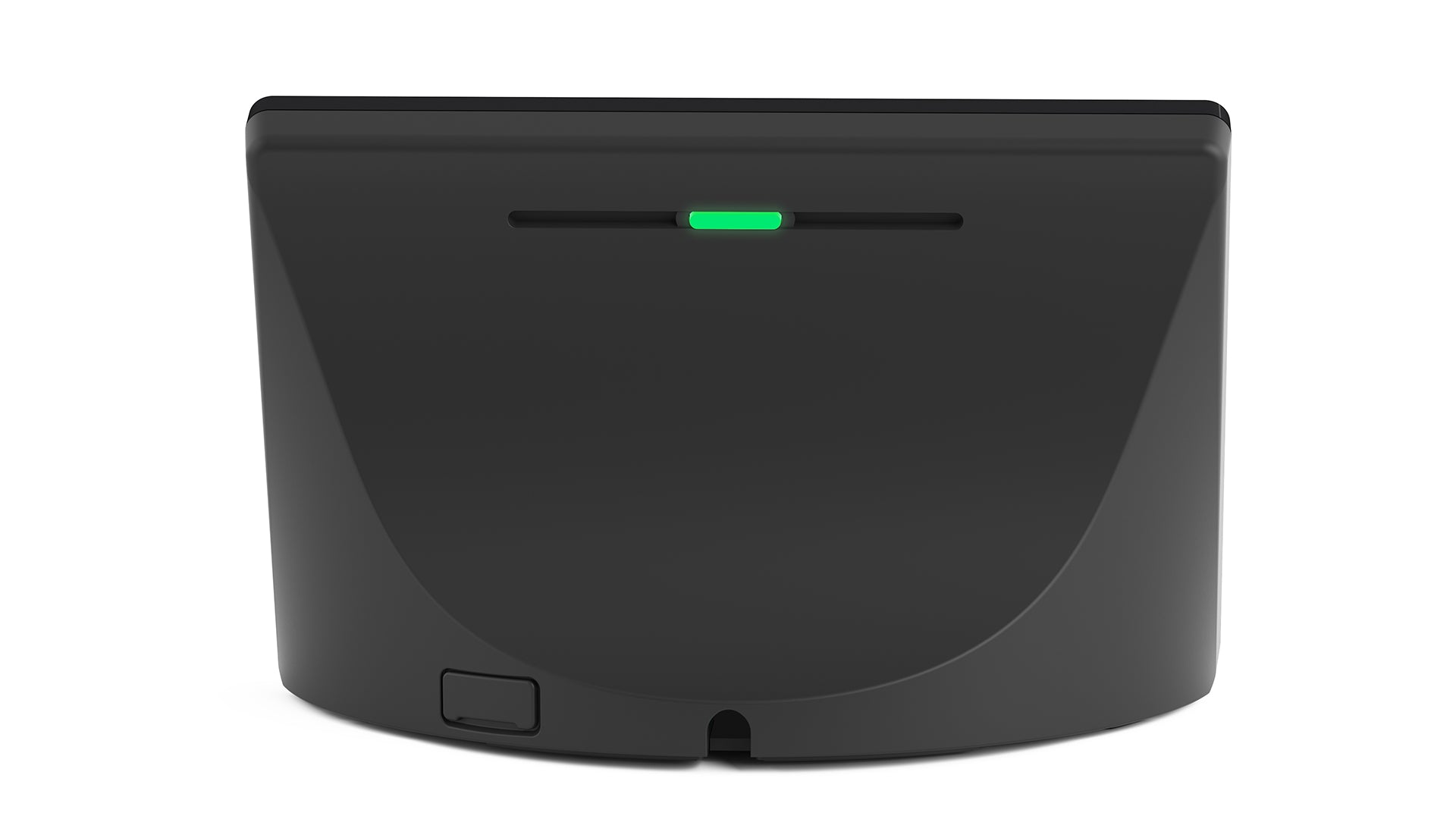

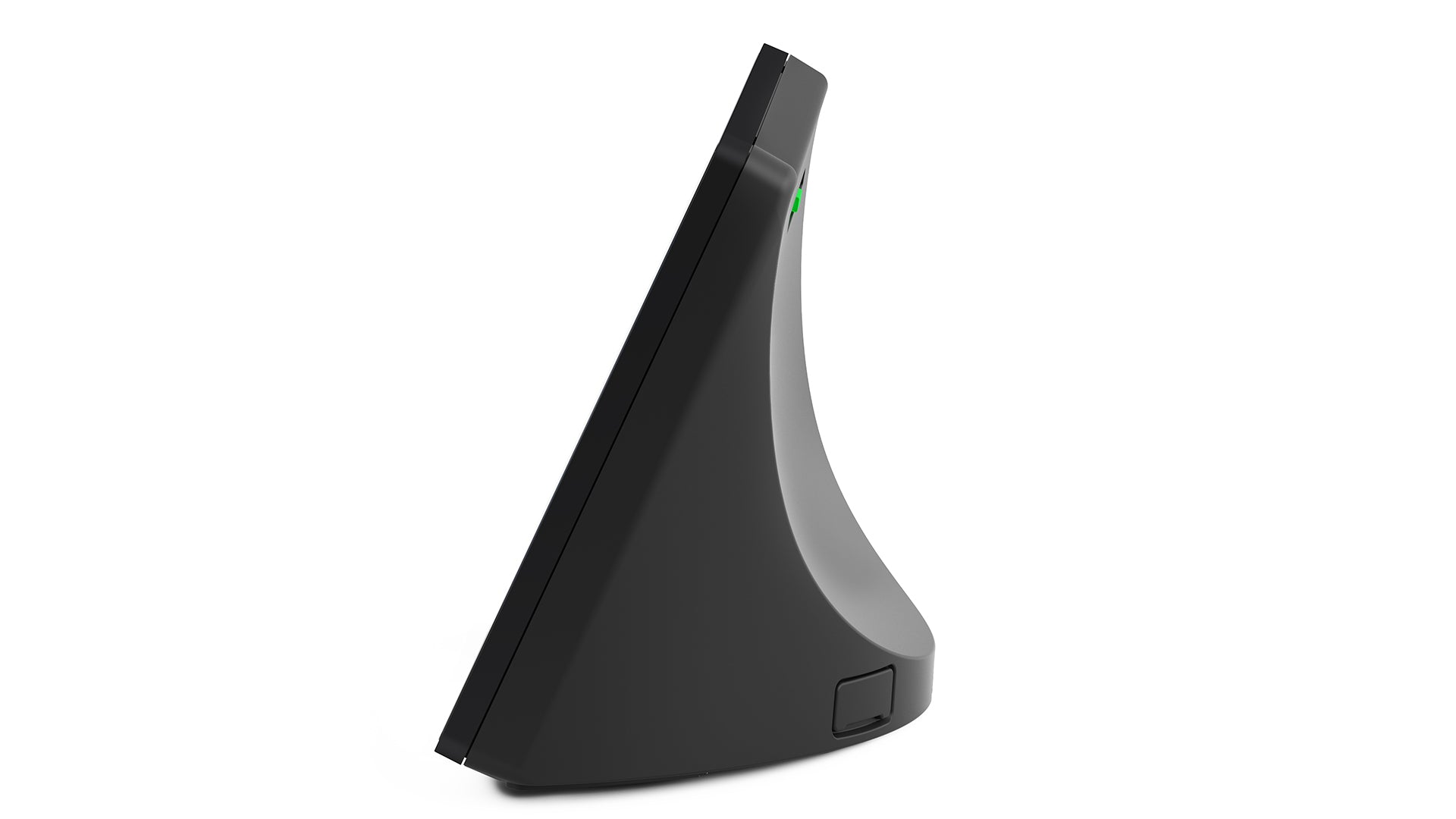

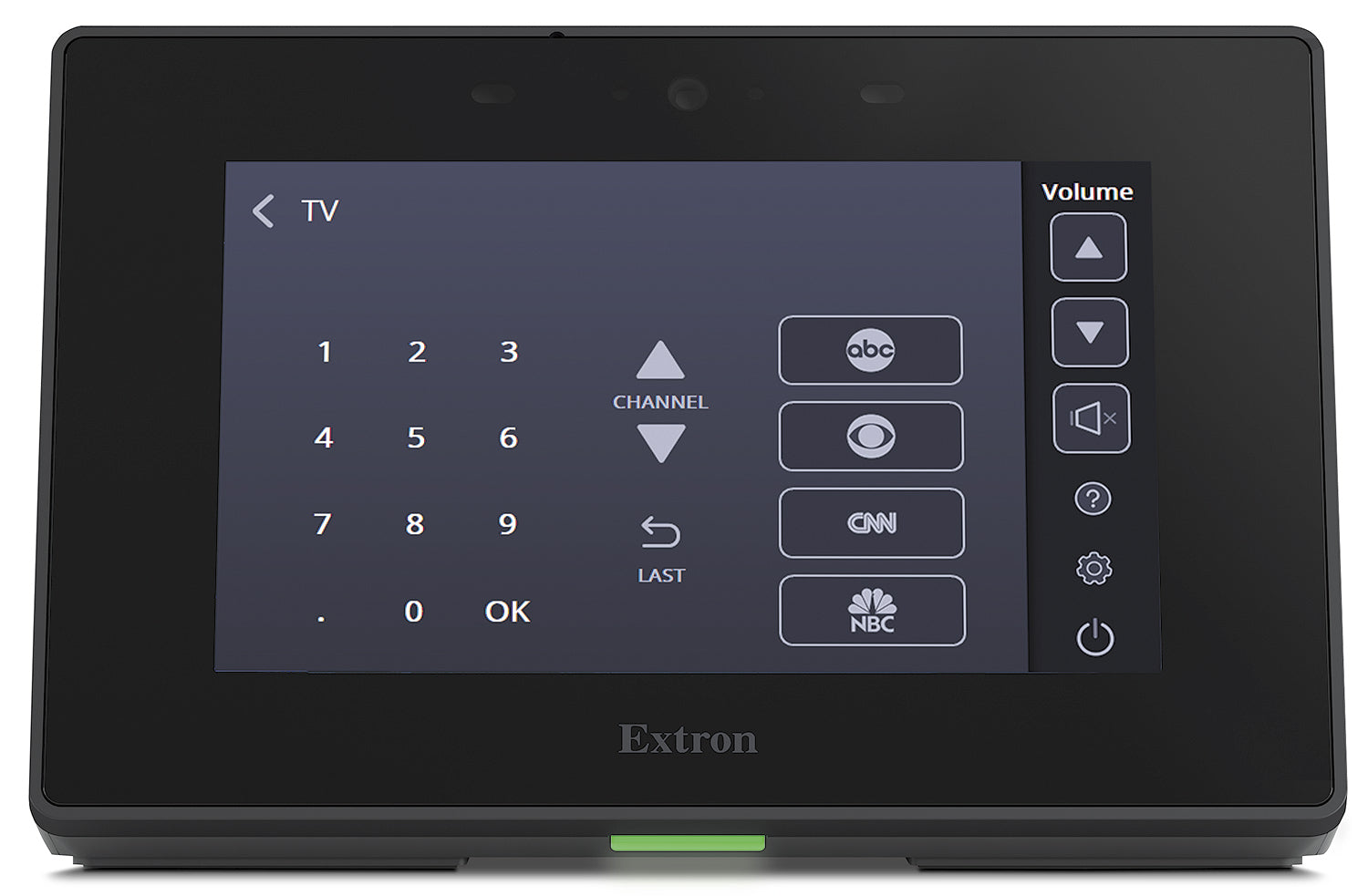

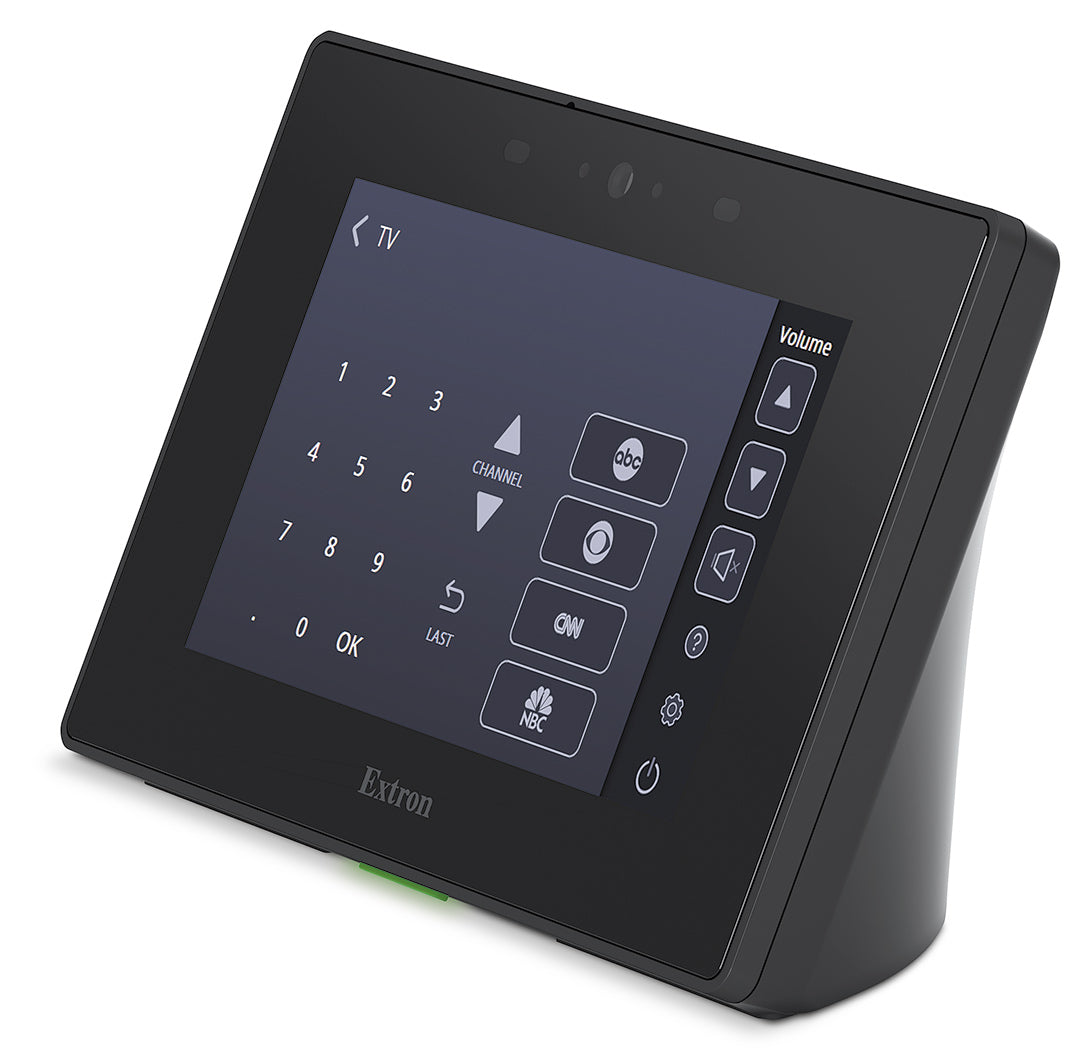

The Extron TLP Pro 525T (60-1559-02) is a 5-inch capacitive touchpanel built for tabletop placement, finished in a black enclosure with a low-profile sweeping back. The 800x480 WVGA display delivers 850 nits of brightness, a 700:1 contrast ratio, and 24-bit color across a wide ±70-degree viewing angle in both planes, so the interface stays legible even at an oblique glance across a conference table. Power and data arrive over a single Category cable through PoE (802.3af, class 3), which keeps installation to one connector instead of separate power and network runs. Onboard motion and light sensors let the panel dim or wake automatically, and a mono speaker plus audio handling supports simple system prompts and confirmation tones.
Where It Is Used

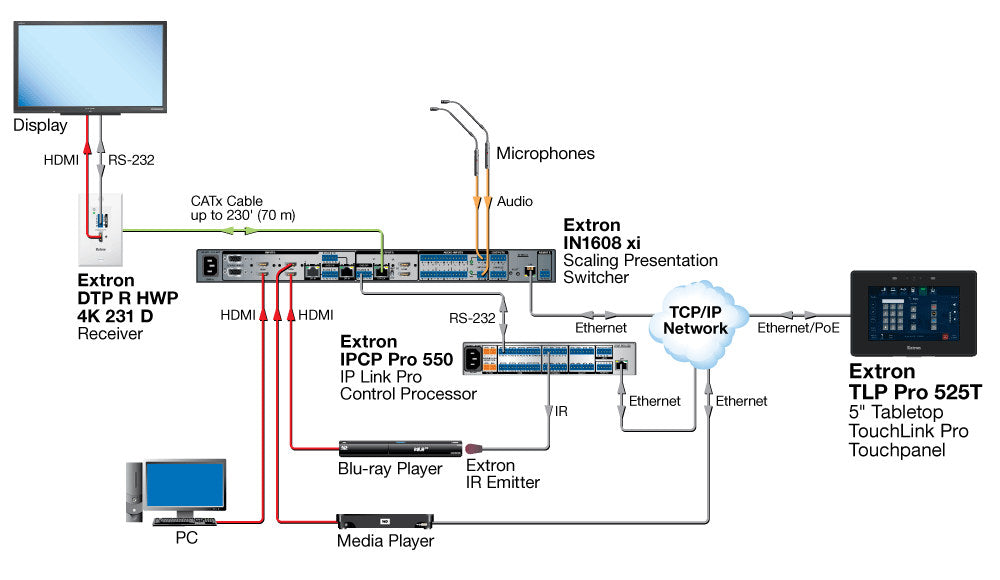

This tabletop configuration suits huddle rooms, boardrooms, and reception desks where staff need a fixed, always-available control surface rather than a wall-mounted one. Paired with an Extron IPCP or IP Link control processor, it drives room lighting, shades, displays, and audio routing through custom Global Configurator or GUI Designer projects. Because the panel accepts the TLCA 1 control adapter as a documented upgrade path, some integrators deploy the 525T as a standalone processor-equipped touchpanel rather than a client-only device, reducing rack hardware in smaller rooms. The USB 2.0 port supports peripheral connections for kiosks, sign-in stations, or accessory control during commissioning.
Specifications at a Glance
Display: 5 in (12.7 cm) capacitive TFT, 800x480 resolution, 186.6 PPI, 850 nits, 700:1 contrast. Memory: 2 GB RAM, 8 GB storage. Networking: 1 RJ-45, 10/100/1000Base-T with PoE 802.3af class 3 power. Power draw: 7.7 W at the panel, 10.0 W including an XTP PI 100 injector; thermal dissipation is 21.6 BTU/hr at the panel and 29.4 BTU/hr including the injector. USB: 1 high-speed USB 2.0 Type A port. Enclosure: 3.88 in H x 5.95 in W x 2.88 in D, 1.45 lbs, plastic housing rated for tabletop mounting only. Operating range is +32 to +104 degrees F with 10-90% noncondensing humidity.
Also referenced as Extron TLPPro525T, TLP-Pro-525T, TLP Pro 525T tabletop touchpanel, part number 60-1559-02 / 60155902.
