Extron TLP Pro 525M 5 in. PoE Wall Touchpanel 60-1561-02
Extron TLP Pro 525M 5 in. PoE Wall Touchpanel 60-1561-02
Extron TLP Pro 525M 5 in. Touchpanel
- • 5 in. capacitive touchscreen, 800x480 (WVGA), 700:1 contrast, 850 nits
- • Mounts to wall, furniture, glass, or rack
- • Powers over a single PoE Ethernet run (802.3af, Class 3)
- • 2 GB SDRAM, 8 GB flash storage, 1 high-speed USB 2.0 (Micro-B)
- • 1 configurable digital input via 3.5 mm captive screw connector
- • 3-year parts and labor warranty, 1-year on display and overlay components
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

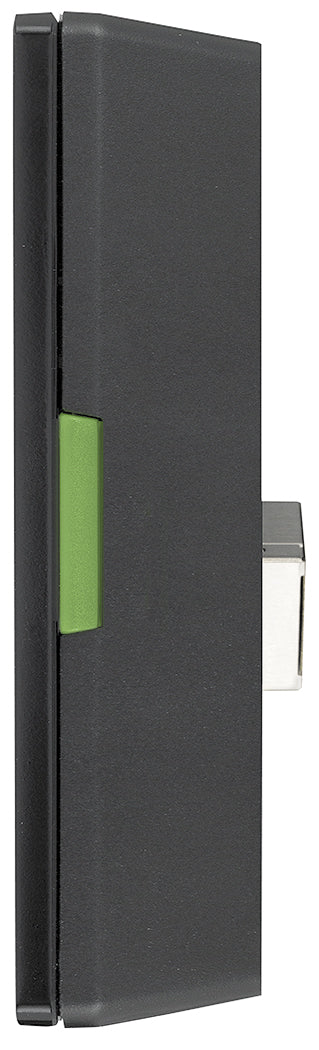

Extron TLP Pro 525M (part number 60-1561-02) is a 5 in. touchpanel that mounts to a wall, furniture, glass, or rack, powered over a single PoE Ethernet cable.

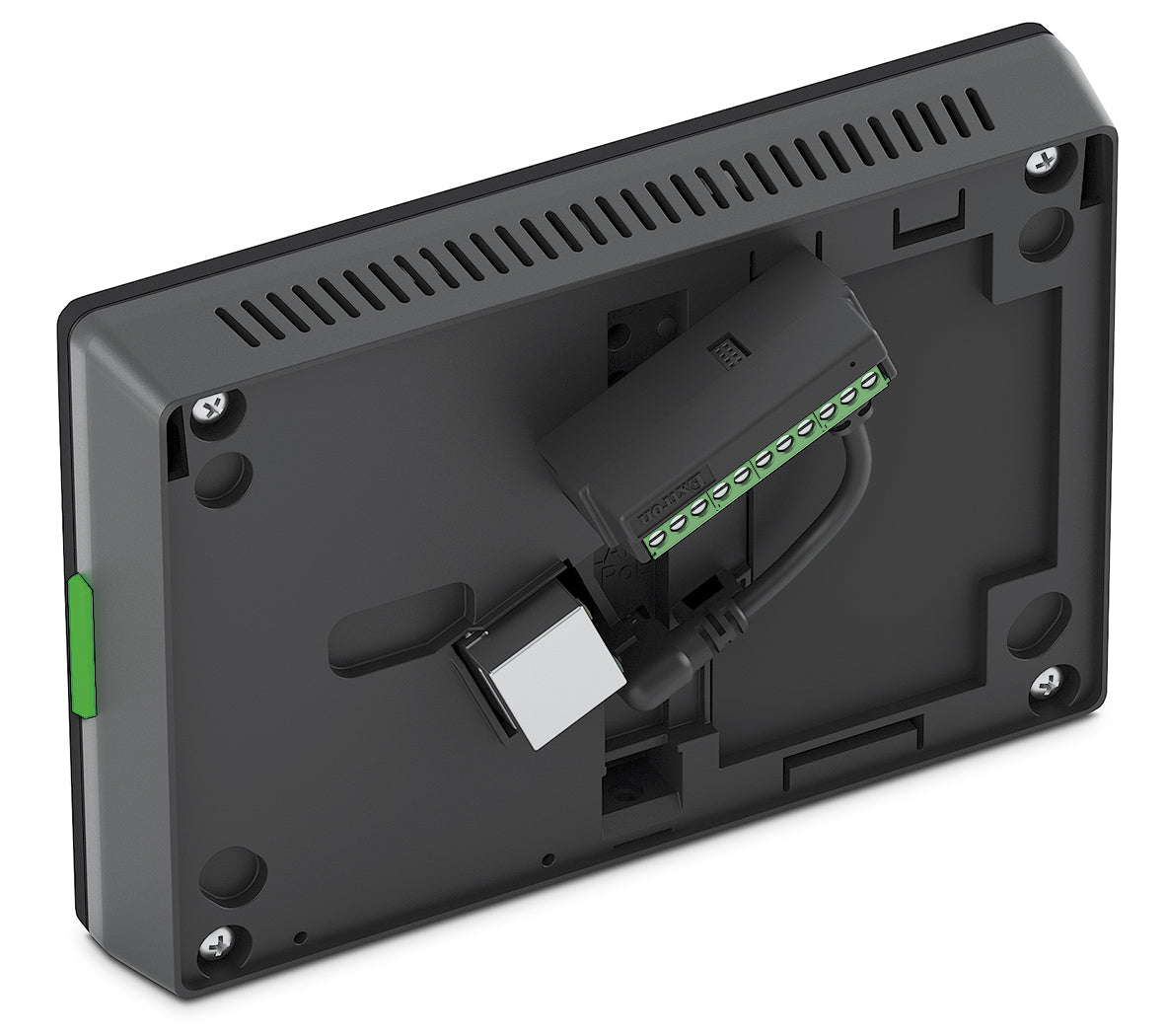

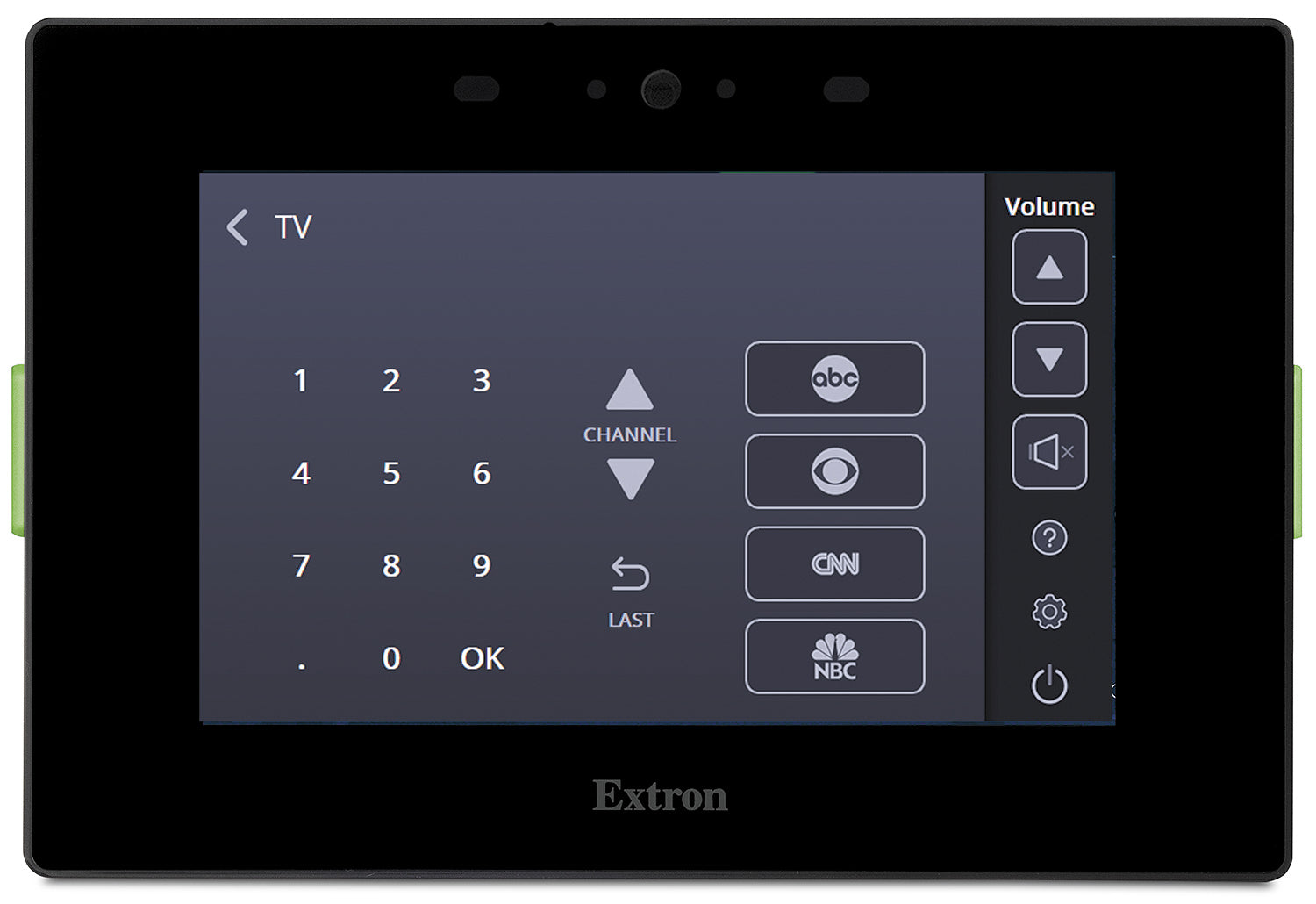

An 850-nit TFT LCD with 700:1 contrast and capacitive touch delivers a bright, responsive interface in a compact footprint. A configurable digital input via a 3.5 mm captive screw connector lets integrators trigger events from external contacts, and a built-in mono speaker and Micro-B USB port round out the panel's I/O. The unit is powered over a single Ethernet cable (PoE, 802.3af Class 3) and programs through Global Configurator Plus/Professional and GUI Designer.
Key Capabilities
- 5 in. capacitive touchscreen, 800x480 (WVGA), 700:1 contrast, 850 nits
- Mounts to wall, furniture, glass, or rack
- Powers over a single PoE Ethernet run (802.3af, Class 3)
- 2 GB SDRAM, 8 GB flash storage, 1 high-speed USB 2.0 (Micro-B)
- 1 configurable digital input via 3.5 mm captive screw connector
- 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used
Integrators specify the TLP Pro 525M for offices and meeting rooms where a compact, single-cable touchpanel with a digital input for contact-closure triggers is needed.
Specifications at a Glance
- Display: 5 in. WVGA (800x480), capacitive touch, 700:1 contrast
- Power: PoE 802.3af Class 3 (6.5W device / 9.3W with injector)
- Memory: 2 GB SDRAM, 8 GB flash
- Enclosure: 4.03 in. H x 6.08 in. W x 1.22 in. D, 0.80 lbs (0.36 kg)
- Regulatory: BIS, CE, FCC Class B, c-UL, UL, RoHS, WEEE
Also referenced as Extron TLPPro525M, TLP-Pro-525M, part number 60156102.
