Extron TLP Pro 525C 5 in. Furniture-Mount Touchpanel
- • 5 in. capacitive touchscreen, 800x480 (WVGA), 700:1 contrast, 850 nits
- • Metal enclosure, furniture/tabletop cutout mount with lid switch (open/closed)
- • Powers over a single PoE Ethernet run (802.3af, Class 3)
- • 2 GB RAM, 8 GB storage, 1 high-speed USB 2.0 port (USB type A)
- • Built-in mono speaker, 89 dB max SPL, plus motion and light sensors
- • 3-year parts and labor warranty, 1-year on display and overlay components
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

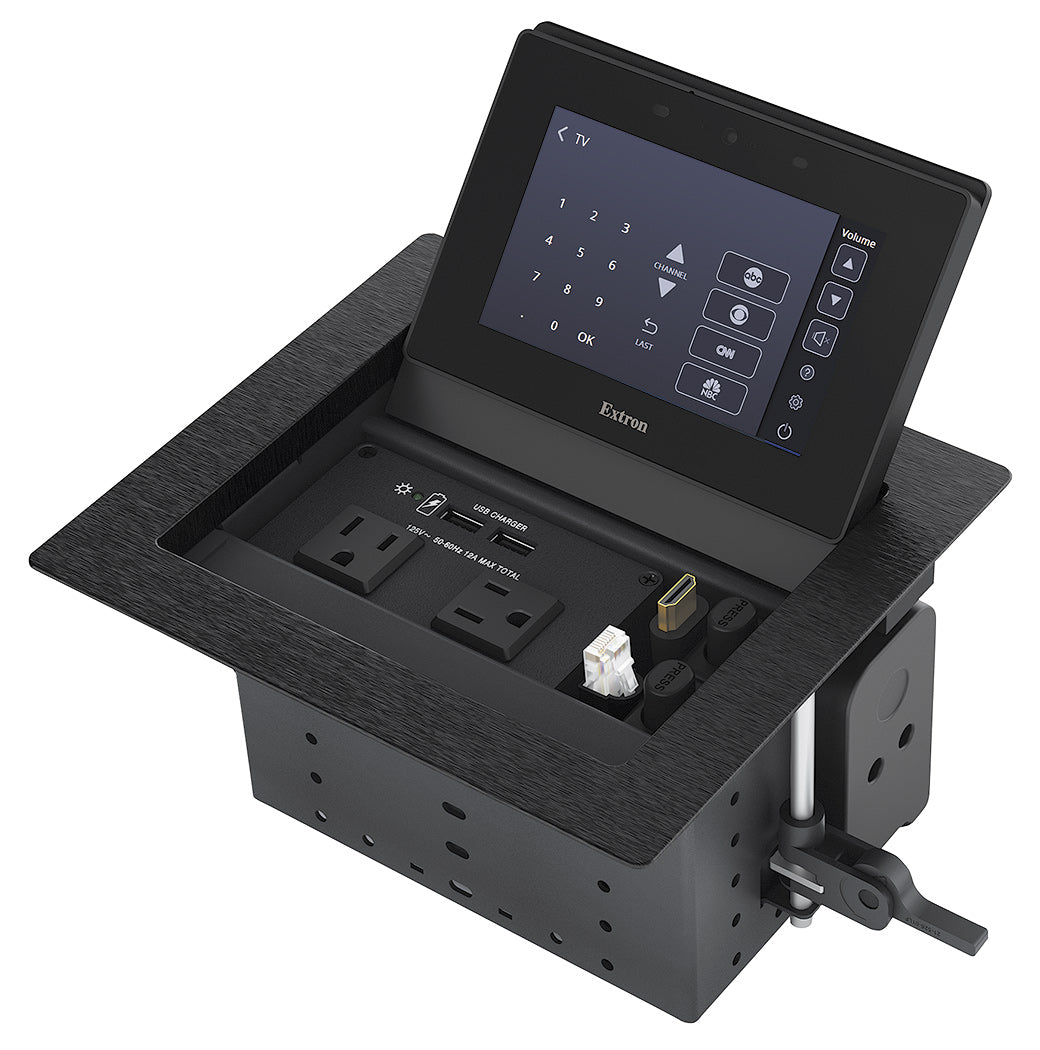

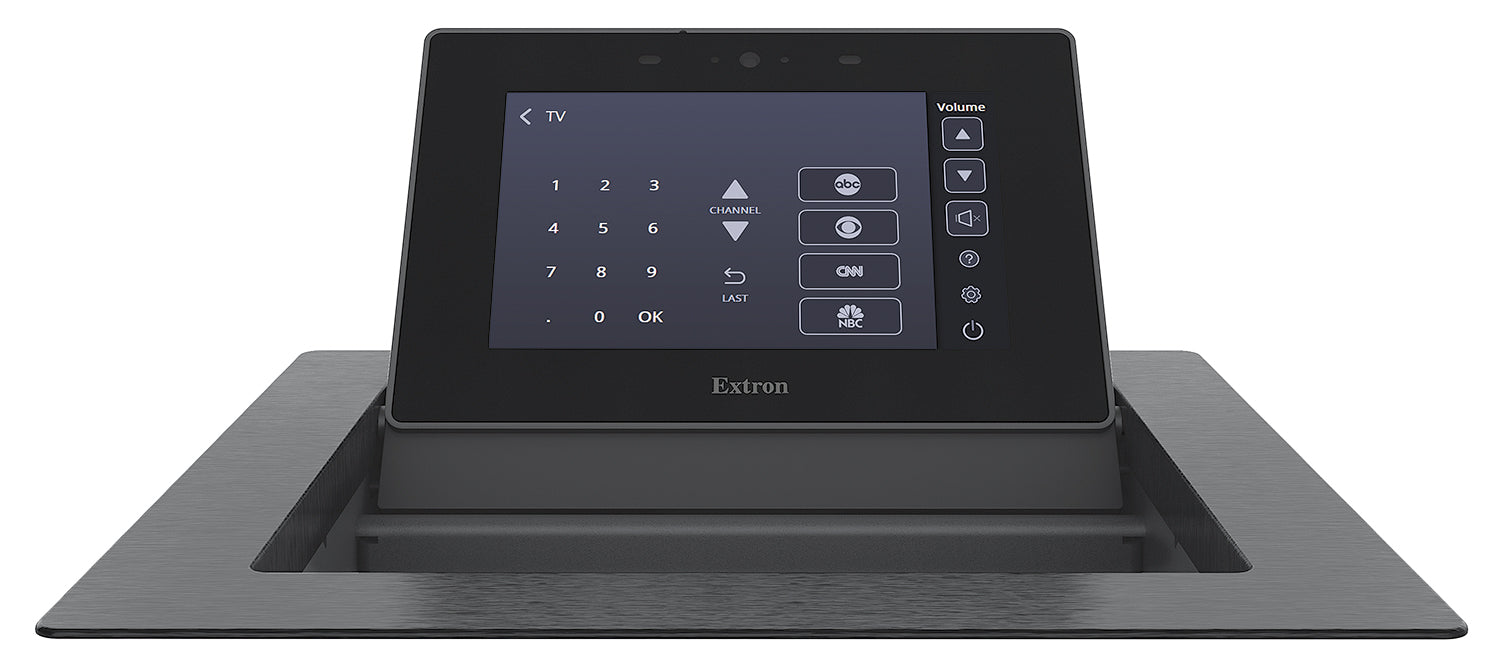

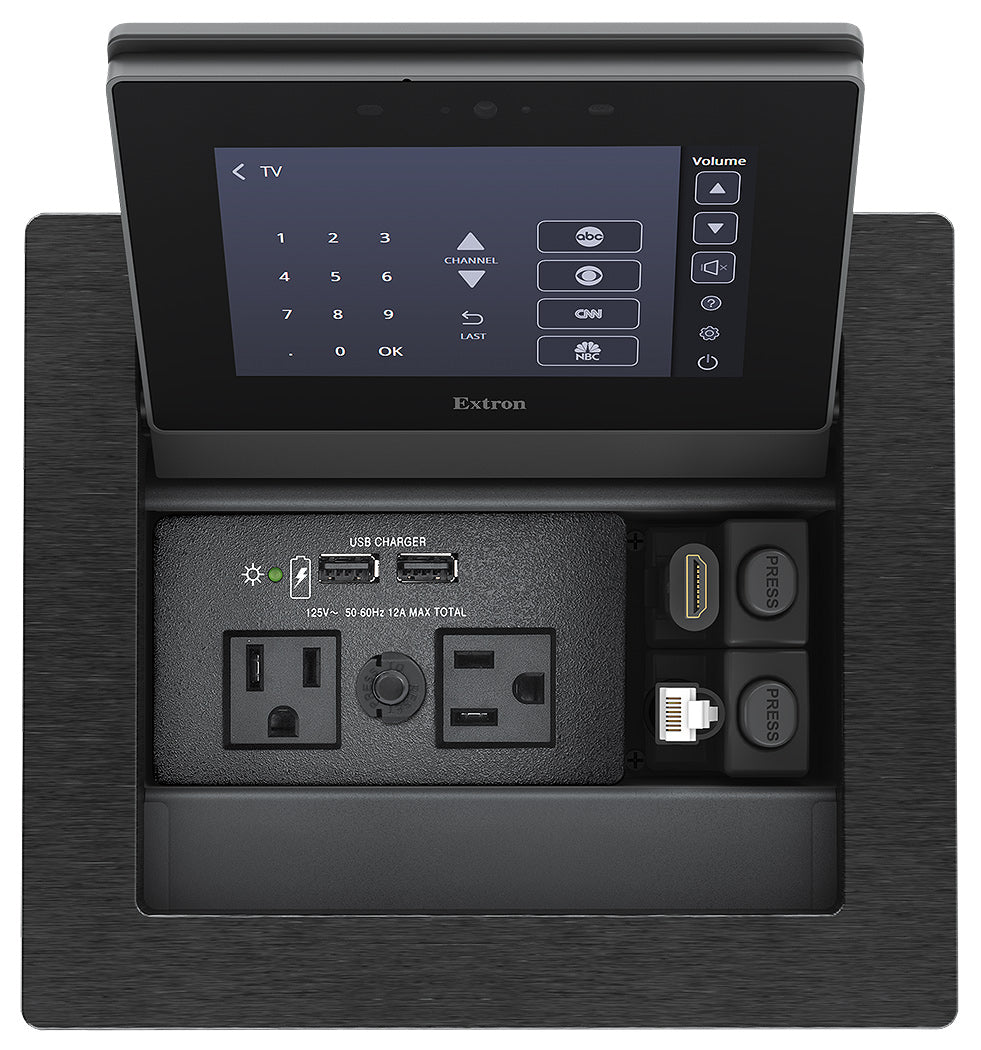

Extron TLP Pro 525C (part number 60-1560-02) is a 5 in. touchpanel built into a metal cable-cubby style housing that mounts into a furniture or tabletop cutout, powered over a single PoE Ethernet cable.
An 850-nit TFT LCD with 700:1 contrast and capacitive touch gives operators a bright, responsive interface even in well-lit rooms, and the rugged metal enclosure suits recessed installations in conference tables and lecterns. A lid switch reports open/closed state, and onboard motion and light sensors support automated interface behavior. The panel is powered over a single Ethernet cable (PoE, 802.3af Class 3), and its recessed mount is defined by a precise surface cutout and under-surface box dimension for clean furniture integration.
Key Capabilities
- 5 in. capacitive touchscreen, 800x480 (WVGA), 700:1 contrast, 850 nits
- Metal enclosure, furniture/tabletop cutout mount with lid switch (open/closed)
- Powers over a single PoE Ethernet run (802.3af, Class 3)
- 2 GB RAM, 8 GB storage, 1 high-speed USB 2.0 port (USB type A)
- Built-in mono speaker, 89 dB max SPL, plus motion and light sensors
- 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used

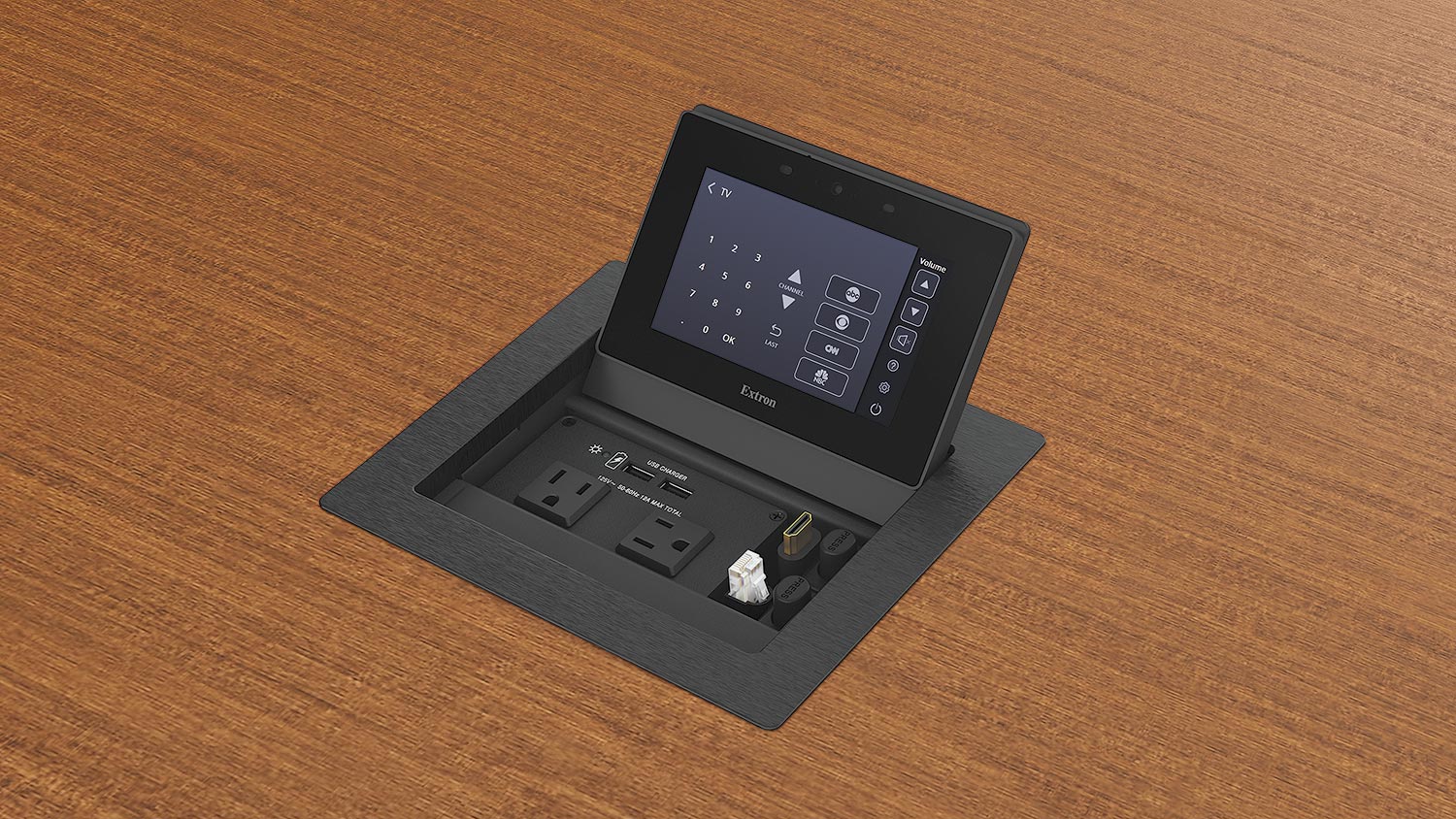

Integrators specify the TLP Pro 525C for boardroom and lecture-hall furniture where a recessed, metal-housed touchpanel needs to sit flush with a tabletop.
Specifications at a Glance
- Display: 5 in. WVGA (800x480), capacitive touch, 700:1 contrast
- Power: PoE 802.3af Class 3 (6.6W device / 9.2W with injector)
- Memory: 2 GB RAM, 8 GB storage
- Surface cutout: 7.50 in. W x 6.00 in. D; box depth 5.90 in. with clamps
- Regulatory: BIS, CE, FCC Class B, c-UL, UL, RoHS, WEEE
Also referenced as Extron TLPPro525C, TLP-Pro-525C, part number 60156002.
