Extron TLP Pro 300M 3.5 in. Touchpanel
- • 3.5 in. capacitive touchscreen, 320x480 (HVGA), 500:1 contrast, 490 nits

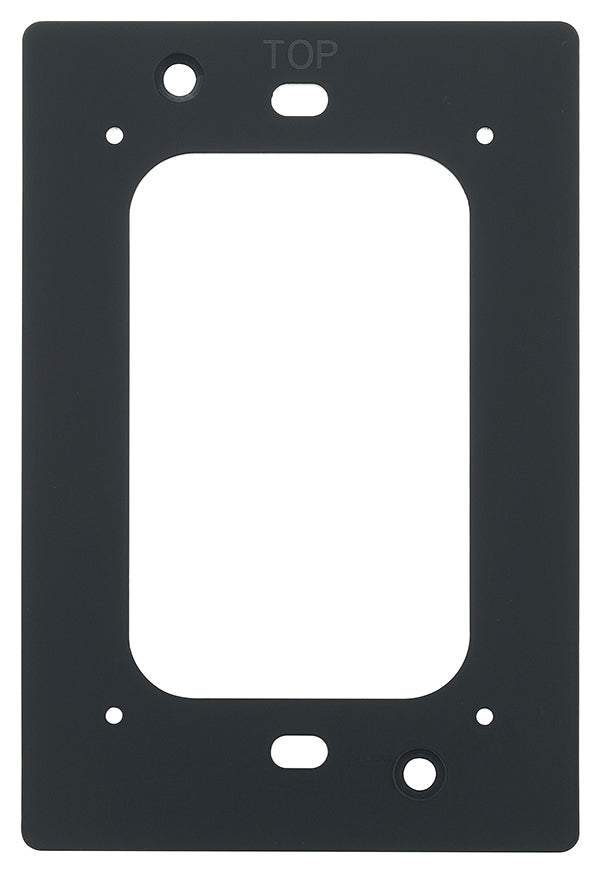

- • Fits a standard US 1-gang electrical junction box or mud ring
- • Powers over a single PoE Ethernet run (802.3af, Class 2)
- • 1 GB RAM, 8 GB storage, built-in mono speaker (86 dB SPL)
- • Onboard motion and light sensors, 1 Micro-B USB 2.0 port
- • 3-year parts and labor warranty, 1-year on display and overlay components
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

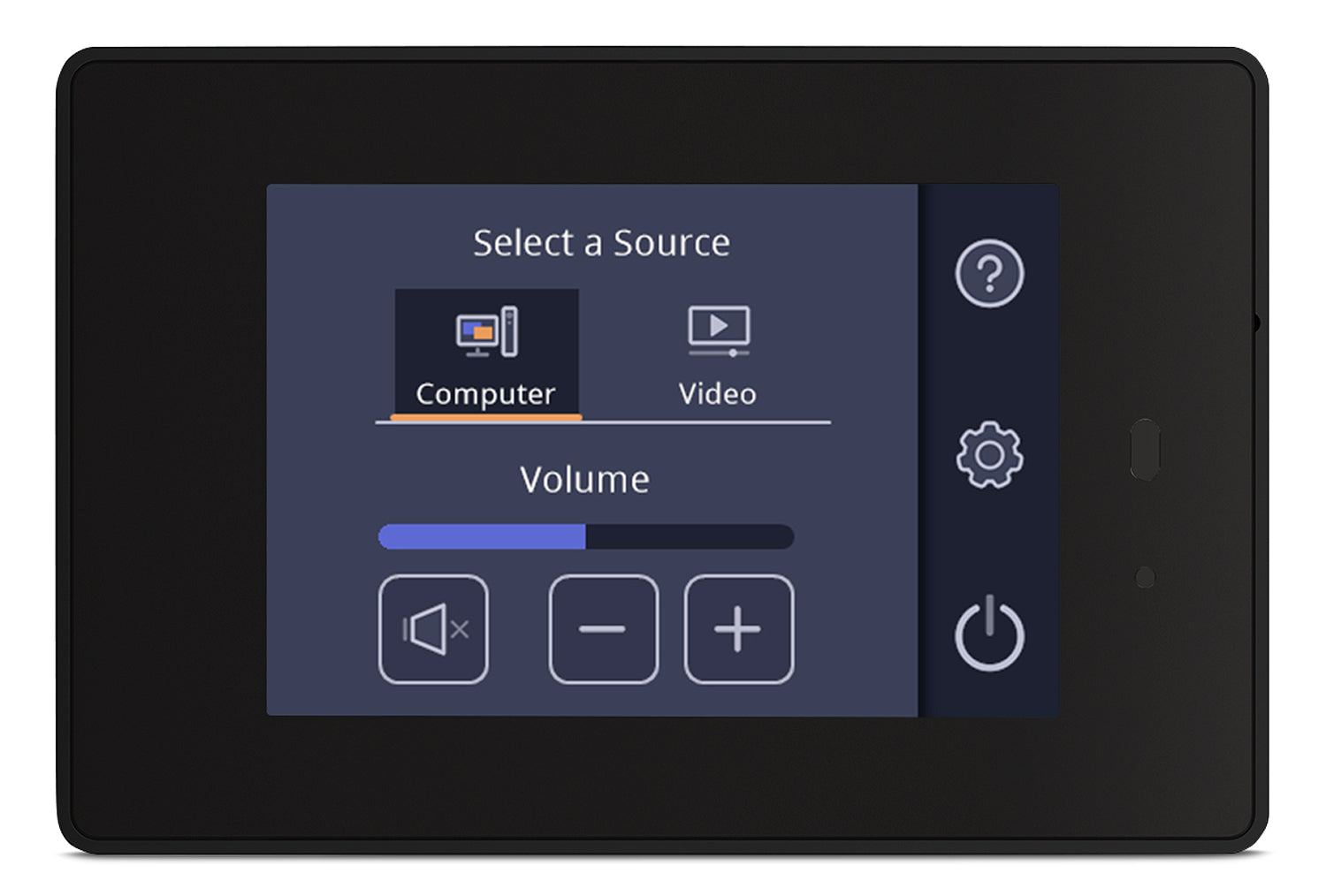

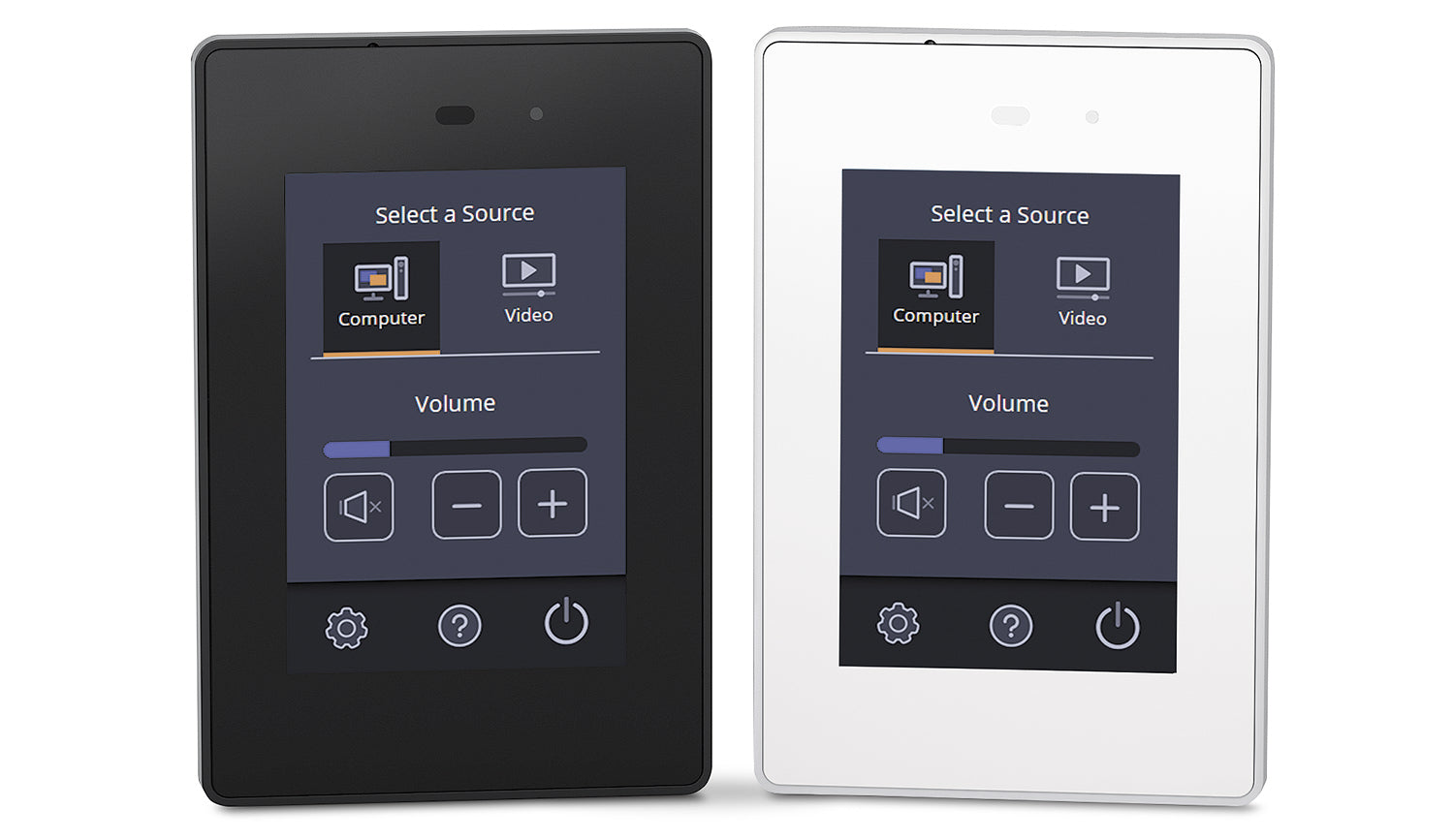

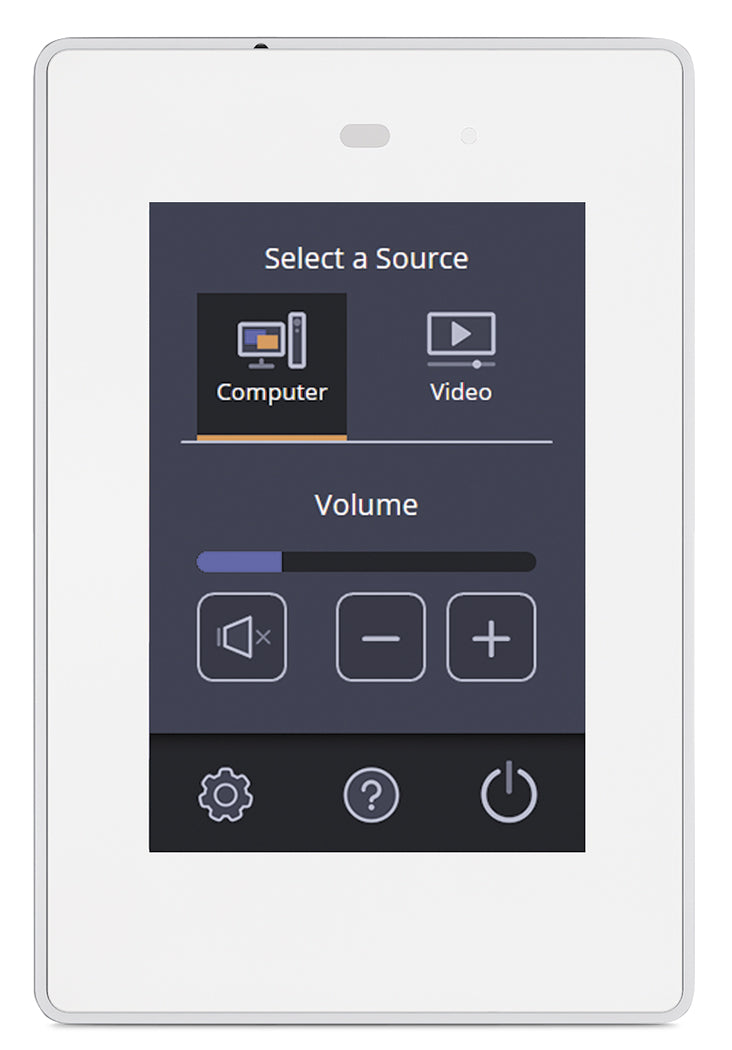

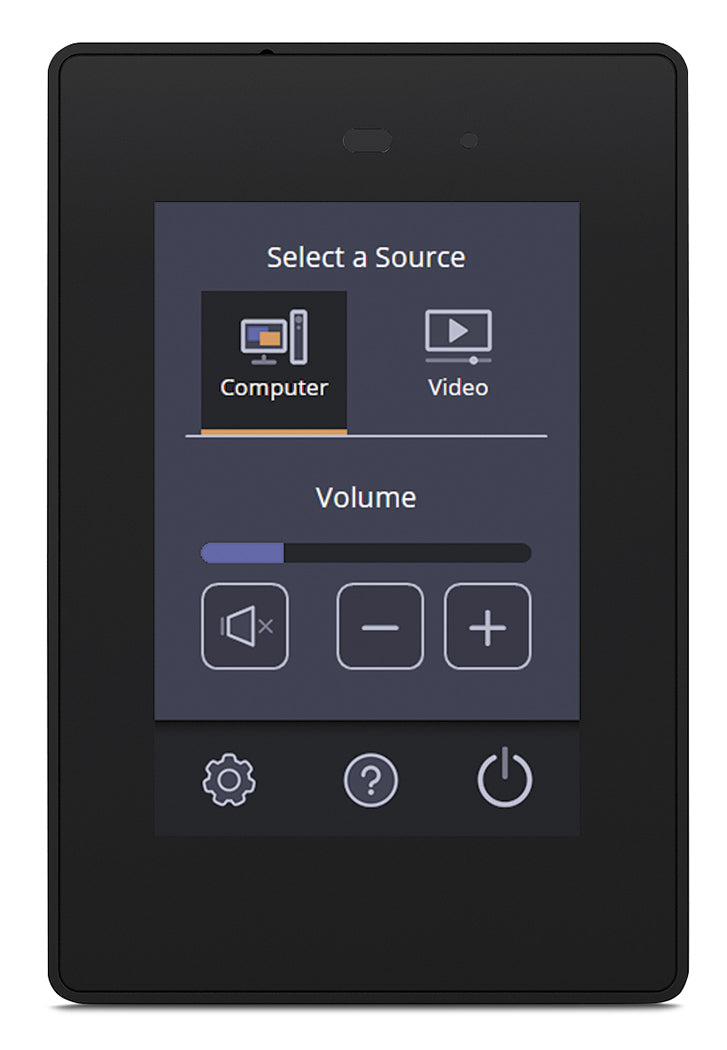

Extron TLP Pro 300M (part number 60-1667-02) is a compact 3.5 in. touchpanel that fits a standard US 1-gang electrical junction box or mud ring, powered over a single PoE Ethernet cable.

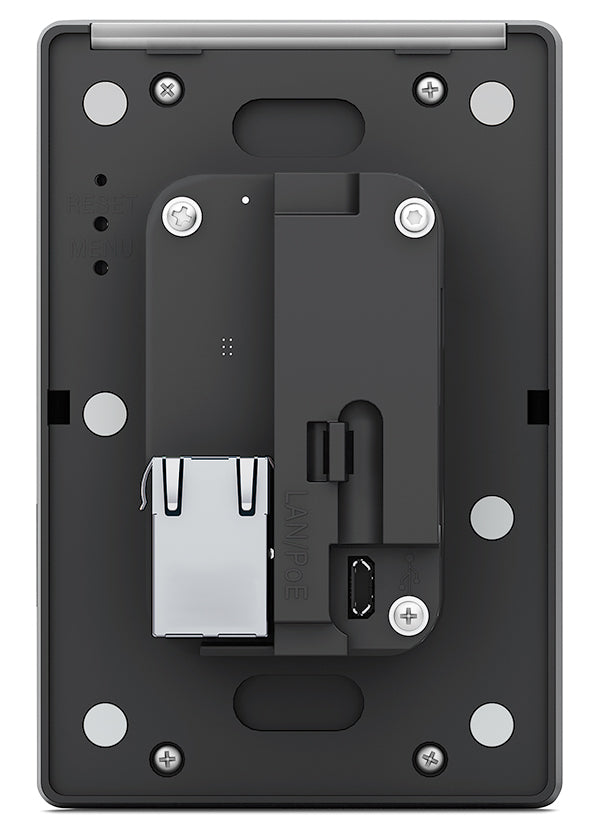

A 490-nit TFT LCD with 500:1 contrast and capacitive touch packs a full control interface into a small footprint, ideal for room-by-room controls where space is limited. The panel includes a built-in mono speaker, motion and light sensors, and a Micro-B USB port for peripherals or diagnostics. Power over Ethernet (802.3af, Class 2) keeps installation to a single cable, and the panel is programmed through Global Configurator Plus/Professional and GUI Designer.
Key Capabilities
- 3.5 in. capacitive touchscreen, 320x480 (HVGA), 500:1 contrast, 490 nits
- Fits a standard US 1-gang electrical junction box or mud ring
- Powers over a single PoE Ethernet run (802.3af, Class 2)
- 1 GB RAM, 8 GB storage, built-in mono speaker (86 dB SPL)
- Onboard motion and light sensors, 1 Micro-B USB 2.0 port
- 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used
Integrators specify the TLP Pro 300M for offices, huddle rooms, and small spaces where a compact single-gang touchpanel controls AV, lighting, or HVAC without taking up wall space.
Specifications at a Glance
- Display: 3.5 in. HVGA (320x480), capacitive touch, 500:1 contrast
- Power: PoE 802.3af Class 2 (4.0W device / 7.3W with injector)
- Memory: 1 GB RAM, 8 GB storage

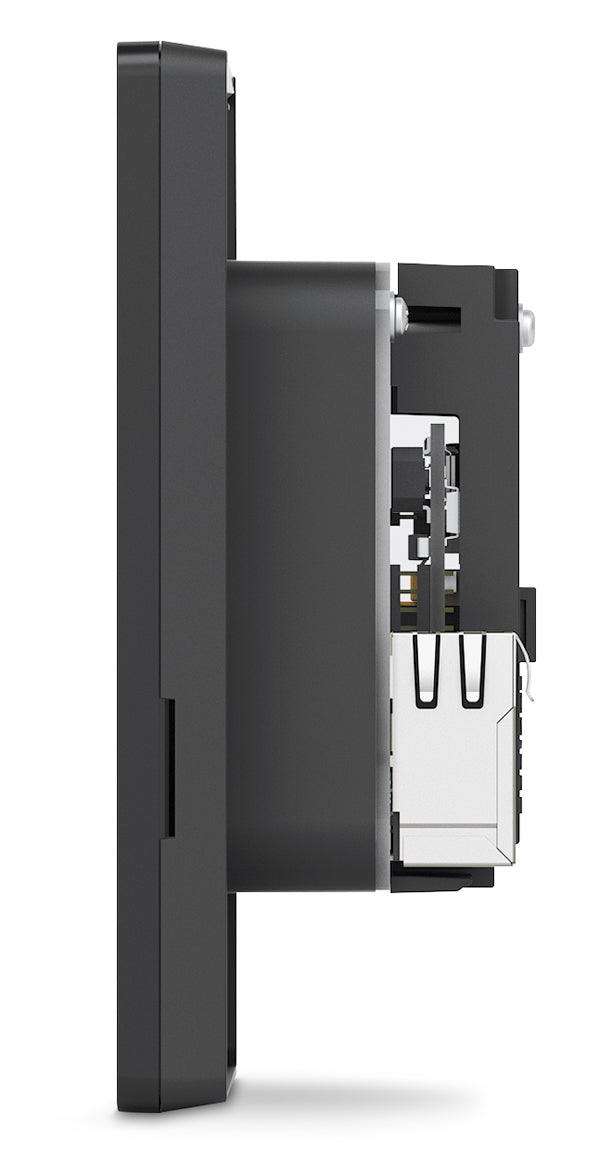

- Enclosure: 4.52 in. H x 3.02 in. W x 1.79 in. D, 0.4 lbs (0.2 kg)
- Regulatory: CE, FCC Class A, c-UL, UL, RoHS, WEEE
Also referenced as Extron TLPPro300M, TLP-Pro-300M, part number 60166702.
