Details

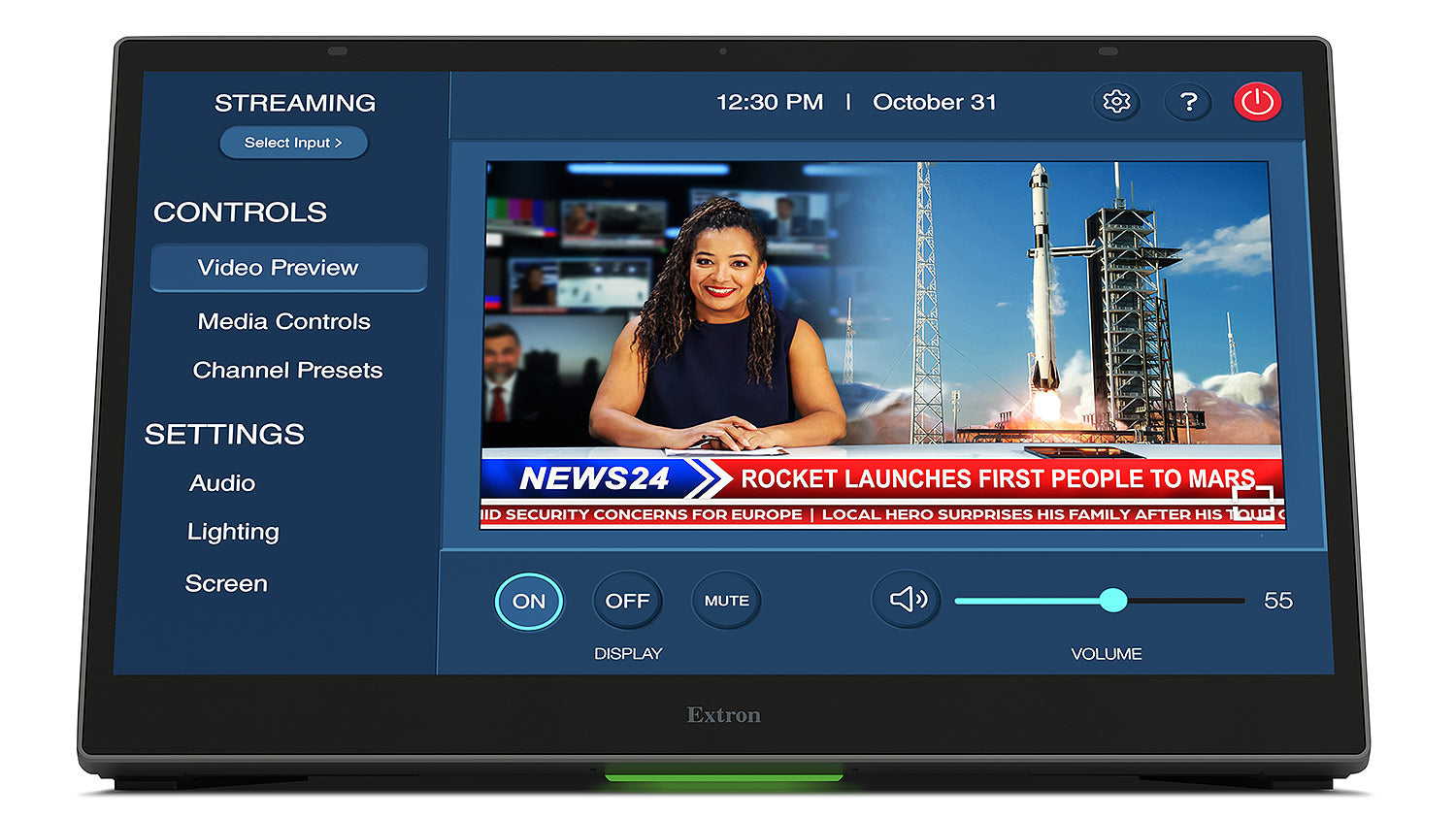

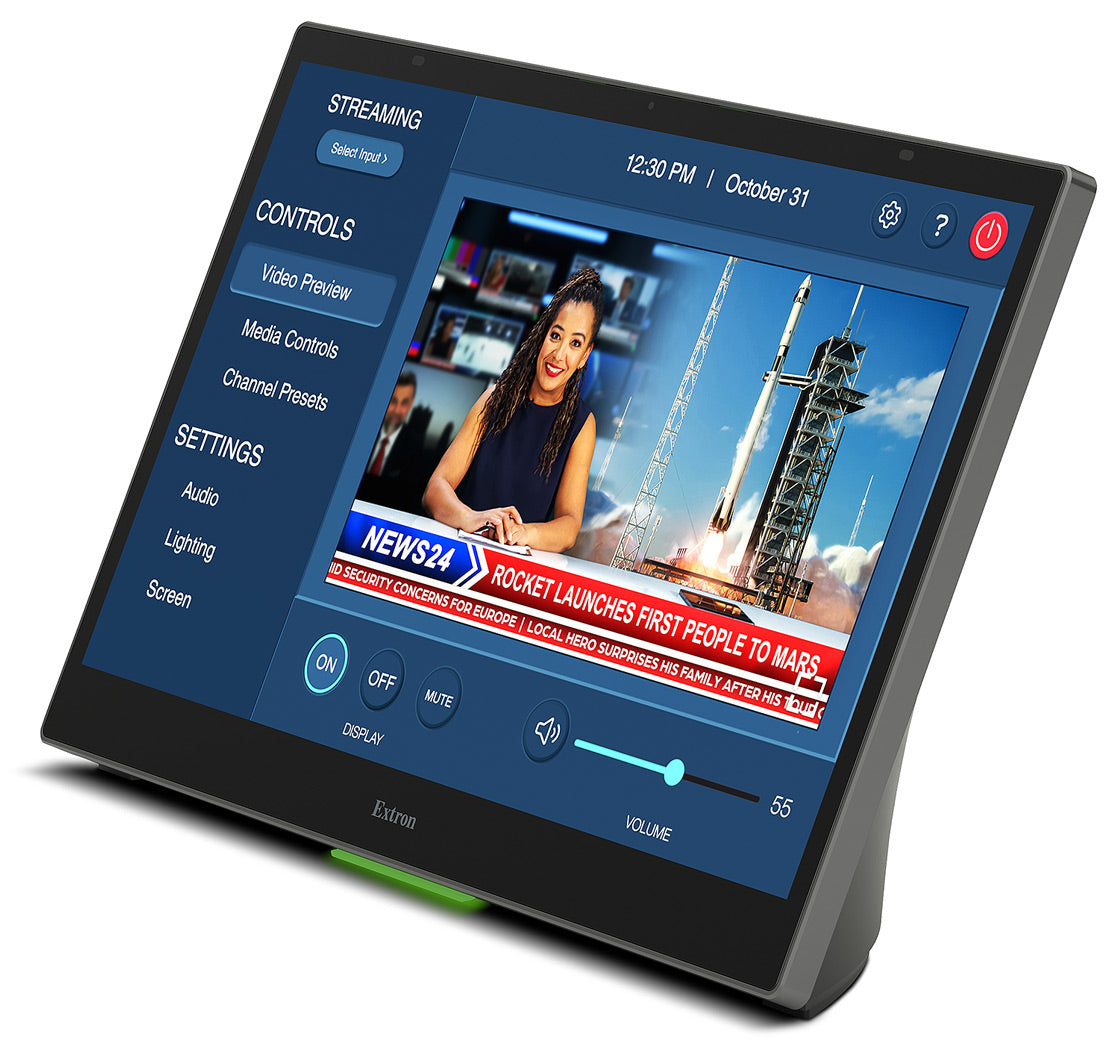

Extron TLP Pro 1535T (part number 60-2001-02) is a 15.6 in. tabletop touchpanel with an IPS display and single-cable PoE+ installation.

The 1535T pairs a 450-nit IPS panel with an 800:1 contrast ratio and projected capacitive touch for a bright, responsive interface, and a full 1920x1080 (FHD) resolution gives Global Configurator-built pages a sharp, detailed layout. Built-in stereo speakers deliver audio feedback at the table, and a USB-C port supports peripherals at the panel. The unit powers over a single Ethernet cable (PoE+, 802.3at Class 4) and sets on or mounts to a tabletop.

Key Capabilities

15.6 in. IPS touchscreen, 1920x1080 (FHD), projected capacitive touch, 800:1 contrast
Powers over a single PoE+ Ethernet run (802.3at, Class 4)
4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
Built-in stereo speakers and onboard motion and light sensors
1 high-speed USB 2.0 device via USB-C receptacle
Sets on or mounts to a tabletop; 3-year parts and labor warranty, 1-year on display and overlay components

Where It Is Used

Integrators specify the TLP Pro 1535T for boardroom and control room tables where a large, high-resolution tabletop touchpanel is required.

Specifications at a Glance

Display: 15.6 in. FHD (1920x1080), projected capacitive touch, 800:1 contrast
Power: PoE+ 802.3at Class 4 (16.1W device / 19.5W with PoE+ / 16.2W with USB-C)
Memory: 4 GB DDR4 RAM, 64 GB eMMC storage
Enclosure: 8.67 in. H x 14.4 in. W x 4.92 in. D
Regulatory: CE, c-UL, UL, FCC Class A, RoHS, UKCA, WEEE

Also referenced as Extron TLPPro1535T, TLP-Pro-1535T, part number 60200102.

Specifications

Part Number: 60-2001-02

Manufacturer: Extron

Model: TLP Pro 1535T

Condition: New

Screen type: IPS TFT active matrix color LCD, projected capacitive touch

Resolution: 1920x1080 (FHD), 141.2 PPI, 16:9 aspect ratio

Brightness/contrast: 450 nits (cd/m2), 800:1 contrast, LED backlight with auto brightness control

Viewing angle: ±85° horizontal, ±85° vertical

Memory: 4GB DDR4 RAM, 64GB eMMC storage, 32GB usable for projects

Sensors: Motion (on/off), light (auto/manual)

Audio output: 2 stereo speakers; WAV (Microsoft RIFF), LPCM uncompressed, 8/16/24/32-bit, up to 192 kHz, mono or stereo

Ethernet: 1 female RJ-45, 10/100Base-T half/full duplex autodetect; DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

USB: 1 high-speed USB 2.0 device, 1 USB-C receptacle, USB 2.0/1.1/1.0 compatible, up to 480 Mbps

Control software: Global Configurator Plus/Professional, GUI Designer, ControlScript Programming, Extron Control, GlobalViewer Enterprise, Toolbelt, embedded web page

Power input requirements: PoE+ (802.3at, Class 4); power supply not included

Power consumption: 16.1 W device, 19.5 W device with PoE+, 16.2 W device with USB-C

Auxiliary power output (USB): 5 VDC, 500 mA

Thermal dissipation: 46.9 BTU/hr device, 58.6 BTU/hr device with PoE+, 55.2 BTU/hr device with USB-C

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C); Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing

Cooling: Convection

Mounting: Set on or mount to tabletop

Enclosure: Plastic, 8.67" H x 14.4" W x 4.92" D (220 mm H x 366 mm W x 125 mm D)

Product weight: TBD (not yet published by Extron for this model)

Regulatory compliance: CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI, RoHS, UKCA, WEEE

Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

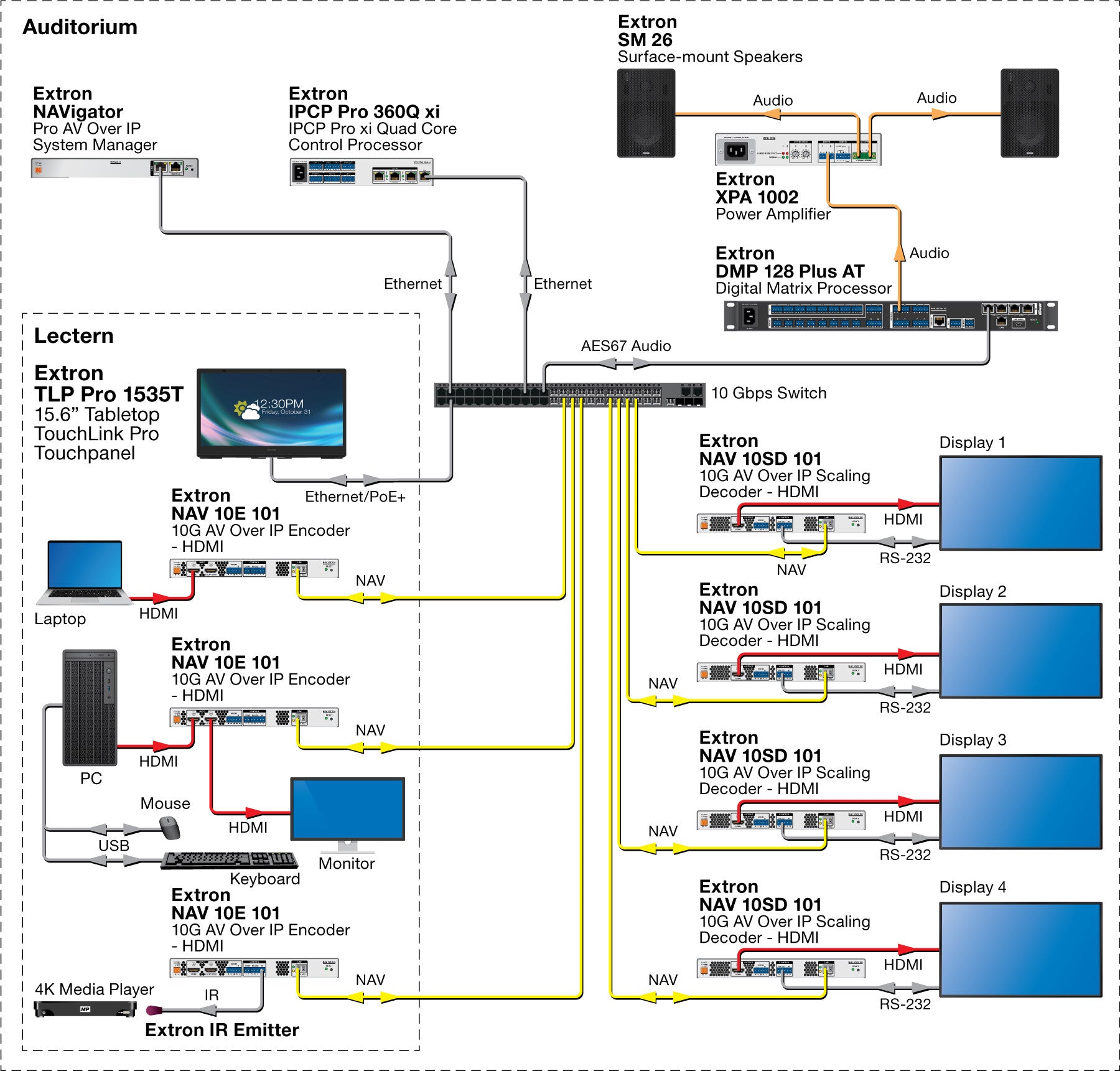

Diagram

Resources

Brochure | TLP Pro 1535T 60-2001-02 | TLP Pro 1535T

Manual | TLP Pro 1535T 60-2001-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 1535T 60-2001-02 | TLP Pro 1535 Series User Guide

Manual | TLP Pro 1535T 60-2001-02 | TLP Pro 1535T Setup Guide

Specifications | TLP Pro 1535T 60-2001-02 | TLP Pro 1535T

Panel Drawing | TLP Pro 1535T 60-2001-02 | TLP Pro 1535T
