Extron TLP Pro 1535M 15.6 in. Touchpanel
- • 15.6 in. IPS touchscreen, 1920x1080 (FHD), projected capacitive touch, 800:1 contrast
- • Powers over a single PoE+ Ethernet run (802.3at, Class 4)
- • 4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
- • 3 built-in stereo speakers and onboard motion and light sensors
- • 1 high-speed USB 2.0 device via USB-C receptacle
- • Wall or VESA mount; 3-year parts and labor warranty, 1-year on display and overlay components
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

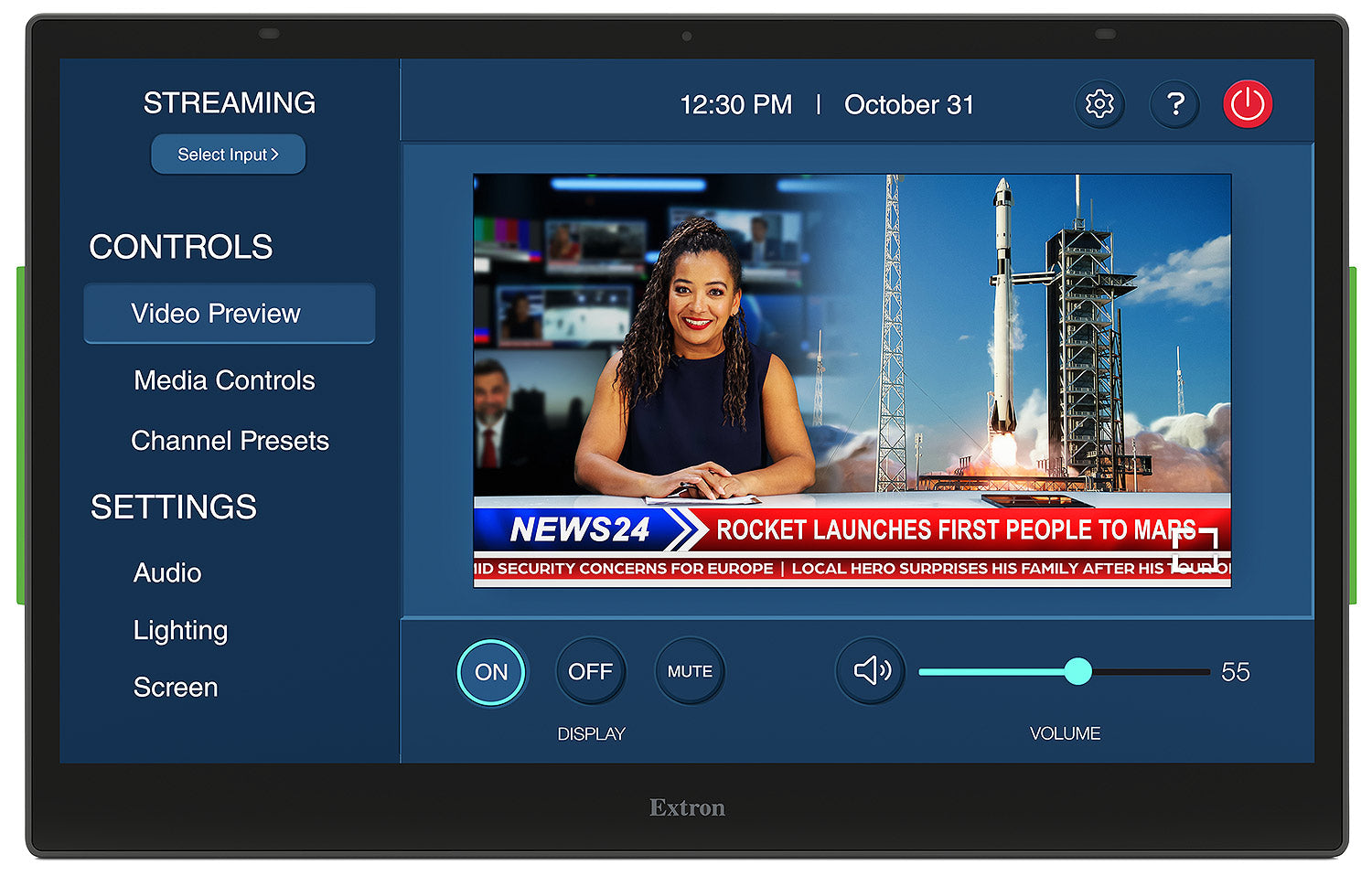

Extron TLP Pro 1535M (part number 60-2000-02) is a 15.6 in. wall or VESA-mount touchpanel with an IPS display and single-cable PoE+ installation.
The 1535M pairs a 450-nit IPS panel with an 800:1 contrast ratio and projected capacitive touch for a bright, responsive interface, and a full 1920x1080 (FHD) resolution gives Global Configurator-built pages a sharp, detailed layout. Three built-in stereo speakers deliver richer audio than a typical two-speaker touchpanel, and a USB-C port supports peripherals at the panel. The unit powers over a single Ethernet cable (PoE+, 802.3at Class 4), simplifying installation to wall or VESA mounts.
Key Capabilities
- 15.6 in. IPS touchscreen, 1920x1080 (FHD), projected capacitive touch, 800:1 contrast
- Powers over a single PoE+ Ethernet run (802.3at, Class 4)
- 4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
- 3 built-in stereo speakers and onboard motion and light sensors
- 1 high-speed USB 2.0 device via USB-C receptacle
- Wall or VESA mount; 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used
Integrators specify the TLP Pro 1535M for boardrooms and control rooms where a large, high-resolution wall-mount touchpanel with rich audio is required.
Specifications at a Glance
- Display: 15.6 in. FHD (1920x1080), projected capacitive touch, 800:1 contrast
- Power: PoE+ 802.3at Class 4 (20.0W device / 22.6W with PoE+ / 19.4W with USB-C)
- Memory: 4 GB DDR4 RAM, 64 GB eMMC storage
- Enclosure: 9.20 in. H x 14.6 in. W x 2.43 in. D
- Regulatory: CE, c-UL, UL, FCC Class A, RoHS, UKCA, WEEE
Also referenced as Extron TLPPro1535M, TLP-Pro-1535M, part number 60200002.
Specifications
Specifications

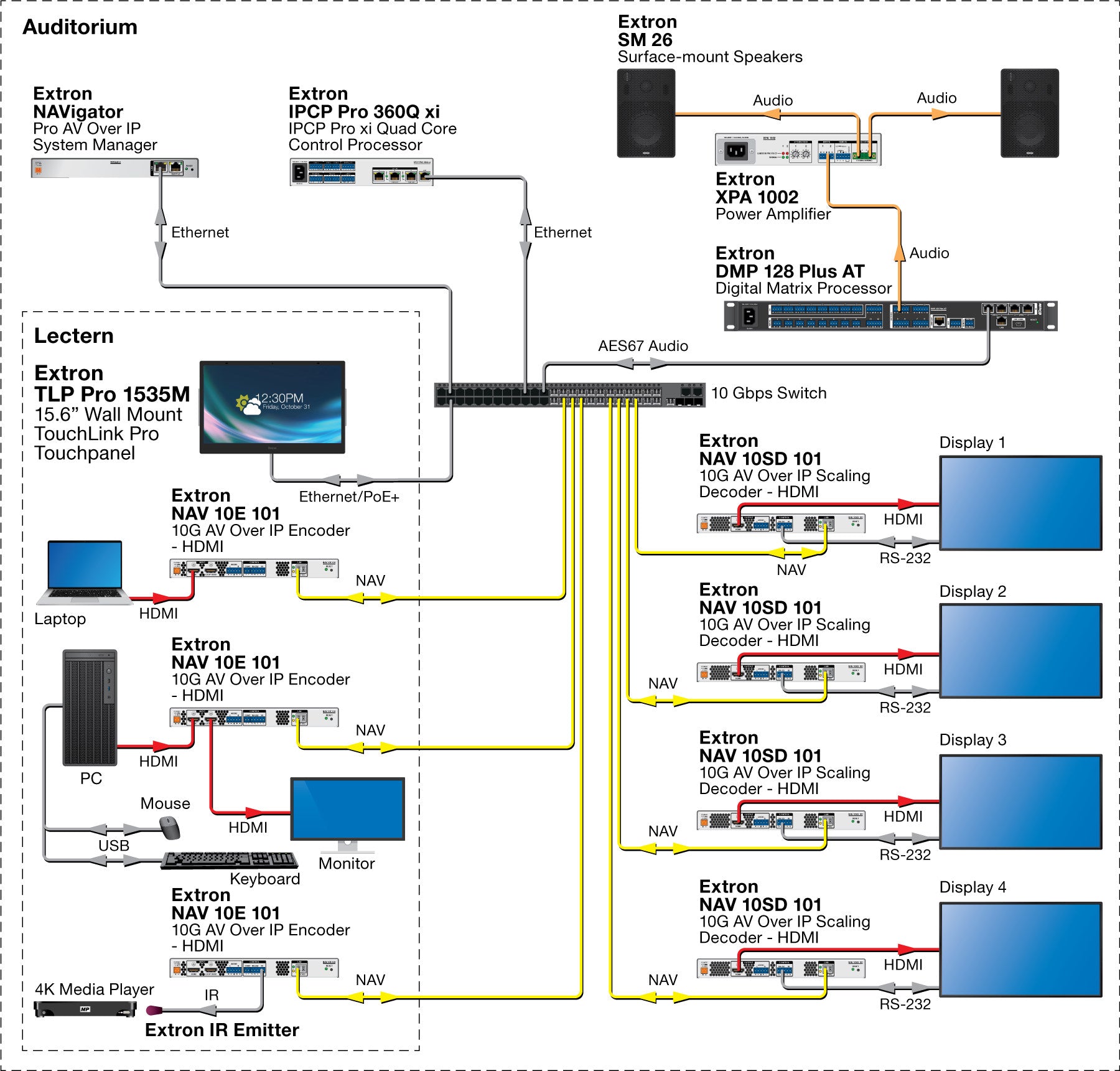

Diagram
