Details

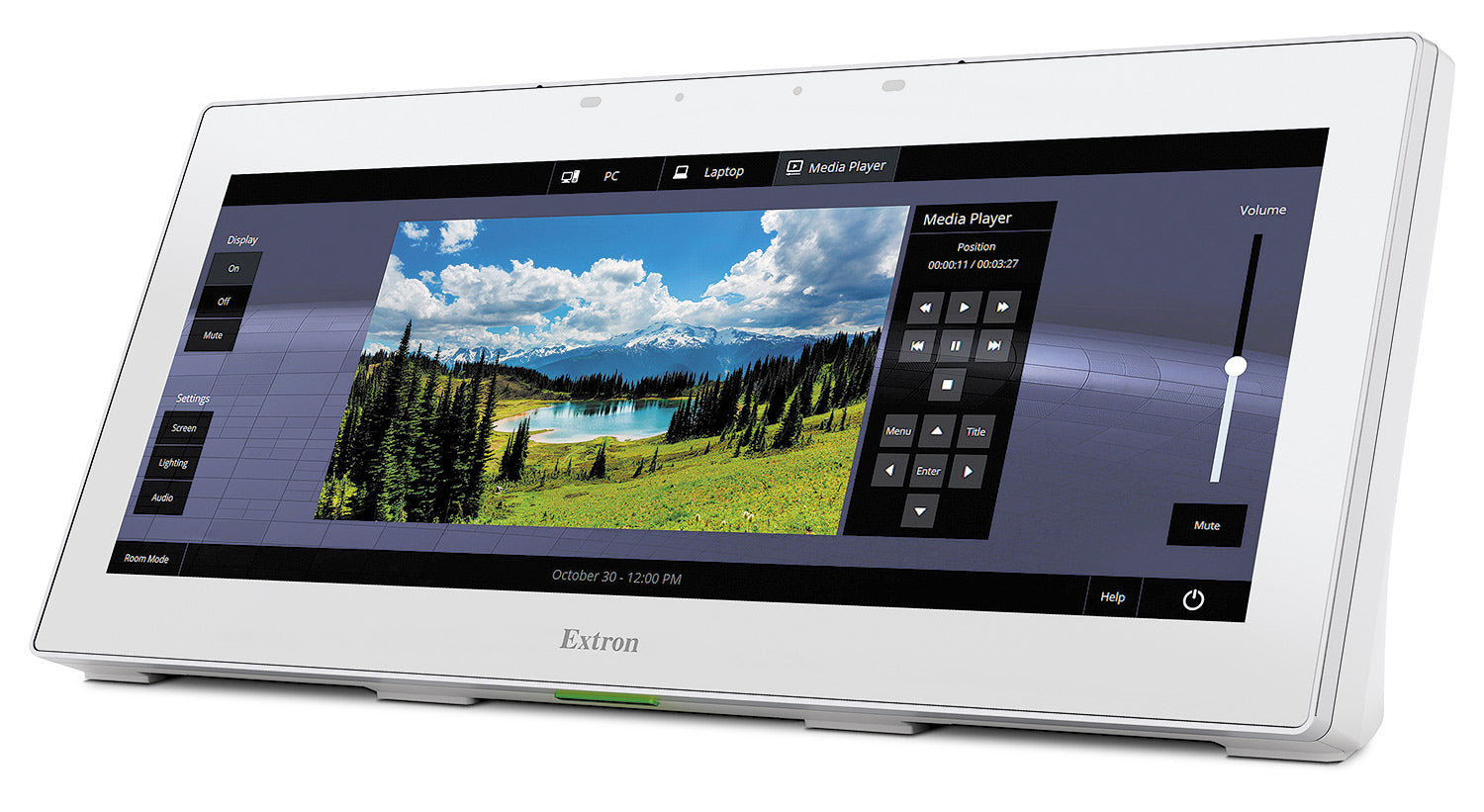

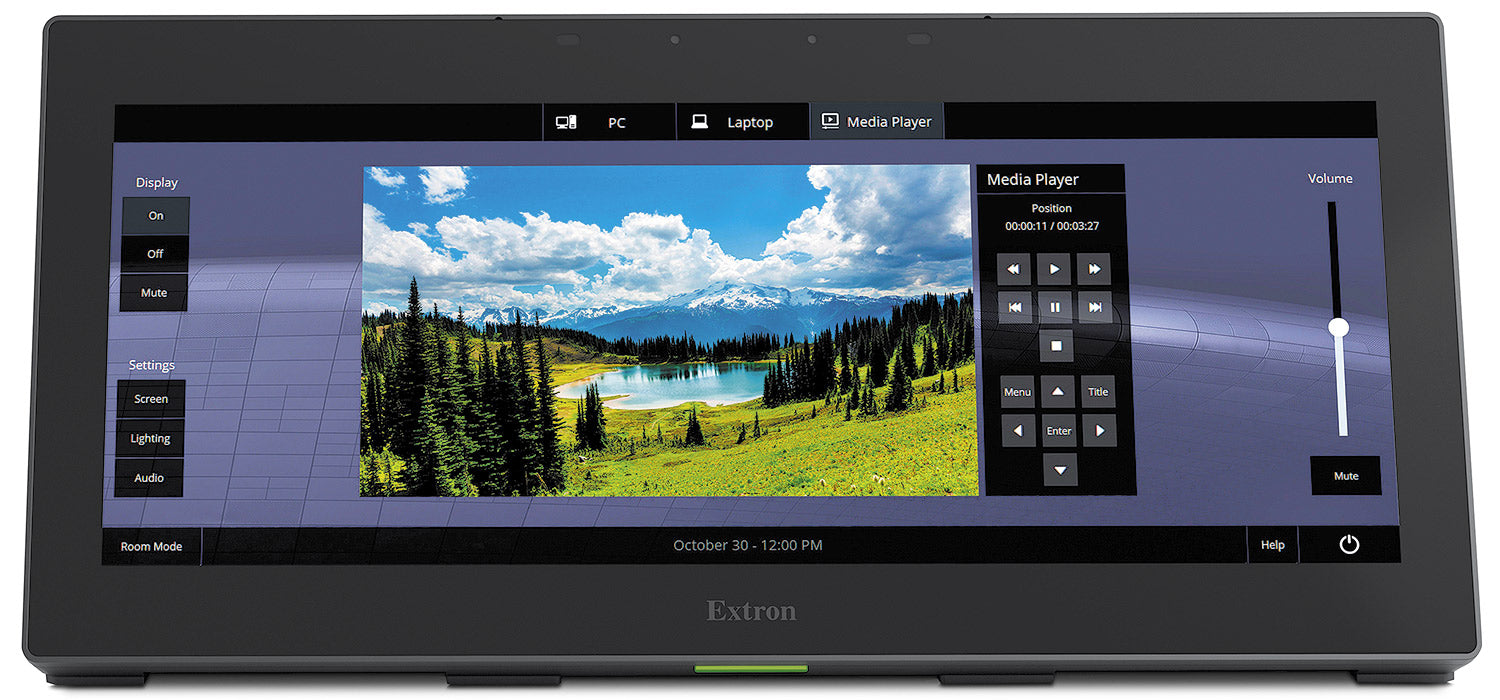

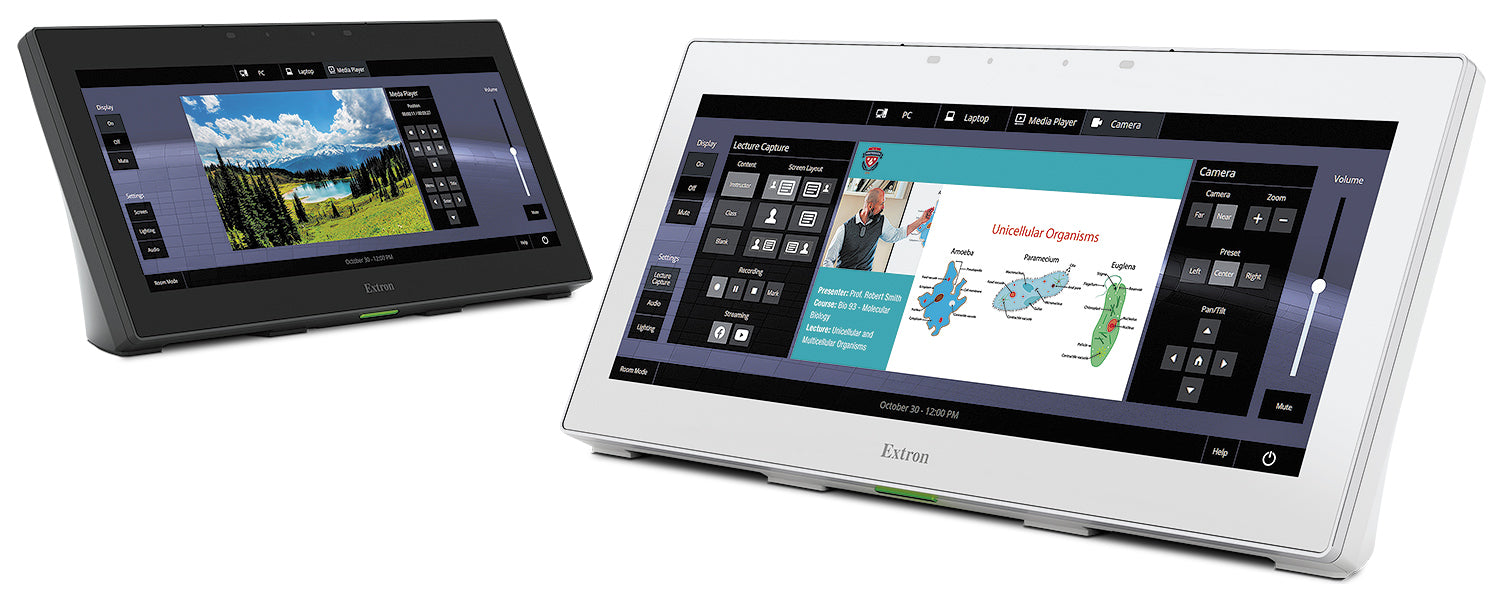

Extron TLP Pro 1230WTG (part number 60-1668-03) is a 12.3 in. ultrawide tabletop touchpanel that sets on the table for wide-format control interfaces and live HDMI source preview.

The 1230WTG's 8:3 ultrawide 1920x720 display outputs 720 nits at a 1100:1 contrast ratio, bright enough for daylight-facing conference rooms, and its capacitive touchscreen accepts custom layouts built around the panel's wide format. A built-in HDMI input (HDCP compliant) lets integrators preview a live source on the panel itself, and Power over Ethernet (802.3at, PoE+) keeps installation to a single cable. Programming runs through Global Configurator Plus/Professional and GUI Designer, with GlobalViewer Enterprise for fleet-wide management.

Key Capabilities

12.3 in. ultrawide (8:3) capacitive touchscreen, 1920x720, 720 nits, 1100:1 contrast
Built-in HDMI (HDCP compliant) input for on-panel live source preview
Powers over a single PoE+ Ethernet run (802.3at)
2 GB RAM, 8 GB storage, 1 high-speed USB 2.0 port
Stereo speakers, 90 dB max SPL @ 0.1 m
3-year parts and labor warranty, 1-year on display and overlay components

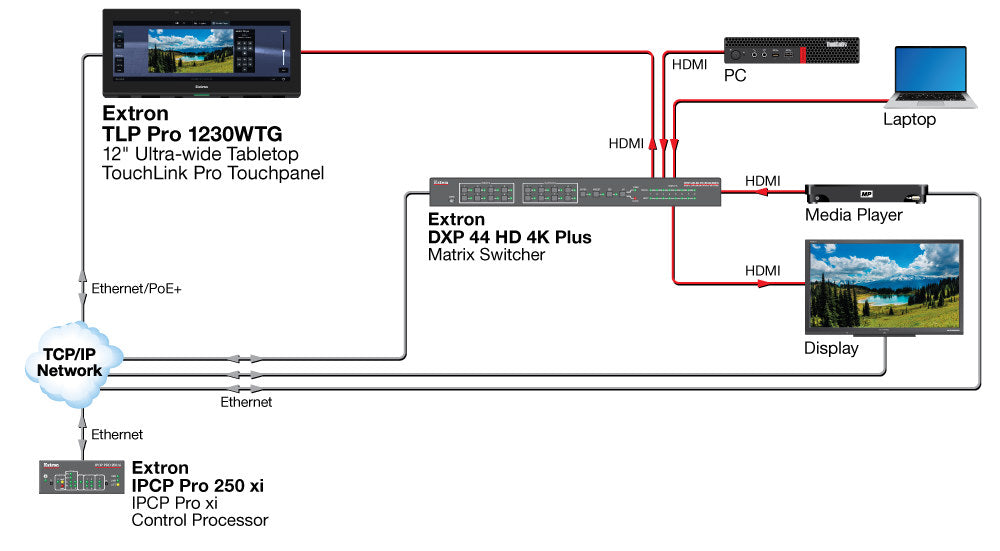

Where It Is Used

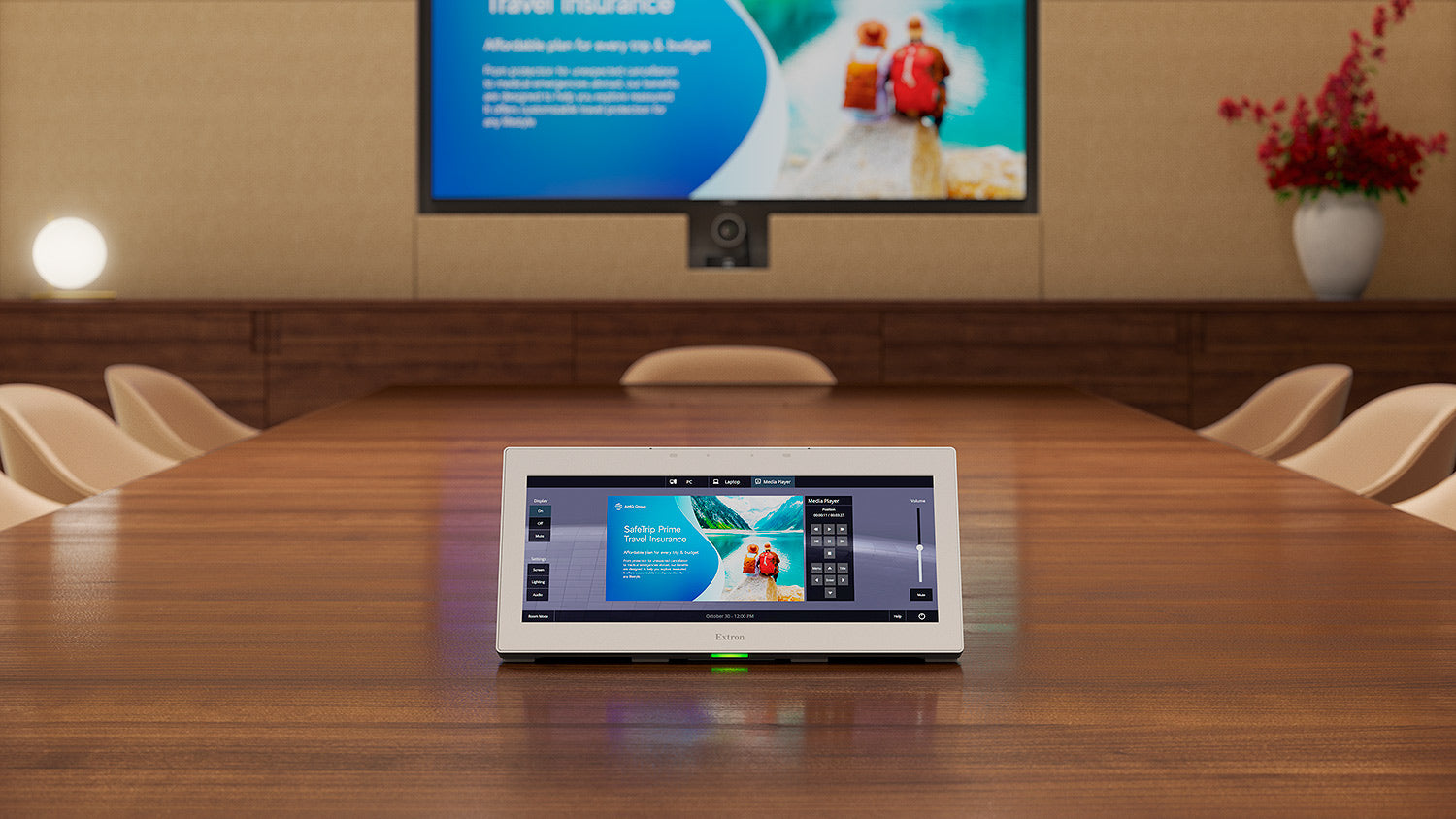

Integrators specify the TLP Pro 1230WTG for tabletop control in boardrooms where a wide-format interface and on-panel HDMI preview replace a standard-aspect touchpanel.

Specifications at a Glance

Display: 12.3 in. ultrawide 1920x720, capacitive touch, 1100:1 contrast
Video input: 1 HDMI (HDCP compliant)
Power: PoE+ 802.3at (17.4W device / 20.7W with injector)
Enclosure: 5.8 in. H x 12.91 in. W x 3.60 in. D, 4.50 lbs (2.04 kg)
Regulatory: CE, FCC Class B, c-UL, UL, RoHS, WEEE

Also referenced as Extron TLPPro1230WTG, TLP-Pro-1230WTG, part number 60166803.

Specifications

Part Number: 60-1668-03

Manufacturer: Extron

Model: TLP Pro 1230WTG

Condition: New

Screen type: TFT Active matrix color LCD, capacitive touch

Resolution: 1920x720, 166 PPI, ultrawide (8:3) aspect ratio

Brightness/contrast: 720 nits (cd/m2), 1100:1 contrast, LED backlight, 8-bit alpha channel transparency

Viewing angle: ±85° horizontal, ±85° vertical

Memory: 2 GB RAM, 8 GB storage

Video input: 1 HDMI (HDCP compliant, 1 female HDMI type A); 165 MHz max pixel clock, 15-135 kHz horizontal, 24-75 Hz vertical; resolution range 640x480 to 1920x1200 @60Hz, includes 480p/576p/720p/1080p/2K; DVI 1.0, HDMI 2.0, HDCP 1.4

Video processing: 8/10/12-bit HDMI pixel depth, 165 MHz pixel clock, 1.07 billion colors (10-bit, 4:4:4 sampling)

Ethernet: 1 female RJ-45, 10/100/1000Base-T half/full duplex autodetect; DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP

USB: 1 high-speed USB 2.0, 1 USB type A receptacle, USB 2.0/1.1/1.0 compatible, up to 480 Mbps

Sensors: Motion (on/off), light (auto/manual)

Control software: Global Configurator Plus/Professional, GUI Designer, ControlScript Programming, Extron Control, GlobalViewer Enterprise, Toolbelt, embedded web page

Audio output: 2 stereo, 90 dB max SPL @ 0.1m, 300 Hz-20 kHz ±5 dB; WAV/LPCM uncompressed, 8/16/24/32-bit, up to 192 kHz, mono or stereo

Power input requirements: Power over Ethernet (PoE+ 802.3at); power supply not included

Power consumption (with PI 140 injector): 17.4 W device, 20.7 W device and power injector

Auxiliary power output (USB): 5 VDC, 275 mA

Thermal dissipation (with PI 140 injector): 58.5 BTU/hr device, 69.5 BTU/hr device and power injector

Ambient temperature/humidity: Storage: -4 to +158 °F (-20 to +70 °C), 5% to 90% noncondensing; Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing

Cooling: Convection, vents on back

Mounting: Set on tabletop

Enclosure: Plastic, 5.8" H x 12.91" W x 3.60" D (147 mm H x 328 mm W x 92 mm D)

Product weight: 4.50 lbs (2.04 kg)

Regulatory compliance: CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE

Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year
