Extron TLP Pro 1225MG 12.1 in. Touchpanel
- • 12.1 in. capacitive touchscreen, 1280x800 (WXGA), 1000:1 contrast, 340 nits
- • Built-in HDMI (HDCP compliant) and XTP video inputs for on-panel source preview
- • Powers over a single PoE+ Ethernet run (802.3at, Class 4)
- • 2 GB RAM, 8 GB storage, 2 high-speed USB 2.0 ports
- • Stereo speakers (90 dB max SPL) plus a 3.5 mm line-level audio output
- • 3-year parts and labor warranty, 1-year on display and overlay components
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

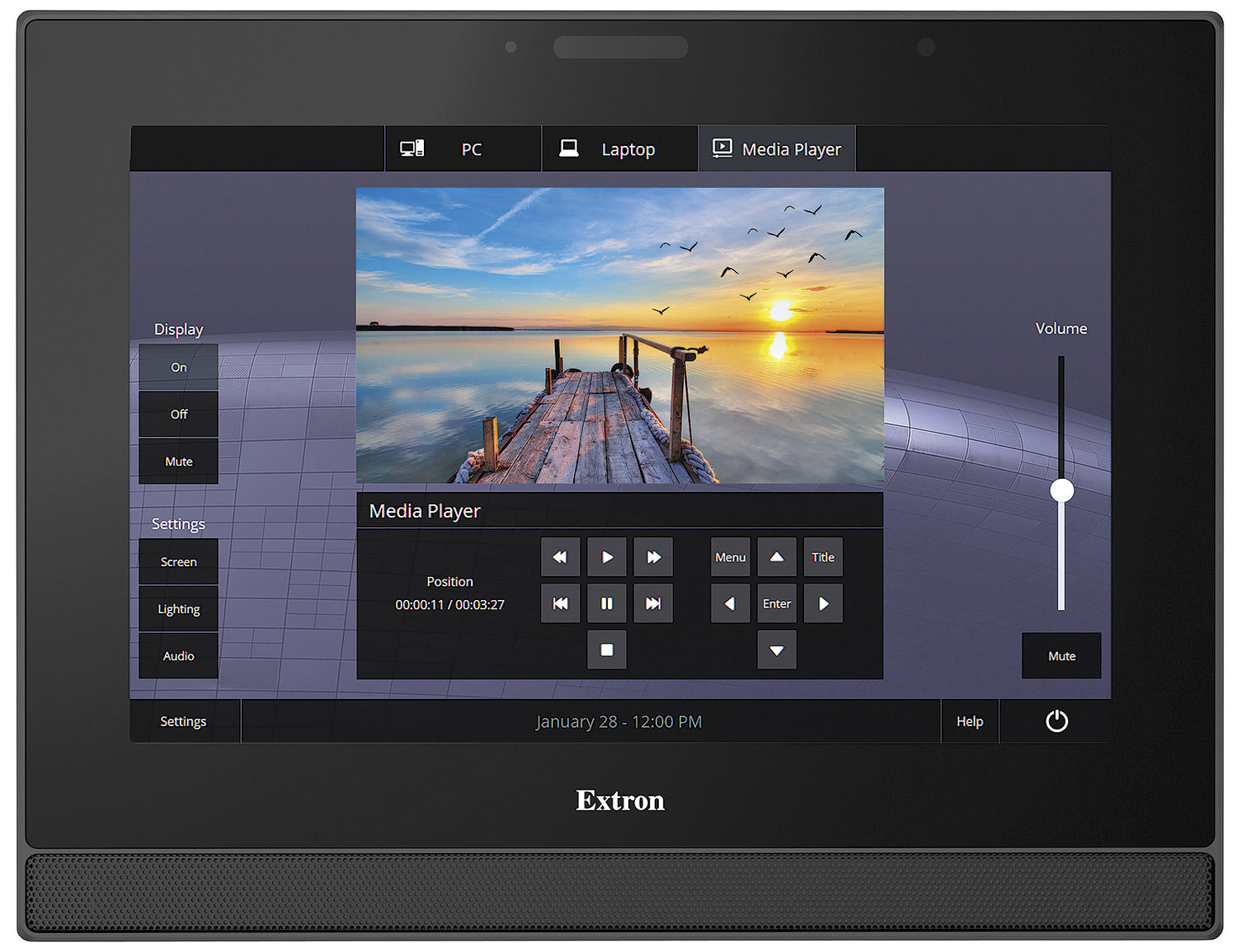

Extron TLP Pro 1225MG (part number 60-1787-02) is a 12.1 in. wall-mount touchpanel with a built-in HDMI input and an XTP input for a video preview window, powered over a single PoE+ Ethernet cable.
A 340-nit TFT LCD with 1000:1 contrast and capacitive touch gives operators a bright, responsive interface, while the onboard HDMI (HDCP compliant) and XTP inputs let integrators preview a live source directly on the panel without routing through a separate display. Built-in stereo speakers and a line-level audio output add sound feedback and pass-through, and two USB 2.0 ports support peripherals at the panel. Programming runs through Global Configurator Plus/Professional and GUI Designer, with GlobalViewer Enterprise for fleet-wide management.
Key Capabilities
- 12.1 in. capacitive touchscreen, 1280x800 (WXGA), 1000:1 contrast, 340 nits
- Built-in HDMI (HDCP compliant) and XTP video inputs for on-panel source preview
- Powers over a single PoE+ Ethernet run (802.3at, Class 4)
- 2 GB RAM, 8 GB storage, 2 high-speed USB 2.0 ports
- Stereo speakers (90 dB max SPL) plus a 3.5 mm line-level audio output
- 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used
Integrators specify the TLP Pro 1225MG for boardrooms and control rooms where operators need a live HDMI or XTP source preview directly on the wall-mount touchpanel.
Specifications at a Glance
- Display: 12.1 in. WXGA (1280x800), capacitive touch, 1000:1 contrast

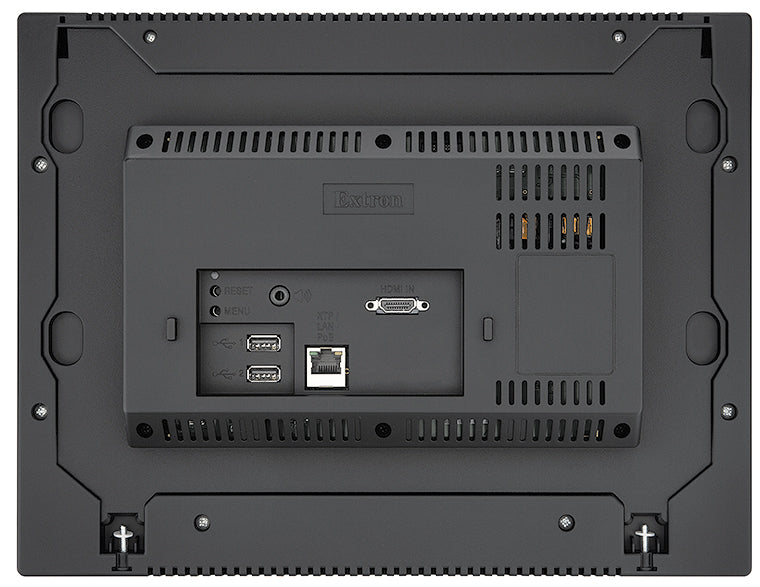

- Video input: 1 HDMI, 1 XTP (330 ft / 100 m over CAT 5e/6/7)
- Power: PoE+ 802.3at Class 4 (21.0W device / 23.6W with injector)

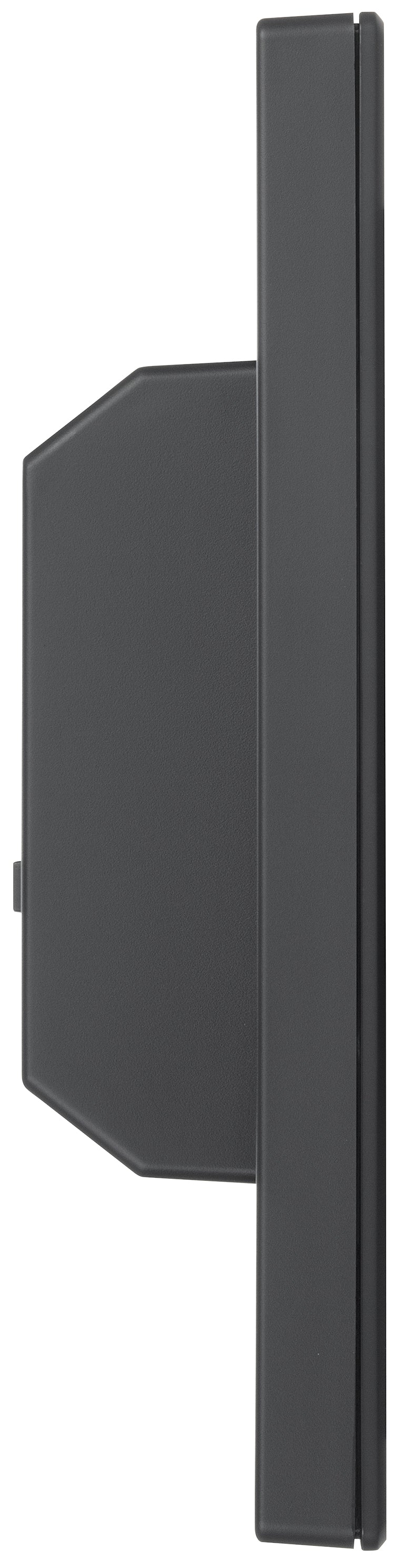

- Enclosure: 5.50 in. H x 8.74 in. W x 1.76 in. D, 4.06 lbs (1.84 kg)
- Regulatory: BIS, CE, FCC Class B, c-UL, UL, RoHS, WEEE
Also referenced as Extron TLPPro1225MG, TLP-Pro-1225MG, part number 60178702.
Specifications
Specifications

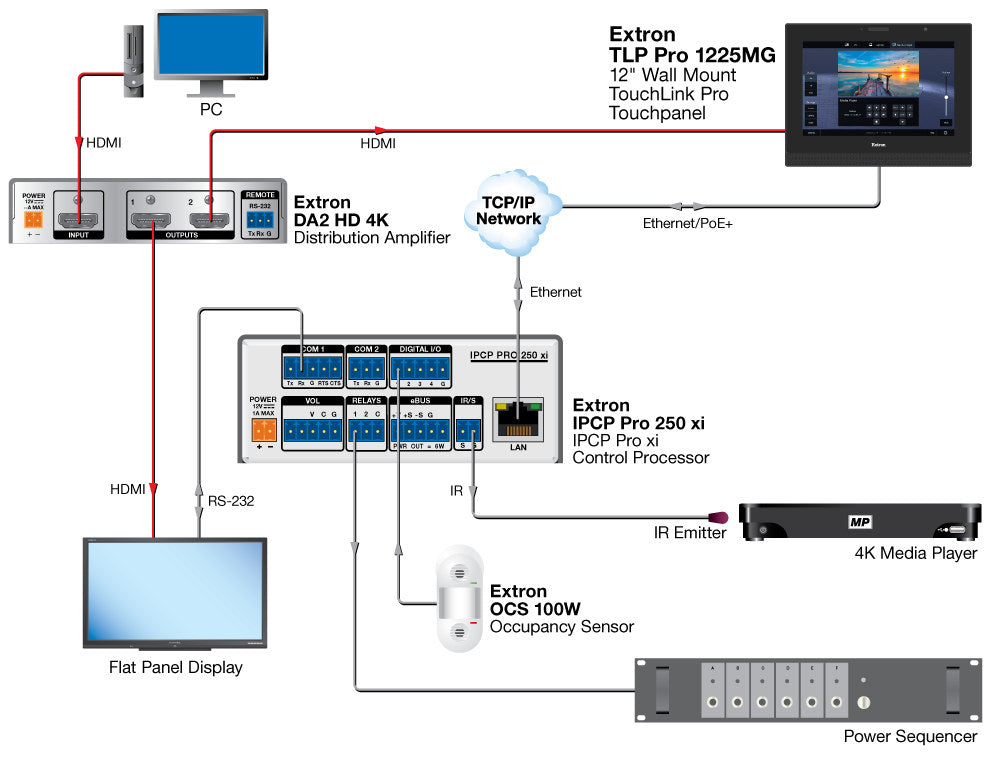

Diagram
