Details

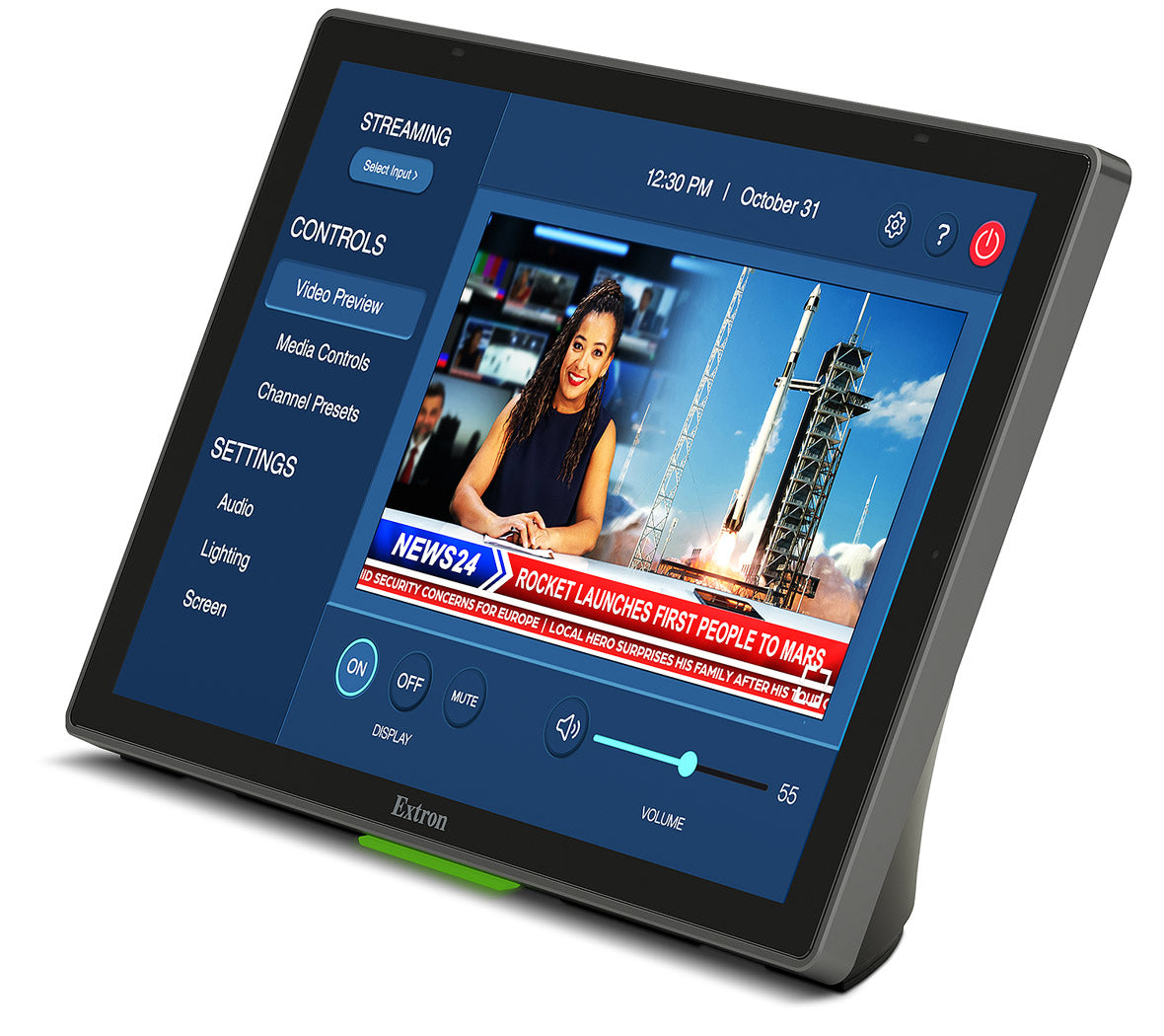

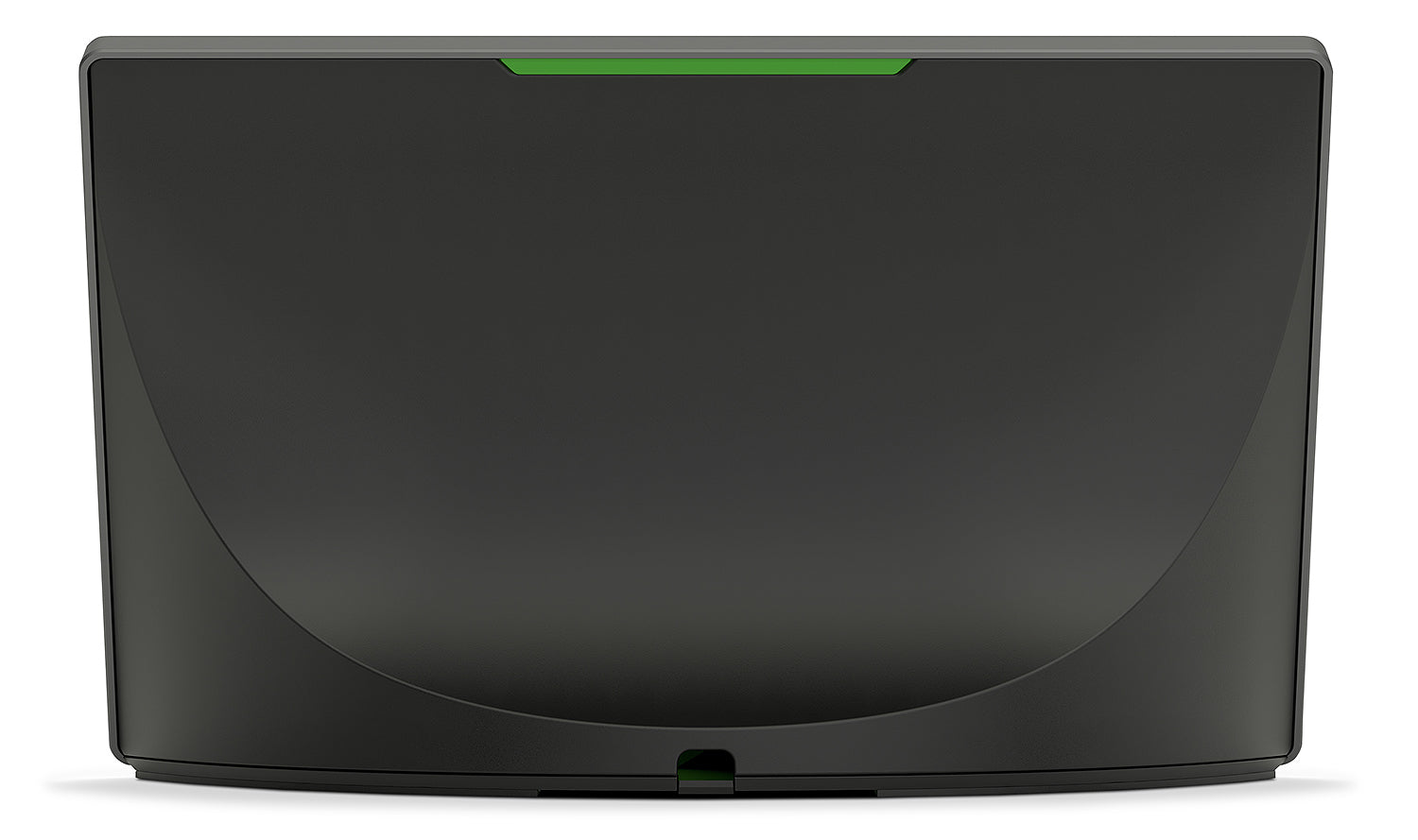

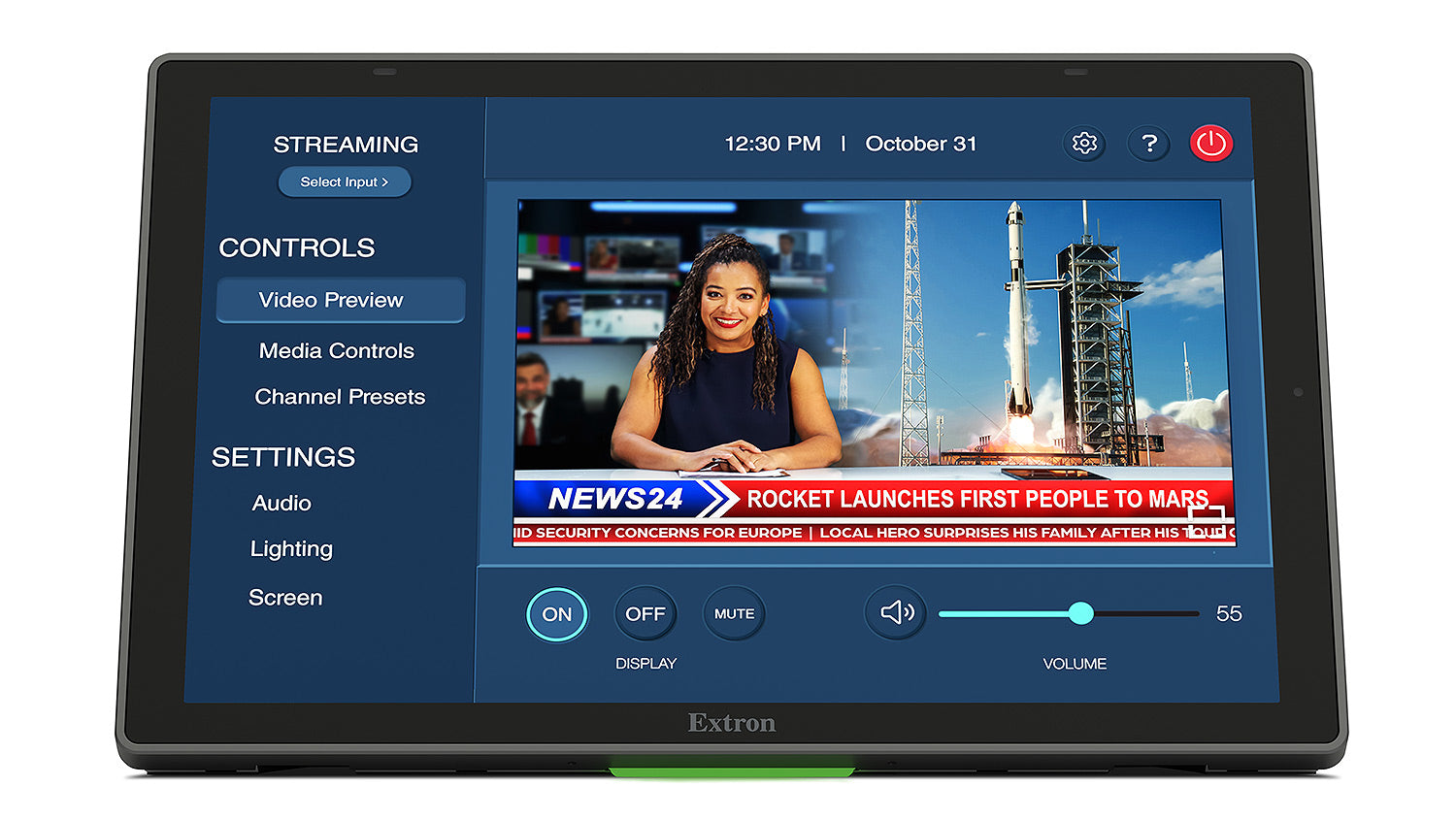

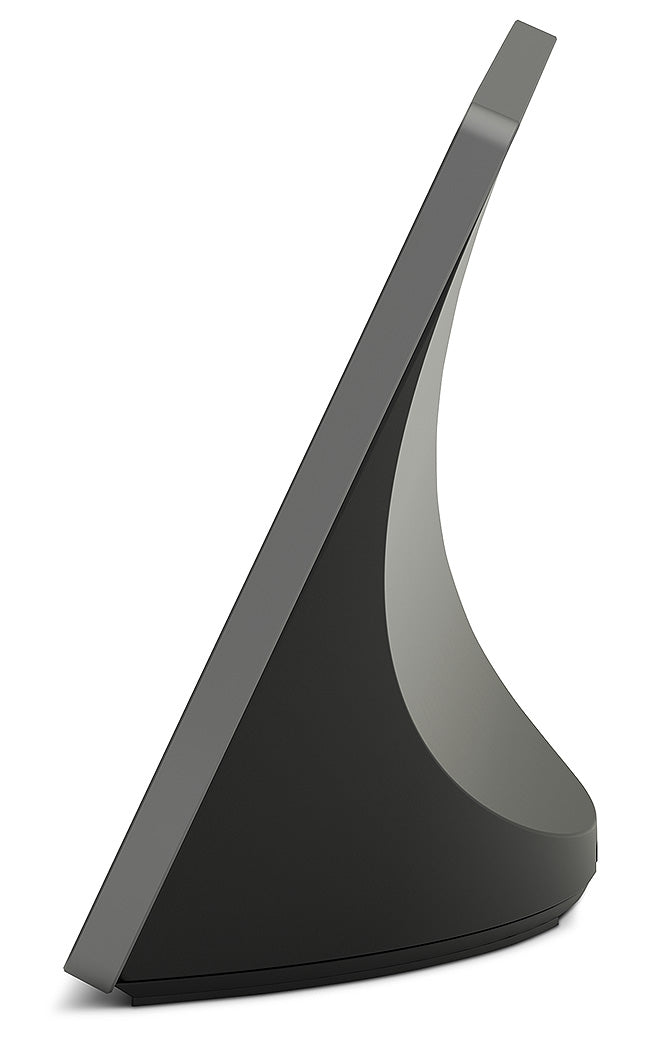

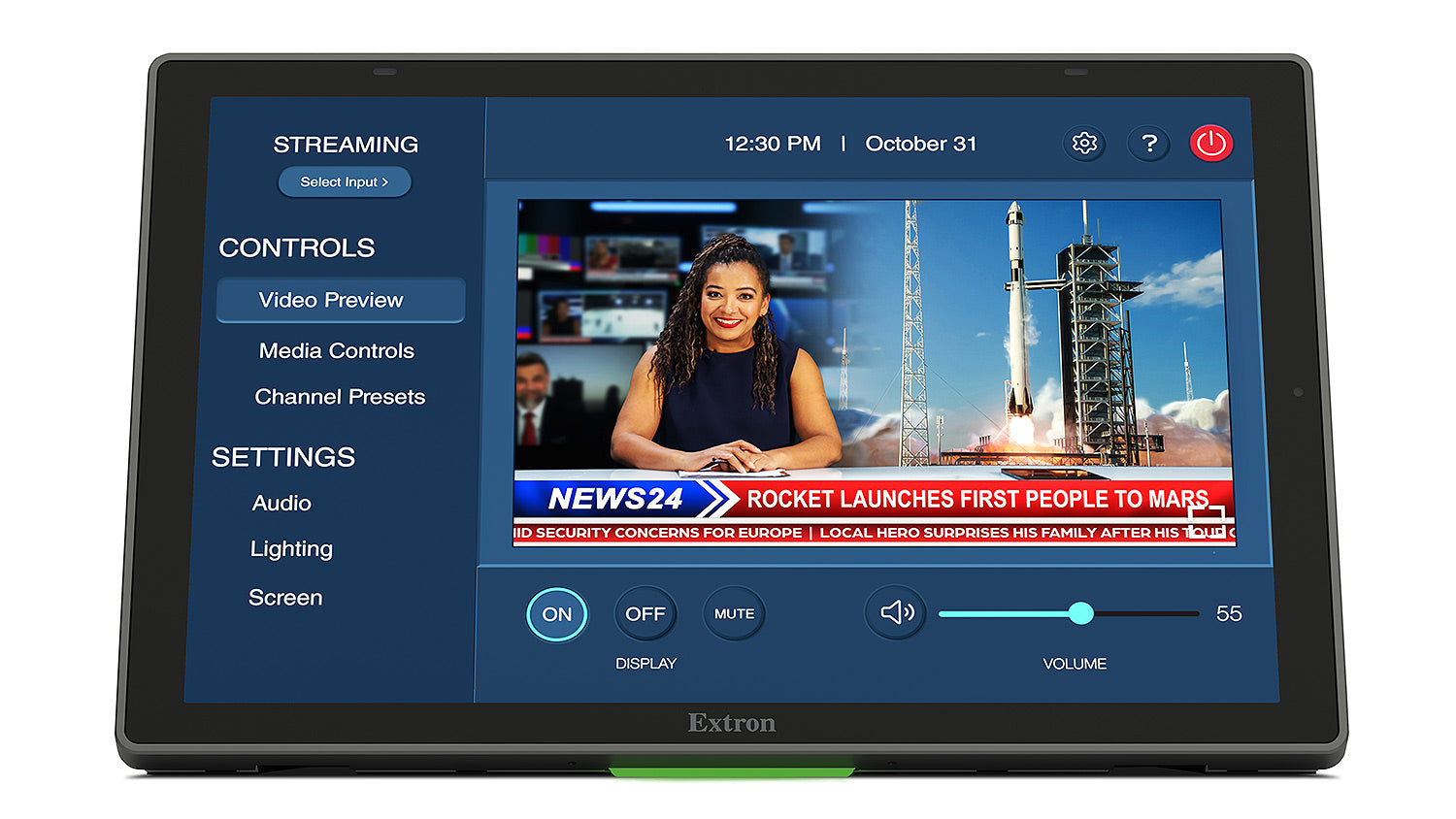

Extron TLP Pro 1035T (part number 60-1999-02) is a 10.1 in. tabletop touchpanel designed to sit on or mount to a conference table, powered over a single PoE Ethernet cable.

The 1035T pairs a 370-nit IPS display with a 1200:1 contrast ratio and projected capacitive touch for a bright, responsive interface at the table. Onboard 4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects) give Global Configurator-built interfaces plenty of room, and built-in stereo speakers add audio feedback without an external amplifier. A USB-C port supplements the standard USB 2.0 connection for peripherals or accessories. Programming runs through Global Configurator Plus/Professional, GUI Designer, or ControlScript, with GlobalViewer Enterprise available for fleet-wide management.

Key Capabilities

10.1 in. IPS touchscreen, 1280x800 (WXGA), projected capacitive touch, 1200:1 contrast
Sets on or mounts to a tabletop, single-cable PoE (802.3af, Class 3) installation
4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
Built-in stereo speakers and onboard motion and light sensors
1 high-speed USB 2.0 connection plus a USB-C receptacle
3-year parts and labor warranty, 1-year on display and overlay components

Where It Is Used

Integrators specify the TLP Pro 1035T for tabletop control in boardrooms and huddle spaces where a compact, single-cable touchpanel is preferred over a wall-mount unit.

Specifications at a Glance

Display: 10.1 in. WXGA (1280x800), projected capacitive touch, 1200:1 contrast
Power: PoE 802.3af Class 3
Memory: 4 GB DDR4 RAM, 64 GB eMMC storage
Enclosure: 5.87 in. H x 9.66 in. W x 3.35 in. D
Regulatory: CE, UKCA, c-UL, UL, FCC Class A, RoHS, WEEE

Also referenced as Extron TLPPro1035T, TLP-Pro-1035T, part number 60199902.

Specifications

Part Number: 60-1999-02

Manufacturer: Extron

Model: TLP Pro 1035T

Condition: New

Screen type: IPS TFT active matrix color LCD, projected capacitive touch

Resolution: 1280x800 (WXGA), 149.5 PPI, 16:10 aspect ratio

Color depth: 24 bit, 16.7 million colors

Brightness/contrast: 370 nits (cd/m2), 1200:1 contrast, LED backlight with auto brightness control

Viewing angle: ±80° horizontal, ±80° vertical

Sensors: Motion (on/off), light (auto/manual)

Memory: 4GB DDR4 RAM, 64GB eMMC storage, 32GB usable for projects

Audio output: 2 stereo speakers

Playback format: WAV (Microsoft RIFF), LPCM uncompressed, 8/16/24/32-bit, up to 192 kHz, mono or stereo

Ethernet: 1 female RJ-45, 10/100/1000Base-T half/full duplex autodetect; DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

USB: 1 high-speed USB 2.0, 1 USB-C receptacle, USB 2.0/1.1/1.0 compatible, up to 480 Mbps

Control software: Global Configurator Plus/Professional, GUI Designer, ControlScript Programming, Extron Control, GlobalViewer Enterprise, Toolbelt, embedded web page

Power input requirements: Power over Ethernet (PoE 802.3af, class 3); power supply not included

Auxiliary power output (USB): 5 VDC, 500 mA

Power consumption: TBD (not yet published by Extron for this model)

Thermal dissipation: TBD (not yet published by Extron for this model)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C); Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing

Cooling: Convection

Mounting: Set on or mount to tabletop

Enclosure: Plastic, 5.87" H x 9.66" W x 3.35" D (149 mm H x 245 mm W x 85.2 mm D)

Product weight: TBD (not yet published by Extron for this model)

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

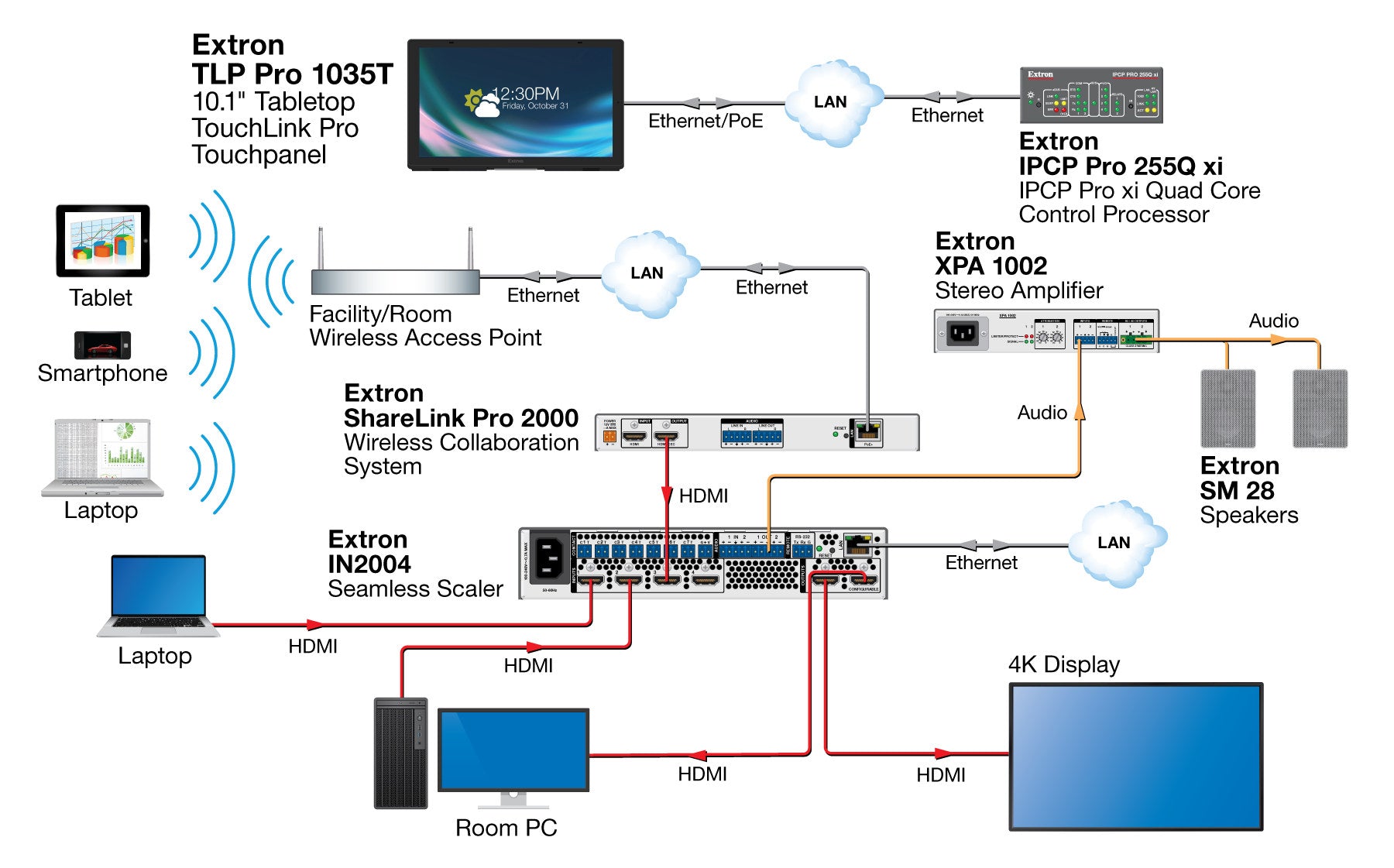

Diagram

Resources

Brochure | TLP Pro 1035T 60-1999-02 | TLP Pro 1035T

Manual | TLP Pro 1035T 60-1999-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 1035T 60-1999-02 | TLP Pro 535, 835, and 1035 Series User Guide

Manual | TLP Pro 1035T 60-1999-02 | TLP Pro 535T, 835T, and 1035T Setup Guide

Specifications | TLP Pro 1035T 60-1999-02 | TLP Pro 1035T Series

Panel Drawing | TLP Pro 1035T 60-1999-02 | TLP Pro 1035T
