Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel 60-1998-03
Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel 60-1998-03
Extron TLP Pro 1035M 10.1 in. Touchpanel
- • Extron TLP Pro 1035M 10.1 in PoE/USB-C touchpanel
- • 10.1 in IPS, 1280x800 WXGA, projected capacitive
- • PoE 802.3af Class 3 or 9 VDC USB-C
- • Sales, replacement and exchange
- • Part# 60-1998-03 / 60199803
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

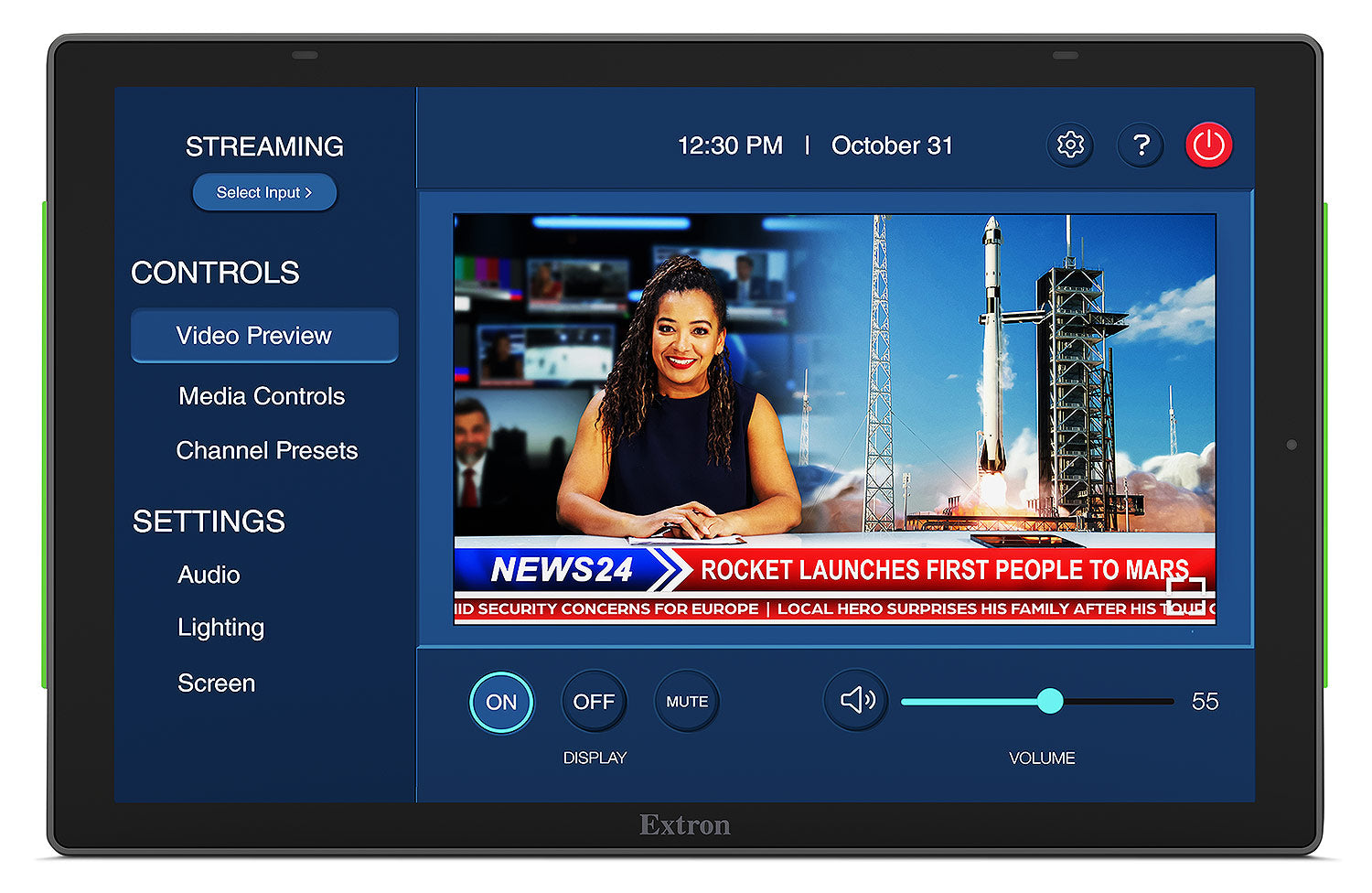

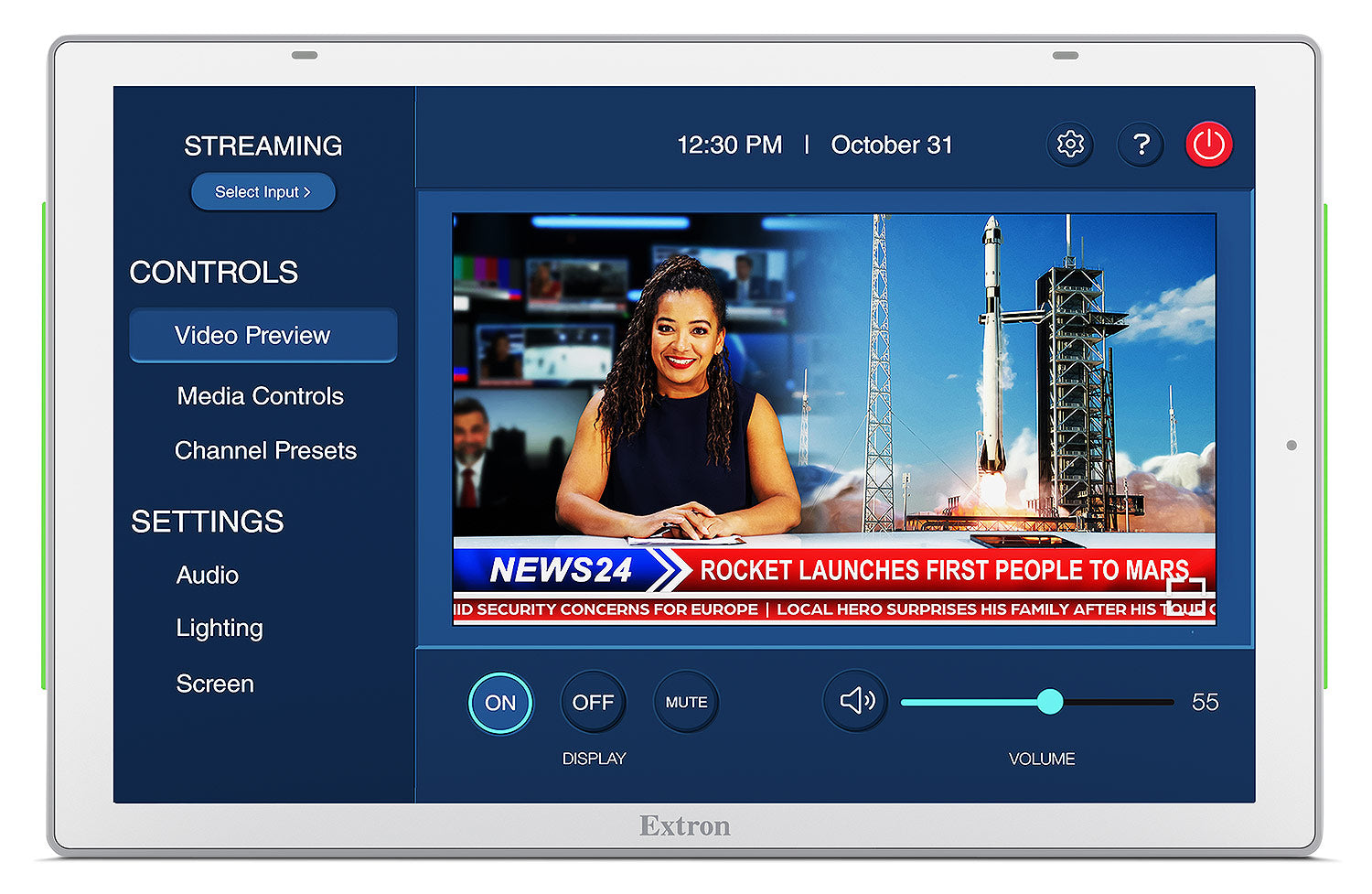

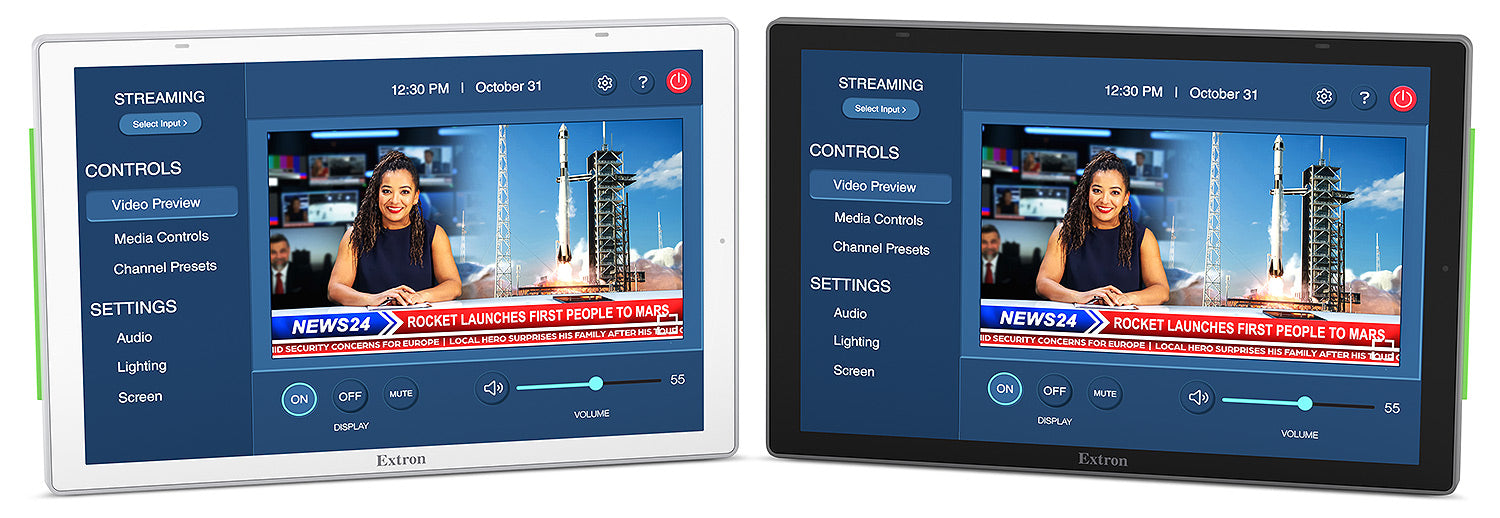

Extron TLP Pro 1035M (part number 60-1998-03) is a 10.1 in. wall-mount touchpanel that runs on either a single PoE Ethernet cable or a 9V USB-C power source.
The 1035M steps up from the 1025M series with a projected capacitive touchscreen, 4 GB of RAM, and 64 GB of eMMC storage (32 GB usable for projects), giving Global Configurator-built interfaces more headroom for graphics-heavy pages. A 370-nit IPS display with a 900:1 contrast ratio and auto brightness control keeps the panel readable across a wide range of room lighting, and built-in stereo speakers replace the mono output found on the 1025M series. Programming runs through Global Configurator Plus/Professional, GUI Designer, or ControlScript, with GlobalViewer Enterprise handling fleet-wide management.
Key Capabilities
- 10.1 in. IPS touchscreen, 1280x800 (WXGA), projected capacitive touch, 900:1 contrast
- Powers over a single PoE Ethernet run (802.3af, Class 3) or 9 VDC USB-C
- 4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
- Built-in stereo speakers and onboard motion and light sensors

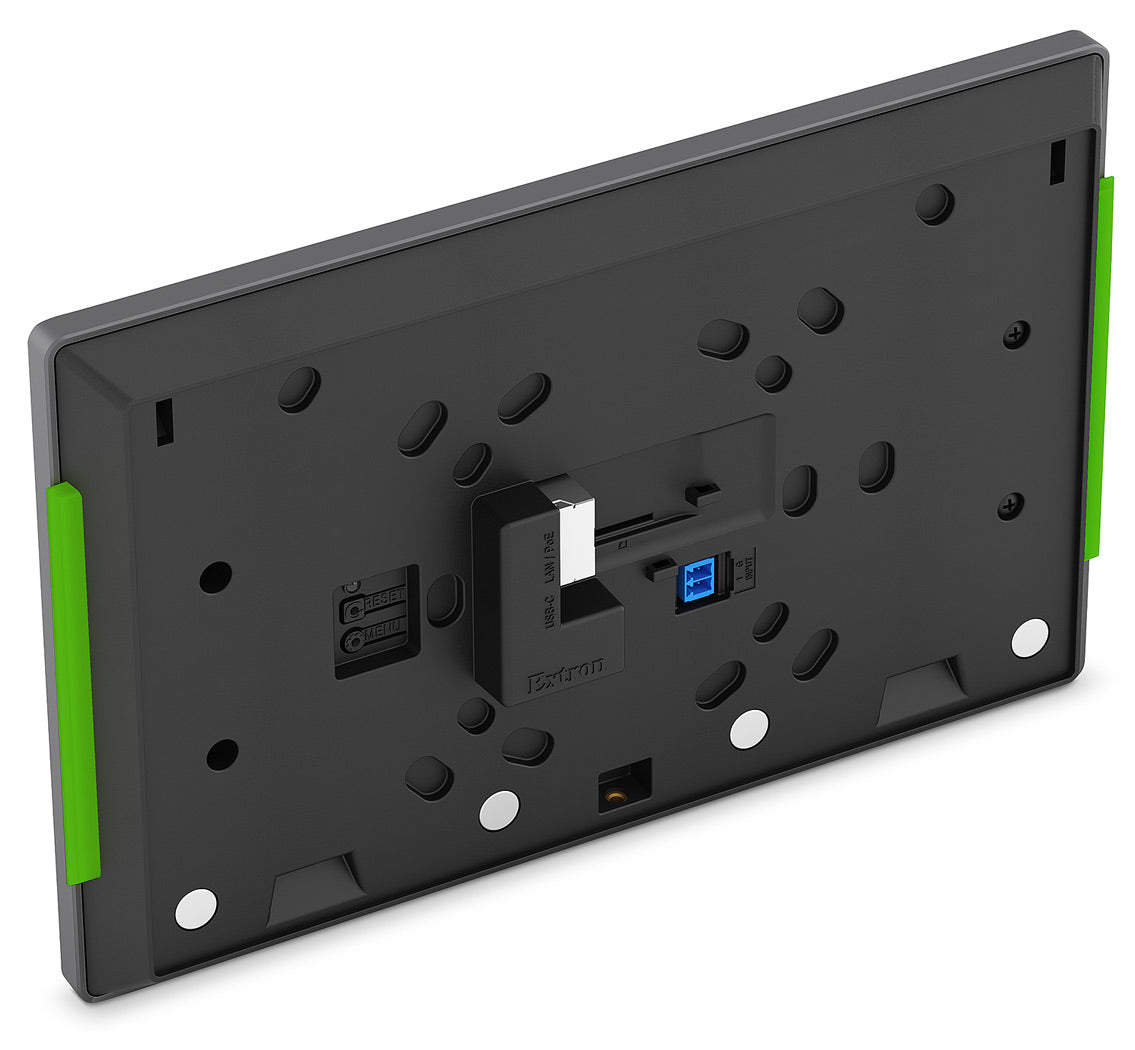

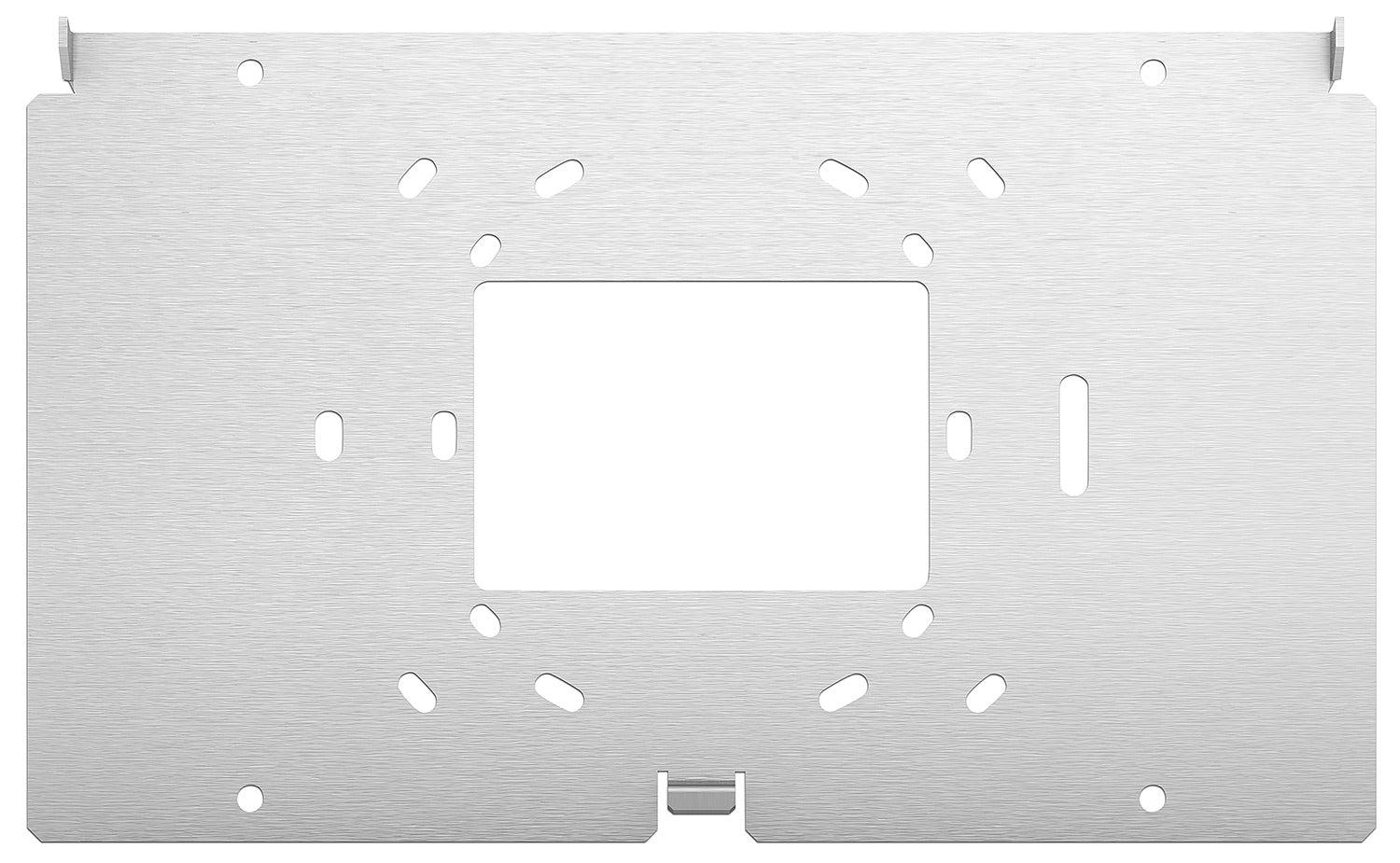

- Mounts to wall, furniture, or rack, 1.7 lbs (0.77 kg)
- 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used
Integrators specify the TLP Pro 1035M for boardrooms and control rooms where a fast, graphics-capable touchpanel needs flexible power options and stereo audio feedback.
Specifications at a Glance
- Display: 10.1 in. WXGA (1280x800), projected capacitive touch, 900:1 contrast
- Power: PoE 802.3af Class 3 or 9 VDC 3A USB-C
- Memory: 4 GB DDR4 RAM, 64 GB eMMC storage

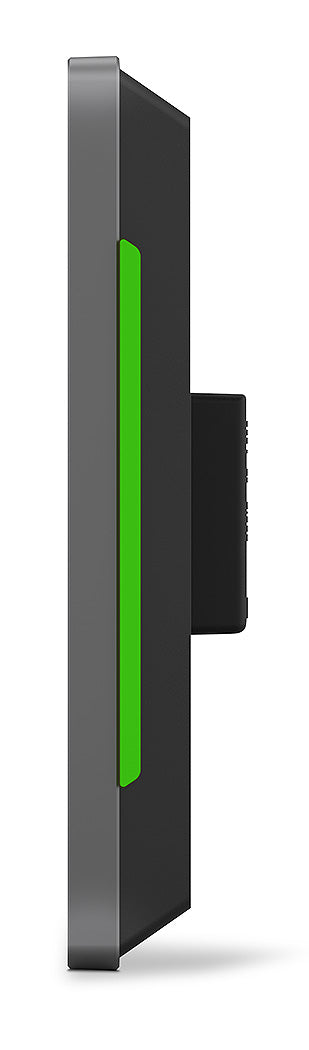

- Enclosure: 6.20 in. H x 9.74 in. W x 1.26 in. D, 1.7 lbs (0.77 kg)
- Regulatory: CE, UKCA, c-UL, UL, FCC Class A, RoHS, WEEE
Also referenced as Extron TLPPro1035M, TLP-Pro-1035M, part number 60199803.
Frequently asked questions about the Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel
Does Ampronix sell the Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel?
Yes. Ampronix is an authorized Extron distributor and sells the Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel (60-1998-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel?
Yes. Ampronix provides sales, replacement and exchange for the Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel. Call Ampronix for a quote.
What are the key features of the Extron TLP Pro 1035M 10.1 in. PoE/USB-C Touchpanel?
Key points: 10.1 in. IPS touchscreen, 1280x800 (WXGA), projected capacitive touch, 900:1 contrast; Powers over a single PoE Ethernet run (802.3af, Class 3) or 9 VDC USB-C; 4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects); Built-in stereo speakers and onboard motion and light sensors. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
Specifications
Specifications

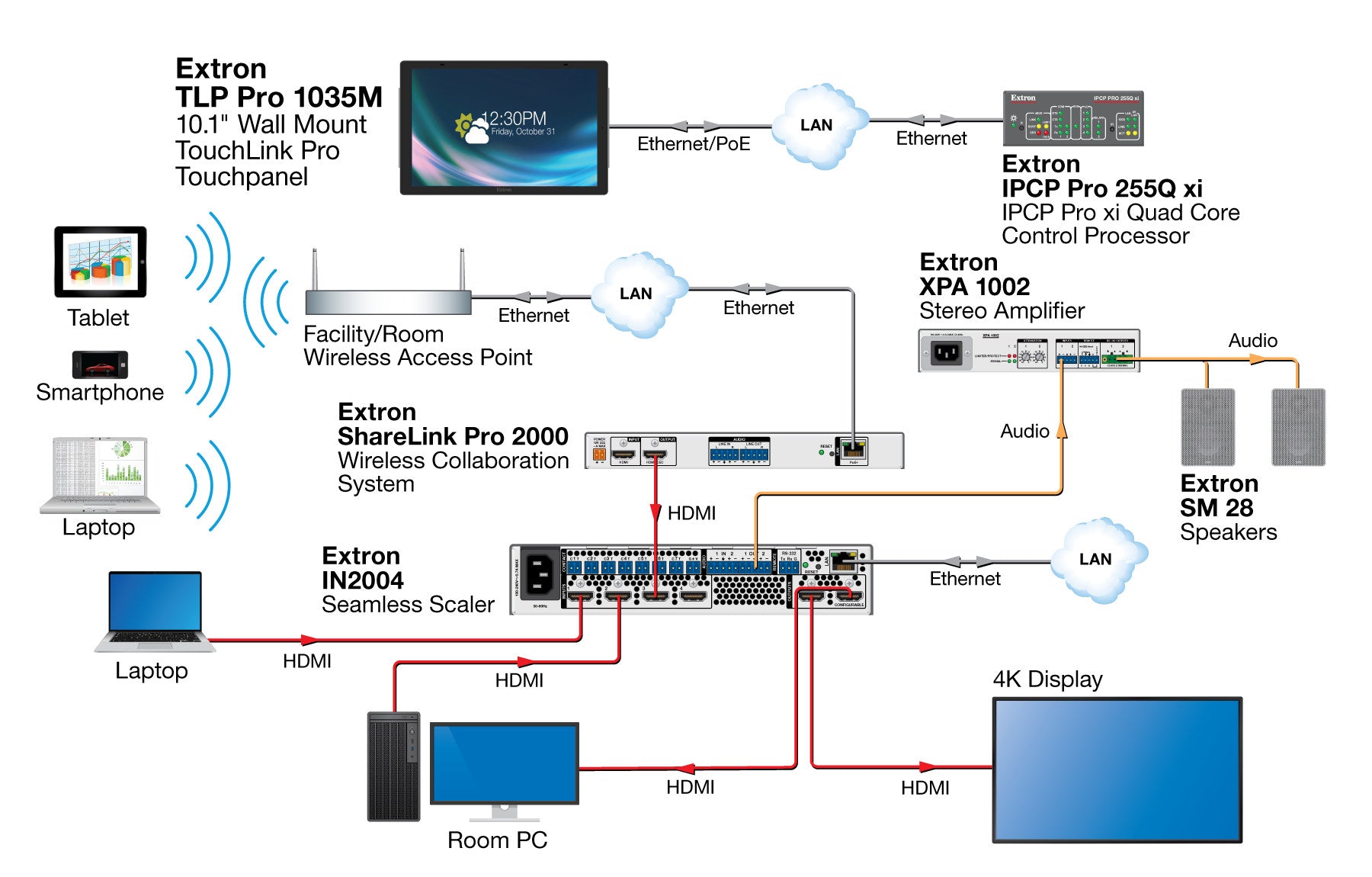

Diagram
Diagram
Resources
Resources
