Details

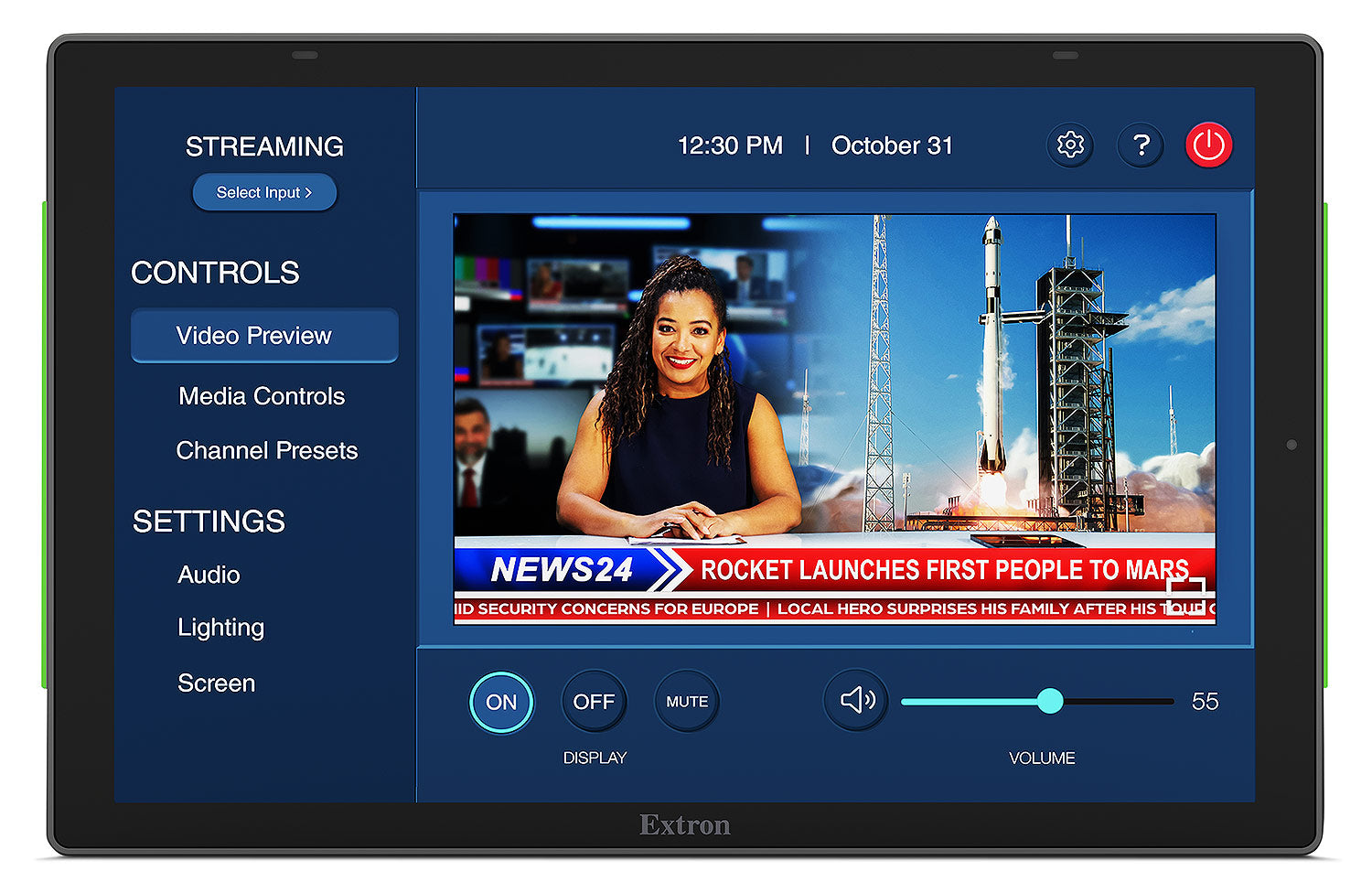

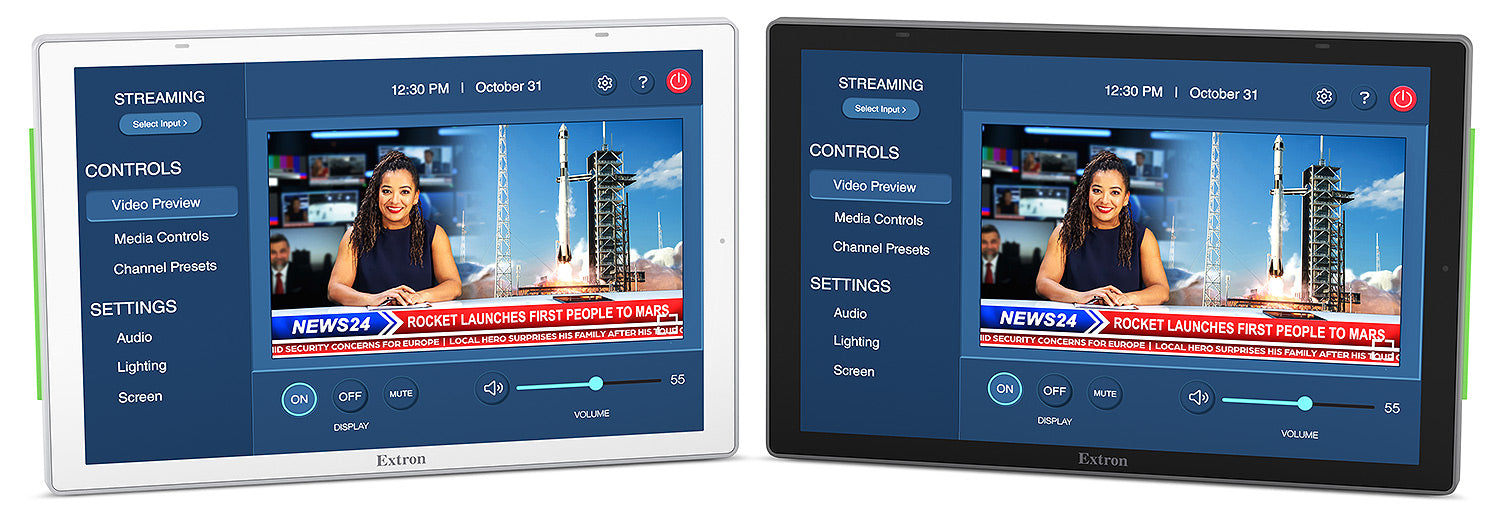

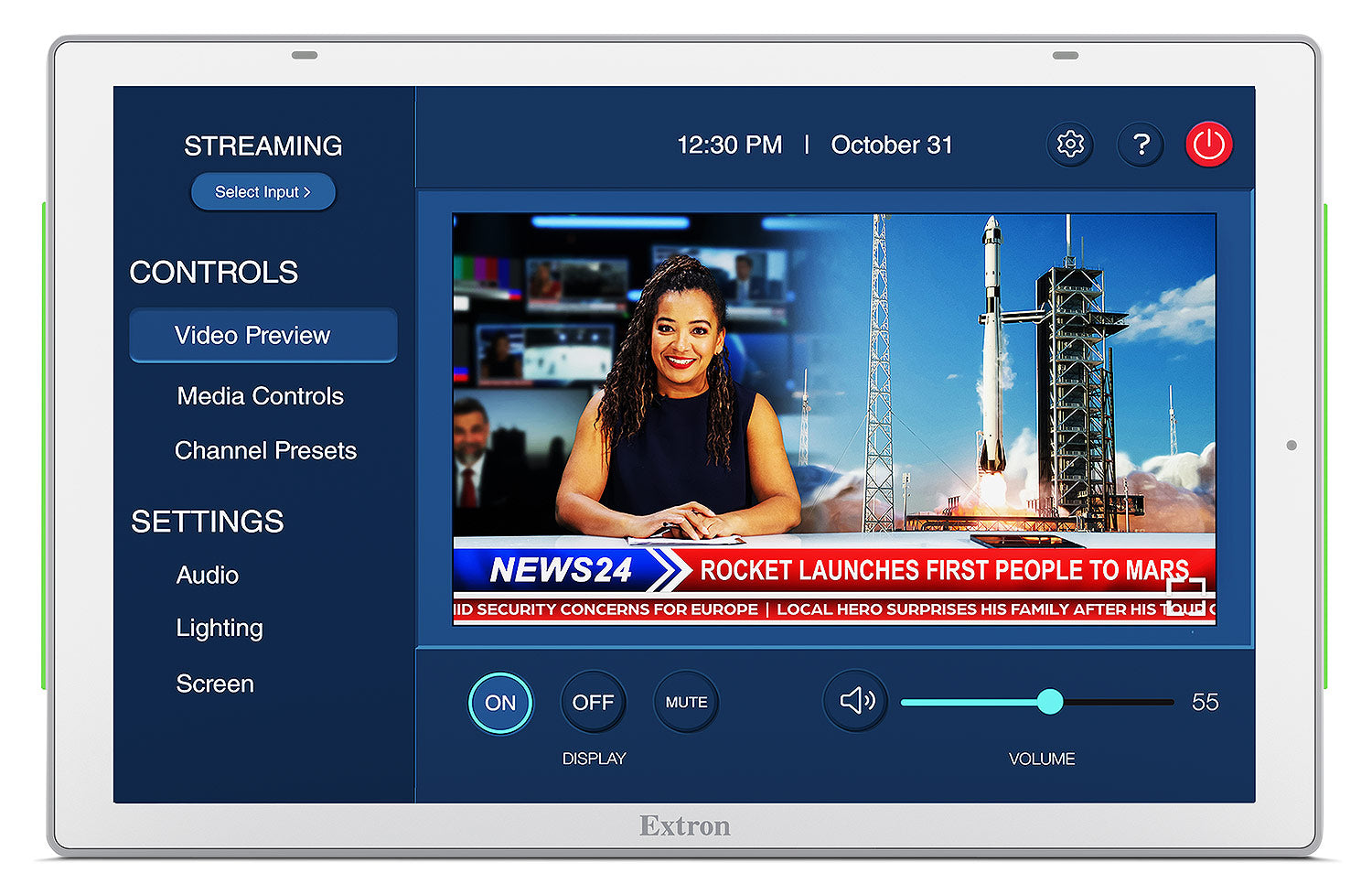

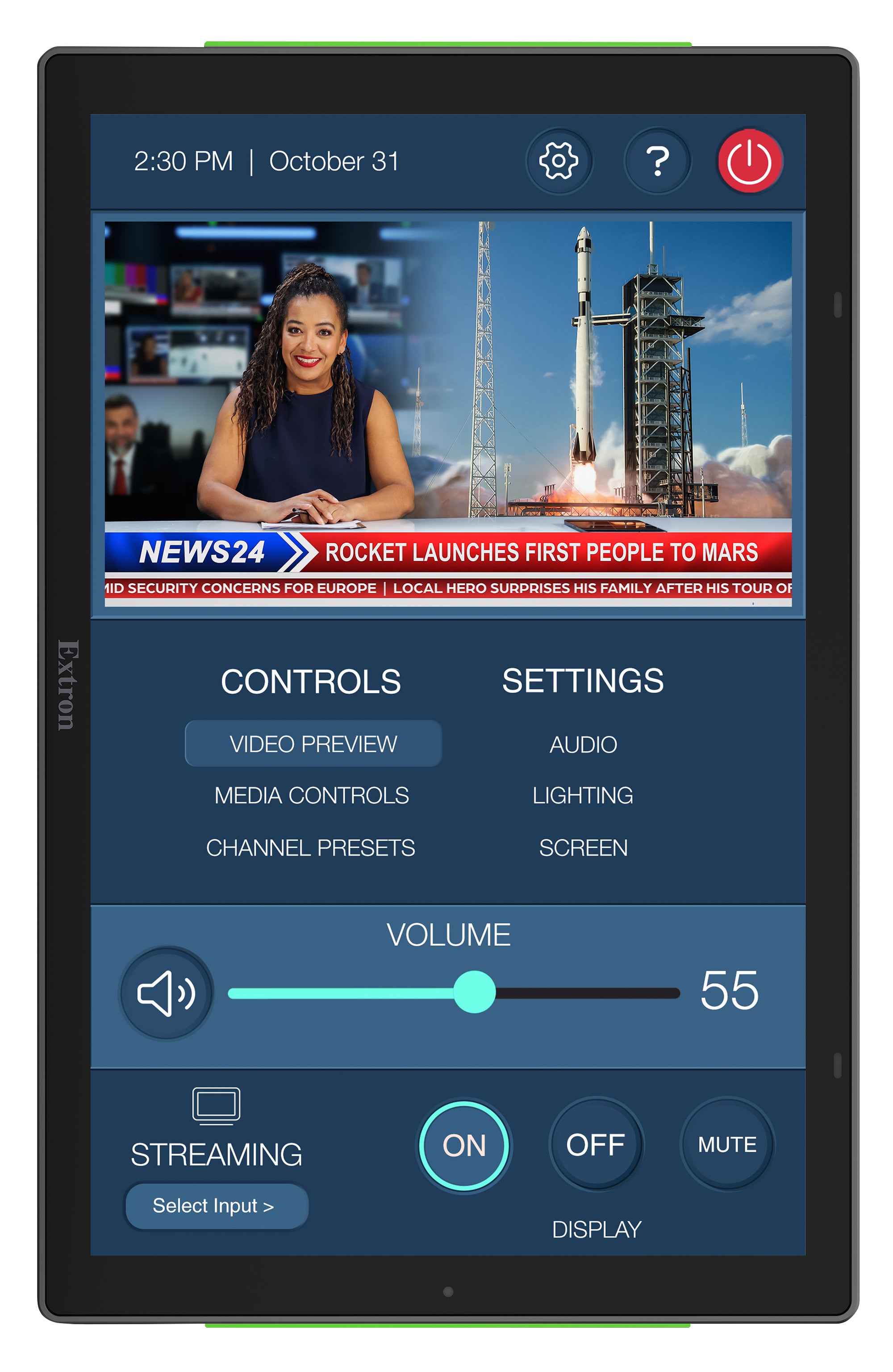

Extron TLP Pro 1035M (part number 60-1998-02) is a 10.1 in. wall-mount touchpanel that runs on either a single PoE Ethernet cable or a 9V USB-C power source.

The 1035M steps up from the 1025M series with a projected capacitive touchscreen, 4 GB of RAM, and 64 GB of eMMC storage (32 GB usable for projects), giving Global Configurator-built interfaces more headroom for graphics-heavy pages. A 370-nit IPS display with a 900:1 contrast ratio and auto brightness control keeps the panel readable across a wide range of room lighting, and built-in stereo speakers replace the mono output found on the 1025M series. Programming runs through Global Configurator Plus/Professional, GUI Designer, or ControlScript, with GlobalViewer Enterprise handling fleet-wide management.

Key Capabilities

10.1 in. IPS touchscreen, 1280x800 (WXGA), projected capacitive touch, 900:1 contrast
Powers over a single PoE Ethernet run (802.3af, Class 3) or 9 VDC USB-C
4 GB DDR4 RAM and 64 GB eMMC storage (32 GB usable for projects)
Built-in stereo speakers and onboard motion and light sensors
Mounts to wall, furniture, or rack, 1.7 lbs (0.77 kg)
3-year parts and labor warranty, 1-year on display and overlay components

Where It Is Used

Integrators specify the TLP Pro 1035M for boardrooms and control rooms where a fast, graphics-capable touchpanel needs flexible power options and stereo audio feedback.

Specifications at a Glance

Display: 10.1 in. WXGA (1280x800), projected capacitive touch, 900:1 contrast
Power: PoE 802.3af Class 3 or 9 VDC 3A USB-C
Memory: 4 GB DDR4 RAM, 64 GB eMMC storage
Enclosure: 6.20 in. H x 9.74 in. W x 1.26 in. D, 1.7 lbs (0.77 kg)
Regulatory: CE, UKCA, c-UL, UL, FCC Class A, RoHS, WEEE

Also referenced as Extron TLPPro1035M, TLP-Pro-1035M, part number 60199802.

Specifications

Part Number: 60-1998-02

Manufacturer: Extron

Model: TLP Pro 1035M

Condition: New

Screen: 10.1" (25.7 cm) IPS TFT active matrix color LCD, projected capacitive touch

Resolution: 1280x800 (WXGA), 149.5 PPI, 16:10 aspect ratio

Color: 24-bit, 16.7 million colors

Brightness/contrast: 370 nits (cd/m2), 900:1 contrast, LED backlight with auto brightness control

Viewing angle: ±80° horizontal, ±80° vertical

Sensors: Motion (on/off), light (auto/manual)

Audio output: 2 stereo speakers

Playback format: WAV (Microsoft RIFF), LPCM uncompressed, 8/16/24/32-bit, up to 192 kHz, mono or stereo

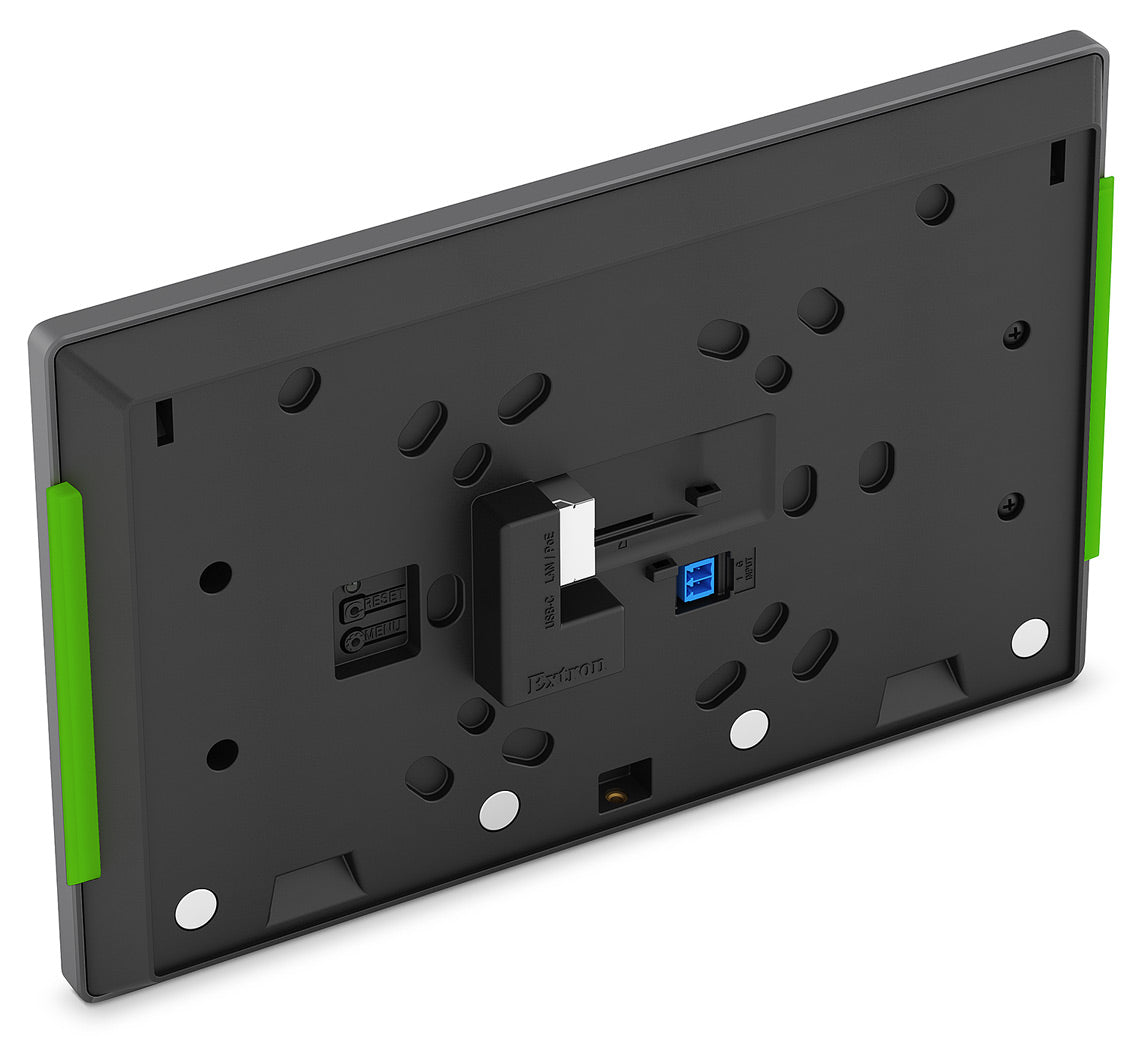

Ethernet: 1 female RJ-45, 10/100/1000Base-T half/full duplex autodetect; DHCP, DNS, HTTP, HTTPS (redirect), ICMP, IEEE 802.1X, IPv4, LLDP, NTP, SFTP, SMTP, SNMP, SSH, SSL, TLS, TCP/IP, UDP/IP

USB: 1 high-speed USB 2.0 (1 USB-C receptacle), USB 2.0/1.1/1.0 compatible, up to 480 Mbps, 5 VDC/500 mA auxiliary output

Digital input: 1 channel (configurable), 0 to 24 VDC (clamped at +30 VDC), ≥10k ohms, 1k ohm programmable pullup, 2.8/2.0 VDC thresholds, via a 2-pole 3.5 mm captive screw connector

Control software: Global Configurator Plus/Professional, GUI Designer, ControlScript Programming, Extron Control, GlobalViewer Enterprise, Toolbelt, embedded web page

Power: 9 VDC 3A via USB-C, or Power over Ethernet (802.3af, Class 3); power supply not included

Power consumption: PoE (PI115 injector): 11.6 W device, 12.9 W device with PoE. USB-C: 7.28 W device, 8.64 W device with PoE

Thermal dissipation: PoE: 31.3 BTU/hr device, 35.7 BTU/hr with PoE. USB-C: 24.8 BTU/hr device, 29.5 BTU/hr with PoE

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C); Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing

Cooling: Convection

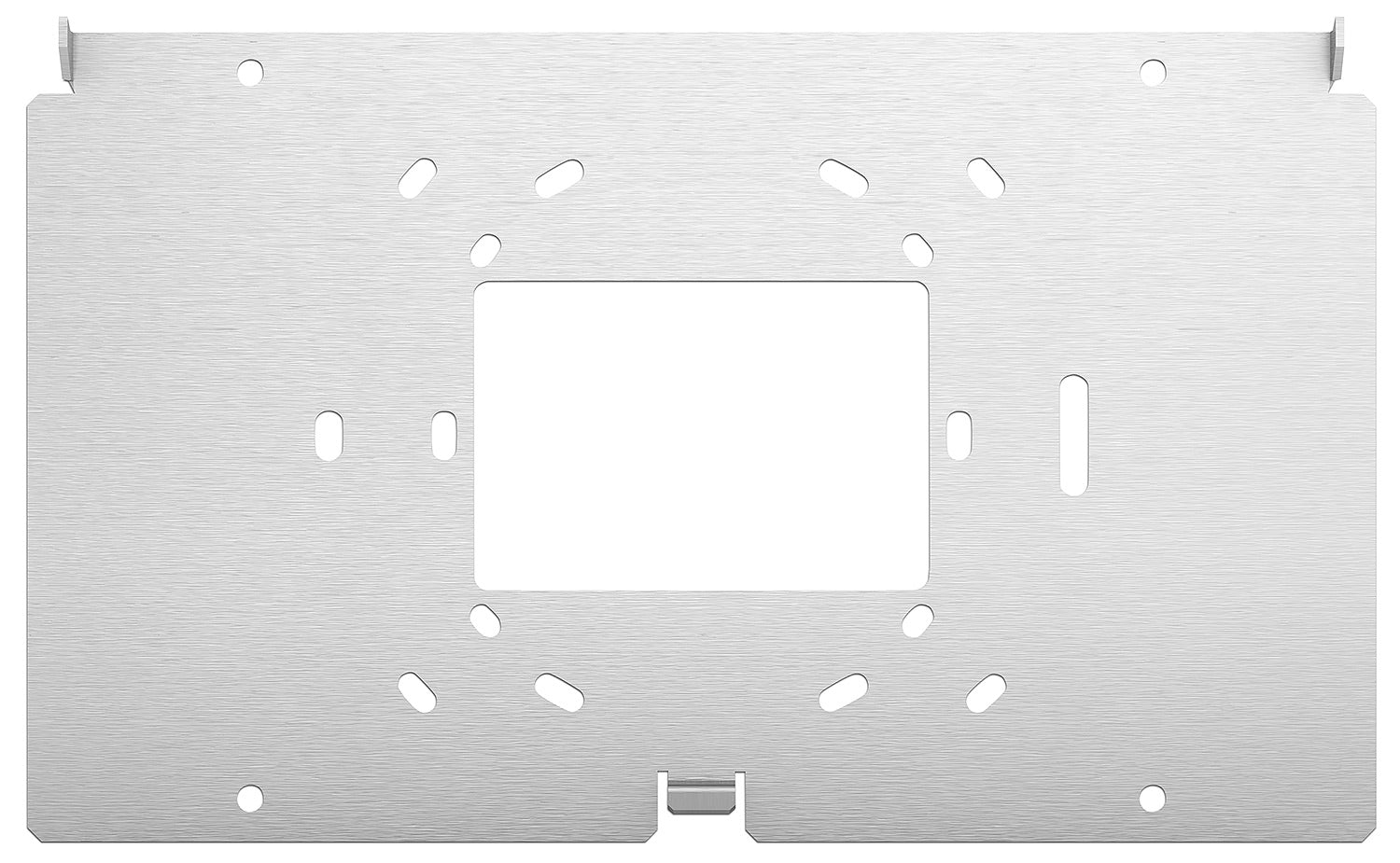

Mounting: Wall, furniture, or rack

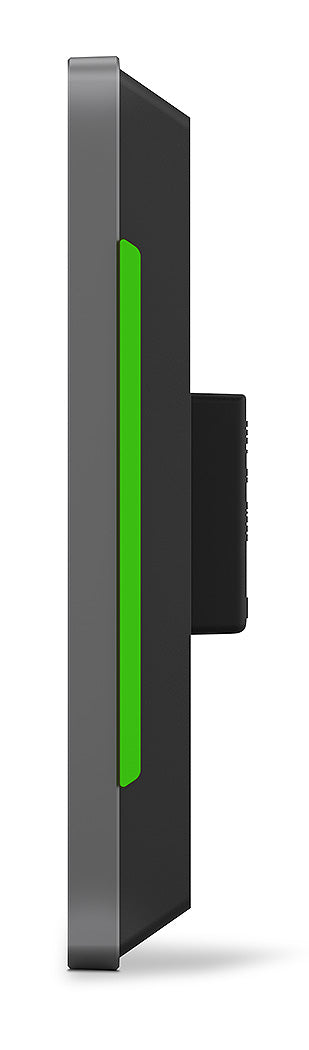

Enclosure: Plastic, 6.20" H x 9.74" W x 1.26" D (158 mm H x 247 mm W x 32 mm D); projects 0.84" (21.3 mm) from the mounting surface

Memory: 4 GB DDR4 RAM, 64 GB eMMC storage, 32 GB usable for projects

Product weight: 1.7 lb. (0.77 kg)

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, RoHS, UKCA, UL, VCCI, WEEE

Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

Diagram

Resources

Brochure | TLP Pro 1035M 60-1998-02 | TLP Pro 1035M

Manual | TLP Pro 1035M 60-1998-02 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 1035M 60-1998-02 | TLP Pro 1035M Cut-out Template

Manual | TLP Pro 1035M 60-1998-02 | TLP Pro 535, 835, and 1035 Series User Guide

Manual | TLP Pro 1035M 60-1998-02 | TLP Pro 535M, 835M, 1035M and TLS 835M, 1035M Setup Guide

Specifications | TLP Pro 1035M 60-1998-02 | TLP Pro 1035M Series and TLS 1035M

Panel Drawing | TLP Pro 1035M 60-1998-02 | TLP Pro 1035M
