Extron TLP Pro 1025T Tabletop Touchpanel
- • 10.1 in. capacitive touchscreen, 1280x800 (WXGA), 149 PPI, 800:1 contrast
- • Sloped tabletop housing, no wall mounting hardware required
- • Powered entirely over a single Ethernet run (PoE 802.3af, Class 3)
- • Built-in mono speaker at 89 dB SPL, 750 Hz to 20 kHz response
- • Built-in motion and light sensors for automatic wake/dim behavior
- • 3-year parts and labor warranty, 1-year on display and overlay components
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

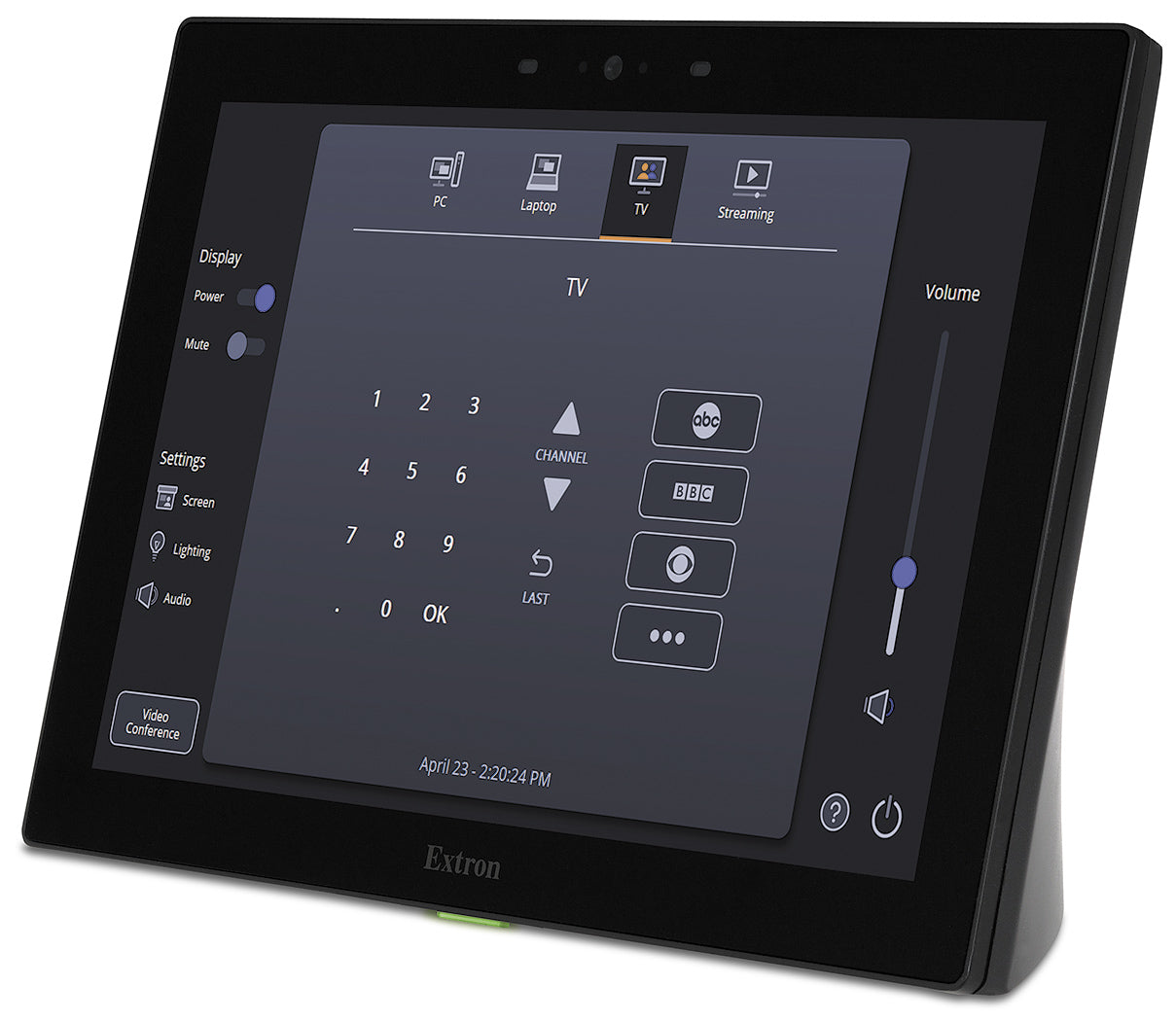

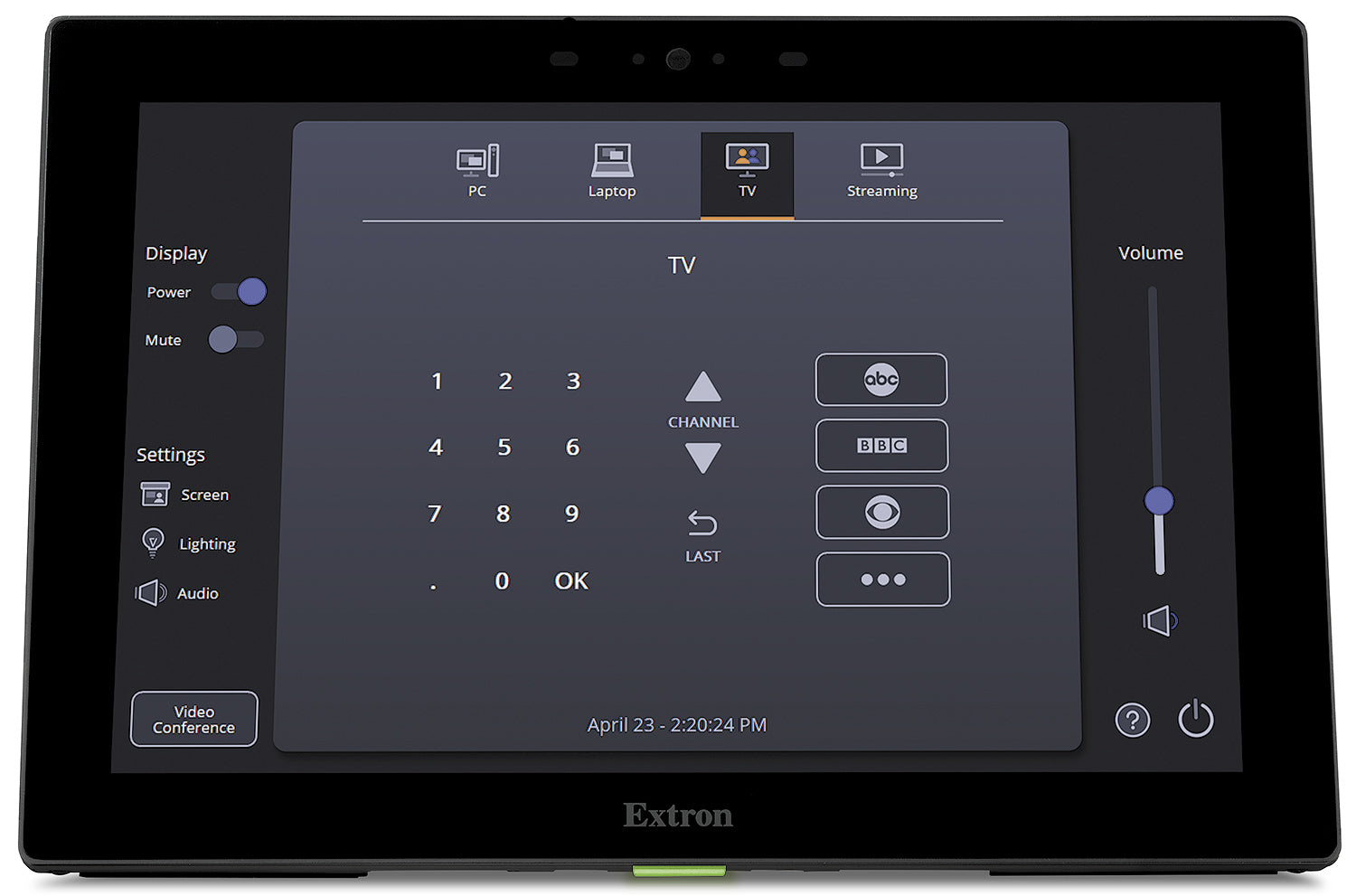

Extron TLP Pro 1025T (part number 60-1565-02) is a 10.1 in. tabletop touchpanel that sets on a desk or credenza and runs on a single PoE Ethernet cable.
The 1025T shares its 1280x800 capacitive touchscreen, 420-nit brightness, and 800:1 contrast with the wall-mount 1025M, but drops into a sloped tabletop housing with a built-in mono speaker instead of a flush wall plate. A single Ethernet run carries both data and Power over Ethernet (802.3af, Class 3) to the unit, and onboard motion and light sensors let the display wake and dim automatically. Programming runs through Global Configurator Plus/Professional, GUI Designer, or ControlScript, with GlobalViewer Enterprise handling fleet-wide management.
Key Capabilities
- 10.1 in. capacitive touchscreen, 1280x800 (WXGA), 149 PPI, 800:1 contrast

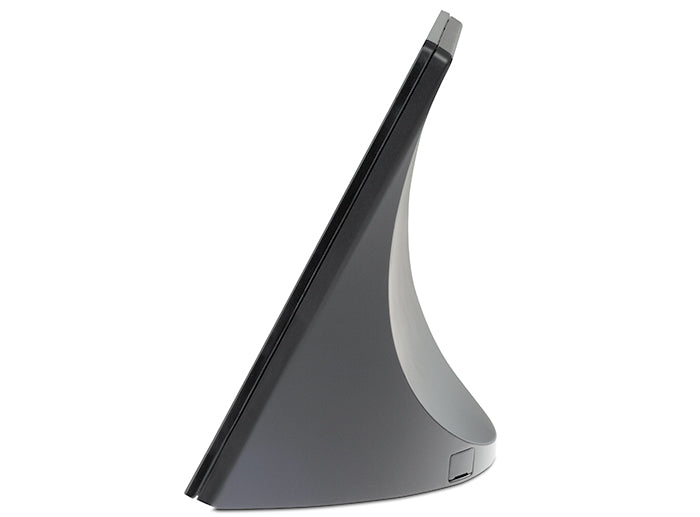

- Sloped tabletop housing, no wall mounting hardware required
- Powered entirely over a single Ethernet run (PoE 802.3af, Class 3)
- Built-in mono speaker at 89 dB SPL, 750 Hz to 20 kHz response
- Built-in motion and light sensors for automatic wake/dim behavior
- 3-year parts and labor warranty, 1-year on display and overlay components
Where It Is Used
Integrators specify the TLP Pro 1025T for conference table control stations and reception desks where a standalone touchpanel needs to sit on a flat surface rather than mount to a wall.
Specifications at a Glance
- Display: 10.1 in. WXGA (1280x800), capacitive touch
- Power: PoE 802.3af Class 3, 11.5 W device / 13.6 W with injector
- Memory: 2 GB SDRAM, 8 GB flash
- Enclosure: 6.84 in. H x 10.10 in. W x 4.15 in. D, 3.00 lbs (1.36 kg)
- Regulatory: BIS, CE, c-UL, UL, FCC Class A, RoHS, WEEE
Also referenced as Extron TLPPro1025T, TLP-Pro-1025T, part number 60156502.
