Details

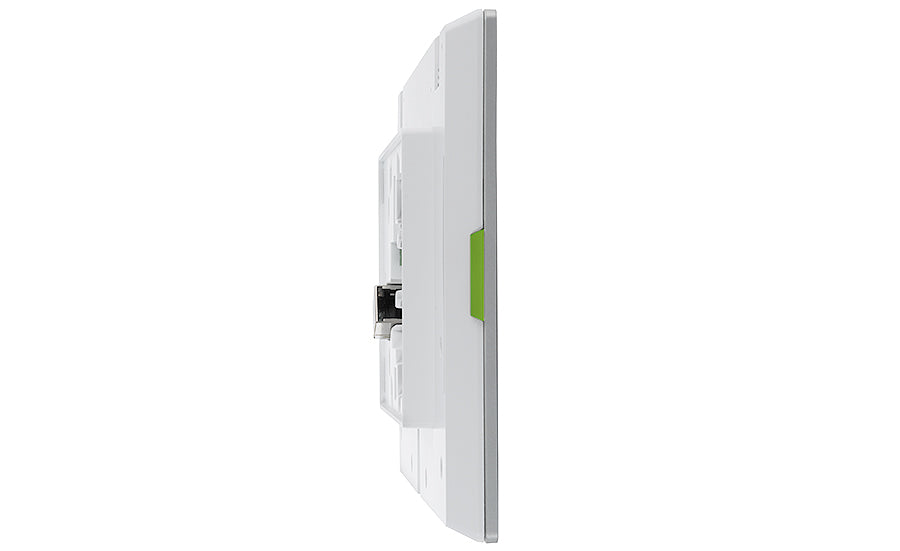

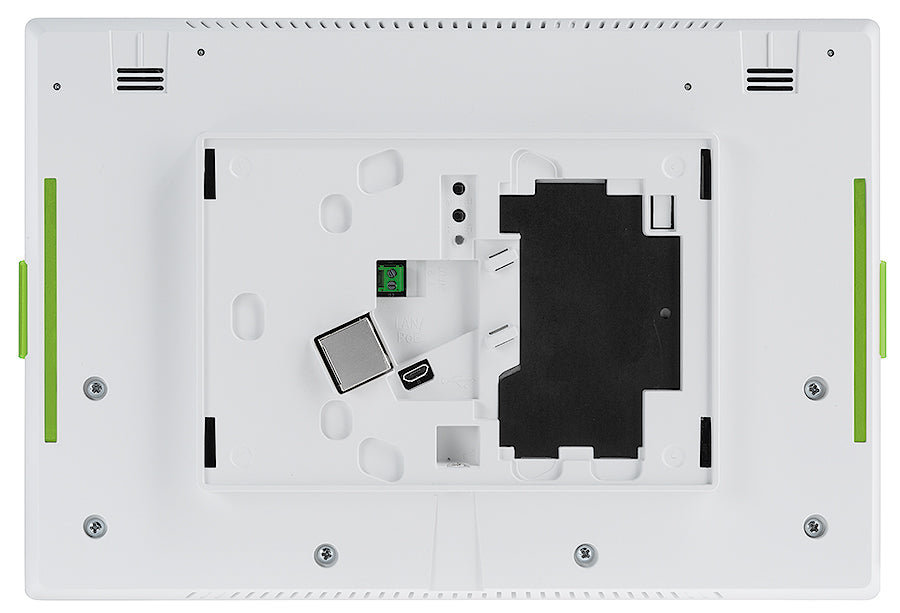

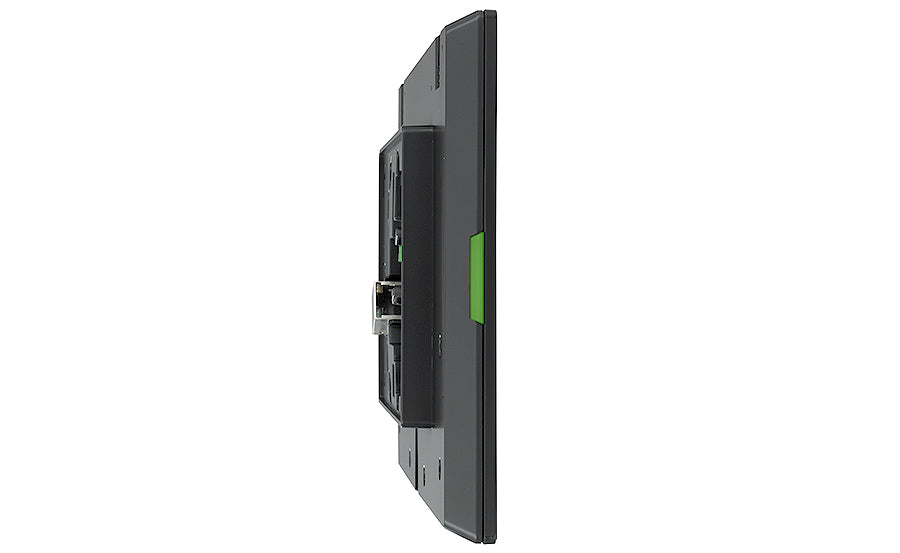

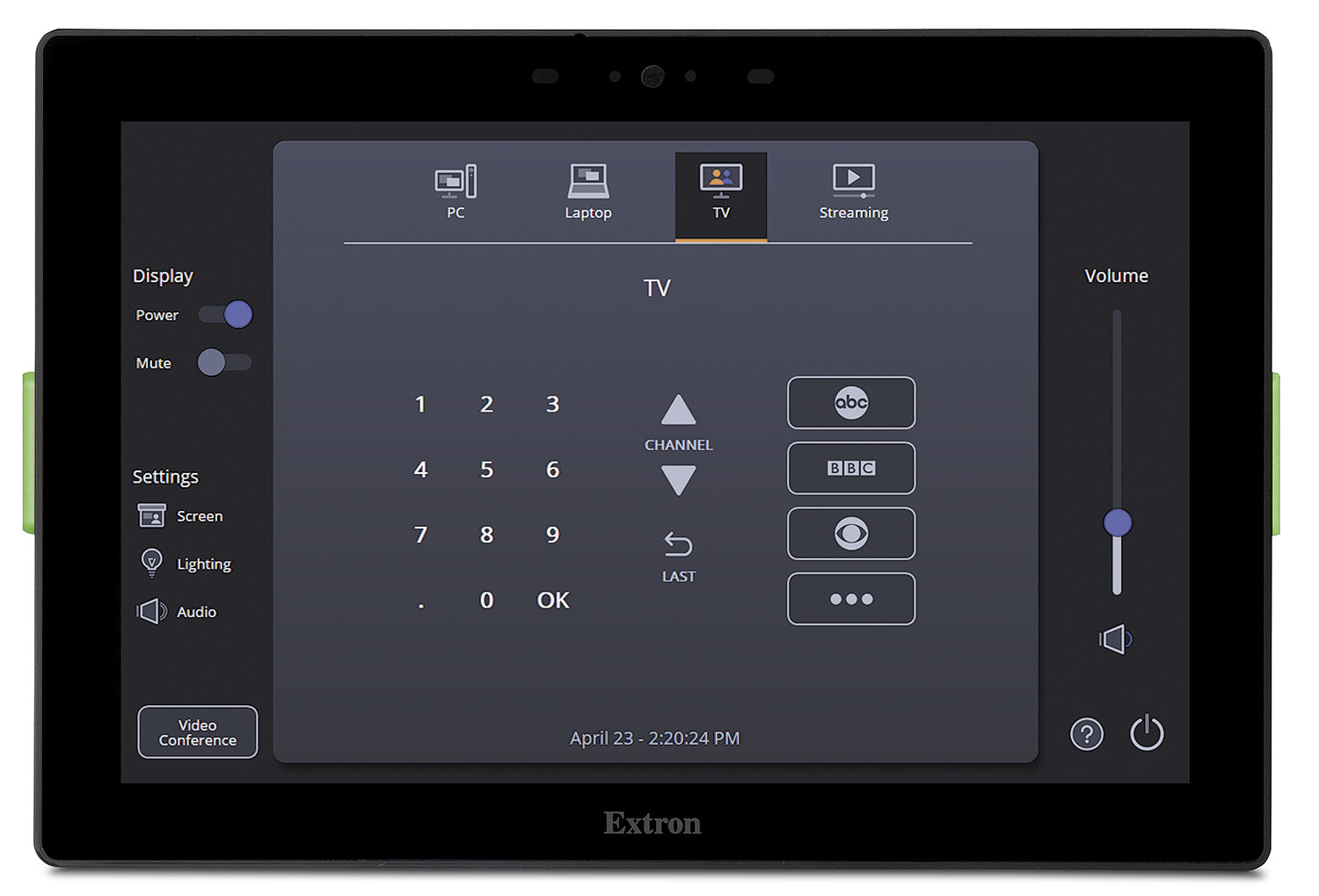

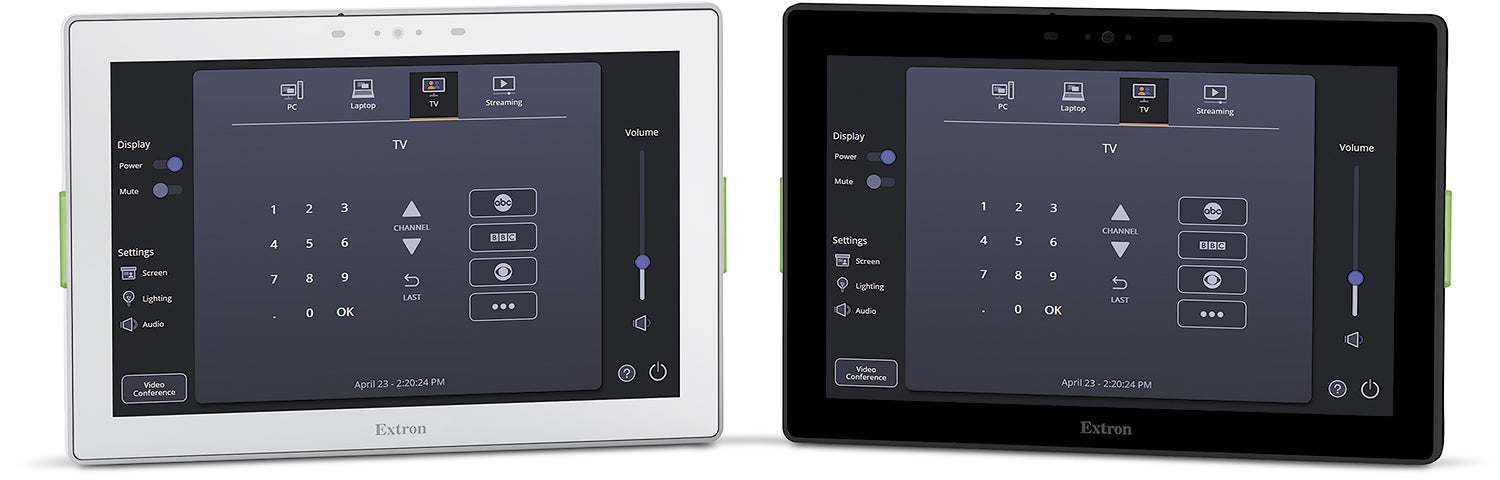

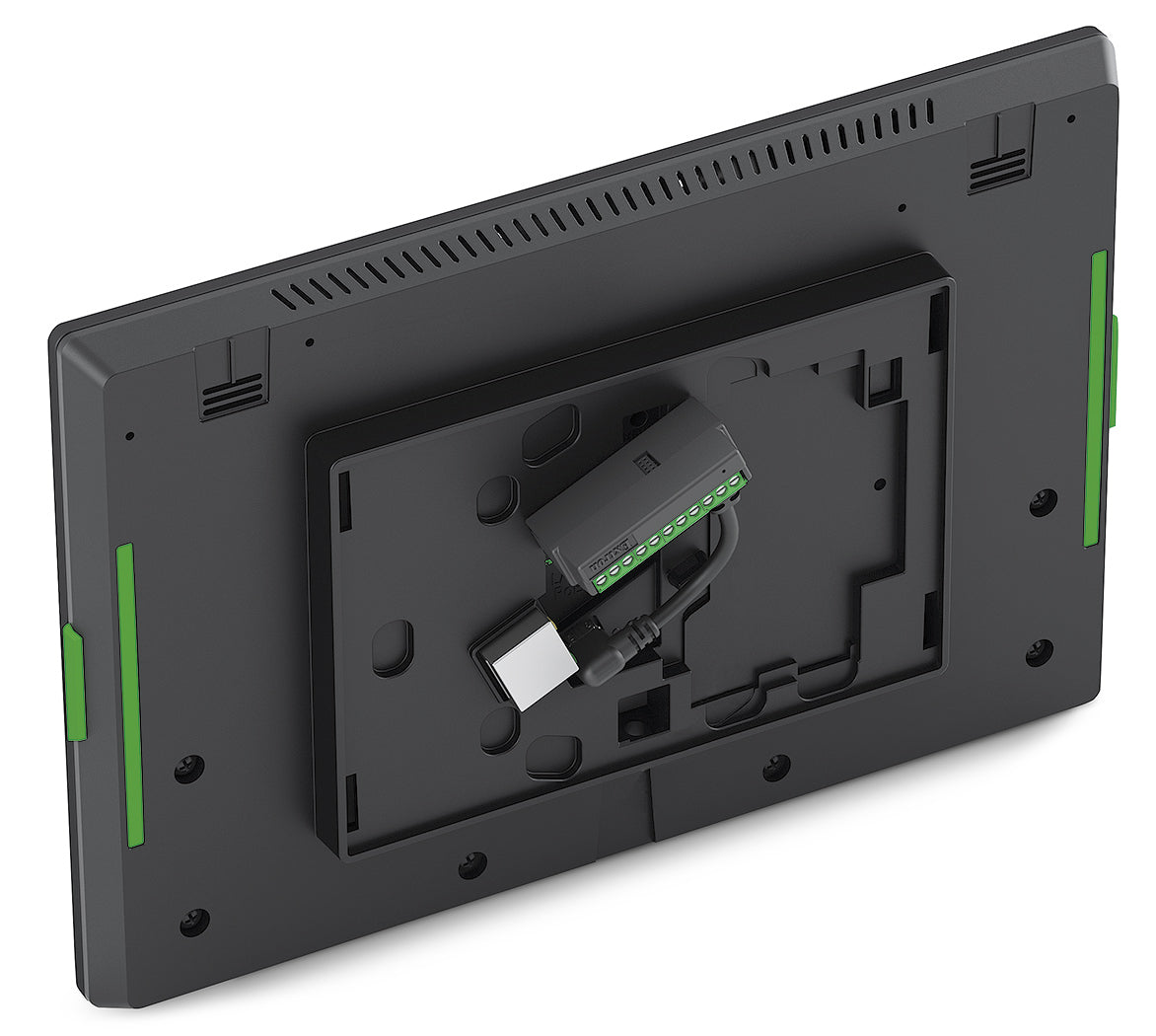

Extron TLP Pro 1025M (part number 60-1566-13) is a 10.1 in. PoE touchpanel built for wall, furniture, glass, or rack mounting on Extron TouchLink Pro control systems.

The 1025M pairs a 1280x800 capacitive touchscreen with 420 nits of brightness and an 800:1 contrast ratio, bright enough for most conference rooms and lobbies. A single Ethernet cable carries both data and Power over Ethernet (802.3af, Class 3) to the panel, and onboard motion and light sensors let the display wake and dim automatically. Programming runs through Global Configurator Plus/Professional, GUI Designer, or ControlScript, with GlobalViewer Enterprise handling fleet-wide management.

Key Capabilities

10.1 in. capacitive touchscreen, 1280x800 (WXGA), 149 PPI, 800:1 contrast
Powered entirely over a single Ethernet run (PoE 802.3af, Class 3)
Built-in motion and light sensors for automatic wake/dim behavior
2 mono speakers at up to 89 dB SPL, 750 Hz to 20 kHz response
Mounts to wall, furniture, glass, or rack, 2.05 lbs (0.92 kg)
3-year parts and labor warranty, 1-year on display and overlay components

Where It Is Used

Integrators specify the TLP Pro 1025M for room-scheduling panels, AV control stations, and lobby directories where a bright, responsive 10 in. touchscreen needs to run on a single PoE cable.

Specifications at a Glance

Display: 10.1 in. WXGA (1280x800), capacitive touch
Power: PoE 802.3af Class 3, 12.9 W device / 14.7 W with injector
Memory: 2 GB RAM, 8 GB storage
Enclosure: 6.84 in. H x 10.13 in. W x 1.26 in. D, 2.05 lbs (0.92 kg)
Regulatory: BIS, CE, c-UL, UL, FCC Class A, RoHS, WEEE

Also referenced as Extron TLPPro1025M, TLP-Pro-1025M, part number 60156613.

Specifications

Part Number: 60-1566-13

Manufacturer: Extron

Model: TLP Pro 1025M

Condition: New

Screen: 10.1" (25.7 cm) TFT active matrix color LCD, capacitive touch

Resolution: 1280x800 (WXGA), 149 PPI, 16:10 aspect ratio

Color: 24-bit, 16.7 million colors, 8-bit transparency

Brightness/contrast: 420 nits (cd/m2), 800:1 contrast, LED backlight

Viewing angle: ±85° horizontal, ±85° vertical

Sensors: Motion (on/off), light (auto/manual)

Audio output: 2 mono speakers, 89 dB max. SPL @ 0.1 m, 750 Hz to 20 kHz ±5 dB

Playback format: WAV (Microsoft RIFF), LPCM uncompressed, 8/16/24/32-bit, up to 192 kHz, mono or stereo

Ethernet: 1 female RJ-45, 10/100/1000Base-T half/full duplex autodetect; DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP

USB: 1 high-speed USB 2.0 device (1 Micro-B receptacle), USB 2.0/1.1/1.0 compatible, up to 480 Mbps, 5 VDC/275 mA auxiliary output

Digital input: 1 channel (configurable), 0 to 24 VDC (clamped at +30 VDC), ≥10k ohms, 1k ohm programmable pullup, 2.8/2.0 VDC thresholds, via a 2-pole 3.5 mm captive screw connector

Control software: Global Configurator Plus/Professional, GUI Designer, ControlScript Programming, Extron Control, GlobalViewer Enterprise, Toolbelt, embedded web page

Power: Power over Ethernet (802.3af, Class 3), power supply not included; 12.9 W device, 14.7 W with power injector (XTP PI 100, not included)

Ambient temperature/humidity: Storage: -4 to +140 °F (-20 to +60 °C); Operating: +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing

Cooling: Convection, vents on back

Mounting: Wall, furniture, glass, or rack

Enclosure: Plastic, 6.84" H x 10.13" W x 1.26" D (174 mm H x 257 mm W x 32 mm D); projects 0.65" (17 mm) from the mounting surface

Memory: 2 GB RAM, 8 GB storage

Product weight: 2.05 lbs (0.92 kg)

Regulatory compliance: BIS, CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI, RoHS, and WEEE

Warranty: 3 years parts and labor; touchpanel display and overlay components covered for 1 year

Diagram

Resources

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (touchlink-pro_revC8.pdf)

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (TouchLink-Pro_BR_A4_GE_RevC5.pdf)

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (TouchLink-Pro_BR_A4_SP_RevC7.pdf)

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (TouchLink-Pro_BR_A4_RU_RevC7.pdf)

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (TouchLink-Pro_BR_A4_IT_RevC8.pdf)

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (TouchLink-Pro_BR_A4_FR_RevC8.pdf)

Brochure | TLP Pro 1025M 60-1566-13 | TouchLink Pro (TouchLink_Pro_Rev_C7_CN_Online.pdf)

Manual | TLP Pro 1025M 60-1566-13 | Cleaning Instruction Card

Manual | TLP Pro 1025M 60-1566-13 | Control Systems Network Ports, Protocols, and Licenses

Manual | TLP Pro 1025M 60-1566-13 | TLP Pro x25 Series and TLS x25 Series User Guide

Manual | TLP Pro 1025M 60-1566-13 | TLP Pro x25M Series and TLS x25M Series Setup Guide

Specifications | TLP Pro 1025M 60-1566-13 | TLP Pro 1025M Series and TLS 1025M

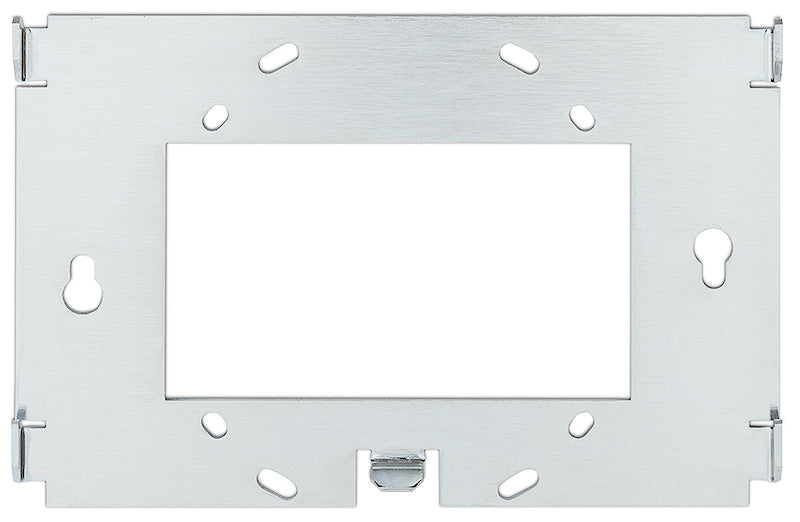

Panel Drawing | TLP Pro 1025M 60-1566-13 | TLP Pro 1025M
