Extron TLI Pro 201 4K HDMI TouchLink Interface
- • 1 HDMI input and 1 HDMI output, resolutions up to 3840 x 2160 at 30 Hz
- • HDMI 1.4b with HDCP 2.3 support, 8.91 Gbps maximum video data rate
- • Runs entirely on Power over Ethernet Plus (802.3at), 17.3 W device draw
- • 1 high-speed USB 2.0 device port, 480 mA available USB power
- • Half-rack metal enclosure, 1.70 lbs (0.77 kg)
- • Backed by Extron's 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

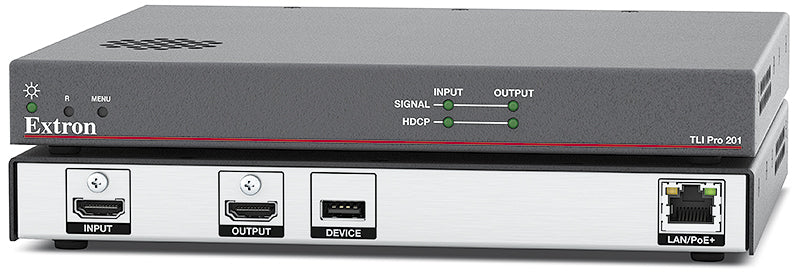

Extron TLI Pro 201 (part number 60-1669-01) is a PoE-powered HDMI interface that feeds a live video preview into an Extron TouchLink Pro control system.
Control rooms often need a touchpanel to show what is actually on screen, not just a static icon, and the TLI Pro 201 makes that possible by taking in one HDMI source and re-outputting it at up to 3840x2160 at 30 Hz with HDCP 2.3 support. The half-rack, fan-cooled chassis runs entirely on Power over Ethernet Plus (802.3at), so a single Ethernet run carries both data and power to the unit. Configuration happens in Global Configurator Plus, Global Configurator Professional, or GUI Designer, and the box exposes a USB 2.0 device port plus a full embedded web interface for remote management.
Key Capabilities
- 1 HDMI input and 1 HDMI output, resolutions up to 3840 x 2160 at 30 Hz
- HDMI 1.4b with HDCP 2.3 support, 8.91 Gbps maximum video data rate
- Runs on Power over Ethernet Plus (802.3at), 17.3 W device draw
- 1 high-speed USB 2.0 device port, 480 mA available USB power
- Half-rack, 1.00 in. H x 8.70 in. W x 8.00 in. D metal enclosure, 1.70 lbs (0.77 kg)
- Backed by Extron's 3-year parts and labor warranty
Where It Is Used
Integrators deploy the TLI Pro 201 in control rooms, classrooms, and command centers where a TouchLink Pro touchpanel needs a live confidence preview of an HDMI source alongside its normal control graphics.
Specifications at a Glance
- Video I/O: 1 HDMI in, 1 HDMI out, up to 4K @ 30 Hz
- Power: PoE Plus (802.3at), 17.3 W device / 22.0 W with injector
- Ethernet: 10/100/1000Base-T, autodetect
- Enclosure: 1.00 in. H x 8.70 in. W x 8.00 in. D, half rack wide
- Regulatory: CE, FCC Class A, c-UL, UL, RoHS, WEEE
Also referenced as Extron TLIPro201, TLI-Pro-201, part number 60166901.
Specifications
Specifications

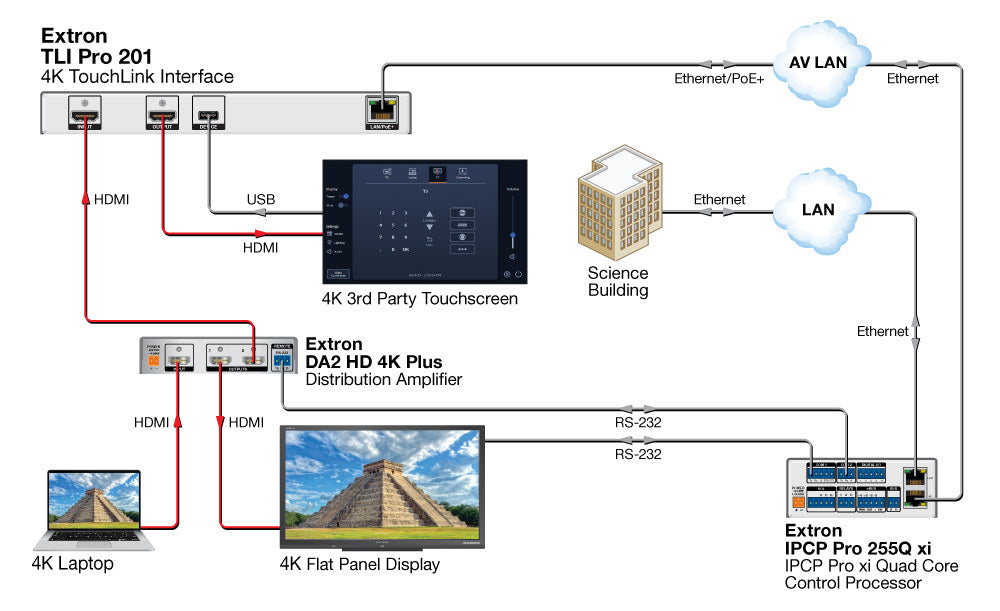

Diagram
