Extron TLI Pro 101 TouchLink Interface
- • Brings third-party touchscreens into Extron IP Link Pro control systems
- • Scaled HDMI output spans 800x600 to 1920x1200, plus 2K and 1080p HDTV
- • One Cat cable powers and connects it via PoE 802.3af class 3
- • Draws only 8.8 watts and cools by convection, so no fan noise
- • 512 MB SDRAM and 512 MB flash keep GUI Designer layouts responsive
- • USB type A port returns touch coordinates at high-speed USB 2.0
- • Half-rack 1U metal enclosure weighing just 1.74 lbs, rack mountable
- • Covered by a 3 year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

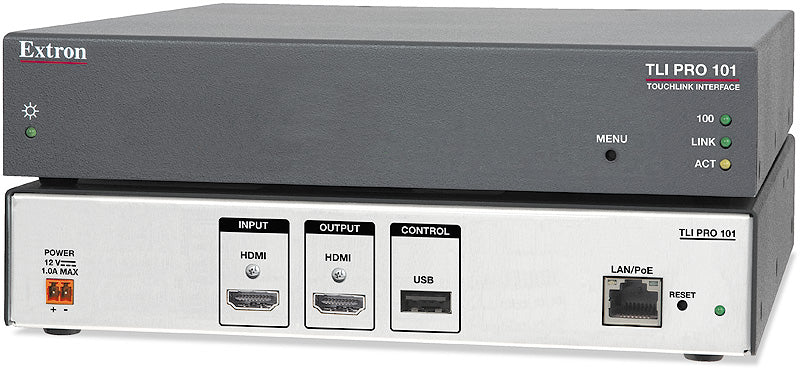

Extron TLI Pro 101 (part number 60-1083-01) — the TouchLink interface that turns a third-party touchscreen into a working control point on an Extron Pro Series system.
Rooms already fitted with a commercial touchscreen do not need a second panel bolted next to it. The TLI Pro 101 sits between that screen and any Extron IP Link Pro control processor: an HDCP-compliant HDMI input is scaled and passed to the display, while a USB type A connection carries touch coordinates back so presses register as real control commands. Layouts are authored in Extron GUI Designer and driven from Global Configurator Plus or Professional, so the same toolchain used for TouchLink Pro panels applies here.
Key Capabilities
- Scales an HDMI source across a range of 800x600 through 1920x1200, plus 2K and 1080p HDTV, with reduced-blanking timings supported.
- Processes 10-bit video for roughly 1 billion colors at a 165 MHz pixel clock, accepting 8, 10 or 12 bits per channel.
- Runs on Power over Ethernet to 802.3af class 3, or on 12 VDC from an external supply, so one Cat cable can serve the whole install.
- Carries embedded LPCM audio in and out on HDMI, mono or stereo, sampled anywhere from 2 kHz to 192 kHz.
- Half-rack 1U metal chassis is convection-cooled, adding no fan noise to a credenza or equipment closet.
- 512 MB of SDRAM alongside 512 MB of flash keeps interface graphics loading quickly.
Where It Is Used
Integrators reach for this interface in conference rooms and boardrooms where a display of a specific brand is already specified, in lecture halls and training rooms standardized on one touchscreen vendor, and in control rooms and clinical AV suites where the operator panel must match existing furniture or hygiene requirements while control still runs on Extron IP Link Pro hardware.
Specifications at a Glance
- Video: 1 HDMI in and 1 HDMI out, female type A, HDCP compliant
- Ethernet: 1 female RJ-45, 10/100Base-T with autodetect
- Power: 8.8 watts at the device; PoE 802.3af class 3 or 12 VDC
- Enclosure: 1.7" H x 8.7" W x 9" D metal, 1U half rack, 1.74 lbs
- Warranty: 3 years parts and labor
Also referenced as Extron TLIPro101, TLI-Pro-101, part number 60108301.
Specifications
Specifications

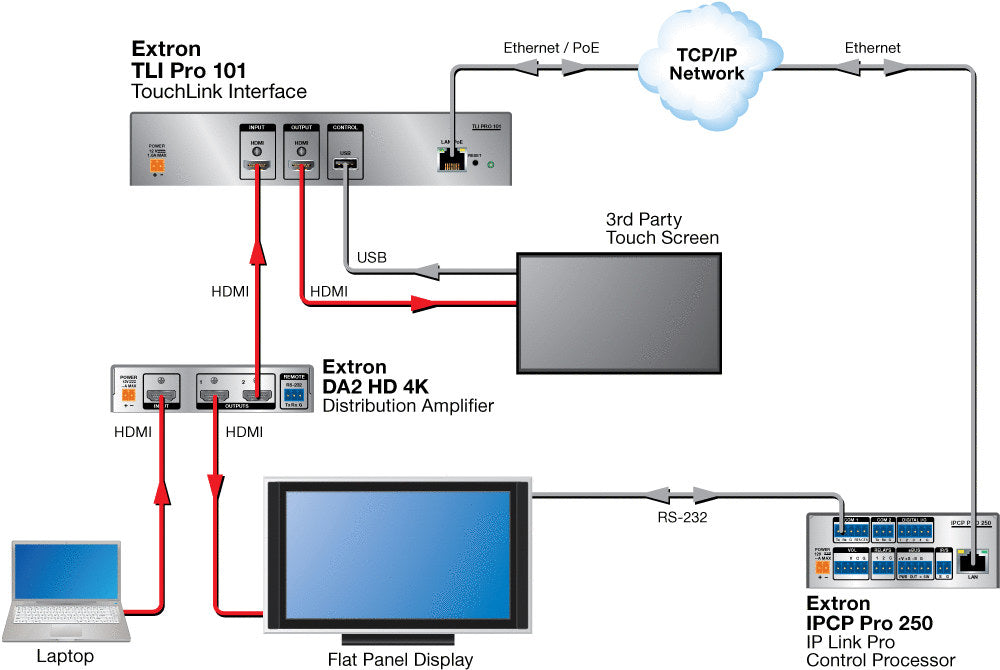

Diagram
