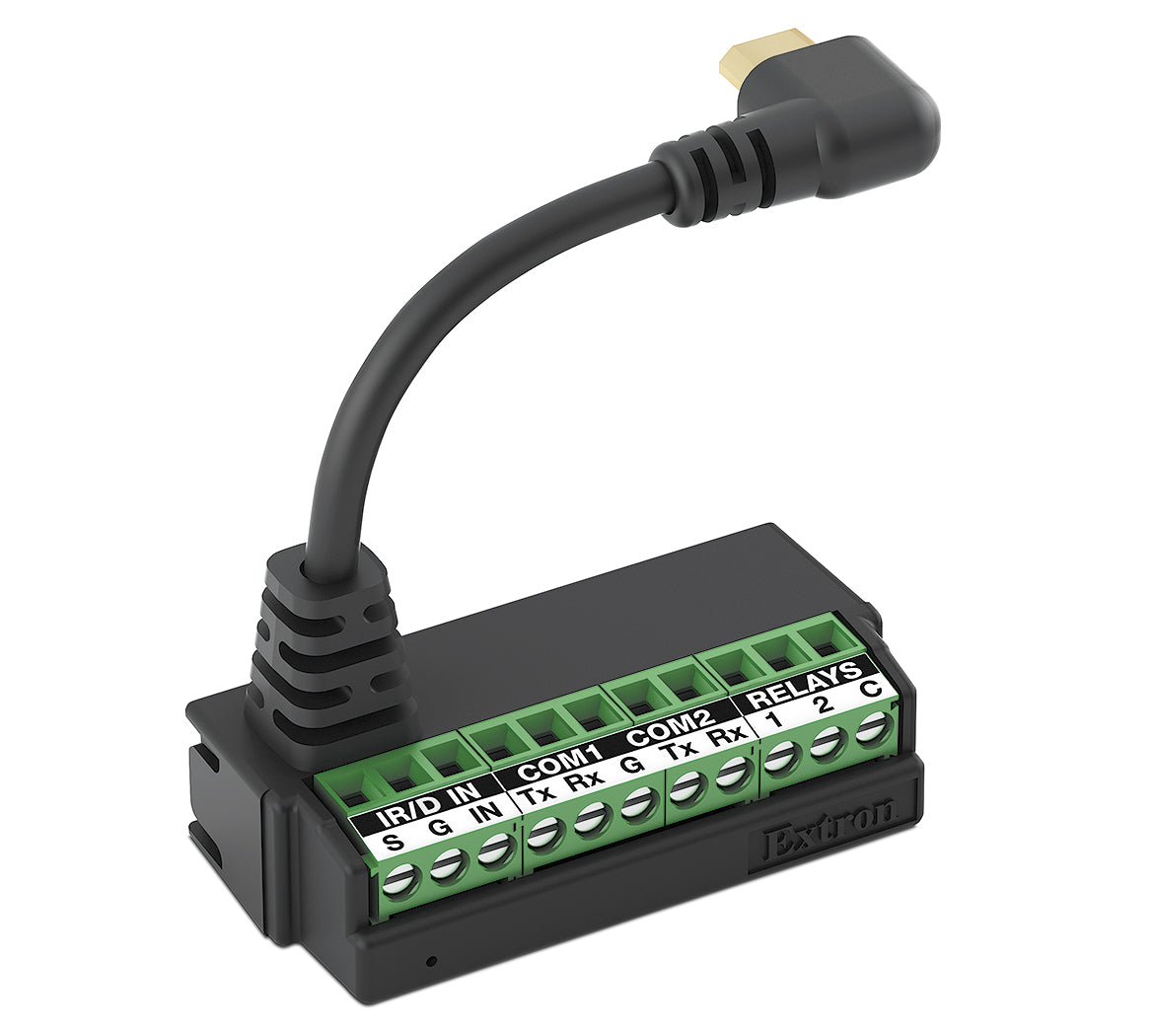

Extron TLCA 1 (part number 60-1748-10) is a USB-powered adapter that gives a TouchLink Pro touchpanel a full set of hardware control ports.

Many TouchLink Pro deployments need to trigger relays, fire IR commands, or talk RS-232 to third-party gear, and the touchpanel itself has no room for that hardware. The TLCA 1 clips onto the back of the panel and connects over a Micro-B USB cable, adding two bidirectional RS-232 ports, two normally open relays, one TTL-level IR output, and one digital input. Every port lands on a 3.5 mm captive screw connector so field wiring stays simple, and the whole adapter draws its power from the touchpanel's own USB port.

Key Capabilities

• 2 bidirectional RS-232 ports, 300 to 115200 baud, on 5-pole 3.5 mm connectors
• 2 normally open relays rated 24 VDC, 1 A
• 1 TTL-level IR output, 30 kHz to 300 kHz carrier frequency
• 1 digital input, 0 to 24 VDC with programmable pullup
• USB Micro-B connection draws power directly from the touchpanel
• Backed by Extron's 3-year parts and labor warranty

Where It Is Used

Integrators add the TLCA 1 anywhere a TouchLink Pro panel needs to drive projector screens, shades, or third-party displays over relay or RS-232 without a separate control processor.

Specifications at a Glance

• Serial: 2 x bidirectional RS-232
• Relay: 2 x normally open, 24 VDC / 1 A
• IR: 1 x TTL-level, 30-300 kHz
• Enclosure: 0.47 in. H x 1.81 in. W x 0.91 in. D
• Regulatory: CE, FCC Class B, RoHS, WEEE

Also referenced as Extron TLCA1, TLCA-1, part number 60174810.
