Extron TLA 3 (part number 70-1254-32) is an adapter mount that lets integrators upgrade an existing wall touchpanel to a TLP Pro 725M or TLP Pro 1025M without patching drywall or swapping the back box.

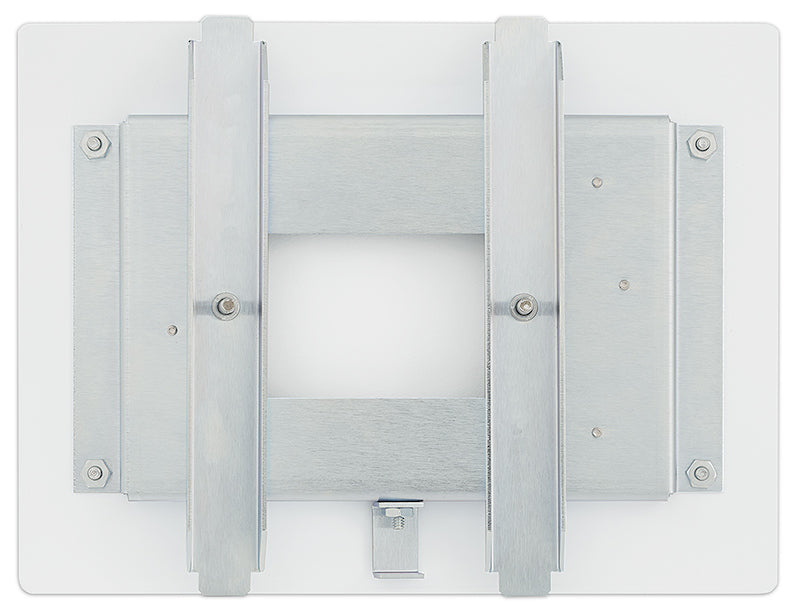

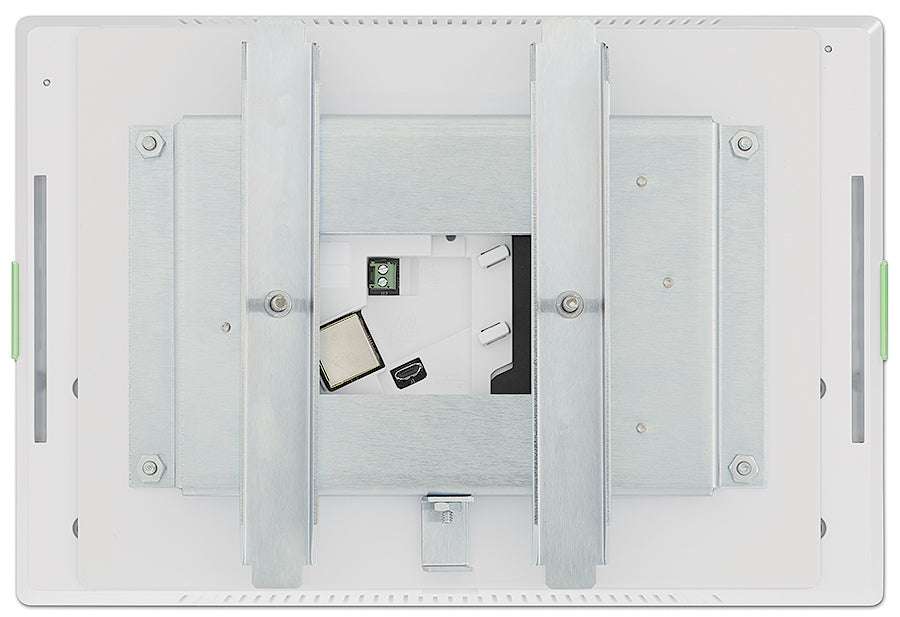

The TLA 3 slots into the existing opening left by a TLP 1000MV or TLP Pro 1020M and adapts it to accept the newer TLP mounting plate. It works with either a preexisting BB 1000M back box or a bare drywall cutout, using rotating back bars and locking screws to seat itself in the opening. Four included bumpers pack out drywall thinner than 5/8 in. (16 mm), and six built-in magnets hold the finished touchpanel flush once it is placed against the frame. Note that the TLP Pro 525M uses a different mounting plate and is not compatible with the TLA 3.

Key Capabilities

• Retrofits a TLP 1000MV or TLP Pro 1020M cutout for a TLP Pro 725M or 1025M
• Fits a BB 1000M back box or a bare drywall opening

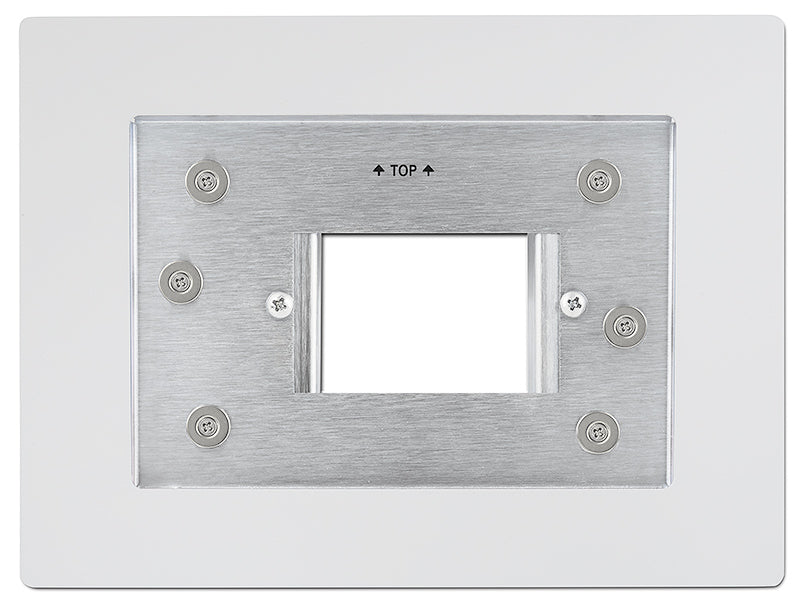

• Six built-in magnets hold the touchpanel flush against the frame

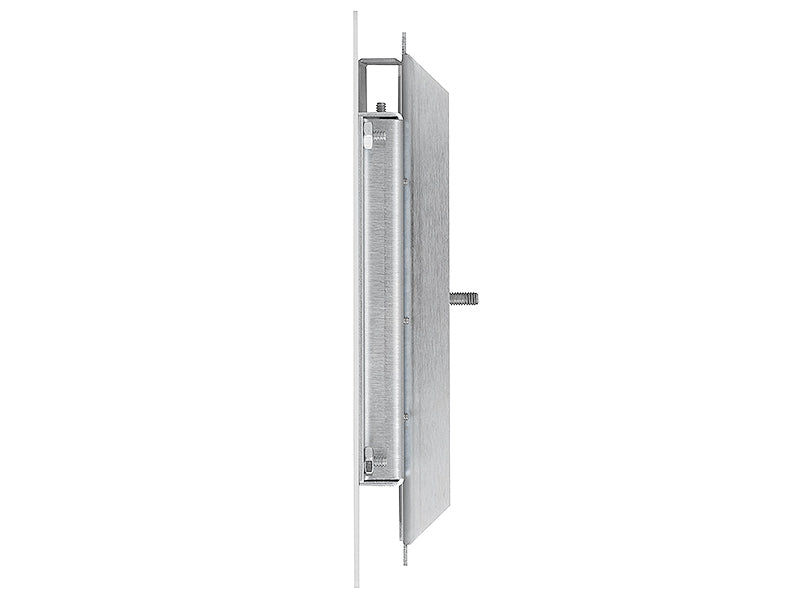

• 7.95 in. H x 11.12 in. W x 1.52 in. D metal enclosure, 2.50 lbs (1.13 kg)
• Backed by Extron's 3-year parts and labor warranty

Where It Is Used

The TLA 3 shows up on refresh projects where a room is being upgraded from an older, larger-format TLP-series touchpanel to a current TLP Pro 725M or 1025M without disturbing finished walls.

Specifications at a Glance

• Enclosure: 7.95 in. H x 11.12 in. W x 1.52 in. D (202 x 282 x 38 mm)
• Material: Metal
• Mounting: Drywall or backbox
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron TLA3, TLA-3, part number 70125432.
