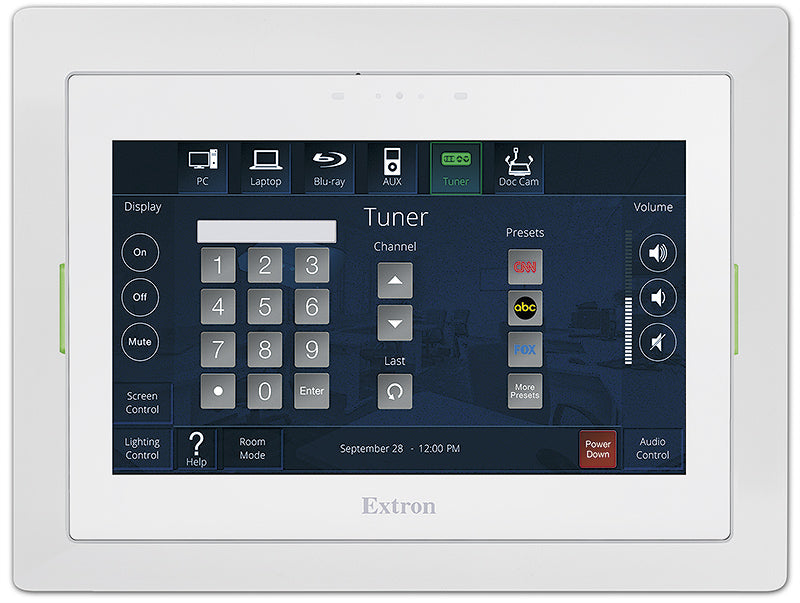

Extron TLA 2 (part number 70-1254-23) is an adapter mount that lets integrators upgrade an existing wall touchpanel to a TLP Pro 725M or TLP Pro 1025M without patching drywall or swapping the back box.

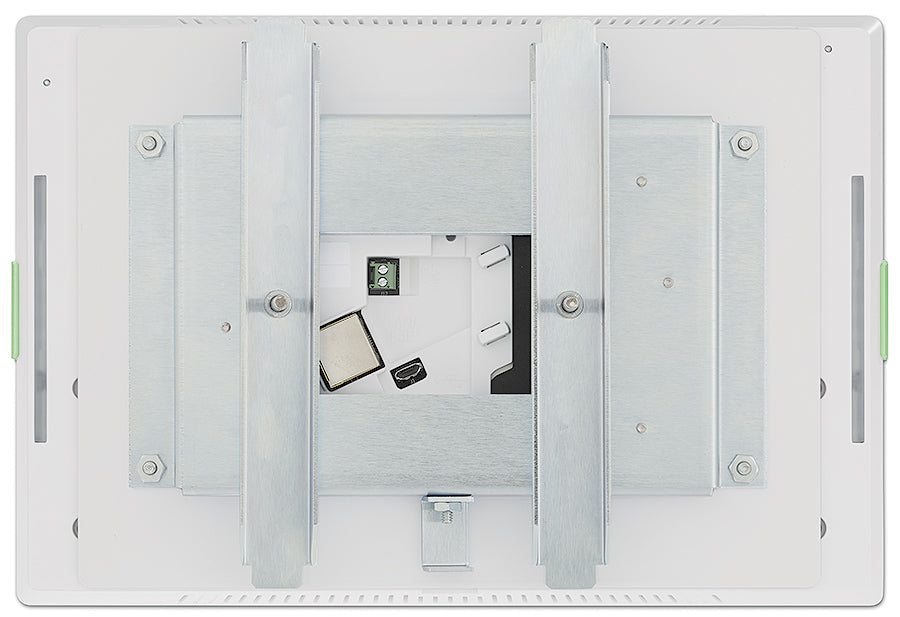

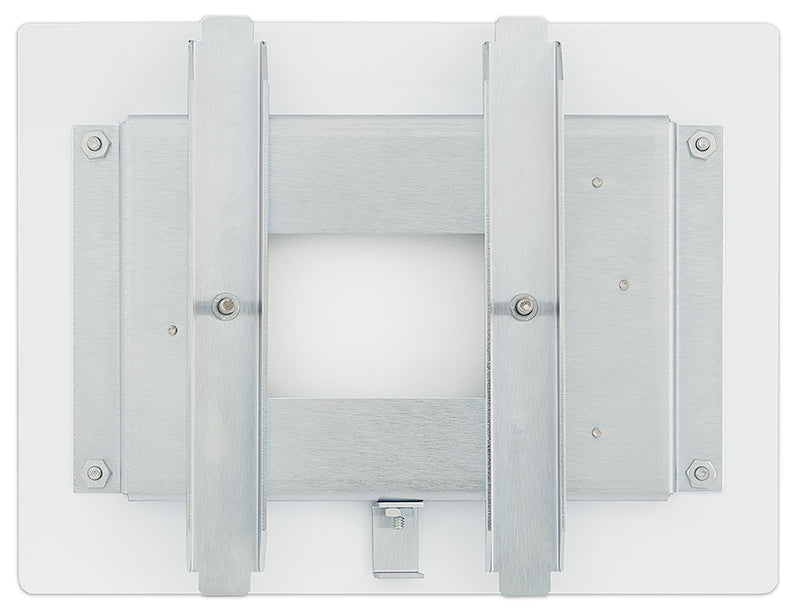

Where a room already has a TLP 710MV, TLP Pro 720M, or TLP Pro 1022M cutout, the TLA 2 adapts that opening to accept the current TLP mounting plate. It fits a preexisting BB 710M back box or a bare drywall hole using rotating back bars and locking screws, with four included bumpers for drywall thinner than 5/8 in. (16 mm). Six built-in magnets then hold the finished touchpanel flush against the frame. Note that the TLP Pro 525M uses a different mounting plate and is not compatible with the TLA 2.

Key Capabilities

• Retrofits a TLP 710MV, TLP Pro 720M, or TLP Pro 1022M cutout for a TLP Pro 725M or 1025M
• Fits a BB 710M back box or a bare drywall opening

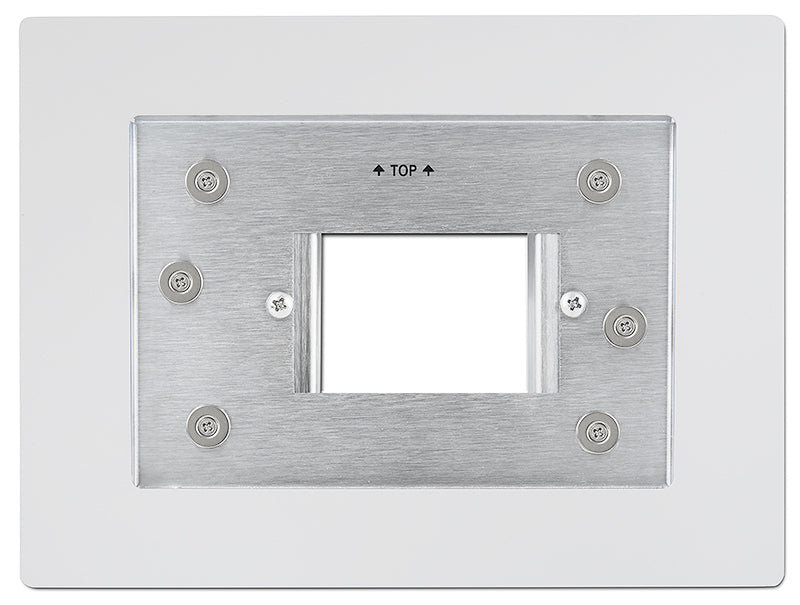

• Six built-in magnets hold the touchpanel flush against the frame

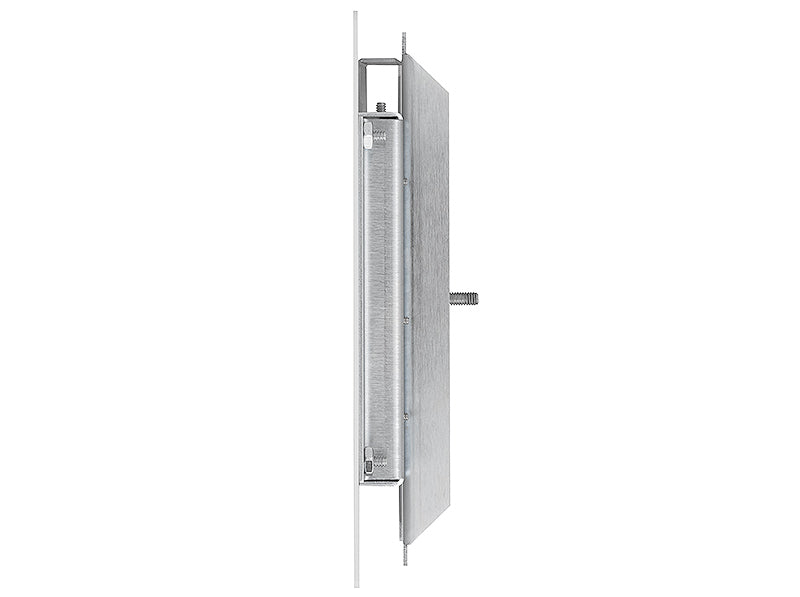

• 6.39 in. H x 8.46 in. W x 1.52 in. D metal enclosure, 1.50 lbs (0.68 kg)
• Backed by Extron's 3-year parts and labor warranty

Where It Is Used

Integrators specify the TLA 2 on refresh projects that swap an older TLP-series touchpanel for a current TLP Pro 725M or 1025M without disturbing finished walls or existing back boxes.

Specifications at a Glance

• Enclosure: 6.39 in. H x 8.46 in. W x 1.52 in. D (162 x 215 x 38 mm)
• Material: Metal
• Mounting: Drywall or backbox
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron TLA2, TLA-2, part number 70125423.
