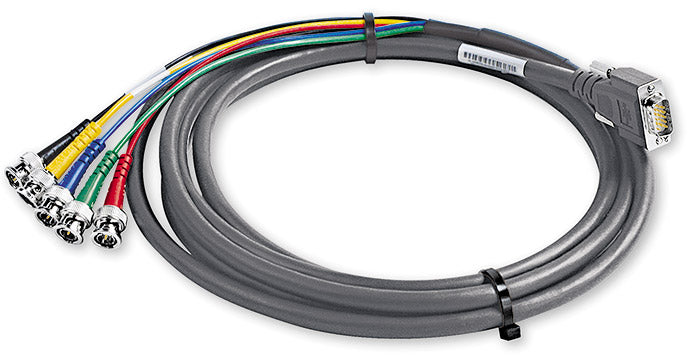

Extron SYM BNCM/75 (part number 26-533-06) — a 75 ft (22.8 m) VGA to five-BNC-male cable for the long RGBHV pulls in large venues.

Seventy-five feet is auditorium and arena territory: the source rack sits stage left, the projector hangs over the back rows, and the drawing calls for one continuous run. Extron terminates a molded 15-pin HD male connector at one end and five color-coded 75 ohm BNC male plugs at the other, joined by MHR-5 mini high resolution cable. Every conductor keeps its own foil and braid shield, and the whole bundle stays inside a single jacket, which is what makes a run this long practical to pull and label.

Key Capabilities

• Full RGBHV signal set on five separate 75 ohm coaxial conductors.
• 75 ft (22.8 m) as one continuous assembly with no in-line barrels.
• 26 AWG conductors shielded individually by 100% aluminum foil and a 95% tinned copper serve.
• Color-coded male BNC plugs keep termination order unambiguous at the far end.
• Grounded 15-pin HD connector shell provides an electrostatic discharge path at the source.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Auditoriums, theatres, houses of worship and large lecture halls with long projector throws; broadcast facilities with distant monitor walls; command centres and imaging departments routing five-wire component video between floors or wings.

Specifications at a Glance

• Length: 75 ft (22.8 m)
• Connectors: one 15-pin HD male to five 75 ohm BNC male
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCM75, SYM-BNCM-75, part number 2653306.
