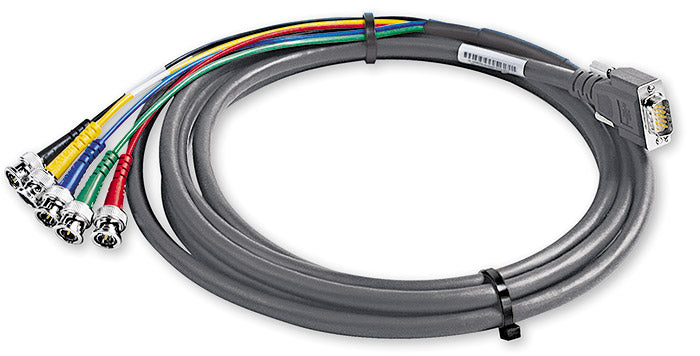

Extron SYM BNCM/50 (part number 26-533-05) — a 50 ft (15.2 m) VGA to five-BNC-male assembly for permanent RGBHV distribution.

At fifty feet a video cable is part of the building, not part of the kit bag. This assembly is designed to be pulled once and forgotten: a molded 15-pin HD male connector at the equipment end, five color-coded 75 ohm BNC male plugs at the display end, and fifty feet of Extron MHR-5 mini high resolution cable joining them. Because MHR-5 is thinner and lighter than a bundle of full-size coax, it negotiates conduit bends and ceiling pathways that a heavier assembly would fight.

Key Capabilities

• Five isolated 75 ohm coaxial conductors carry a complete RGBHV signal set.
• 50 ft (15.2 m) as one pre-terminated piece, removing mid-span connection points.
• Each 26 AWG conductor is double shielded with 100% aluminum foil and a 95% tinned copper serve.
• Male BNC ends land straight on display, matrix and distribution amplifier inputs.
• Grounded VGA shell routes electrostatic discharge away from source electronics.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Auditorium and lecture-hall projector drops, divisible meeting rooms, command and control facilities where the rack room is separated from the operator floor, and imaging or simulation suites distributing component video between adjacent rooms.

Specifications at a Glance

• Length: 50 ft (15.2 m)
• Connectors: one 15-pin HD male to five 75 ohm BNC male
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCM50, SYM-BNCM-50, part number 2653305.
