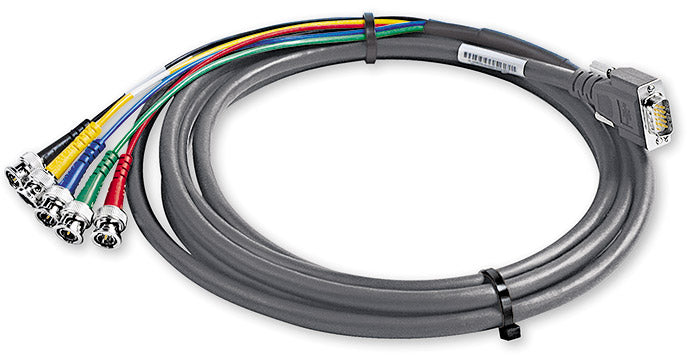

Extron SYM BNCM/12 (part number 26-533-03) — a 12 ft (3.6 m) VGA to five-BNC-male cable for room-scale RGBHV connections.

Twelve feet is the length that gets a signal from a table or credenza across to a wall-mounted display, or from a rack up to a nearby ceiling projector, in one piece. The source end is a molded 15-pin HD male connector; the display end breaks out into five color-coded 75 ohm BNC male plugs. The run itself is Extron MHR-5 mini high resolution cable, in which each of the five coaxial conductors carries its own foil and braid shield so the sync legs do not pick up interference from the colour channels beside them.

Key Capabilities

• Carries a full RGBHV signal set on five separate 75 ohm coaxial conductors.
• 12 ft (3.6 m) in a single continuous assembly, avoiding barrel joints mid-run.
• Each 26 AWG conductor is shielded by 100% aluminum foil and a 95% tinned copper serve.
• Male BNC terminations connect directly to display and switcher inputs.
• Grounded 15-pin HD shell provides an electrostatic discharge path at the source end.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Conference rooms and training spaces with wall-mounted displays, short ceiling-projector drops, staging and rental rigs, control-room operator positions, and medical or laboratory imaging areas that keep legacy five-wire component video in service.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Connectors: one 15-pin HD male to five 75 ohm BNC male
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCM12, SYM-BNCM-12, part number 2653303.
