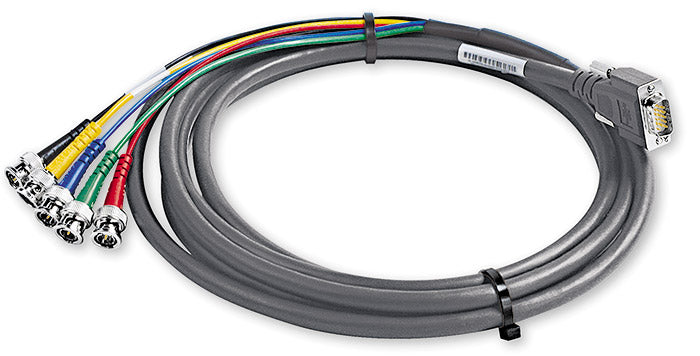

Extron SYM BNCM/100 (part number 26-533-07) — at 100 ft (30.4 m) this is the longest VGA to five-BNC-male assembly Extron builds in the SYM BNCM series.

A hundred feet is what large venues and multi-room facilities ask for when the source equipment and the display simply cannot live near each other. Rather than splicing shorter cables together, this assembly delivers the whole distance in one factory-terminated piece: a molded 15-pin HD male connector at the source, five color-coded 75 ohm BNC male plugs at the far end, and continuous Extron MHR-5 mini high resolution cable between them. Every connection point you avoid is one less place for a long RGBHV run to lose sync.

Key Capabilities

• Complete RGBHV signal set carried on five independent 75 ohm coaxial conductors.
• 100 ft (30.4 m) in one continuous assembly, the longest length in the series.
• 26 AWG conductors, each shielded with 100% aluminum foil and a 95% tinned copper serve.
• Male BNC terminations plug straight into display, matrix and distribution amplifier inputs.
• Grounded 15-pin HD shell provides an electrostatic discharge path at the source end.
• Mini high resolution construction keeps a run this long light enough to pull by hand.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Arenas, auditoriums and convention spaces; broadcast plants where the monitor wall is a floor away from the equipment room; university lecture complexes; and command, control or medical imaging facilities distributing component video the length of a building.

Specifications at a Glance

• Length: 100 ft (30.4 m)
• Connectors: one 15-pin HD male to five 75 ohm BNC male
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCM100, SYM-BNCM-100, part number 2653307.
