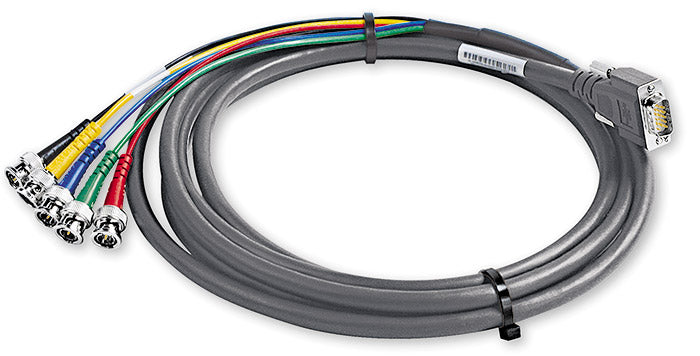

Extron SYM BNCM/1 (part number 26-533-11) — a 1 ft (30 cm) VGA to five-BNC-male breakout for short hops between adjacent AV gear.

One foot is the working length for rack neighbours: a scaler feeding the BNC inputs of the distribution amplifier one rack unit below, or a computer interface tied into a patch panel on the same shelf. The assembly starts as a molded 15-pin HD male connector and ends as five color-coded 75 ohm BNC male plugs, with Extron MHR-5 mini high resolution cable in between. The five coaxes stay bundled in one jacket, which keeps the rear of the rack readable and the sync lines from wandering off on their own.

Key Capabilities

• Separate 75 ohm coaxial paths for red, green, blue, horizontal sync and vertical sync.
• Five 26 AWG stranded tinned copper centre conductors sized for high resolution computer video.
• Each conductor is shielded by 100% aluminum foil plus a 95% tinned copper serve.
• Color-coded BNC male plugs make RGBHV termination order obvious during commissioning.
• Grounded VGA connector shell routes electrostatic discharge away from the source device.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Rack interconnects between switchers, scalers and distribution amplifiers; lectern and credenza equipment bays; broadcast and post-production patch bays; laboratory and medical imaging benches where BNC-input displays and legacy RGBHV sources share a cabinet.

Specifications at a Glance

• Length: 1 ft (30 cm)
• Connectors: one 15-pin HD male to five 75 ohm BNC male
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCM1, SYM-BNCM-1, part number 2653311.
