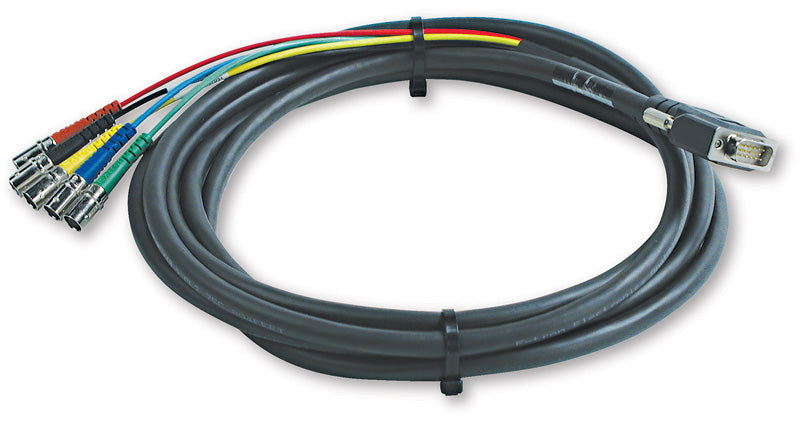

Extron SYM BNCF/75 (part number 26-531-06) — a 75 ft (22.8 m) VGA to five-BNC-female assembly built for RGBHV runs that leave the room.

When the projector hangs at the back of an auditorium and the switcher lives in a rack near the stage, seventy-five feet is what the drawing calls for. This assembly answers it with a single continuous piece of Extron MHR-5 mini high resolution cable: a molded 15-pin HD male plug at the source, five color-coded 75 ohm BNC female jacks at the far end. Keeping the whole distance inside one pre-terminated part avoids the mid-span barrel connectors and impedance discontinuities that soften high resolution RGBHV over long spans.

Key Capabilities

• Uninterrupted 75 ft path for red, green, blue and separate horizontal and vertical sync.
• Five 26 AWG coaxial conductors held at a nominal 75 ohms travel inside a single jacket.
• Shielding is applied per conductor: 100% aluminum foil coverage plus a 95% tinned copper serve.
• The VGA connector shell is grounded, giving electrostatic discharge a route away from the source.
• Female BNC terminations are ready to mate with a male-to-male BNC segment at a wall plate or patch field.
• NEC CM rated, non-plenum jacket.

Where It Is Used

Auditoriums, houses of worship, lecture theatres and training centres with long throws; command and control rooms where operator consoles sit far from the equipment rack; imaging and simulation facilities distributing five-wire component video between rooms.

Specifications at a Glance

• Length: 75 ft (22.8 m)
• Connectors: one 15-pin HD male to five 75 ohm BNC female
• Cable: Extron MHR-5, five 26 AWG coaxial conductors
• Nominal impedance: 75 ohms
• Rating: NEC CM, non-plenum

Also referenced as Extron SYMBNCF75, SYM-BNCF-75, part number 2653106.
