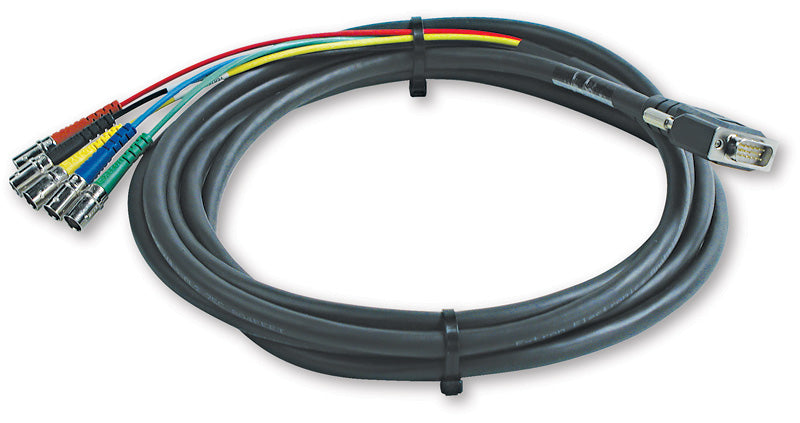

Extron SYM BNCF/25 (part number 26-531-04) — a 25 ft (7.6 m) VGA male to five-BNC-female breakout built on Extron MHR-5 cable.

Twenty-five feet is the point at which the choice of cable decides whether the job is straightforward or miserable. Five separate lengths of ordinary 75 ohm coax form a heavy, stiff bundle; MHR-5 cable, part 22-020-03, keeps the same five true 75 ohm paths in a package that is smaller in diameter and much easier to pull. Each leg ends in a colour-coded female BNC, and the moulded VGA male shell is grounded for ESD protection with an overall foil shield. NEC CM rated.

Key Capabilities

• 25 ft (7.6 m) VGA male to five BNC female breakout
• Smaller diameter and easier to pull than plain coaxial cable
• Five colour-coded 75 ohm female BNC connectors
• Extron MHR-5 cable, part number 22-020-03
• Grounded VGA shell with an overall foil shield
• NEC CM rated cable

Where It Is Used

Room-to-rack analogue video links in larger classrooms, auditoriums and control facilities, and refurbishment work where a VGA source position has to reach an established BNC patch field on the other side of the room.

Specifications at a Glance

• Length: 25 ft (7.6 m), measured tip-to-tip including connectors
• Connectors: one male 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CM

Also referenced as Extron SYMBNCF/25, SYM-BNCF-25, part number 2653104.
