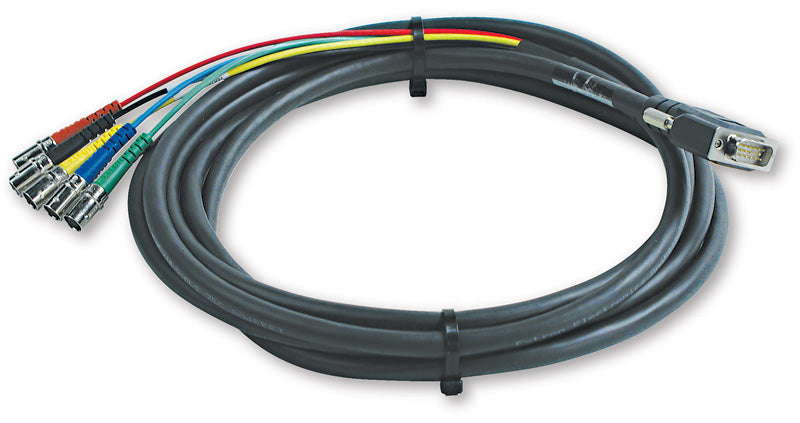

Extron SYM BNCF/12 (part number 26-531-03) — a 12 ft (3.6 m) cable running from a moulded 15-pin HD male to five colour-coded 75 ohm BNC females.

Twelve feet takes the signal out of the equipment position and across to a patch field or display without any intermediate joint. Building it as one MHR-5 assembly, part 22-020-03, keeps the five 75 ohm legs matched in length and identically shielded, which is what an RGBHV path needs if the picture is to stay registered. The male VGA end plugs straight onto the source; the moulded shell is grounded against ESD with an overall foil shield beneath, and the cable is NEC CM rated.

Key Capabilities

• 12 ft (3.6 m) VGA male to five BNC female run
• Five matched, colour-coded 75 ohm coaxial legs
• Extron MHR-5 cable, part number 22-020-03
• Male 15-pin HD connects directly to the source or display
• Grounded VGA shell with an overall foil shield
• NEC CM rated cable

Where It Is Used

Lectern to rack and rack to projector runs in classrooms, lecture halls and control rooms where a VGA source has to feed RGBHV switching, and in legacy broadcast and simulation plant still built around BNC connectivity.

Specifications at a Glance

• Length: 12 ft (3.6 m), measured tip-to-tip including connectors
• Connectors: one male 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CM

Also referenced as Extron SYMBNCF/12, SYM-BNCF-12, part number 2653103.
