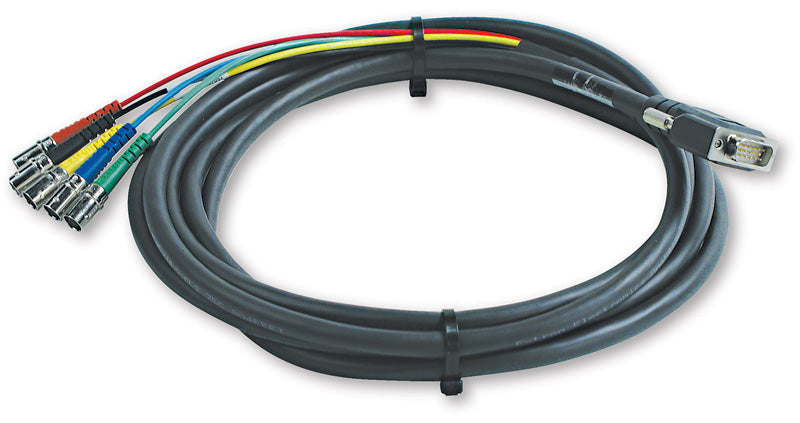

Extron SYM BNCF/0.5 (part number 26-531-01) — a 6 in (15 cm) adapter that takes a 15-pin HD male connector out to five colour-coded 75 ohm BNC females.

The male VGA end is what distinguishes this from the SYF version: it plugs directly into the video output of a source or the input of a display, rather than needing a further cable to get there. Six inches is deliberately short, sized to sit behind a panel or inside a rack without a loop of spare cable to manage. The five legs are Extron MHR-5 cable, part 22-020-03 — genuine 75 ohm coax, not thin patch wire. The moulded VGA shell is grounded for ESD protection under an overall foil shield, and the cable is NEC CM rated.

Key Capabilities

• 6 in (15 cm) VGA male to five BNC female breakout
• Male 15-pin HD plugs straight into a source or display port
• Five colour-coded 75 ohm female BNC connectors
• Extron MHR-5 cable, part number 22-020-03
• Grounded VGA shell with an overall foil shield
• NEC CM rated cable

Where It Is Used

Directly on the VGA output of a computer, scan converter or scaler that has to feed an RGBHV patch field, and inside racks where an Extron interface, switcher or distribution amplifier needs a short conversion between connector styles.

Specifications at a Glance

• Length: 6 in (15 cm)
• Connectors: one male 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CM

Also referenced as Extron SYMBNCF/0.5, SYM-BNCF-0-5, part number 2653101.
