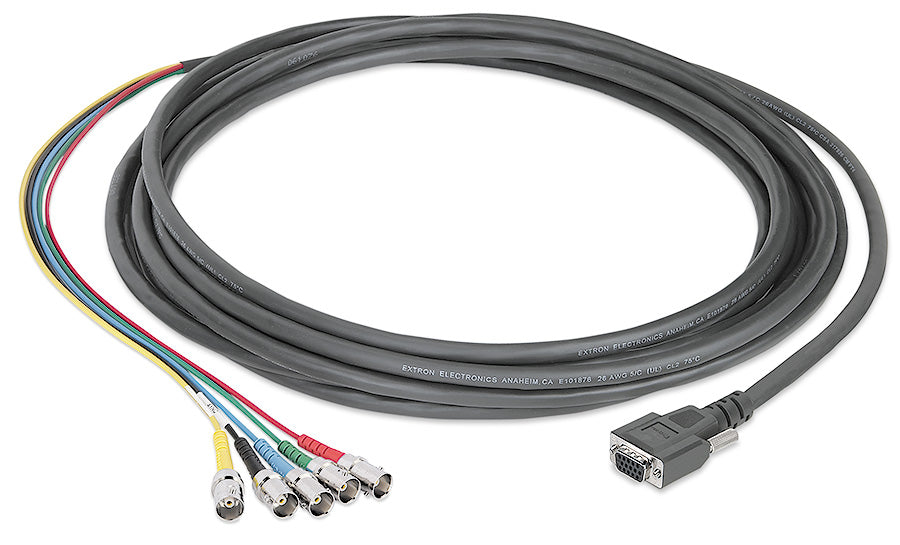

Extron SYF BNCF/75 (part number 26-532-06) — a 75 ft (22.8 m) VGA female to five-BNC-female assembly built on Extron MHR-5 cable.

Seventy-five feet of five-way analogue video is the kind of run that only works if the cable was designed for it. MHR-5, part 22-020-03, keeps each of the five 75 ohm paths intact while staying smaller in diameter and more flexible than standard coax, so the assembly can follow a real cable route rather than the shortest theoretical one. Each leg terminates in a colour-coded female BNC; the moulded VGA female shell is grounded for ESD protection and shielded with foil against interference. NEC CL2 rated.

Key Capabilities

• 75 ft (22.8 m) VGA female to five BNC female run
• Five colour-coded 75 ohm female BNC terminations
• Extron MHR-5 cable, part number 22-020-03
• More flexible and easier to pull than regular coaxial cable
• Grounded VGA shell with an overall foil shield
• NEC CL2 rated cable

Where It Is Used

Auditoriums, houses of worship and large lecture theatres feeding a projector from a remote equipment room, and command centres where the analogue source rack and the display position sit at opposite ends of the facility.

Specifications at a Glance

• Length: 75 ft (22.8 m), measured tip-to-tip including connectors
• Connectors: one female 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CL2

Also referenced as Extron SYFBNCF/75, SYF-BNCF-75, part number 2653206.
