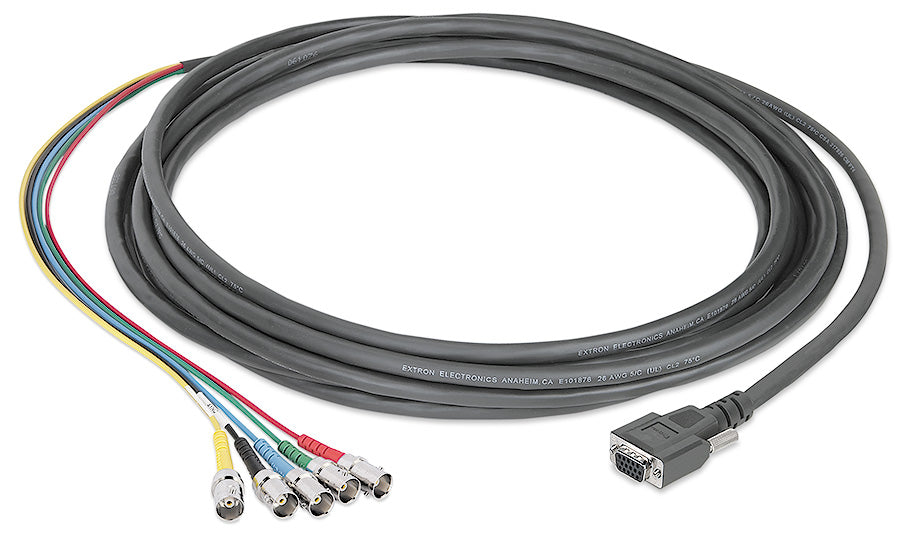

Extron SYF BNCF/6 (part number 26-532-02) — a 6 ft (1.8 m) cable that presents a 15-pin HD female at one end and five colour-coded 75 ohm BNC females at the other.

Six feet is enough to cross a rack or reach from a wall plate to a projector shelf, and at that distance the choice of cable starts to matter. Extron uses its own MHR-5 assembly, part 22-020-03: five true 75 ohm coaxial paths in a package that is noticeably smaller and more flexible than regular coax, so the run pulls easily and dresses flat. The moulded VGA shell is grounded for electrostatic discharge protection and the injection moulding carries an overall foil shield. NEC CL2 rated.

Key Capabilities

• 6 ft (1.8 m) VGA female to five BNC female cable
• Five colour-coded 75 ohm female BNC connectors
• Extron MHR-5 cable, part number 22-020-03
• Grounded VGA shell for ESD protection
• Overall foil shield for improved EMI isolation
• NEC CL2 rated cable

Where It Is Used

Classroom and lecture hall projector feeds, control room monitor positions, and rack installations where a computer-video source has to reach an RGBHV input a short distance away without a bulky five-cable bundle.

Specifications at a Glance

• Length: 6 ft (1.8 m), measured tip-to-tip including connectors
• Connectors: one female 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CL2

Also referenced as Extron SYFBNCF/6, SYF-BNCF-6, part number 2653202.
