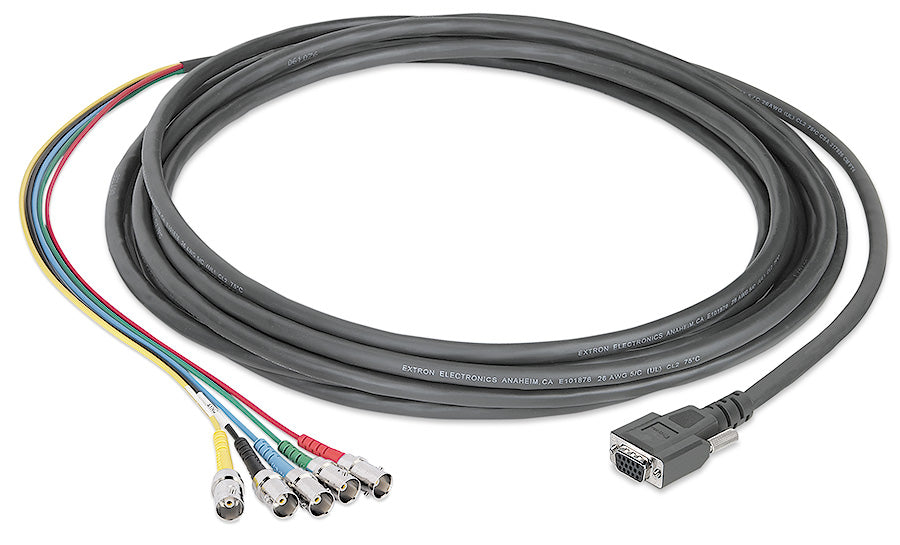

Extron SYF BNCF/3 (part number 26-532-12) — a 3 ft (90 cm) VGA female to five-BNC-female assembly, and the length Extron still lists as current in the SYF BNCF Series.

Three feet covers most in-rack and behind-plate conversions with enough slack to dress the legs properly. Each of the five BNC females terminates a separate 75 ohm coaxial run inside Extron MHR-5 cable, part 22-020-03 — smaller in diameter and considerably more flexible than ordinary coax, which is the whole reason a five-way breakout of this length is manageable at all. The moulded VGA female shell is grounded for ESD protection and foil shielded against interference; the cable is NEC CL2 rated.

Key Capabilities

• 3 ft (90 cm) VGA female to five BNC female breakout
• Five colour-coded 75 ohm female BNC terminations
• Extron MHR-5 cable, part number 22-020-03
• Thinner and easier to pull than regular coaxial cable
• Grounded VGA shell plus an overall foil shield
• NEC CL2 rated

Where It Is Used

Connecting a computer-video source to a projector or other display in classrooms, lecture halls, control rooms and broadcast facilities, and converting between VGA-terminated equipment and RGBHV patch panels inside a rack.

Specifications at a Glance

• Length: 3 ft (90 cm), measured neck-to-neck between strain reliefs
• Connectors: one female 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CL2

Also referenced as Extron SYFBNCF/3, SYF-BNCF-3, part number 2653212.
