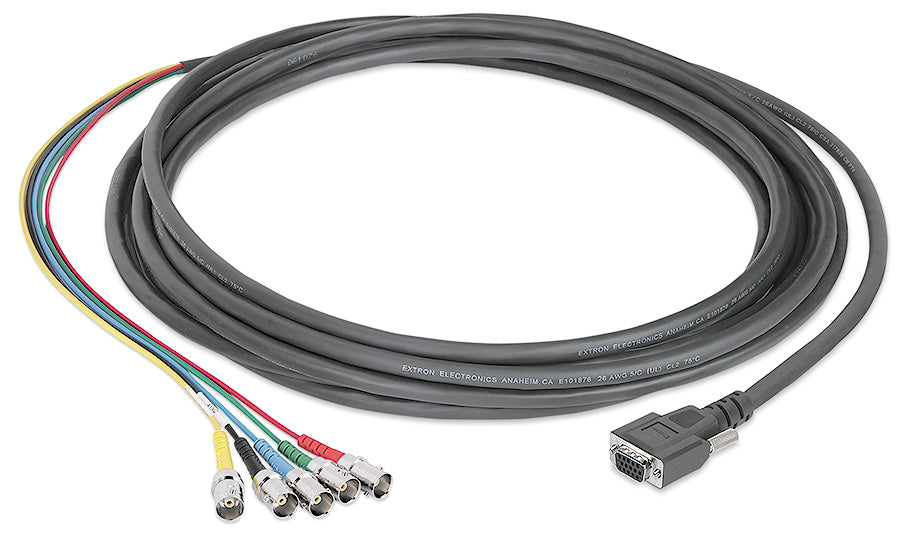

Extron SYF BNCF/12 (part number 26-532-03) — a 12 ft (3.6 m) assembly running from a 15-pin HD female to five colour-coded 75 ohm BNC females.

Twelve feet is where a home-made breakout stops being practical: five discrete coaxial runs of that length are heavy, awkward to label and easy to mismatch. Extron ships the job finished. The five legs live inside one MHR-5 cable, part 22-020-03, so they arrive matched, colour coded and terminated in proper 75 ohm BNCs. The moulded VGA female shell is grounded for ESD protection, the injection moulding includes an overall foil shield, and the cable is NEC CL2 rated.

Key Capabilities

• 12 ft (3.6 m) VGA female to five BNC female run
• Five matched, colour-coded 75 ohm coaxial legs
• Extron MHR-5 cable, part number 22-020-03
• Grounded VGA shell and an overall foil shield
• Smaller and more flexible than five separate coax runs
• NEC CL2 rated cable

Where It Is Used

Lectern-to-projector and rack-to-display runs in classrooms, auditoriums and control rooms where legacy RGBHV equipment has to accept a VGA-terminated source, or the reverse.

Specifications at a Glance

• Length: 12 ft (3.6 m), measured tip-to-tip including connectors
• Connectors: one female 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CL2

Also referenced as Extron SYFBNCF/12, SYF-BNCF-12, part number 2653203.
