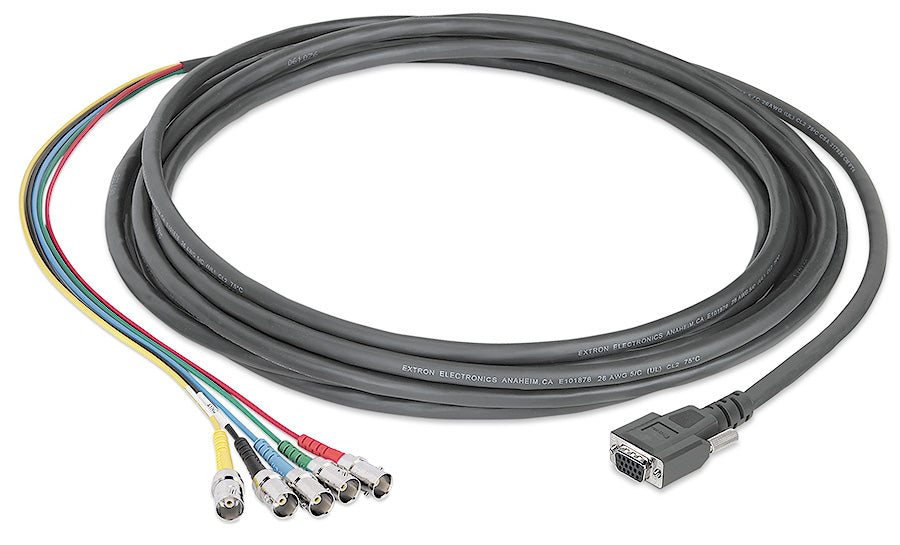

Extron SYF BNCF/100 (part number 26-532-07) — at 100 ft (30.4 m) this is the longest assembly Extron lists in the SYF BNCF Series.

A hundred feet of five-conductor analogue video is a building-scale job, and a factory-terminated assembly removes the two things most likely to go wrong: mismatched leg lengths and field-terminated BNCs. Extron builds the run on MHR-5 cable, part 22-020-03, so all five 75 ohm paths are identical and the finished bundle is smaller and more flexible than the equivalent in standard coax. Colour-coded female BNCs at one end, a grounded and foil-shielded moulded VGA female at the other, NEC CL2 rated throughout.

Key Capabilities

• 100 ft (30.4 m): the longest length in the SYF BNCF Series
• Five matched, colour-coded 75 ohm female BNC legs
• Extron MHR-5 cable, part number 22-020-03
• Smaller and more flexible than the same run in standard coax
• Grounded VGA shell with an overall foil shield
• NEC CL2 rated cable

Where It Is Used

Campus and building-wide analogue video links: a central equipment room feeding auditorium or arena displays, broadcast plant patch fields, and command centres where the display surface is a floor away from the source rack.

Specifications at a Glance

• Length: 100 ft (30.4 m), measured tip-to-tip including connectors
• Connectors: one female 15-pin HD, five female 75 ohm BNC
• Cable: Extron MHR-5, part number 22-020-03
• Rating: NEC CL2

Also referenced as Extron SYFBNCF/100, SYF-BNCF-100, part number 2653207.
