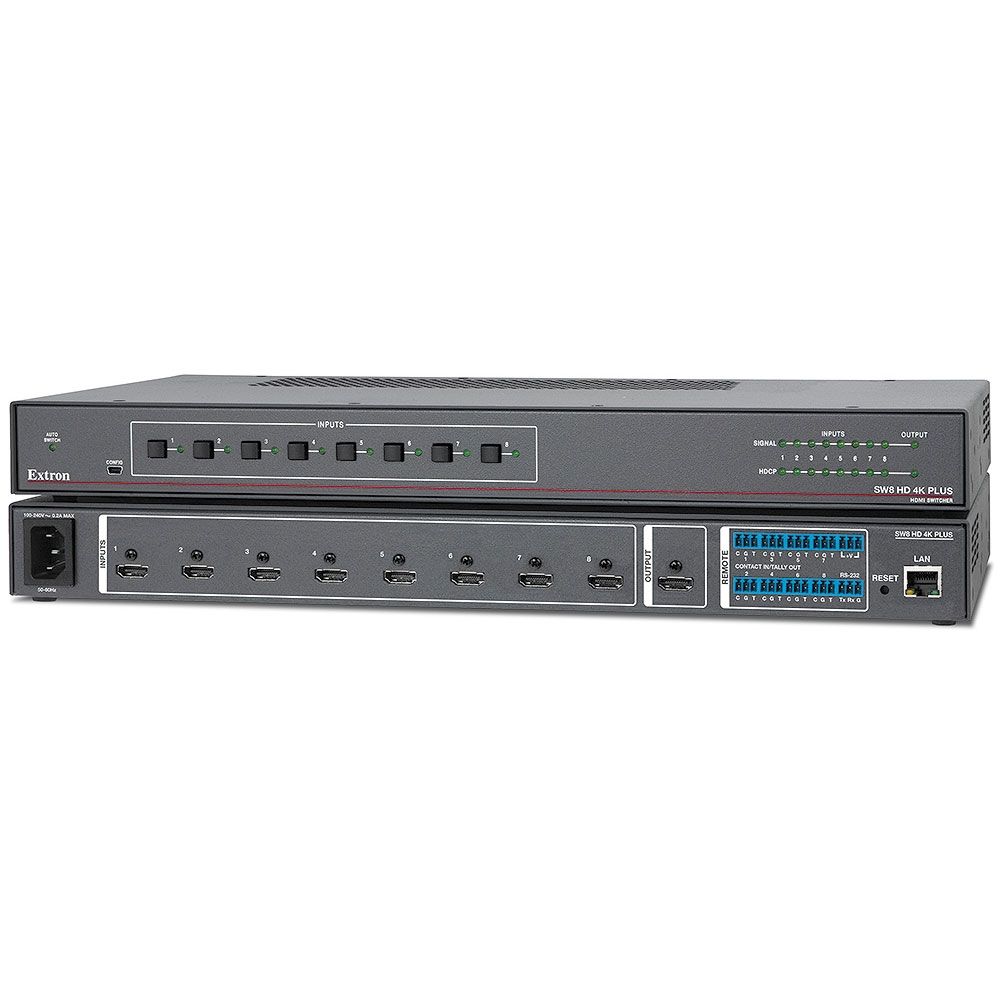

Manufacturer: Extron | Model: SW8 HD 4K Plus | Part number: 60-1606-01 (also written 60160601)

The Extron SW8 HD 4K Plus (60-1606-01) is a new eight-input HDMI switcher available through Ampronix supporting 4K/60 4:4:4 at 18 Gbps. HDCP compliant with EDID Minder, auto-switching, and front-panel, RS-232, Ethernet, and contact-closure control. The largest model in the SW HD 4K Plus Series.

Key capabilities

• Eight HDMI inputs and one output at 4K/60 4:4:4, 18 Gbps, HDCP compliant
• EDID Minder maintains continuous EDID communication
• Auto-switching, front-panel, RS-232, Ethernet, and contact-closure control
• Automatic input cable equalization to 25 ft on Extron HDMI Pro Series cable
• HDR, 12-bit Deep Color, 3D, and HD lossless audio format support

Where it is used

Large conference rooms and control stations where eight HDMI sources share one display with flexible RS-232 or network control.

Specifications at a glance

• Inputs: 8 HDMI; Output: 1 HDMI
• Max data rate: 18 Gbps; max resolution: 4K/60 4:4:4
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron SW8 HD 4K Plus 60-1606-01 available new or refurbished? - Ampronix stocks the SW8 HD 4K Plus (60-1606-01) as a new unit through its authorized Extron distribution agreement.
• Is the SW8 HD 4K Plus the largest switcher in the SW HD 4K Plus Series? - Yes. The SW8 HD 4K Plus (60-1606-01) is the eight-input model and the largest in the series; the SW2 (60-1603-01), SW4 (60-1604-01), and SW6 (60-1605-01) provide 2, 4, and 6 inputs respectively.
• Does Ampronix offer support for the Extron SW8 HD 4K Plus? - Yes. Ampronix provides repair, exchange, and replacement services for the SW8 HD 4K Plus and the broader Extron SW HD 4K switcher line.

Ampronix is an authorized Extron distributor. Need support for your Extron SW8 HD 4K Plus? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron switcher line.

Also referenced as Extron SW8HD4KPlus, SW8-HD-4K-Plus, part number 60160601.
