Details

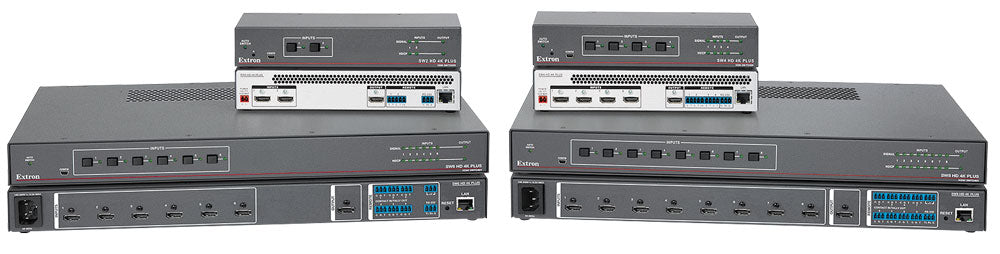

Extron SW8 HD 4K PLUS (part number 60-1606-01) — an 8x1 HDMI switcher for larger source counts that still need full 4K60 4:4:4 image quality.

Eight HDMI inputs share the same 18 Gbps switching engine as the rest of the HD 4K PLUS line, supporting 4K at 60 Hz with 4:4:4 chroma sampling and up to 12-bit color to a single HDMI output. RS-232, front-panel USB, and 10/100 Ethernet control give integrators three ways to command the switcher — including Extron SIS, Telnet, or a browser session — while eight independent tally outputs report which source is live to a control panel or status display.

Key Capabilities

8x1 HDMI switching at up to 18 Gbps (4K60 4:4:4, 12-bit color)
RS-232, USB, and 10/100 Ethernet control in one chassis
Program via Extron SIS, Telnet, or a web browser over IP
Eight independent tally/contact closure outputs, one per input
Internal power supply, no external brick to manage
1U full-rack metal enclosure, 2.5 lbs

Where It Is Used

Built for larger boardrooms, lecture capture systems, and command centers where eight HDMI sources need dependable 4K switching plus IP control and per-input status reporting.

Specifications at a Glance

8 HDMI inputs, 1 HDMI output
18 Gbps max data rate, 4K @ 60 Hz 4:4:4
Internal 100-240 VAC power supply
1.75" H x 17.5" W x 8.5" D full-rack enclosure
3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron SW8HD4KPLUS, SW8-HD-4K-PLUS, part number 60160601.

Specifications

Part Number: 60-1606-01

Manufacturer: Extron

Model: SW8 HD 4K PLUS

Condition: New

Signal Type: HDMI 2.0b, HDCP 2.3

Frame Rate: 24, 25, 30, 50, 60, 120, 144, 240 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8, 10, or 12 bits per color

Max. Video Data Rate: 18 Gbps (6 Gbps per color)

Maximum Pixel Clock: 600 MHz

Resolution Range: Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma sampling); also supports 5120x1080, 5120x1440, 5120x2160, 5120x2560, and 5120x2880 @ 30 Hz (4:4:4)

Formats: RGB and YCbCr digital video

Standards: DVI 1.0, HDMI 2.0b, HDMI 1.4, HDCP 1.4, HDCP 2.3, CEA-861E

Video Input Number/Signal Type: 8 single link HDMI (or DVI-D with adapter)

Video Input Connectors: 8 female HDMI type A

Horizontal Frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical Frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Video Output Number/Signal Type: 1 single link HDMI (or DVI-D with adapter)

Video Output Connectors: 1 female HDMI type A

Power for Active Cables: 1.1 W max. for the HDMI port

Audio Input Number/Signal Type: 8 HDMI, embedded

Audio Input Connectors: 8 female HDMI type A

Audio Output Number/Signal Type: 1 HDMI, embedded

Audio Output Connector: 1 female HDMI type A

Serial Control Port: 1 RS-232, 3.5 mm, 3 pole captive screw connector

Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = GND

Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 female mini USB B on front panel

USB Standards: USB 2.0, low speed

Ethernet Data Rate: 10/100Base-T, half/full duplex, with auto detect

Ethernet Protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, SNMP, SSH, Telnet

Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer; Telnet

Contact Closure/Tally Output: (8) 3.5 mm captive screw connector, 3 pole (C,G,T); (1) 3.5 mm captive screw connector, 3 pole (+V)

Power Supply: Internal; Input: 100-240 VAC, 50-60 Hz

Power Consumption: 12.1 watts

Thermal Dissipation: 40.4 BTU/hr

Temperature/Humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing; Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Mounting: Rack mount: yes, with supplied mounting brackets

Enclosure Type: Metal

Enclosure Dimensions: 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide) (4.4 cm H x 44.4 cm W x 21.6 cm D); depth excludes connectors

Product Weight: 2.5 lbs (1.1 kg)

Regulatory Compliance: CE, c-UL, UL, PSE, RoHS, and WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
