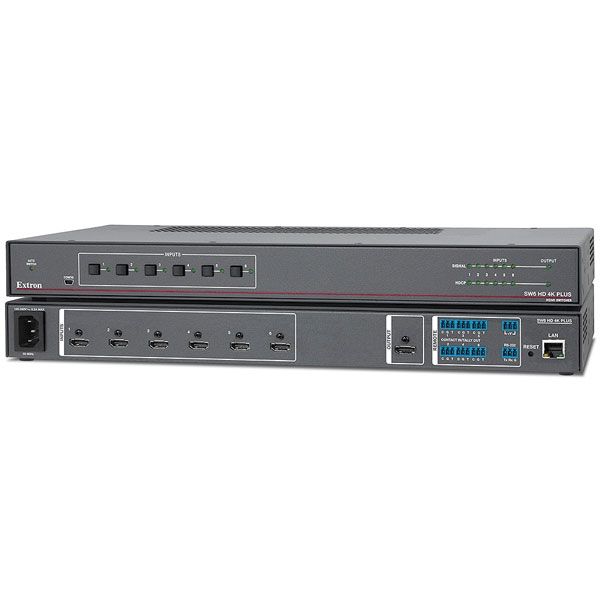

Manufacturer: Extron | Model: SW6 HD 4K Plus | Part number: 60-1605-01 (also written 60160501)

The Extron SW6 HD 4K Plus (60-1605-01) is a new six-input HDMI switcher available through Ampronix supporting 4K/60 4:4:4 at 18 Gbps. HDCP compliant with EDID Minder, auto-switching, and front-panel, RS-232, Ethernet, and contact-closure control.

Key capabilities

• Six HDMI inputs and one output at 4K/60 4:4:4, 18 Gbps, HDCP compliant
• EDID Minder maintains continuous EDID communication
• Auto-switching, front-panel, RS-232, Ethernet, and contact-closure control
• Automatic input cable equalization to 25 ft on Extron HDMI Pro Series cable
• HDR, 12-bit Deep Color, 3D, and HD lossless audio format support

Where it is used

Divisible conference rooms and lecture halls where six HDMI sources need to share one display with reliable HDCP switching.

Specifications at a glance

• Inputs: 6 HDMI; Output: 1 HDMI
• Max data rate: 18 Gbps; max resolution: 4K/60 4:4:4
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron SW6 HD 4K Plus 60-1605-01 available new or refurbished? - Ampronix stocks the SW6 HD 4K Plus (60-1605-01) as a new unit through its authorized Extron distribution agreement.
• How does the SW6 HD 4K Plus differ from the older SW6 HD 4K 60-1485-01? - The Plus model supports 4K/60 4:4:4 at 18 Gbps and includes Ethernet control; the 60-1485-01 supports up to 10.2 Gbps and is out of production.
• Does Ampronix offer support for the Extron SW6 HD 4K Plus? - Yes. Ampronix provides repair, exchange, and replacement services for the SW6 HD 4K Plus and the broader Extron SW HD 4K switcher line.

Ampronix is an authorized Extron distributor. Need support for your Extron SW6 HD 4K Plus? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron switcher line.

Also referenced as Extron SW6HD4KPlus, SW6-HD-4K-Plus, part number 60160501.
