Manufacturer: Extron | Model: SW6 HD 4K | Part number: 60-1485-01 (also written 60148501)

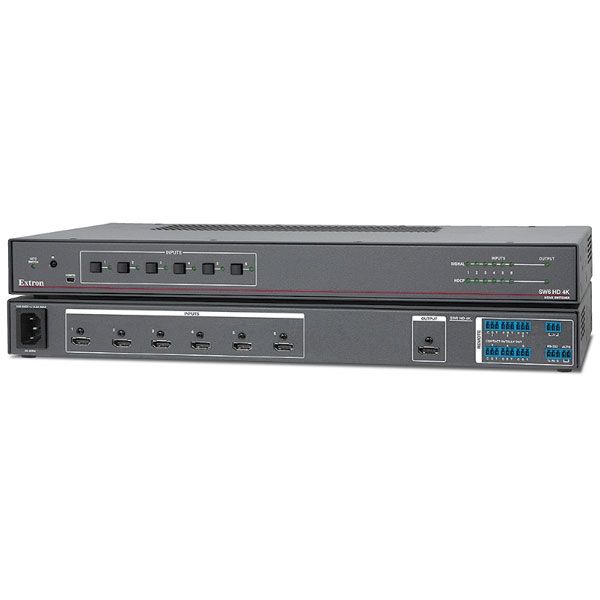

The Extron SW6 HD 4K (60-1485-01) is a six-input HDMI switcher supporting resolutions up to 4K at data rates to 10.2 Gbps. EDID Minder, front-panel, RS-232, IR, contact-closure, and auto-switching control are all included. This model is out of production and has been superseded by the SW6 HD 4K Plus (60-1605-01). Ampronix supplies certified refurbished units based on availability.

Key capabilities

• Six HDMI inputs and one output, up to 4K, 10.2 Gbps, HDCP compliant
• EDID Minder maintains continuous EDID communication
• Front-panel, RS-232, IR, contact-closure, and auto-switching control
• Automatic cable equalization to 50 ft on Extron HDMI Pro Series cable
• +5 VDC, 250 mA on HDMI output for peripheral device power

Where it is used

Conference rooms and lecture halls where six HDMI sources share one display; superseded by the SW6 HD 4K Plus (60-1605-01) for new installations.

Specifications at a glance

• Inputs: 6 HDMI; Output: 1 HDMI
• Max data rate: 10.2 Gbps; up to 4K
• Enclosure: 1U half-rack

Frequently asked questions

• Is the Extron SW6 HD 4K 60-1485-01 available new or refurbished? - The SW6 HD 4K (60-1485-01) is out of production. Ampronix supplies certified refurbished units based on availability; the current replacement is the SW6 HD 4K Plus (60-1605-01).
• What is the recommended replacement for the Extron SW6 HD 4K? - Extron designates the SW6 HD 4K Plus (60-1605-01) as the direct replacement, supporting 4K/60 4:4:4 at 18 Gbps and adding Ethernet control.
• Does Ampronix offer support for the Extron SW6 HD 4K? - Yes. Ampronix provides repair, exchange, and replacement services for the SW6 HD 4K and can source certified refurbished units based on availability.

Ampronix is an authorized Extron distributor. Need support for your Extron SW6 HD 4K? Ampronix offers professional repair, exchange, and replacement services for this product based on availability.

Also referenced as Extron SW6HD4K, SW6-HD-4K, part number 60148501.
