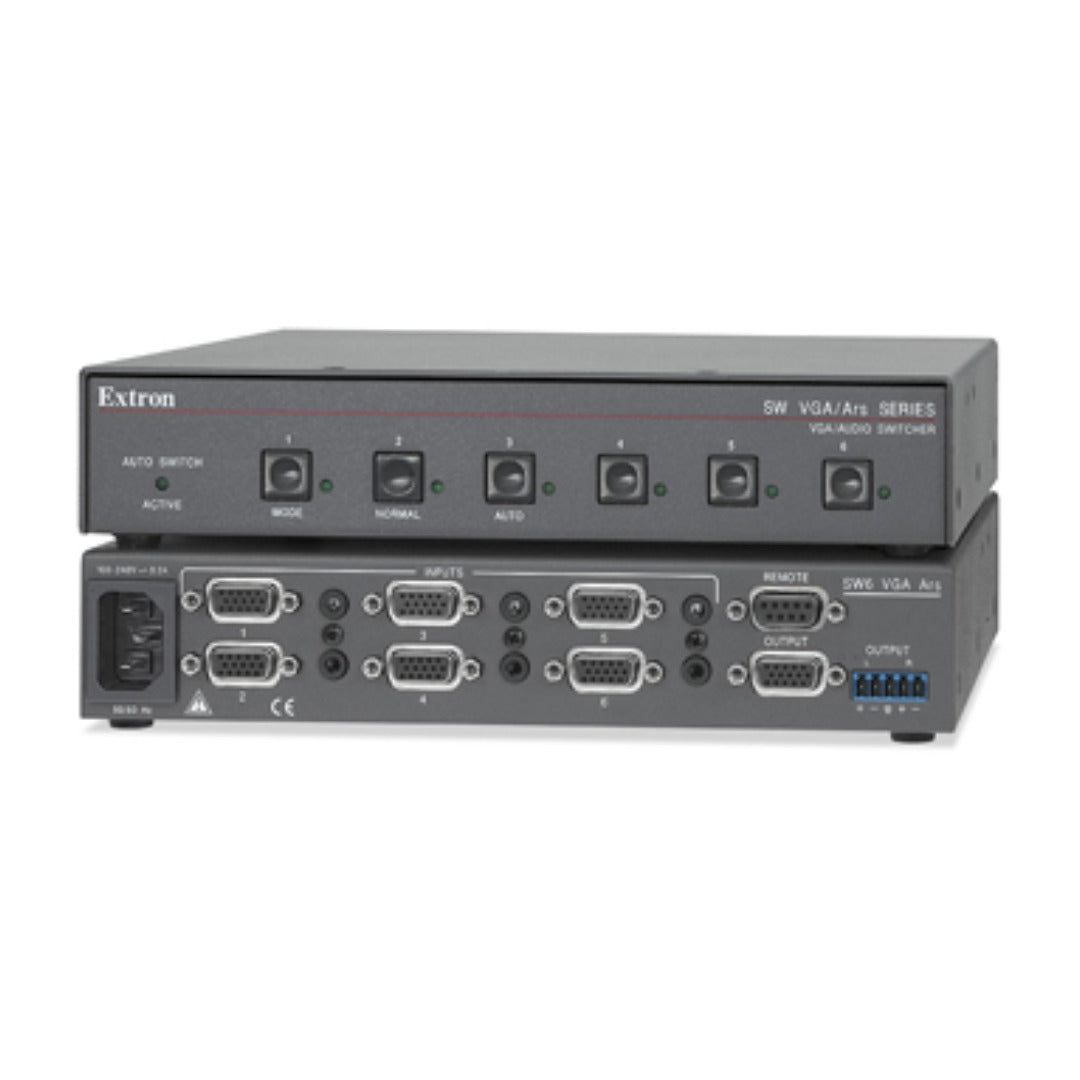

Extron SW6 VGA Ars (part number 60-259-22) — a 6x1 VGA-QXGA switcher with stereo audio switching for larger multi-source rooms.

Six RGBHV/RGBS/RGsB/RsGsBs or HDTV component video sources connect over 15-pin HD, each paired with a 3.5 mm stereo audio input that follows the selected video to a single balanced/unbalanced output. Bandwidth reaches 350 MHz, and control runs through the front panel, RS-232, or a shared 9-pin D contact closure so the SW6 VGA Ars integrates cleanly with an existing AV control system.

Key Capabilities

6x1 VGA-QXGA video switching at 350 MHz (-3 dB) bandwidth
6-input stereo audio switching that tracks the active video source
Balanced/unbalanced audio output on a 5-pole captive screw connector
RS-232 control shared with 9-pin D contact closure
Show Me contact closure for active-input status reporting
1U half-rack metal enclosure, 2.5 lbs

Where It Is Used

Fits lecture halls, boardrooms, and control rooms where up to six sources each need their own audio to switch in sync with video to a shared display and sound system.

Specifications at a Glance

6 VGA/HD-15 + stereo audio inputs, 1 VGA/HD-15 + audio output
350 MHz (-3 dB) video bandwidth
Internal 100-240 VAC power supply, 10 watts
1.75" H x 8.75" W x 9.5" D half-rack enclosure
3-year Extron product warranty

Also referenced as Extron SW6VGAArs, SW6-VGA-Ars, part number 6025922.

Specifications

Part Number: 60-259-22

Manufacturer: Extron

Model: SW6 VGA Ars

Condition: New

Gain: Unity

Bandwidth: 350 MHz (-3 dB)

Crosstalk (Video): -68 dB @ 10 MHz

Video Input Number/Signal Type: 6 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video

Video Input Connectors: 6 female 15-pin HD

Video Input Nominal Level: 1.0 Vp-p for Y of component video; 0.7 Vp-p for RGB and for R-Y and B-Y of component video

Video Input Min/Max Levels: Analog: 0.3 V to 1.5 Vp-p with no offset

Video Impedance: 75 ohms

Horizontal Frequency: 15 kHz to 145 kHz

Vertical Frequency: 30 Hz to 170 Hz

Video Input Return Loss: -40 dB @ 5 MHz

Input Coupling: DC

Video Output Number/Signal Type: 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video (follows input type)

Video Output Connectors: (1) female 15-pin HD

Video Output Return Loss: -43 dB @ 5 MHz

Video Output DC Offset: ±5 mV with input at 0 offset

Sync Input Type: RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync

Sync Output Type: RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync (follows input)

Sync Input Level: 1.0 V to 5.0 Vp-p

Sync Output Level: TTL: 5.0 Vp-p, unterminated

Sync Input Impedance: 510 ohms

Sync Output Impedance: 75 ohms

Max. Propagation Delay: 47 ns

Max. Rise/Fall Time: 4.2 ns

Sync Polarity: Positive or negative (follows input)

Audio Gain: Unbalanced output: +6 dB; balanced output: +12 dB

Audio Frequency Response: 20 Hz to 20 kHz, ±0.05 dB

Audio THD + Noise: 0.01% @ 1 kHz at nominal level

Audio S/N: >90 dB at maximum output (unweighted)

Audio Crosstalk: -45 dB @ 20 kHz, -72 dB @ 1 kHz or below 60 Hz

Stereo Channel Separation: >80 dB @ 20 Hz to 20 kHz

Audio Input Number/Signal Type: 6 stereo, unbalanced

Audio Input Connectors: 6 3.5 mm female stereo mini jacks; tip (L), ring (R), sleeve (Gnd)

Audio Input Impedance: >10k ohms unbalanced, DC coupled

Audio Input Nominal Level: -10 dBV (316 mV)

Audio Input Maximum Level: +16 dBV (unbalanced) at 1% THD+N

Audio Output Number/Signal Type: 1 stereo, balanced/unbalanced

Audio Output Connectors: (1) 3.5 mm captive screw connector, 5 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: +4 dBu (1.23 V), balanced; -4 dBV (0.63 V), unbalanced

Audio Output Maximum Level (Hi-Z): +28 dBu, balanced; +20 dBV, unbalanced at 1% THD+N

Audio Output Maximum Level (600 ohm): +21 dBm, balanced; +18 dBm, unbalanced at 1% THD+N

Serial Control Port: RS-232, 9-pin female D connector (shared with contact closure)

Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pin Configuration: 2 = TX, 3 = RX, 5 = GND

Contact Closure: RS-232 9-pin female D connector (shared with RS-232)

Contact Closure Pin Configuration: 1 = input #1, 4 = input #2, 6 = input #3, 7 = input #4, 8 = input #5, 9 = input #6; active when a pin momentarily shorts to ground

Show Me Contact Closure: Pin 5 of each VGA input connector; the input is active (selected) when pin 5 momentarily goes to ground

Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS)

Power: 100 VAC to 240 VAC, 50/60 Hz, 10 watts, internal

Temperature/Humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing; Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Cooling: Convection, unvented

Mounting: Rack mount: yes, with optional 1U 9.5" deep rack shelf (RSU 129, #60-190-01 or RSB 129, #60-604-01); Furniture mount: yes, with optional under-desk kit (#70-077-01) or through-desk kit (#70-077-02)

Enclosure Type: Metal

Enclosure Dimensions: 1.75" H x 8.75" W x 9.5" D (1U high, half rack wide) (4.4 cm H x 22.2 cm W x 24.1 cm D); depth excludes connectors

Product Weight: 2.5 lbs (1.1 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: Listings: UL, CUL; Compliances: CE, FCC Class A, VCCI, AS/NZS, ICES

Product Warranty: 3 years parts and labor
