Extron SW6 HD 4K PLUS 6x1 HDMI 2.0 4K Switcher 60-1605-01

Extron SW6 HD 4K PLUS 6x1 HDMI 2.0 4K Switcher 60-1605-01

Manufacturer: Extron

Type: Switchers

Extron SW6 HD 4K PLUS 6x1 HDMI Switcher

  • • 6x1 HDMI switching at up to 18 Gbps (4K60 4:4:4, 12-bit color)
  • • RS-232, USB, and 10/100 Ethernet control in one chassis
  • • Program via Extron SIS, Telnet, or a web browser over IP
  • • Six independent tally/contact closure outputs, one per input
  • • Internal power supply, no external brick to manage
  • • 1U full-rack metal enclosure, 2.5 lbs

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-SW6HD4KPLUS-60160501

Details

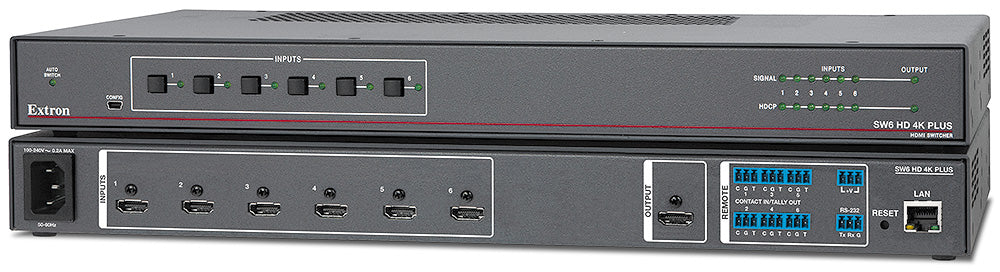

Extron SW6 HD 4K PLUS (part number 60-1605-01) — a 6x1 HDMI switcher in a full-rack chassis for rooms that need more inputs than the SW4 without giving up 4K60 4:4:4 support.

Six HDMI inputs share 18 Gbps of switching bandwidth, enough for 4K at 60 Hz with full 4:4:4 chroma and up to 12-bit color, routed to a single HDMI output. Control runs over RS-232, front-panel USB, or 10/100 Ethernet using Extron's SIS protocol, Telnet, or a browser session, and six independent tally outputs plus a shared status pin make source-select indicators straightforward to wire into a control panel.

Key Capabilities

  • 6x1 HDMI switching at up to 18 Gbps (4K60 4:4:4, 12-bit color)
  • RS-232, USB, and 10/100 Ethernet control in one chassis
  • Program via Extron SIS, Telnet, or a web browser over IP
  • Six independent tally/contact closure outputs, one per input
  • Internal power supply, no external brick to manage
  • 1U full-rack metal enclosure, 2.5 lbs

Where It Is Used

Suited to mid-size conference rooms and training spaces where six HDMI sources — laptops, media players, cameras — need reliable 4K switching with per-input status reporting to a control system.

Specifications at a Glance

  • 6 HDMI inputs, 1 HDMI output
  • 18 Gbps max data rate, 4K @ 60 Hz 4:4:4
  • Internal 100-240 VAC power supply
  • 1.75" H x 17.5" W x 8.5" D full-rack enclosure
  • 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron SW6HD4KPLUS, SW6-HD-4K-PLUS, part number 60160501.
