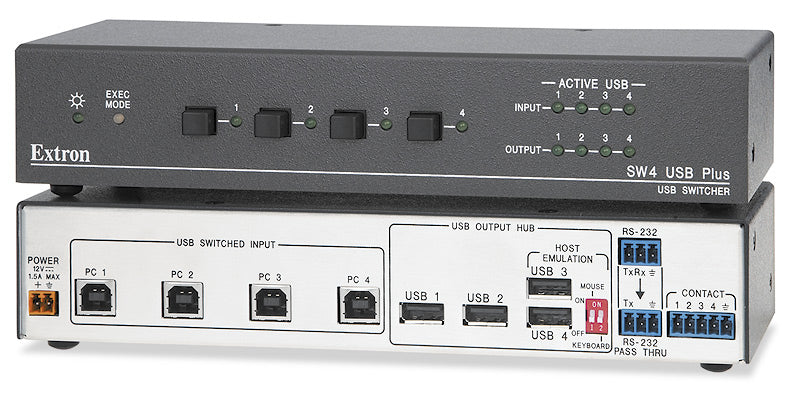

Extron SW4 USB Plus 60-954-02

Extron SW4 USB Plus 4-Input USB Switcher w/ Host Emulation 60-954-02

Extron SW4 USB Plus 4-Input USB Switcher w/ Host Emulation 60-954-02

Manufacturer: Extron

Type: Switchers

Extron SW4 USB Plus 4-Input USB Switcher

  • • 4-input USB 2.0 switcher keeps peripherals connected via emulation
  • • Host/keyboard/mouse emulation avoids re-enumeration delays
  • • Two built-in USB hubs support expanded peripheral loads
  • • 500 mA shared output power across four USB type A ports
  • • RS-232 control and pass-through for integration flexibility
  • • 3-year product warranty, 7-year Everlast power supply warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-SW4USBPLUS-6095402

Details

Extron SW4 USB Plus (part number 60-954-02) is Extron's emulation-capable 4-input USB 2.0 switcher, listed here under a separate Extron stock number from the 60-954-01.

The Plus model keeps USB sessions alive across switching by emulating host and keyboard/mouse traffic internally, avoiding the re-enumeration delay of a standard USB switcher. Four hosts share access to two built-in hubs, selectable from the front panel, RS-232, or contact closure, with RS-232 pass-through preserving compatibility with an existing control system.

Key Capabilities

  • 4 USB type B inputs with switching to a shared USB hub bank
  • Host/peripheral emulation mode keeps devices from dropping connection
  • Two built-in USB hubs for expanded peripheral support
  • 500 mA shared output power across four USB type A ports
  • RS-232 control and pass-through for integration with control processors
  • Compact 1U half-rack metal chassis, 2.0 lbs

Where It Is Used

Common in higher-ed classrooms, courtroom evidence stations, and multi-operator control rooms where continuous USB peripheral connectivity through switching is a requirement, not a nice-to-have.

Specifications at a Glance

  • 4 USB type B inputs / 4 USB type A outputs
  • USB 2.0 compatible, up to 480 Mbps
  • External 12 VDC, 18 W power supply
  • 1.6" H x 8.6" W x 3.0" D half-rack enclosure
  • 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron SW4USBPlus, SW4-USB-Plus, part number 6095402.
