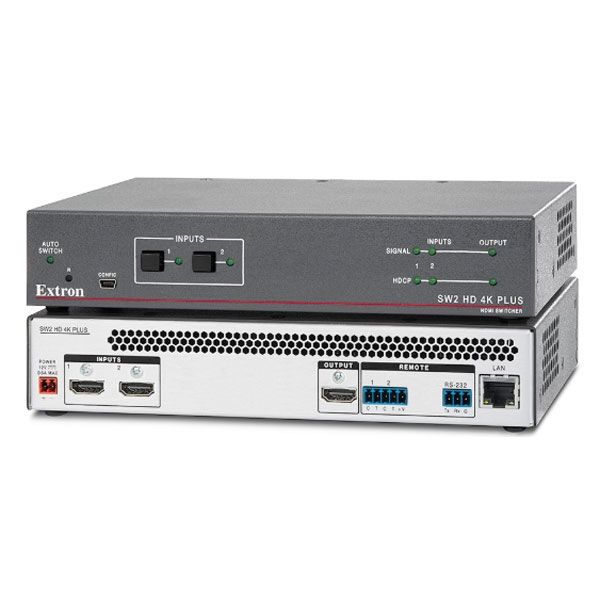

Manufacturer: Extron | Model: SW2 HD 4K Plus | Part number: 60-1603-01 (also written 60160301)

The Extron SW2 HD 4K Plus (60-1603-01) is a new two-input HDMI switcher available through Ampronix supporting 4K/60 4:4:4 at 18 Gbps. HDCP compliant with EDID Minder for continuous EDID management, auto-switching between inputs, and front-panel, RS-232, Ethernet, and contact-closure control. Input cable equalization extends reliable operation to 25 ft on Extron HDMI Pro Series cable.

Key capabilities

• Two HDMI inputs and one output at 4K/60 4:4:4, 18 Gbps, HDCP compliant
• EDID Minder maintains continuous EDID communication to keep sources active
• Auto-switching, front-panel, RS-232, Ethernet, and contact-closure control
• Automatic input cable equalization to 25 ft on Extron HDMI Pro Series cable
• HDR, 12-bit Deep Color, 3D, and HD lossless audio format support

Where it is used

Conference rooms and huddle spaces where two HDMI sources share a single display with flexible control options and reliable HDCP switching.

Specifications at a glance

• Inputs: 2 HDMI; Output: 1 HDMI
• Max data rate: 18 Gbps; max resolution: 4K/60 4:4:4
• Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions

• Is the Extron SW2 HD 4K Plus 60-1603-01 available new or refurbished? - Ampronix stocks the SW2 HD 4K Plus (60-1603-01) as a new unit through its authorized Extron distribution agreement.
• How does the SW2 HD 4K Plus differ from the older SW2 HD 4K 60-1483-01? - The Plus model supports 4K/60 4:4:4 at 18 Gbps and includes Ethernet control; the older 60-1483-01 supports up to 10.2 Gbps and is out of production.
• Does Ampronix offer support for the Extron SW2 HD 4K Plus? - Yes. Ampronix provides repair, exchange, and replacement services for the SW2 HD 4K Plus and the broader Extron SW HD 4K switcher line.

Ampronix is an authorized Extron distributor. Need support for your Extron SW2 HD 4K Plus? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron switcher line.

Also referenced as Extron SW2HD4KPlus, SW2-HD-4K-Plus, part number 60160301.
