Details

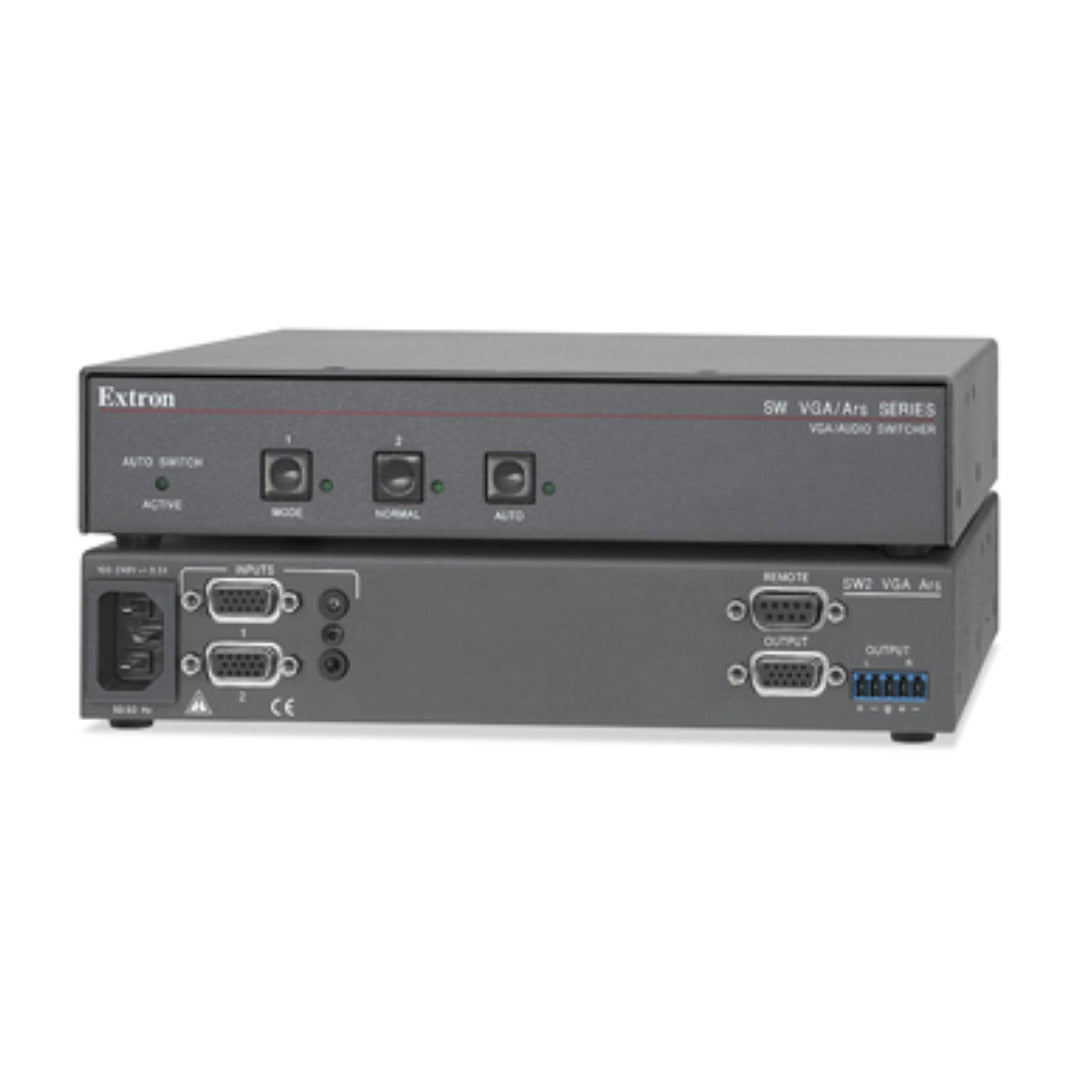

Extron SW2 VGA Ars (part number 60-257-22) — a 2x1 VGA-QXGA switcher that pairs full-bandwidth computer video switching with balanced stereo audio.

Like the SW2 VGArs, the Ars variant handles two RGBHV/RGBS/RGsB/RsGsBs or HDTV component video sources through 15-pin HD connectors at up to 350 MHz. It adds a pair of 3.5 mm stereo audio inputs that follow the selected video source to a single balanced/unbalanced audio output, so video and sound switch together automatically. RS-232 and contact closure control keep it compatible with existing AV control processors.

Key Capabilities

2x1 VGA-QXGA video switching at 350 MHz (-3 dB) bandwidth
Follows video with 2-input stereo audio switching on 3.5 mm jacks
Balanced/unbalanced audio output on a 5-pole captive screw connector
RS-232 control shared with 9-pin D contact closure
Show Me contact closure for active-input status reporting
1U half-rack metal enclosure, 2.5 lbs

Where It Is Used

Suited to huddle rooms and small classrooms where a presenter needs one-touch switching between two VGA sources with audio following the picture, without a separate audio switcher.

Specifications at a Glance

2 VGA/HD-15 + stereo audio inputs, 1 VGA/HD-15 + audio output
350 MHz (-3 dB) video bandwidth
Internal 100-240 VAC power supply, 10 watts
1.75" H x 8.75" W x 9.5" D half-rack enclosure
3-year Extron product warranty

Also referenced as Extron SW2VGAArs, SW2-VGA-Ars, part number 6025722.

Specifications

Part Number: 60-257-22

Manufacturer: Extron

Model: SW2 VGA Ars

Condition: New

Gain: Unity

Bandwidth: 350 MHz (-3 dB)

Crosstalk (Video): -68 dB @ 10 MHz

Video Input Number/Signal Type: 2 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video

Video Input Connectors: 2 female 15-pin HD

Video Input Nominal Level: 1.0 Vp-p for Y of component video; 0.7 Vp-p for RGB and for R-Y and B-Y of component video

Video Input Min/Max Levels: Analog: 0.3 V to 1.5 Vp-p with no offset

Video Impedance: 75 ohms

Horizontal Frequency: 15 kHz to 145 kHz

Vertical Frequency: 30 Hz to 170 Hz

Video Input Return Loss: -40 dB @ 5 MHz

Input Coupling: DC

Video Output Number/Signal Type: 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video (follows input type)

Video Output Connectors: (1) female 15-pin HD

Video Output Return Loss: -43 dB @ 5 MHz

Video Output DC Offset: ±5 mV with input at 0 offset

Sync Input Type: RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync

Sync Output Type: RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync (follows input)

Sync Input Level: 1.0 V to 5.0 Vp-p

Sync Output Level: TTL: 5.0 Vp-p, unterminated

Sync Input Impedance: 510 ohms

Sync Output Impedance: 75 ohms

Max. Propagation Delay: 47 ns

Max. Rise/Fall Time: 4.2 ns

Sync Polarity: Positive or negative (follows input)

Audio Gain: Unbalanced output: +6 dB; balanced output: +12 dB

Audio Frequency Response: 20 Hz to 20 kHz, ±0.05 dB

Audio THD + Noise: 0.01% @ 1 kHz at nominal level

Audio S/N: >90 dB at maximum output (unweighted)

Audio Crosstalk: -45 dB @ 20 kHz, -72 dB @ 1 kHz or below 60 Hz

Stereo Channel Separation: >80 dB @ 20 Hz to 20 kHz

Audio Input Number/Signal Type: 2 stereo, unbalanced

Audio Input Connectors: 2 3.5 mm female stereo mini jacks; tip (L), ring (R), sleeve (Gnd)

Audio Input Impedance: >10k ohms unbalanced, DC coupled

Audio Input Nominal Level: -10 dBV (316 mV)

Audio Input Maximum Level: +16 dBV (unbalanced) at 1% THD+N

Audio Output Number/Signal Type: 1 stereo, balanced/unbalanced

Audio Output Connectors: (1) 3.5 mm captive screw connector, 5 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: +4 dBu (1.23 V), balanced; -4 dBV (0.63 V), unbalanced

Audio Output Maximum Level (Hi-Z): +28 dBu, balanced; +20 dBV, unbalanced at 1% THD+N

Audio Output Maximum Level (600 ohm): +21 dBm, balanced; +18 dBm, unbalanced at 1% THD+N

Serial Control Port: RS-232, 9-pin female D connector (shared with contact closure)

Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial Control Pin Configuration: 2 = TX, 3 = RX, 5 = GND

Contact Closure: RS-232 9-pin female D connector (shared with RS-232)

Contact Closure Pin Configuration: 1 = input #1, 4 = input #2, 6 = input #3, 7 = input #4, 8 = input #5, 9 = input #6; active when a pin momentarily shorts to ground

Show Me Contact Closure: Pin 5 of each VGA input connector; the input is active (selected) when pin 5 momentarily goes to ground

Program Control: Extron control/configuration program for Windows; Extron Simple Instruction Set (SIS)

Power: 100 VAC to 240 VAC, 50/60 Hz, 10 watts, internal

Temperature/Humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing; Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Cooling: Convection, unvented

Mounting: Rack mount: yes, with optional 1U 9.5" deep rack shelf (RSU 129, #60-190-01 or RSB 129, #60-604-01); Furniture mount: yes, with optional under-desk kit (#70-077-01) or through-desk kit (#70-077-02)

Enclosure Type: Metal

Enclosure Dimensions: 1.75" H x 8.75" W x 9.5" D (1U high, half rack wide) (4.4 cm H x 22.2 cm W x 24.1 cm D); depth excludes connectors

Product Weight: 2.5 lbs (1.1 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Regulatory Compliance: Listings: UL, CUL; Compliances: CE, FCC Class A, VCCI, AS/NZS, ICES

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | SW2 VGA Ars 60-257-22 | SW VGA Series

Brochure | SW2 VGA Ars 60-257-22 | Everlast Power Supplies

Brochure | SW2 VGA Ars 60-257-22 | Alimentatori Everlast

Brochure | SW2 VGA Ars 60-257-22 | Everlast 电源

Brochure | SW2 VGA Ars 60-257-22 | Everlast-Netzteile

Brochure | SW2 VGA Ars 60-257-22 | Fuentes de alimentación Everlast

Brochure | SW2 VGA Ars 60-257-22 | Sources d'alimentation Everlast

Brochure | SW2 VGA Ars 60-257-22 | SW 2 VGA ARs - Spec Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW 2 VGA Rs - Spec Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW 4 VGA ARs - Spec Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW 4 VGA Rs - Spec Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW 6 VGA ARs - Spec Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW 6 VGA Rs - Spec Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW 8 VGA Ars - Bid Sheet

Brochure | SW2 VGA Ars 60-257-22 | SW12 VGA Ars - Bid Sheet

Manual | SW2 VGA Ars 60-257-22 | Audio Connector Wiring Instruction Card

Manual | SW2 VGA Ars 60-257-22 | Cleaning Instruction Card

Manual | SW2 VGA Ars 60-257-22 | SW VGArs / Ars Setup Guide

Manual | SW2 VGA Ars 60-257-22 | SW VGArs /Ars

Manual | SW2 VGA Ars 60-257-22 | SW8/SW12 VGA Ars

Manual | SW2 VGA Ars 60-257-22 | SW8/SW12 VGA Ars setup guide

Specifications | SW2 VGA Ars 60-257-22 | SW2/4/6/8/12 VGA Ars Switchers

Panel Drawing | SW2 VGA Ars 60-257-22 | SW VGA
